Base
1.6L, 6-speed manual, 5-door Panel Van, Diesel, FWD
Save $$$ with CarExpert*
$45,100â€
Base
Overview

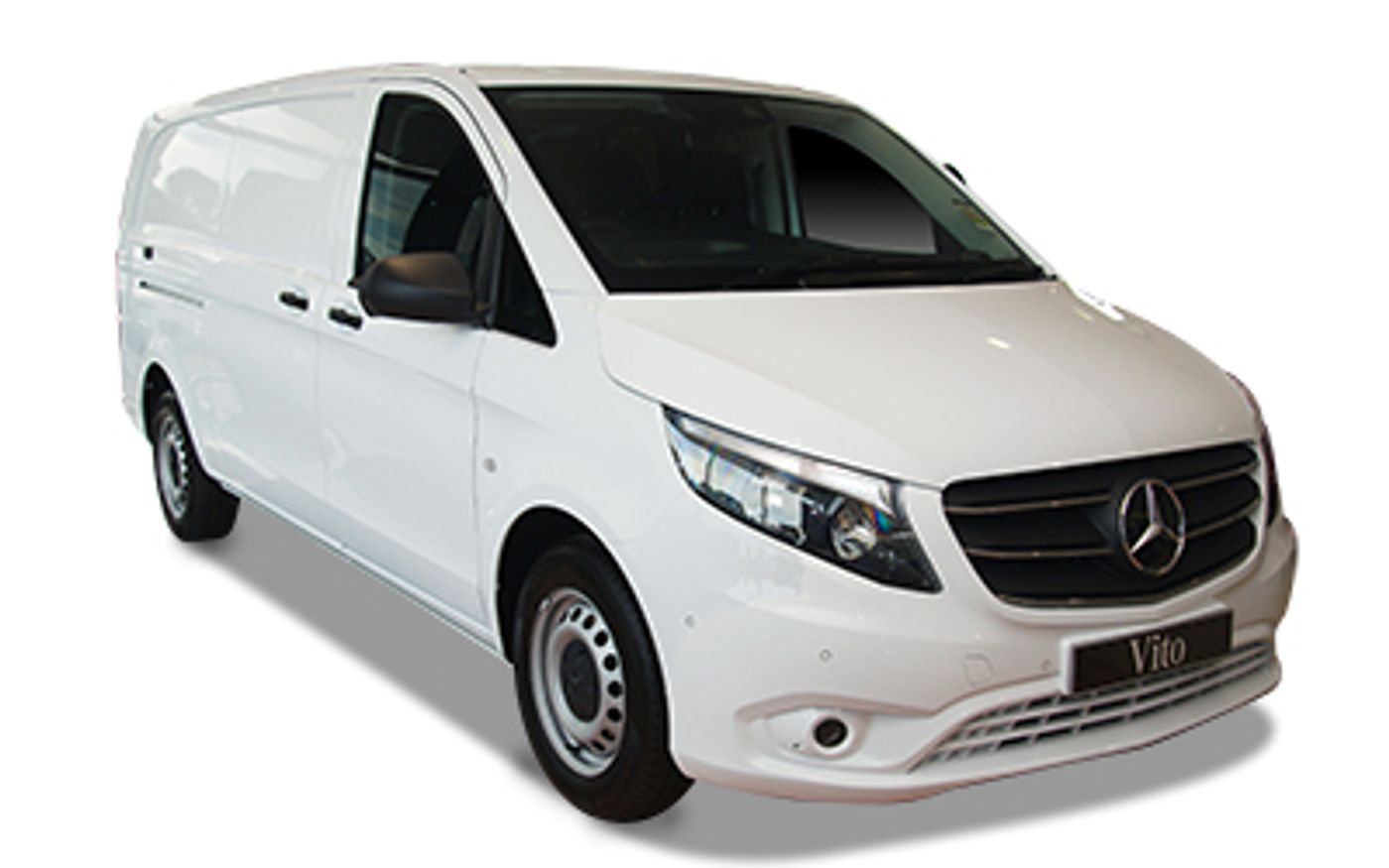

The 2021 Mercedes-Benz Vito Base is a front-wheel drive, 5-door Panel Van that was released to the Australian market on 3rd February 2021. The Mercedes-Benz Vito is regarded as a Van Under 3.5t built in Spain with prices starting at $45,100 before on-road costs.
This Mercedes-Benz Vito is powered by a 1.6L 4-cylinder engine that has 84 kW of power (at 3800 rpm) and 270 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. Mercedes-Benz claims the Vito Base uses 6.3L/100km of Diesel in the combined city and highway cycle while putting out 166g of CO2. It has a 70L fuel tank, meaning it should be able to travel 1111km per full tank
The Mercedes-Benz Vito measures 1910mm (75.2 inches) in height, 5370mm (211.4 inches) in length, 1928mm (75.9 inches) in width with a 3430mm (135.0 inches) wheelbase that brings about a total of 1852kg (4083.0 lbs) of unladen weight. The Vito Base comes standard with 205/65 R16 front tyres and 205/65 R16 rear tyres. It requires a service every 12 months or 25,000 km, whichever comes first. It has a 60 month, 250,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Vito compare?
Quickly see how the 2021 Mercedes-Benz Vito Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
45.36 - 70.42 kW/t
27.76 kW/t
81.55 kW/t
Fuel Efficiency
6.2 - 6.8 L/100km
4.9 L/100km
11.1 L/100km
Vehicle Range
1,029 - 1,129 km
649 km
1,290 km
Price
$42,900 - $70,606
$25,990
$70,606
Warranty (Years)
5 years
3 years
10 years
Warranty (Distance)
250,000 km
100,000 km
Unlimited
Years on Sale
2 years
1 year
6 years
Service Interval
12 months
6 months
24 months
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,370 mm
1,928 mm
inc mirror: 2,244 mm
inc mirror: 2,244 mm
1,910 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,370 mm |
| Overall Width | 1,928 mm |
| Overall Width (Inc Mirror) | 2,244 mm |
| Overall Height | 1,910 mm |
| Wheelbase | 3,430 mm |
| Load Capacity | 1,198 mm |
Looking for complete Mercedes-Benz Vito size & space specs?
Our Mercedes-Benz Vito Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Mercedes-Benz Vito Features & Specs
Compressor
Compressor: Turbo
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 143
CO2 Level (Combined): 166
CO2 Level (Urban): 205
Standard Met: EU5
Engine
Bore Engine: 80.0
Engine (cc): 1598
Engine Configuration: In-Line
Engine Code: Om 622 De16la
Engine (L): 1.6
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 79.5
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Capacity Uk Gallons: 15.4
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1111
ADR 81/02 Calculated Vehicle Range (miles): 690
ADR 81/02 Combined (km/L): 15.9
ADR 81/02 Combined (L/100km): 6.3
ADR 81/02 Combined (miles per UK gallon): 45
ADR 81/02 Combined (mpg): 37
ADR 81/02 Country Highway (km/L): 18.5
ADR 81/02 Country Highway (L/100km): 5.4
ADR 81/02 Country Highway (miles per UK gallon): 52
ADR 81/02 Country Highway (mpg): 44
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 12.8
ADR 81/02 Urban (L/100km): 7.8
ADR 81/02 Urban (miles per UK gallon): 36
ADR 81/02 Urban (mpg): 30
Fuel Economy
ADR 81/02 (L/100km): 6.3
Power
Maximum Power (hp/PS): 114
Maximum Power (kW): 84
Maximum Torque (Nm): 270
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Front
Transmission
Description: Manual
Number of Speeds: 6
Shift Lever Location: Dash
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Trailing Arm
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 103
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Load Index: 103
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Panel Van
Local Body Type: Panel Van
Platform Code: Ncv2
Roof Type: Standard
Wheelbase Type: Long
Chrome Bright Trim
Bright Chrome Trim on Front Grille: yes
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 233.1
Cargo Volume (L): 6600
Height (in): 49.3
Height (mm): 1685
Length (in): 120.5
Length (mm): 3061
Loading Floor Height (in): 22.0
Loading Floor Height (mm): 558
Standard Measurement: VDA
Width Between Wheelhouses (in): 50.0
Width Between Wheelhouses (mm): 1270
Width (in): 66.3
Width (mm): 1685
External Dimensions
Front Overhang (in): 35.2
Front Overhang (mm): 895
Front Track (in): 65.6
Front Track (mm): 1666
Overall Height (in): 75.2
Overall Height (mm): 1910
Overall Length (in): 211.4
Overall Length (mm): 5370
Overall Width (in): 75.9
Overall Width Inc Mirror (in): 88.3
Overall Width Inc Mirror (mm): 2244
Overall Width (mm): 1928
Rear Overhang (in): 41.1
Rear Overhang (mm): 1045
Rear Track (in): 64.8
Rear Track (mm): 1646
Wall to Wall Turning Circle (ft): 44.9
Wall to Wall Turning Circle (mm): 13700
Wheelbase (in): 135.0
Wheelbase (mm): 3430
Cargo Doors
Driver Height (in): 49.3
Driver Height (mm): 1252
Driver Location: Driver
Driver Operation: Sliding
Driver Width (in): 37.8
Driver Width (mm): 961
Passenger Height (in): 49.3
Passenger Height (mm): 1252
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 37.8
Passenger Width (mm): 961
Rear Height (in): 49.6
Rear Height (mm): 1261
Rear Internal Handles: yes
Location: Rear
Rear Opening Angle: 90
Rear Operation: Lifting Gate
Rear Width (in): 54.8
Rear Width (mm): 1391
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Roof Rails
Cross Bars: Removable
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Rear View Mirror Camera
Digital: yes
Third Row Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Front Axle Weight (kg): 1550
Front Axle Weight (lb): 3417
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 4800
Gross Train Weight (lb): 10582
Gross Vehicle Weight (kg): 3050
Gross Vehicle Weight (lb): 6724
Payload Allowance (kg): 1198
Payload Allowance (lb): 2641
Published Kerb Weight (kg): 1852
Published Kerb Weight (lb): 4083
Rear Axle Weight (kg): 1650
Rear Axle Weight (lb): 3638
Tare Weight (kg): 1801
Audio System
Audio Player Reads MP3: yes
Colour Screen: yes
Digital Media Card: yes
Digital Radio: yes
Radio Type: Am/Fm
RDS: yes
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 2
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Bulkhead
Type: Solid
Solid Bulkhead Window: yes
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Media Control
Touch Screen: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Front
USB Charging Port
Location: Front
Number of Ports in Front: 2
Voice Activating System
Virtual Assistant: Other
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 7.0
Dashboard Centre 1 Touch Screen: yes
Floor Covering
Load Area: Wood
Vehicle Cab Compartment: Plastic/Rubber
Luxury Trim
Gear Selector: Leather
Airbags
Number of Airbags: 2
Crash Test Results
ANCAP Adult Occupant Score: 93.00
ANCAP Child Occupant Score: 87.00
ANCAP Date Tested: 20140101
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Pedestrian Score: 67.00
ANCAP Rating Year: 2014
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Safety Assist Score: 85.00
ANCAP Standard: Ancap
ANCAP Version Tested: 2.2 Litre Diesel
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Operation: Reel
Center Seat Position: Center
Center Type: 3-Point
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seats Number: 3
Lane Departure Warning
Maximum Speed For Operation (km/h): 200
Maximum Speed For Operation (mph): 124
Overtaking Sensor
Active Without Turn Signal: yes
Buzzer: yes
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Front Seat Center Armrest
Center Front Seat Armrest Adjustable: yes
Center Front Seat Armrest Folding: yes
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Semi-Auto
Anti-Theft Protection
Anti-Lift: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 25000
Distance (miles): 15534
Period (Months): 12
# Based on VFACTS and EVC data
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
