Base
Overview

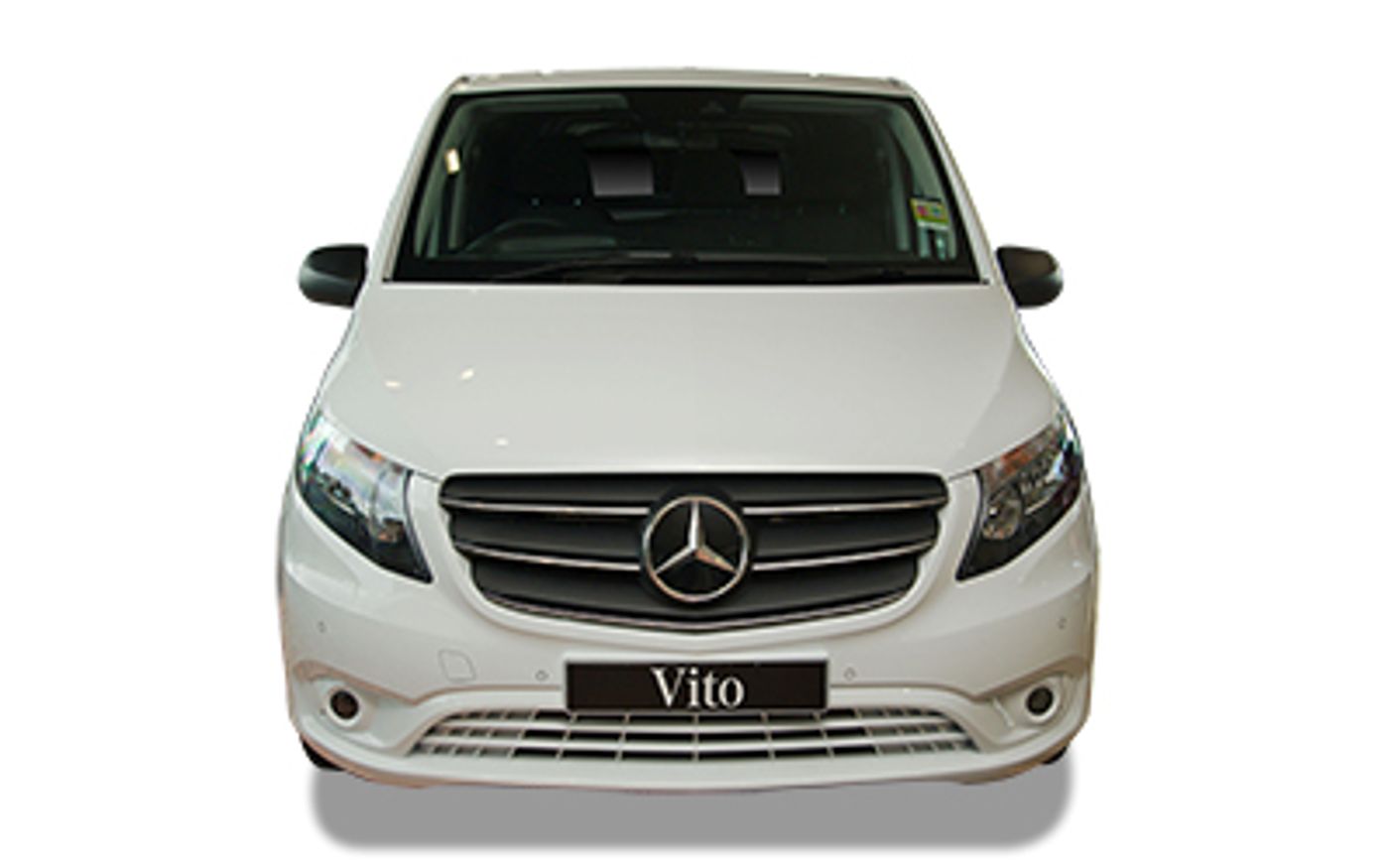

The 2022 Mercedes-Benz Vito Base is a rear-wheel drive, 5-door Combi that was released to the Australian market on 5th February 2022. The Mercedes-Benz Vito is regarded as a Van Under 3.5t built in Spain with prices starting at $72,921 before on-road costs.
This Mercedes-Benz Vito is powered by a 2.0L 4-cylinder engine that has 140 kW of power (at 3800 rpm) and 440 Nm of torque (at 1400 rpm) via a Nine-speed Automatic transmission. Mercedes-Benz claims the Vito Base uses 7.5L/100km of Diesel in the combined city and highway cycle while putting out 197g of CO2. It has a 70L fuel tank, meaning it should be able to travel 933km per full tank
The Mercedes-Benz Vito measures 1910mm (75.2 inches) in height, 5370mm (211.4 inches) in length, 1928mm (75.9 inches) in width with a 3430mm (135.0 inches) wheelbase that brings about a total of 2243kg (4945.0 lbs) of unladen weight. The Vito Base comes standard with 225/55 R17 front tyres and 225/55 R17 rear tyres. It requires a service every 12 months or 25,000 km, whichever comes first. It has a 60 month, 250,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Vito compare?
Quickly see how the 2022 Mercedes-Benz Vito Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
36.12 - 70.53 kW/t
36.12 kW/t
81.55 kW/t
Fuel Efficiency
6.2 - 7.5 L/100km
4.9 L/100km
11.1 L/100km
Vehicle Range
933 - 1,129 km
649 km
1,290 km
Price
$44,058 - $116,115
$26,990
$116,115
Warranty (Years)
5 years
3 years
10 years
Warranty (Distance)
250,000 km
100,000 km
Unlimited
Years on Sale
2 years
1 year
6 years
Service Interval
12 months
6 months
12 months
Battery & Charging
Max. battery kilowatt hour
66 - 90 kWh
66 kWh
90 kWh
AC Charging (max kW)
11 kW
11 kW
DC Fast Charging (max kW)
80 - 110 kW
80 kW
110 kW
Vehicle Range (EV)
262 - 421 km
262 km
421 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,370 mm
1,928 mm
inc mirror: 2,244 mm
inc mirror: 2,244 mm
1,910 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,370 mm |
| Overall Width | 1,928 mm |
| Overall Width (Inc Mirror) | 2,244 mm |
| Overall Height | 1,910 mm |
| Wheelbase | 3,430 mm |
| Load Capacity | 807 mm |
Looking for complete Mercedes-Benz Vito size & space specs?
Our Mercedes-Benz Vito Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Mercedes-Benz Vito Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Media Control
Touch Screen: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Full Automatic Parking
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
USB Charging Port
Location: Front
Number of Ports in Front: 2
Voice Activating System
Virtual Assistant: Other
Compressor
Compressor: Turbo
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 181
CO2 Level (Combined): 197
CO2 Level (Urban): 223
Standard Met: Eu6.2 (C And D-Temp)
Engine
Bore Engine: 82.0
Engine (cc): 1950
Engine Configuration: In-Line
Engine Code: Om 654
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 92.3
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Capacity Uk Gallons: 15.4
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 933
ADR 81/02 Calculated Vehicle Range (miles): 580
ADR 81/02 Combined (km/L): 13.3
ADR 81/02 Combined (L/100km): 7.5
ADR 81/02 Combined (miles per UK gallon): 38
ADR 81/02 Combined (mpg): 31
ADR 81/02 Country Highway (km/L): 14.5
ADR 81/02 Country Highway (L/100km): 6.9
ADR 81/02 Country Highway (miles per UK gallon): 41
ADR 81/02 Country Highway (mpg): 34
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 11.8
ADR 81/02 Urban (L/100km): 8.5
ADR 81/02 Urban (miles per UK gallon): 33
ADR 81/02 Urban (mpg): 28
Fuel Economy
ADR 81/02 (L/100km): 7.5
Power
Maximum Power (hp/PS): 190
Maximum Power (kW): 140
Maximum Torque (Nm): 440
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3800
Rpm For Maximum Torque Low: 1400
Drive
Driven Wheels: Rear
Transmission
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 9
Shift Lever Location: Dash
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Trailing Arm
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 109
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Load Index: 109
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: Combi
Local Body Type: Combi
Platform Code: Ncv2
Roof Type: Standard
Wheelbase Type: Long
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 144.8
Cargo Volume (L): 4100
Height (in): 49.3
Height (mm): 1685
Length (in): 64.1
Length (mm): 1627
Loading Floor Height (in): 22.0
Loading Floor Height (mm): 558
Standard Measurement: VDA
Width Between Wheelhouses (in): 50.0
Width Between Wheelhouses (mm): 1270
Width (in): 66.3
Width (mm): 1685
External Dimensions
Front Overhang (in): 35.2
Front Overhang (mm): 895
Front Track (in): 65.6
Front Track (mm): 1666
Overall Height (in): 75.2
Overall Height (mm): 1910
Overall Length (in): 211.4
Overall Length (mm): 5370
Overall Width (in): 75.9
Overall Width Inc Mirror (in): 88.3
Overall Width Inc Mirror (mm): 2244
Overall Width (mm): 1928
Rear Overhang (in): 41.1
Rear Overhang (mm): 1045
Rear Track (in): 64.8
Rear Track (mm): 1646
Wall to Wall Turning Circle (ft): 41.0
Wall to Wall Turning Circle (mm): 12500
Wheelbase (in): 135.0
Wheelbase (mm): 3430
Cargo Doors
Driver Height (in): 49.3
Driver Height (mm): 1252
Driver Location: Driver
Driver Operation: Sliding
Driver Width (in): 37.8
Driver Width (mm): 961
Passenger Height (in): 49.3
Passenger Height (mm): 1252
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 37.8
Passenger Width (mm): 961
Rear Height (in): 49.6
Rear Height (mm): 1261
Rear Internal Handles: yes
Location: Rear
Rear Opening Angle: 90
Rear Operation: Lifting Gate
Rear Width (in): 54.8
Rear Width (mm): 1391
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Sliding
Location: Rear Passenger
Rear Passenger Door Type: Sliding
Headlight Control
Auto Highbeam: yes
Directional Headlights: yes
Dusk Sensor: yes
Fog Light Function: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: High Beam
Location: Low Beam
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Rear View Mirror Camera
Digital: yes
Third Row Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Front Axle Weight (kg): 1550
Front Axle Weight (lb): 3417
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5550
Gross Train Weight (lb): 12236
Gross Vehicle Weight (kg): 3050
Gross Vehicle Weight (lb): 6724
Payload Allowance (kg): 807
Payload Allowance (lb): 1779
Published Kerb Weight (kg): 2243
Published Kerb Weight (lb): 4945
Rear Axle Weight (kg): 1650
Rear Axle Weight (lb): 3638
Tare Weight (kg): 2194
Audio System
Audio Player Reads MP3: yes
Colour Screen: yes
Digital Media Card: yes
Digital Radio: yes
Radio Type: Am/Fm
RDS: yes
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 2
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 7.0
Dashboard Centre 1 Touch Screen: yes
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Luxury Trim
Instrument Panel: Piano Black
Airbags
Number of Airbags: 2
Autonomous Drive
Level: 1 - Driver Assistance
Crash Test Results
ANCAP Adult Occupant Score: 93.00
ANCAP Child Occupant Score: 87.00
ANCAP Date Tested: 20140101
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Pedestrian Score: 67.00
ANCAP Rating Year: 2014
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Safety Assist Score: 85.00
ANCAP Standard: Ancap
ANCAP Version Tested: 2.2 Litre Diesel
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Operation: Reel
Center Seat Position: Center
Center Type: 3-Point
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seats Number: 3
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Lane Departure Warning
Maximum Speed For Operation (km/h): 200
Maximum Speed For Operation (mph): 124
Overtaking Sensor
Active Without Turn Signal: yes
Buzzer: yes
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Lumbar Type: Manual
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Front Seat Center Armrest
Center Front Seat Armrest Adjustable: yes
Center Front Seat Armrest Folding: yes
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Semi-Auto
Anti-Theft Protection
Anti-Lift: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 25000
Distance (miles): 15534
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
