DX
2.4L, 5-speed manual, 2-door Cab Chassis, Petrol, RWD
Save $$$ with CarExpert*
$20,985â€

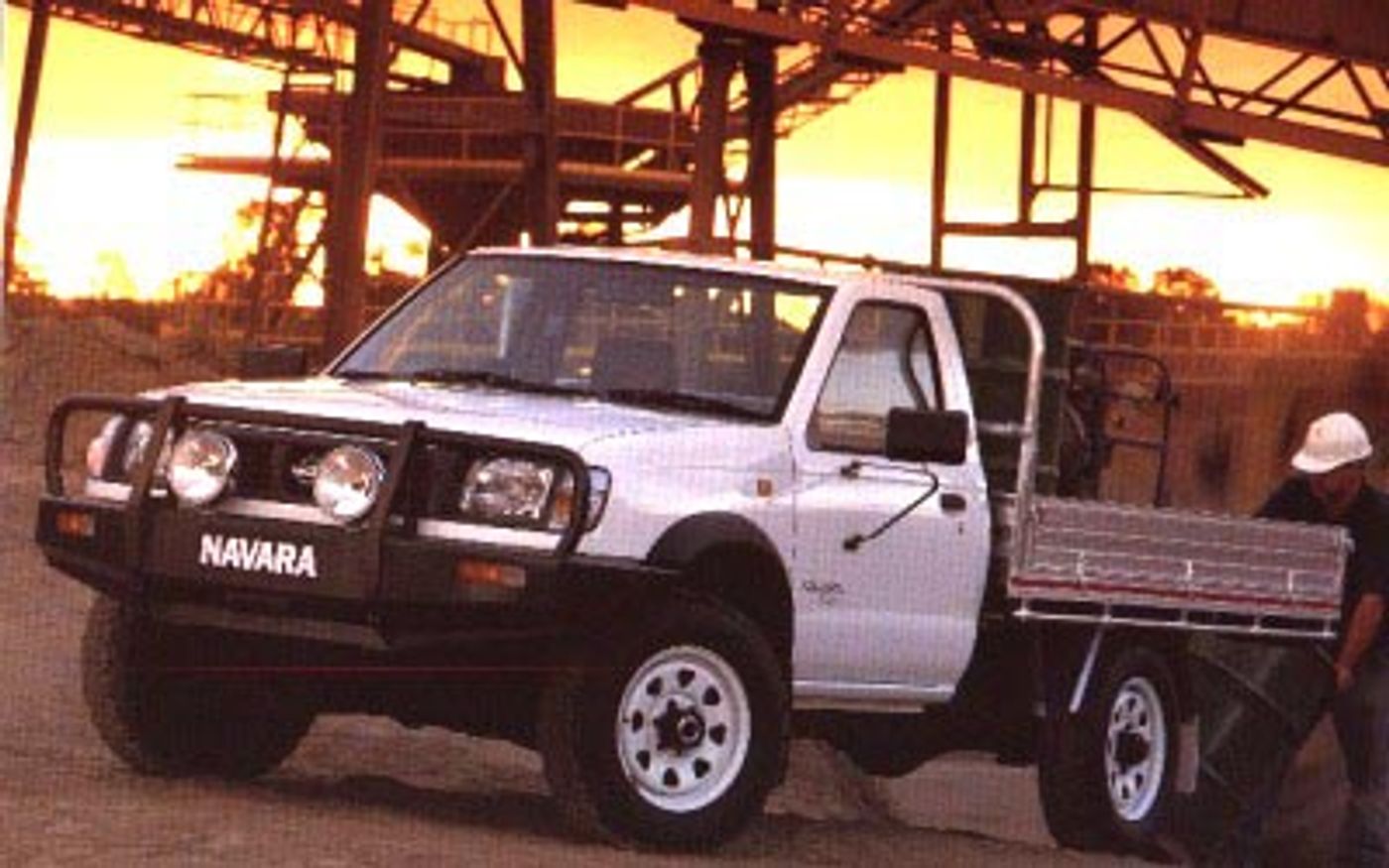

Nissan Navara DX (1997) price & specs
Save $$$ with CarExpert*
From
$20,985â€
Overview
The 1997 Nissan Navara DX is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 4th January 1970. with prices starting at $20,985 before on-road costs.
This Nissan Navara is powered by a 2.4L 4-cylinder engine that has 91 kW of power (at 5200 rpm) and 191 Nm of torque (at 4000 rpm) via a Five-speed Manual transmission. It has a 60L fuel tank
The Nissan Navara measures 1575mm (62.0 inches) in height, 4825mm (190.0 inches) in length, 1650mm (65.0 inches) in width with a 2950mm (116.1 inches) wheelbase that brings about a total of 1330kg (2932.1 lbs) of unladen weight. The Navara DX comes standard with 195/75 R14 front tyres and 195/75 R14 rear tyres. It has a 24 month, 40,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Navara compare?
Quickly see how the 1997 Nissan Navara DX stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
33.53 - 80.14 kW/t
33.53 kW/t
90.78 kW/t
Price
$16,990 - $39,250
$16,990
$46,975
Warranty (Years)
2 - 3 years
2 years
3 years
Warranty (Distance)
40,000 - 100,000 km
40,000 km
100,000 km
Years on Sale
2 - 6 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,330 - 2,740 kg
2,330 kg
3,500 kg
Braked Towing Capacity
1,500 kg
1,500 kg
4,000 kg
Ground Clearance Unladen
195 - 225 mm
195 mm
225 mm
Payload Capacity
840 - 1,545 kg
840 kg
1,578 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,825 mm
1,650 mm
1,575 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,825 mm |
| Overall Width | 1,650 mm |
| Overall Height | 1,575 mm |
| Wheelbase | 2,950 mm |
| Turning Circle | 11,200 mm |
| Load Capacity | 1,400 mm |
Looking for complete Nissan Navara size & space specs?
Our Nissan Navara Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Nissan Navara Sales rolling 12-months#
Explore Nissan Navara Features & Specs
Catalytic Converter
Type: 3-Way
Emission Control Level
Standard Met: Adr 79/01
Engine
Automatic Valve Adjustment: yes
Engine Block Composition: Cast Iron
Bore Engine: 89
Engine (cc): 2389
Compression Ratio: 8.6
Engine Configuration: In-Line
Engine Head Composition: Light Alloy
Engine (L): 2.4
Engine Location: Front
Number of Cylinders: 4
Number of Valves per Cylinder: 3
Engine Orientation: Longitudinal
Stroke Engine: 96
Valve Gear Type: Overhead Cam
Fuel
Generic Primary Fuel Type: Petrol
Fuel Type: Unleaded
Fuel System
Ignition Type: Electronic
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 15.9
Main Capacity (L): 60
Main Type: Total
Clock
Type: Digital
Instrument Cluster
Type: Analogue
Odometer
Number of Odometers: 1
Oil Pressure
Type: Warning Light
Water Temperature
Type: Gauge
Fuel Consumption
AS 2877 Combined (L/100km): 8
AS 2877 Combined (mpg): 29
AS 2877 Country Highway (L/100km): 8
AS 2877 Country Highway (mpg): 29
AS 2877 Standard: As 2877
AS 2877 Urban (L/100km): 10.2
AS 2877 Urban (mpg): 23
Fuel Economy
AS 2877 City (L/100km): 10.2
AS 2877 Highway (L/100km): 8
Power
Maximum Power (hp/PS): 124
Maximum Power (kW): 91
Maximum Torque (Nm): 191
Measurement Standard: DIN
Rpm For Maximum Power Low: 5200
Rpm For Maximum Torque Low: 4000
Drive
Driven Wheels: Rear
Transmission
1st Gear Ratio: 3.529
2nd Gear Ratio: 2.246
3rd Gear Ratio: 1.415
4th Gear Ratio: 1
5th Gear Ratio: 0.821
Number of Speeds: 5
Reverse Gear Ratio: 3.657
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Speed Rating: S
Front Wheels Tire Width: 195
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Speed Rating: S
Rear Wheels Tire Width: 195
Wheels
Location: Front
Front Wheels Rim Diameter (In): 14
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 5
Location: Rear
Rear Rim Diameter (In): 14
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 5
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Local Body Type: Cab Chassis
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Metal
External Dimensions
Kerb to Kerb Turning Circle (mm): 11200
Front Track (in): 54.9
Front Track (mm): 1395
Ground Clearance Unladen (in): 7.7
Ground Clearance Unladen (mm): 195
Kerb To Kerb Turning Circle (ft): 36.7
Overall Height (in): 62
Overall Height (mm): 1575
Overall Length (in): 190
Overall Length (mm): 4825
Overall Width (in): 65
Overall Width (mm): 1650
Rear Track (in): 54.5
Rear Track (mm): 1385
Wheelbase (in): 116.1
Wheelbase (mm): 2950
Headlights
Low Beam Bulb Type: Halogen
Configuration: Single
Lens Type: Conventional
Paint
Type: Gloss
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Number of Windshield Wiper Speeds: 2
Weights
Front Axle Weight (kg): 940
Front Axle Weight (lb): 2072
Gross Vehicle Weight (kg): 2730
Gross Vehicle Weight (lb): 6019
Payload Allowance (kg): 1400
Payload Allowance (lb): 3086
Published Kerb Weight (kg): 1330
Published Kerb Weight (lb): 2932
Rear Axle Weight (kg): 1790
Rear Axle Weight (lb): 3946
Audio System
Radio Type: Am/Fm
Speakers
Number of Speakers: 2
Ashtray
Illuminated Front Ashtray: yes
Location: Front
Cigar Lighter
Location: Front Seats
Courtesy Lights
Number of Door Switches: 2
Passenger Assist Handles
Number of Handles: 1
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Front Seat Belts
Center Operation: Static
Center Seat Position: Center
Center Type: lap
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Location: Front Seats
Front Seats Type: Cushion
Front Seat
Front Seat Fore Aft Adjustment: yes
Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Vinyl
Main Seat Material: Cloth
Seating
Capacity: 3
Console
Location: Dashboard
Dashboard Storage: Open
Dashboard Type: Partial
Glove Compartment
Lid: yes
Lockable: yes
Ventilation System
Number of Fan Speeds: 4
