DX
2.7L, 5-speed manual, 2-door Cab Chassis, Diesel, RWD
Save $$$ with CarExpert*
$21,490â€

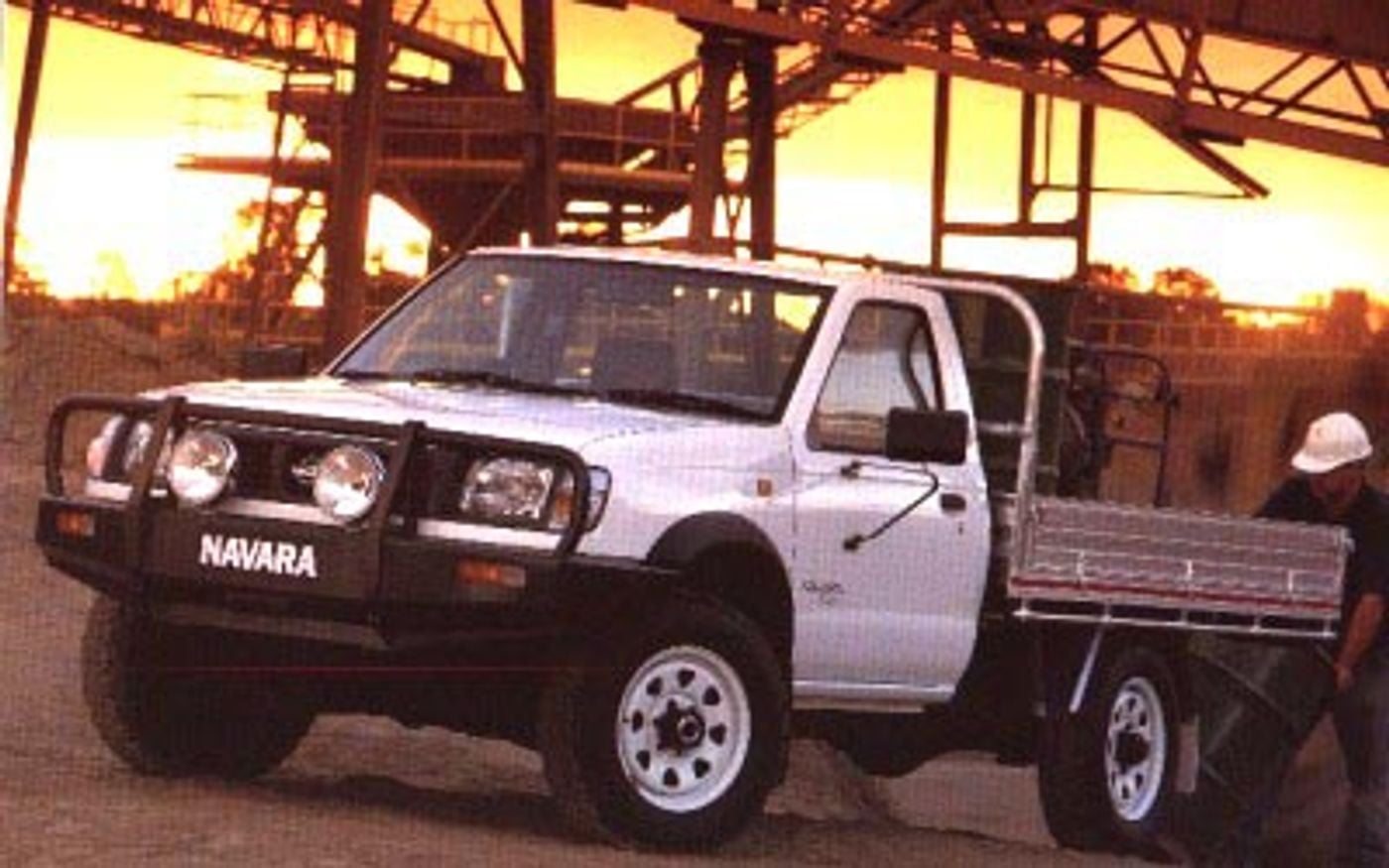

Nissan Navara DX (1997) price & specs
Save $$$ with CarExpert*
From
$21,490â€
Overview
The 1997 Nissan Navara DX is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 4th January 1970. The Nissan Navara is regarded as a Pickup built in Japan with prices starting at $21,490 before on-road costs.
This Nissan Navara is powered by a 2.7L 4-cylinder engine that has 64 kW of power (at 4300 rpm) and 180 Nm of torque (at 2200 rpm) via a Five-speed Manual transmission. It has a 60L fuel tank
The Nissan Navara measures 1615mm (63.6 inches) in height, 4975mm (195.9 inches) in length, 1690mm (66.5 inches) in width with a 2950mm (116.1 inches) wheelbase that brings about a total of 1285kg (2832.9 lbs) of unladen weight. The Navara DX comes standard with 195/65 R14 front tyres and 195/65 R14 rear tyres. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Navara compare?
Quickly see how the 1997 Nissan Navara DX stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
33.53 - 80.14 kW/t
33.53 kW/t
90.78 kW/t
Price
$16,990 - $39,250
$16,990
$46,975
Warranty (Years)
2 - 3 years
2 years
3 years
Warranty (Distance)
40,000 - 100,000 km
40,000 km
100,000 km
Years on Sale
2 - 6 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,330 - 2,740 kg
2,330 kg
3,500 kg
Braked Towing Capacity
1,500 kg
1,500 kg
4,000 kg
Ground Clearance Unladen
195 - 225 mm
195 mm
225 mm
Payload Capacity
840 - 1,545 kg
840 kg
1,578 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,975 mm
1,690 mm
1,615 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,975 mm |
| Overall Width | 1,690 mm |
| Overall Height | 1,615 mm |
| Wheelbase | 2,950 mm |
| Turning Circle | 11,200 mm |
| Load Capacity | 1,445 mm |
Looking for complete Nissan Navara size & space specs?
Our Nissan Navara Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Nissan Navara Sales rolling 12-months#
Explore Nissan Navara Features & Specs
Catalytic Converter
Type: 3-Way
Engine
Bore Engine: 96
Engine (cc): 2664
Compression Ratio: 22.2
Engine Configuration: In-Line
Engine (L): 2.7
Engine Location: Front
Number of Cylinders: 4
Number of Valves per Cylinder: 2
Engine Orientation: Longitudinal
Stroke Engine: 92
Valve Gear Type: Overhead Valve
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Ignition Type: Diesel
Injection Carburetion: Diesel Indirect Injection
Fuel Tanks
Main Capacity Gal: 15.9
Main Capacity (L): 60
Main Type: Total
Clock
Type: Digital
Instrument Cluster
Type: Partial Digital
Odometer
Number of Odometers: 1
Oil Pressure
Type: Warning Light
Water Temperature
Type: Gauge
Fuel Consumption
AS 2877 Country Highway (L/100km): 8
AS 2877 Country Highway (mpg): 29
AS 2877 Standard: As 2877
AS 2877 Urban (L/100km): 10.2
AS 2877 Urban (mpg): 23
Fuel Economy
AS 2877 City (L/100km): 10.2
AS 2877 Highway (L/100km): 8
Power
Maximum Power (hp/PS): 87
Maximum Power (kW): 64
Maximum Torque (Nm): 180
Measurement Standard: DIN
Rpm For Maximum Power Low: 4300
Rpm For Maximum Torque Low: 2200
Drive
Driven Wheels: Rear
Transmission
Number of Speeds: 5
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Width: 195
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Width: 195
Wheels
Location: Front
Front Wheels Rim Diameter (In): 14
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 5
Location: Rear
Rear Rim Diameter (In): 14
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 5
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Local Body Type: Cab Chassis
Mud Flaps
Front Mud Flaps Location: Front
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Metal
External Dimensions
Kerb to Kerb Turning Circle (mm): 11200
Front Track (in): 54.9
Front Track (mm): 1395
Kerb To Kerb Turning Circle (ft): 36.7
Overall Height (in): 63.6
Overall Height (mm): 1615
Overall Length (in): 195.9
Overall Length (mm): 4975
Overall Width (in): 66.5
Overall Width (mm): 1690
Rear Track (in): 54.7
Rear Track (mm): 1390
Wheelbase (in): 116.1
Wheelbase (mm): 2950
Headlights
Low Beam Bulb Type: Halogen
Configuration: Single
Lens Type: Conventional
Paint
Type: Gloss
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Number of Windshield Wiper Speeds: 2
Weights
Front Axle Weight (kg): 995
Front Axle Weight (lb): 2194
Gross Trailer Weight Braked (kg): 1500
Gross Trailer Weight Braked (lb): 3307
Gross Trailer Weight Unbraked (kg): 500
Gross Trailer Weight Unbraked (lb): 1102
Gross Vehicle Weight (kg): 2730
Gross Vehicle Weight (lb): 6019
Payload Allowance (kg): 1445
Payload Allowance (lb): 3186
Published Kerb Weight (kg): 1285
Published Kerb Weight (lb): 2833
Rear Axle Weight (kg): 1735
Rear Axle Weight (lb): 3825
Antenna
Type: Telescopic
Audio System
Radio Type: Am/Fm
Speakers
Number of Speakers: 2
Ashtray
Location: Front
Cigar Lighter
Location: Front Seats
Courtesy Lights
Number of Door Switches: 2
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Front Seat Belts
Center Operation: Static
Center Seat Position: Center
Center Type: lap
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Location: Front Seats
Front Seats Number: 2
Front Seat
Center Front Seat Fore/Aft Adjustment: yes
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Fore/Aft Adjustment: yes
Location: Driver
Driver Front Seat Type: Bench
Passenger Front Seat Fore/Aft Adjustment: yes
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Door Pockets Bins
Location: Driver
Location: Passenger
Ventilation System
Number of Fan Speeds: 4
