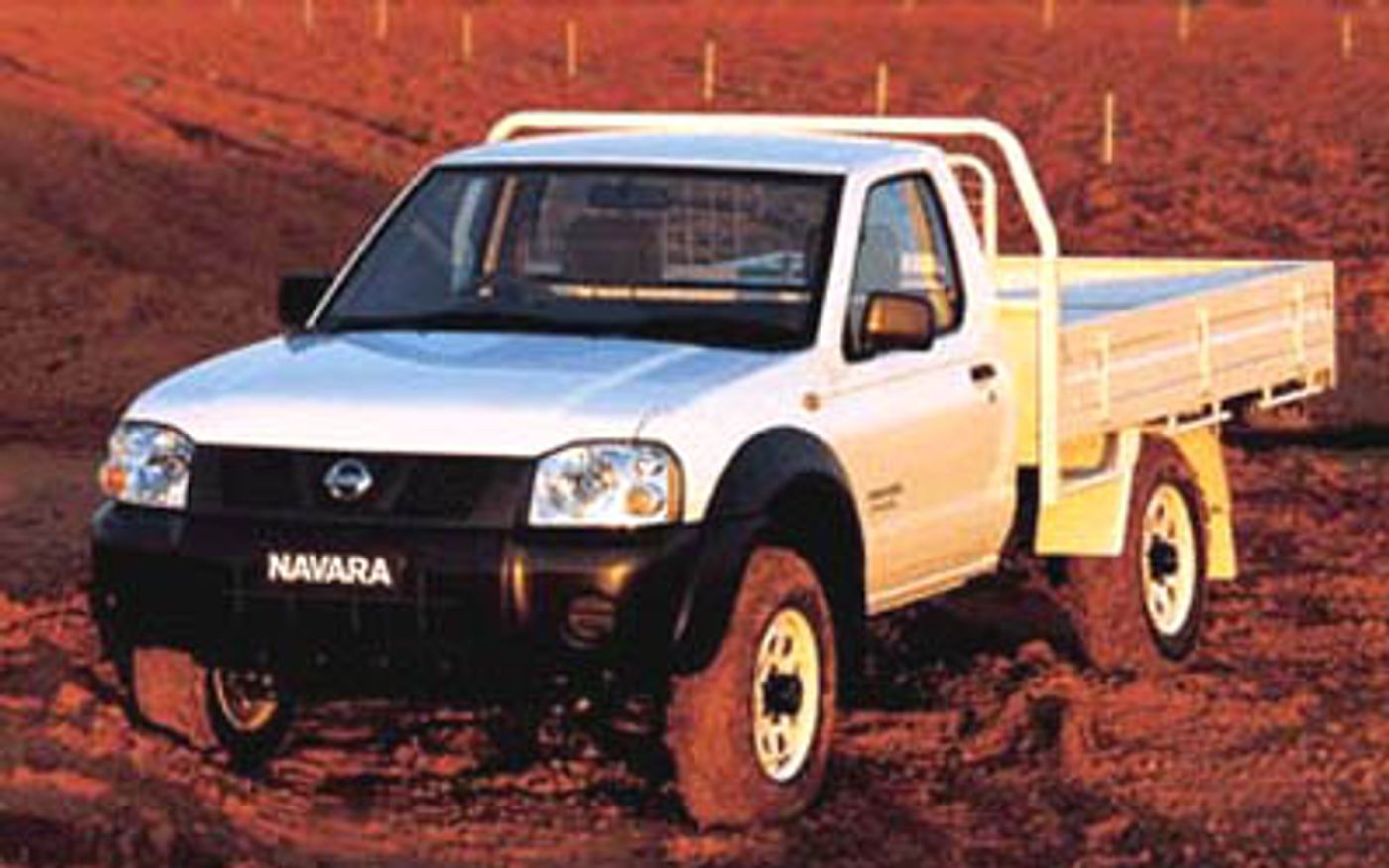

Nissan Navara RX (2009) price & specs
Save $$$ with CarExpert*
From
$34,860â€
Overview
The 2009 Nissan Navara RX is a four-wheel drive, 2-door Cab Chassis that was released to the Australian market on 4th January 1970 classified as a D40. The Nissan Navara is regarded as a Pickup built in Thailand with prices starting at $34,860 before on-road costs.
This Nissan Navara is powered by a 2.5L 4-cylinder engine that has 106 kW of power (at 4000 rpm) and 356 Nm of torque (at 2000 rpm) via a Six-speed Manual transmission. Nissan claims the Navara RX uses 9.3L/100km of Diesel in the combined city and highway cycle while putting out 250g of CO2. It has a 80L fuel tank, meaning it should be able to travel 860km per full tank
The Nissan Navara measures 1740mm (68.5 inches) in height, 5140mm (202.4 inches) in length, 1795mm (70.7 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 1630kg (3593.5 lbs) of unladen weight. The Navara RX comes standard with Conventional/Summer front tyres and Conventional/Summer rear tyres. It has a 36 month, 100,000 km warranty.
The 2009 Nissan Navara RX has a 190mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Navara compare?
Quickly see how the 2009 Nissan Navara RX stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
56.17 - 72 kW/t
36.74 kW/t
91.09 kW/t
Fuel Efficiency
9.1 - 10.5 L/100km
7.9 L/100km
13 L/100km
Vehicle Range
762 - 879 km
636 km
962 km
Price
$31,750 - $46,860
$19,990
$61,240
Warranty (Years)
3 years
2 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
2 - 6 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,860 kg
2,720 kg
3,500 kg
Braked Towing Capacity
2,000 - 3,000 kg
1,800 kg
3,500 kg
Ground Clearance Unladen
190 - 205 mm
181 mm
314 mm
Payload Capacity
859 - 1,230 kg
859 kg
1,441 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,140 mm
1,795 mm
1,740 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,140 mm |
| Overall Width | 1,795 mm |
| Overall Height | 1,740 mm |
| Wheelbase | 3,200 mm |
| Turning Circle | 12,500 mm |
| Load Capacity | 1,230 mm |
Looking for complete Nissan Navara size & space specs?
Our Nissan Navara Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Nissan Navara Sales rolling 12-months#
Explore Nissan Navara Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 4.0
Australia Greenhouse Rating: 5.0
Australia Overall Emission Control Level Rating: 2.5
CO2 Level (Combined): 250
Standard Met: EU4
Engine
Bore Engine: 89.0
Engine (cc): 2488
Engine Configuration: In-Line
Engine Code: Yd25
Engine (L): 2.5
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 100.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Fuel Type: Diesel
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 860
ADR 81/02 Calculated Vehicle Range (miles): 534
ADR 81/02 Combined (km/L): 10.8
ADR 81/02 Combined (L/100km): 9.3
ADR 81/02 Combined (miles per UK gallon): 30
ADR 81/02 Combined (mpg): 25
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 9.3
Power
Maximum Power (hp/PS): 144
Maximum Power (kW): 106
Maximum Torque (Nm): 356
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 2000
Drive
Driven Wheels: 4x4
Four-Wheel Drive Hub Engagement: Automatic Hubs
Four-Wheel Drive Type: Part-Time
Selection: Manual
Dual Range Transmission
2wd High Low Transfer Selection: 2WD
4wd High High Low Transfer Selection: 4wd High
4wd Low High Low Transfer Selection: 4wd Low
Limited Slip Differential
Location: Rear
Transmission
Description: Manual
Low High Gear Ranges: yes
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Location: Rear
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.0
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.0
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Local Body Type: Cab Chassis
Platform Code: F Alpha
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Chrome
Location: Rear
External Dimensions
Kerb to Kerb Turning Circle (mm): 12500
Front Overhang (in): 31.5
Front Overhang (mm): 800
Front Track (in): 61.0
Front Track (mm): 1550
Ground Clearance Unladen (in): 7.5
Ground Clearance Unladen (mm): 190
Kerb To Kerb Turning Circle (ft): 41.0
Overall Height (in): 68.5
Overall Height (mm): 1740
Overall Length (in): 202.4
Overall Length (mm): 5140
Overall Width (in): 70.7
Overall Width (mm): 1795
Rear Overhang (in): 44.9
Rear Overhang (mm): 1140
Rear Track (in): 61.0
Rear Track (mm): 1550
Wheelbase (in): 126.0
Wheelbase (mm): 3200
Headlight Control
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1385
Front Axle Weight (lb): 3053
Gross Trailer Weight Braked (kg): 3000
Gross Trailer Weight Braked (lb): 6614
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2860
Gross Vehicle Weight (lb): 6305
Payload Allowance (kg): 1230
Payload Allowance (lb): 2712
Published Kerb Weight (kg): 1630
Published Kerb Weight (lb): 3594
Rear Axle Weight (kg): 1770
Rear Axle Weight (lb): 3902
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
Speakers
Number of Speakers: 2
Power Outlet 12V
Location (12V): Front
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Operation: Static
Center Seat Position: Center
Center Type: lap
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Location: Front Seats
Front Seat
Location: Centre
Center Front Seat Type: Bench
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
