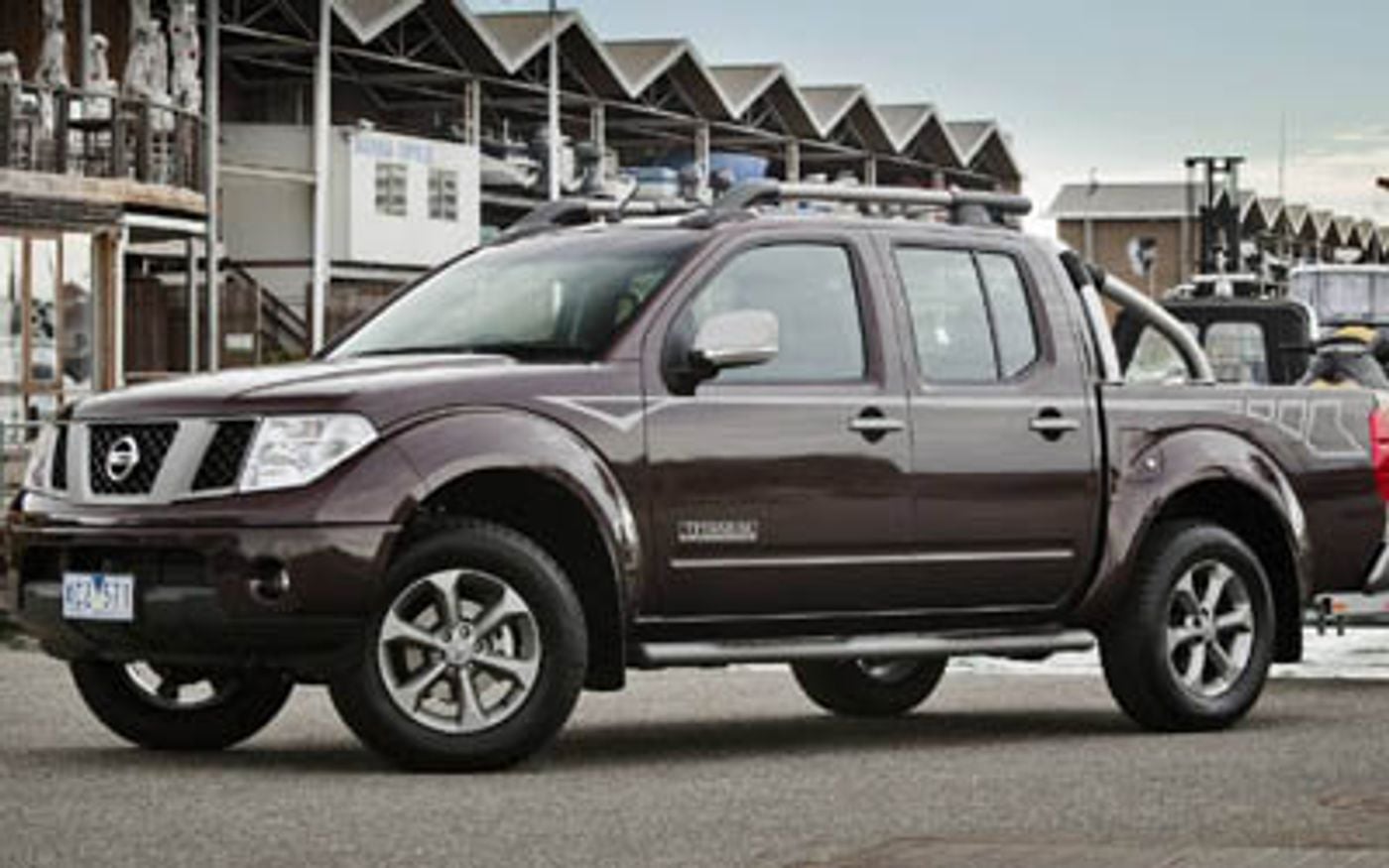

Nissan Navara Titanium Edition (2010) price & specs
Save $$$ with CarExpert*
From
$50,650†
Titanium Edition
Overview
The 2010 Nissan Navara Titanium Edition is a four-wheel drive, 4-door Utility that was released to the Australian market on 4th January 1970 classified as a D40. The Nissan Navara is regarded as a Pickup built in Spain with prices starting at $50,650 before on-road costs.
This Nissan Navara is powered by a 2.5L 4-cylinder engine that has 126 kW of power (at 4000 rpm) and 403 Nm of torque (at 2000 rpm) via a Five-speed Automatic transmission. Nissan claims the Navara Titanium Edition uses 10.5L/100km of Diesel in the combined city and highway cycle while putting out 283g of CO2. It has a 80L fuel tank, meaning it should be able to travel 762km per full tank
The Nissan Navara measures 1779mm (70.0 inches) in height, 5220mm (205.5 inches) in length, 1850mm (72.8 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 2054kg (4528.3 lbs) of unladen weight. The Navara Titanium Edition comes standard with 255/65 R17 front tyres and 255/65 R17 rear tyres. It has a 36 month, 100,000 km warranty.
The 2010 Nissan Navara Titanium Edition has a 217mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Navara compare?
Quickly see how the 2010 Nissan Navara Titanium Edition stacks up against its competition.
Select any benchmark to see more details.
Power to Weight
54.44 - 102.06 kW/t
36.74 kW/t
102.06 kW/t
Fuel Efficiency
8.5 - 14 L/100km
7.9 L/100km
14 L/100km
Vehicle Range
571 - 941 km
571 km
962 km
Price
$31,750 - $64,990
$18,999
$64,990
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
130,000 km
Years on Sale
2 - 6 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,805 - 3,010 kg
2,720 kg
3,500 kg
Braked Towing Capacity
2,000 - 3,000 kg
1,800 kg
3,500 kg
Ground Clearance Unladen
190 - 228 mm
190 mm
314 mm
Payload Capacity
751 - 1,230 kg
751 kg
1,777 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,220 mm
1,850 mm
1,779 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,220 mm |
| Overall Width | 1,850 mm |
| Overall Height | 1,779 mm |
| Wheelbase | 3,200 mm |
| Turning Circle | 13,300 mm |
| Load Capacity | 751 mm |
Looking for complete Nissan Navara size & space specs?
Our Nissan Navara Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Nissan Navara Sales rolling 12-months#
Explore Nissan Navara Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 4.0
Australia Greenhouse Rating: 4.0
Australia Overall Emission Control Level Rating: 2.5
CO2 Level (Combined): 283
Standard Met: EU4
Engine
Bore Engine: 89.0
Engine (cc): 2488
Engine Configuration: In-Line
Engine Code: Yd25
Engine (L): 2.5
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 100.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Fuel Type: Diesel
Main Type: Total
Interested in buying a Nissan Navara Titanium Edition?
Save $$$ with CarExpert*
From
$50,650†
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 762
ADR 81/02 Calculated Vehicle Range (miles): 473
ADR 81/02 Combined (km/L): 9.5
ADR 81/02 Combined (L/100km): 10.5
ADR 81/02 Combined (miles per UK gallon): 27
ADR 81/02 Combined (mpg): 22
ADR 81/02 Country Highway (km/L): 10.9
ADR 81/02 Country Highway (L/100km): 9.2
ADR 81/02 Country Highway (miles per UK gallon): 31
ADR 81/02 Country Highway (mpg): 26
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 7.9
ADR 81/02 Urban (L/100km): 12.7
ADR 81/02 Urban (miles per UK gallon): 22
ADR 81/02 Urban (mpg): 19
Fuel Economy
ADR 81/02 (L/100km): 10.5
Power
Maximum Power (hp/PS): 171
Maximum Power (kW): 126
Maximum Torque (Nm): 403
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 2000
Drive
Driven Wheels: 4x4
Four-Wheel Drive Hub Engagement: Automatic Hubs
Four-Wheel Drive Type: Part-Time
Selection: Manual
Dual Range Transmission
2wd High Low Transfer Selection: 2WD
4wd High High Low Transfer Selection: 4wd High
4wd Low High Low Transfer Selection: 4wd Low
Limited Slip Differential
Location: Rear
Transmission
Description: Automatic
Low High Gear Ranges: yes
Number of Speeds: 5
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Type: All Terrain
Front Wheels Tire Width: 255
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Type: All Terrain
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: F Alpha
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Rear
Rear Step Type: Platform
Step Location: Side
Tray/Tub
Liner: Insert
Type: Straight Side
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Chrome
Location: Rear
Cargo Area Dimensions
Height (in): 18.0
Height (mm): 1560
Length (in): 59.5
Length (mm): 1511
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 44.5
Width Between Wheelhouses (mm): 1130
Width (in): 61.4
Width (mm): 1560
External Dimensions
Kerb to Kerb Turning Circle (mm): 13300
Front Overhang (in): 31.3
Front Overhang (mm): 795
Front Track (in): 61.8
Front Track (mm): 1570
Ground Clearance Unladen (in): 8.5
Ground Clearance Unladen (mm): 217
Kerb To Kerb Turning Circle (ft): 43.6
Overall Height (in): 70.0
Overall Height (mm): 1779
Overall Length (in): 205.5
Overall Length (mm): 5220
Overall Width (in): 72.8
Overall Width (mm): 1850
Rear Overhang (in): 48.2
Rear Overhang (mm): 1225
Rear Track (in): 61.8
Rear Track (mm): 1570
Wheelbase (in): 126.0
Wheelbase (mm): 3200
Cargo Doors
Rear Height (in): 18.0
Rear Height (mm): 457
Location: Rear
Rear Opening Angle: 90
Rear Operation: Dropping Gate
Rear Width (in): 56.4
Rear Width (mm): 1432
Headlight Control
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: Black
Type: Metallic
Roof Rails
Cross Bars: Removable
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Chrome
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Chrome
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1365
Front Axle Weight (lb): 3009
Gross Trailer Weight Braked (kg): 3000
Gross Trailer Weight Braked (lb): 6614
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2805
Gross Vehicle Weight (lb): 6184
Payload Allowance (kg): 751
Payload Allowance (lb): 1656
Published Kerb Weight (kg): 2054
Published Kerb Weight (lb): 4528
Rear Axle Weight (kg): 1720
Rear Axle Weight (lb): 3792
Audio System
CD Player Reads MP3: yes
Disc Autochanger: yes
Autochanger Disc Capacity: 6
Radio Type: Am/Fm
Disc Player
Dashboard Capacity: 6
Location: Dashboard
Dashboard Media Type: CD
Speakers
Number of Speakers: 6
Bluetooth
Type: Bluetooth
Power Outlet 12V
Location (12V): Front
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Gear Selector: Leather
Crash Test Results
ANCAP Adult Occupant: 3
ANCAP Pedestrian: 2
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Front Seat
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
