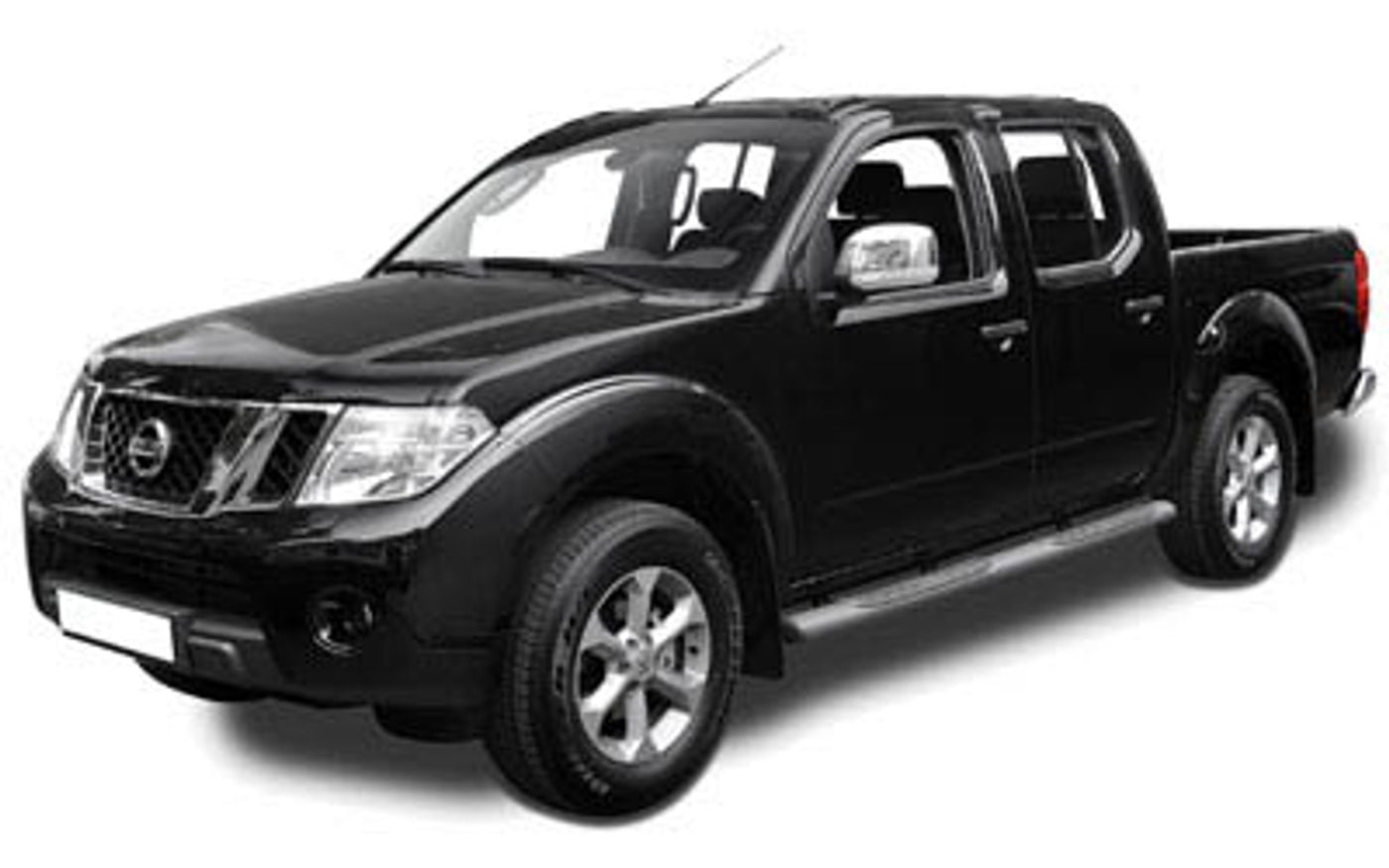

Nissan Navara St-X (2012) price & specs
Save $$$ with CarExpert*
From
$63,390†
St-X
Overview
The 2012 Nissan Navara St-X is a four-wheel drive, 4-door Utility that was released to the Australian market on 3rd March 2010 classified as a D40. The Nissan Navara is regarded as a Pickup built in Spain with prices starting at $63,390 before on-road costs.
This Nissan Navara is powered by a 3.0L 6-cylinder engine that has 170 kW of power (at 3750 rpm) and 550 Nm of torque (at 1750 rpm) via a Seven-speed Automatic transmission. Nissan claims the Navara St-X uses 9.3L/100km of Diesel in the combined city and highway cycle while putting out 246g of CO2. It has a 80L fuel tank, meaning it should be able to travel 860km per full tank
It has a 36 month, 100,000 km warranty.
The 2012 Nissan Navara St-X has a 228mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Navara compare?
Quickly see how the 2012 Nissan Navara St-X stacks up against its competition.
Select any benchmark to see more details.
Power to Weight
53.64 - 79.55 kW/t
42 kW/t
114.01 kW/t
Fuel Efficiency
8.3 - 10.5 L/100km
7.3 L/100km
13.1 L/100km
Vehicle Range
762 - 964 km
580 km
1,096 km
Price
$30,600 - $64,190
$18,990
$67,990
Warranty (Years)
3 years
2 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
2 - 6 years
1 year
4 years
Service Interval
6 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,805 - 3,010 kg
2,710 kg
3,500 kg
Braked Towing Capacity
2,000 - 3,000 kg
1,800 kg
3,500 kg
Ground Clearance Unladen
190 - 228 mm
135 mm
314 mm
Payload Capacity
752 - 1,207 kg
726 kg
1,648 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,296 mm
1,848 mm
1,795 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,296 mm |
| Overall Width | 1,848 mm |
| Overall Height | 1,795 mm |
| Wheelbase | 3,200 mm |
| Turning Circle | 13,300 mm |
| Load Capacity | 807 mm |
Looking for complete Nissan Navara size & space specs?
Our Nissan Navara Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Nissan Navara Sales rolling 12-months#
Explore Nissan Navara Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 246
Standard Met: EU4
Engine
Bore Engine: 84.0
Engine (cc): 2991
Engine Configuration: V
Engine (L): 3.0
Number of Cylinders: 6
Number of Valves per Cylinder: 4
Stroke Engine: 90.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 860
ADR 81/02 Calculated Vehicle Range (miles): 534
ADR 81/02 Combined (km/L): 10.8
ADR 81/02 Combined (L/100km): 9.3
ADR 81/02 Combined (miles per UK gallon): 30
ADR 81/02 Combined (mpg): 25
ADR 81/02 Country Highway (km/L): 13.2
ADR 81/02 Country Highway (L/100km): 7.6
ADR 81/02 Country Highway (miles per UK gallon): 37
ADR 81/02 Country Highway (mpg): 31
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 8.1
ADR 81/02 Urban (L/100km): 12.3
ADR 81/02 Urban (miles per UK gallon): 23
ADR 81/02 Urban (mpg): 19
Fuel Economy
ADR 81/02 (L/100km): 9.3
Power
Maximum Power (hp/PS): 231
Maximum Power (kW): 170
Maximum Torque (Nm): 550
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3750
Rpm For Maximum Torque Low: 1750
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Part-Time
Selection: Manual
Limited Slip Differential
Location: Rear
Rear Type: Electronic
Transmission
Description: Automatic With Manual Mode
Low High Gear Ranges: yes
Manual Mode: yes
Number of Speeds: 7
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 110
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Type: All Terrain
Front Wheels Tire Width: 255
Rear Wheels Tire Load Index: 110
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Type: All Terrain
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: F Alpha
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Rear
Rear Step Type: Platform
Step Location: Side
Tray/Tub
Liner: Insert
Cover: Hard Top
Type: Straight Side
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Chrome
Location: Rear
Cargo Area Dimensions
Height (in): 18.0
Height (mm): 1560
Length (in): 59.5
Length (mm): 1511
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 44.5
Width Between Wheelhouses (mm): 1130
Width (in): 61.4
Width (mm): 1560
External Dimensions
Kerb to Kerb Turning Circle (mm): 13300
Front Overhang (in): 34.1
Front Overhang (mm): 866
Front Track (in): 61.8
Front Track (mm): 1570
Ground Clearance Unladen (in): 9.0
Ground Clearance Unladen (mm): 228
Kerb To Kerb Turning Circle (ft): 43.6
Overall Height (in): 70.7
Overall Height (mm): 1795
Overall Length (in): 208.5
Overall Length (mm): 5296
Overall Width (in): 72.8
Overall Width (mm): 1848
Rear Overhang (in): 48.4
Rear Overhang (mm): 1230
Rear Track (in): 61.8
Rear Track (mm): 1570
Wheelbase (in): 126.0
Wheelbase (mm): 3200
Cargo Doors
Rear Height (in): 18.0
Rear Height (mm): 457
Location: Rear
Rear Opening Angle: 90
Rear Operation: Dropping Gate
Rear Width (in): 56.4
Rear Width (mm): 1432
Headlight Control
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: red
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Chrome
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Chrome
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Weights
Front Axle Weight (kg): 1530
Front Axle Weight (lb): 3373
Gross Trailer Weight Braked (kg): 3000
Gross Trailer Weight Braked (lb): 6614
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 3010
Gross Vehicle Weight (lb): 6636
Kerb Weight Inc Driver (kg): 2203
Kerb Weight Inc Driver (lb): 4857
Kerb Weight Includes Driver: yes
Payload Allowance (kg): 867
Payload Allowance (lb): 1911
Rear Axle Weight (kg): 1717
Rear Axle Weight (lb): 3785
Tare Weight (kg): 2143
Audio System
Brand Name: Bose
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Bluetooth
Includes Phone Connection: yes
Entertainment Display Screen
Location: Front
Parking Distance System
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Front
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Gear Selector: Leather
Crash Test Results
ANCAP Date Tested: 20120209
ANCAP Overall: 4.00
ANCAP Standard: Ancap
ANCAP Version Tested: D40 Dual Cab 2.5 Diesel
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Reach Type: Electric
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
