St Limited Edition
2.0L, variable sp auto, 5-door SUV, Petrol, FWD
Save $$$ with CarExpert*
$29,990â€

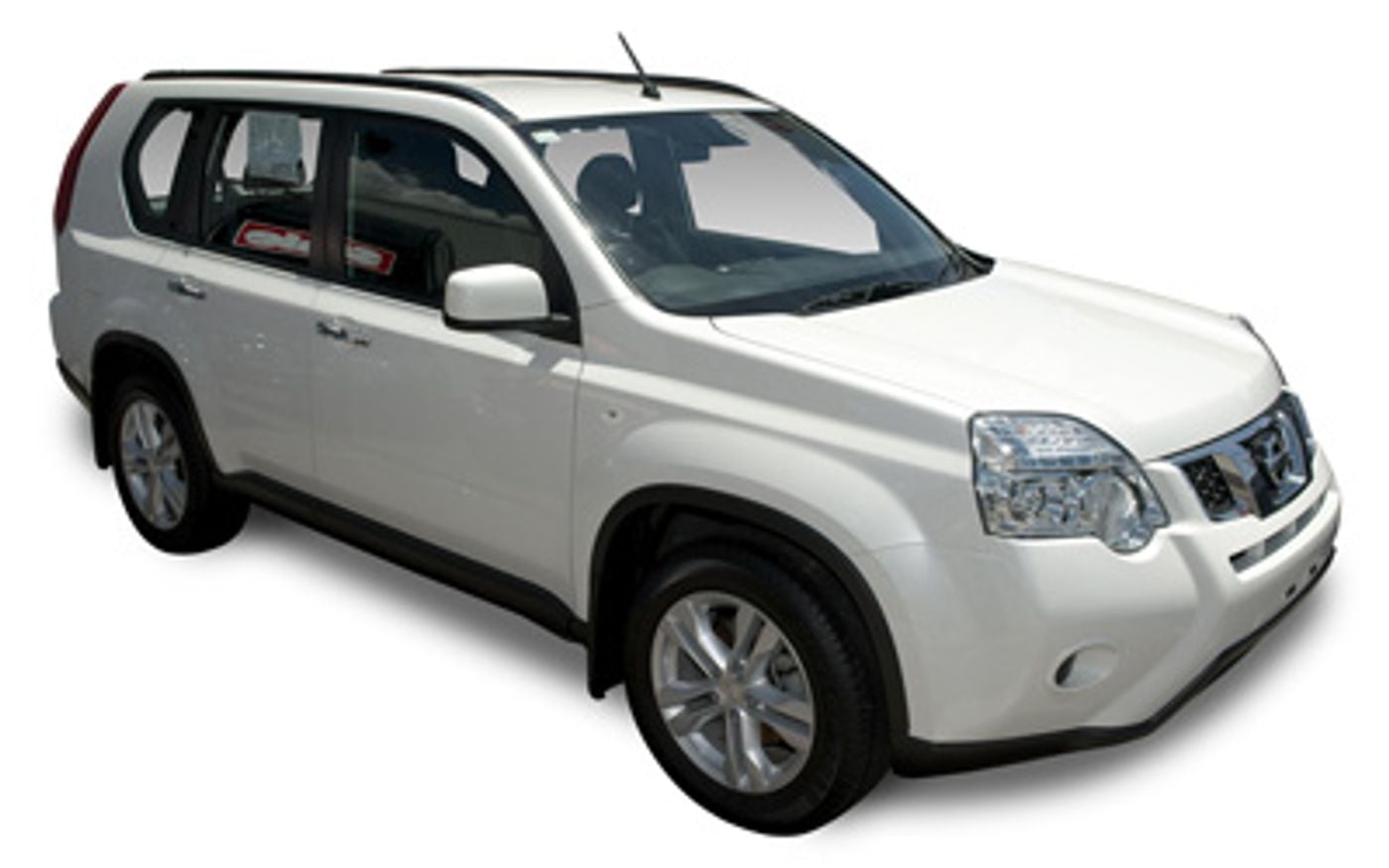

Nissan X-Trail St Limited Edition (2013) price & specs
Save $$$ with CarExpert*
From
$29,990â€
St Limited Edition
Overview
The 2013 Nissan X-Trail St Limited Edition is a front-wheel drive, 5-door SUV that was released to the Australian market on 1st September 2010 classified as a T31. The Nissan X-Trail is regarded as a small SUV built in Japan with prices starting at $29,990 before on-road costs.
This Nissan X-Trail is powered by a 2.0L 4-cylinder engine that has 102 kW of power (at 5200 rpm) and 198 Nm of torque (at 4400 rpm) via a Variable SP AUTOMATIC transmission. Nissan claims the X-Trail St Limited Edition uses 8.4L/100km of Unleaded in the combined city and highway cycle while putting out 199g of CO2. It has a 65L fuel tank, meaning it should be able to travel 774km per full tank
The Nissan X-Trail measures 1700mm (66.9 inches) in height, 4635mm (182.5 inches) in length, 1790mm (70.5 inches) in width with a 2630mm (103.5 inches) wheelbase that brings about a total of 1469kg (3238.6 lbs) of unladen weight. The X-Trail St Limited Edition comes standard with 225/60 R17 front tyres and 225/60 R17 rear tyres. It has a 36 month, 100,000 km warranty.
The 2013 Nissan X-Trail St Limited Edition has a 215mm ground clearance with a 1300kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the X-Trail compare?
Quickly see how the 2013 Nissan X-Trail St Limited Edition stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
63.25 - 81.22 kW/t
43.77 kW/t
108.66 kW/t
Boot Space
603 litres
395 litres
740 litres
Fuel Efficiency
7.2 - 9.1 L/100km
5.6 L/100km
11.1 L/100km
Vehicle Range
714 - 903 km
598 km
1,071 km
Price
$28,490 - $45,890
$25,490
$55,950
Warranty (Years)
3 years
3 years
7 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 - 4 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,000 - 2,170 kg
1,975 kg
3,050 kg
Braked Towing Capacity
1,300 - 2,000 kg
800 kg
3,500 kg
Approach Angle
28°
18°
28.1°
Departure Angle
24°
24°
28.2°
Ground Clearance Unladen
215 mm
170 mm
323 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,635 mm
1,790 mm
1,700 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,635 mm |
| Overall Width | 1,790 mm |
| Overall Height | 1,700 mm |
| Wheelbase | 2,630 mm |
| Turning Circle | 11,000 mm |
| Load Capacity | 531 mm |
Looking for complete Nissan X-Trail size & space specs?
Our Nissan X-Trail Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Nissan X-Trail Sales rolling 12-months#
Explore Nissan X-Trail Features & Specs
Emission Control Level
Australia Air Pollution Rating: 6.5
Australia Greenhouse Rating: 6.5
Australia Overall Emission Control Level Rating: 3.5
CO2 Level (Combined): 199
Standard Met: EU4
Engine
Bore Engine: 84.0
Engine (cc): 1997
Engine Configuration: In-Line
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 90.1
Valve Gear Type: Double Overhead Cam
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 17.2
Main Capacity (L): 65
Main Capacity Uk Gallons: 14.3
Main Type: Total
Interested in buying a Nissan X-Trail St Limited Edition?
Save $$$ with CarExpert*
From
$29,990â€
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 7.0
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 774
ADR 81/02 Calculated Vehicle Range (miles): 481
ADR 81/02 Combined (km/L): 11.9
ADR 81/02 Combined (L/100km): 8.4
ADR 81/02 Combined (miles per UK gallon): 34
ADR 81/02 Combined (mpg): 28
ADR 81/02 Country Highway (km/L): 13.7
ADR 81/02 Country Highway (L/100km): 7.3
ADR 81/02 Country Highway (miles per UK gallon): 39
ADR 81/02 Country Highway (mpg): 32
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 9.7
ADR 81/02 Urban (L/100km): 10.3
ADR 81/02 Urban (miles per UK gallon): 27
ADR 81/02 Urban (mpg): 23
Fuel Economy
ADR 81/02 (L/100km): 8.4
Power
Maximum Power (hp/PS): 139
Maximum Power (kW): 102
Maximum Torque (Nm): 198
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5200
Rpm For Maximum Torque Low: 4400
Drive
Driven Wheels: Front
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Continuously Variable
Number of Speeds: Variable
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 99
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Load Index: 99
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Rn C
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Underbody Protection
Location: Engine
Cargo Capacity
Rear Seat Down (cu ft): 62.6
Rear Seat Down (L): 1773
Rear Seat Up to Lower Window (cu ft): 21.3
Rear Seat Up to Lower Window (L): 603
External Dimensions
Kerb to Kerb Turning Circle (mm): 11000
Front Track (in): 60.6
Front Track (mm): 1540
Ground Clearance Unladen (in): 8.5
Ground Clearance Unladen (mm): 215
Kerb To Kerb Turning Circle (ft): 36.1
Overall Height (in): 66.9
Overall Height (mm): 1700
Overall Length (in): 182.5
Overall Length (mm): 4635
Overall Width (in): 70.5
Overall Width (mm): 1790
Rear Track (in): 60.8
Rear Track (mm): 1545
Wheelbase (in): 103.5
Wheelbase (mm): 2630
Ramp Angles
Approach Angle: 28.0
Departure Angle: 24.0
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
LED Lights
Location: Rear Lights
Paint
External Colour: Black
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 1300
Gross Trailer Weight Braked (lb): 2866
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2000
Gross Vehicle Weight (lb): 4409
Published Kerb Weight (kg): 1469
Published Kerb Weight (lb): 3239
Tare Weight (kg): 1428
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Gear Selector: Alloy Look
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Date Tested: 20141008
ANCAP Overall: 5.00
ANCAP Standard: Ancap
ANCAP Version Tested: 1.6 Diesel Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
