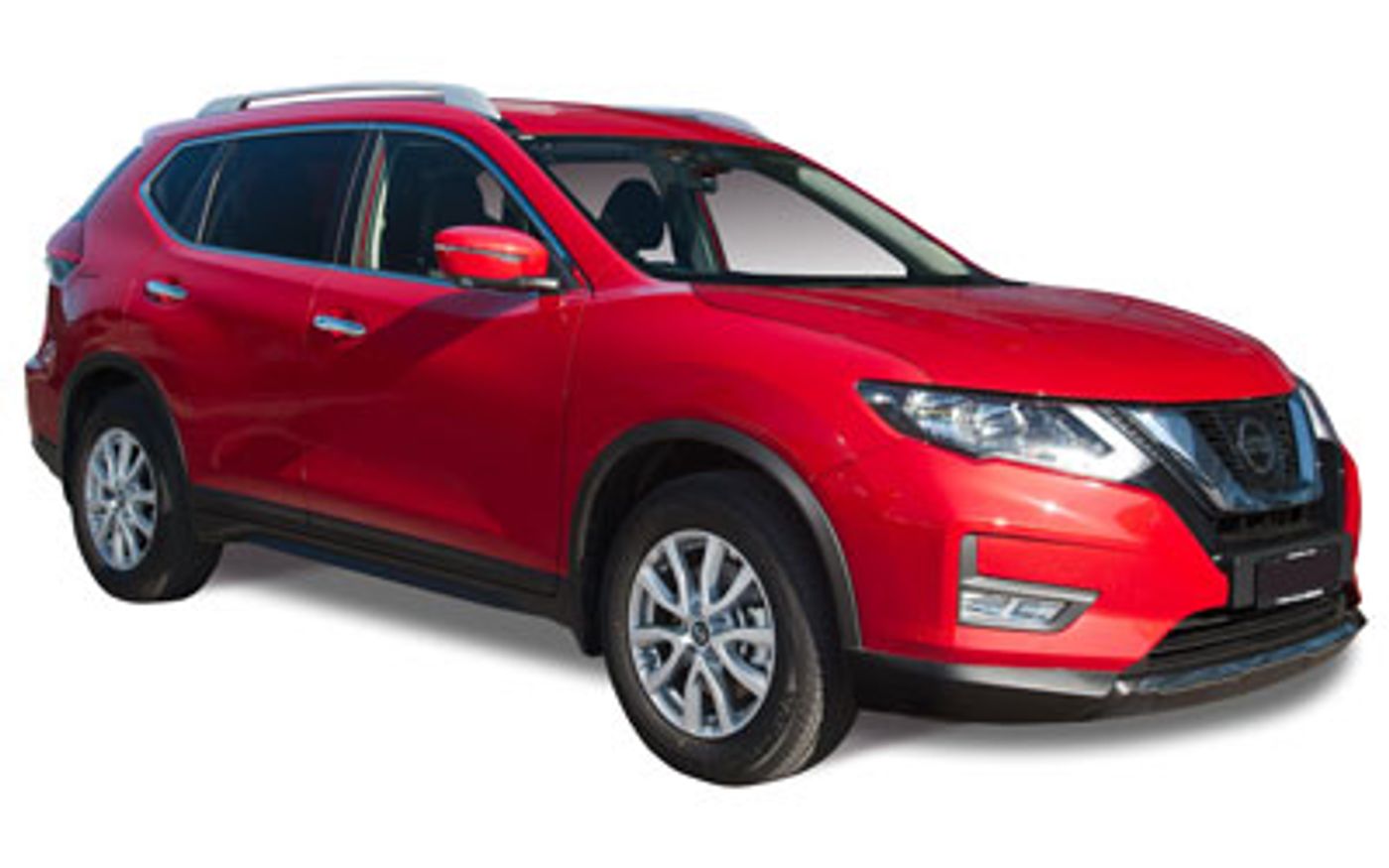

Nissan X-Trail TS (2021) price & specs
Save $$$ with CarExpert*
From
$37,465â€
Overview
The 2021 Nissan X-Trail TS is a four-wheel drive, 5-door SUV that was released to the Australian market on 1st February 2021 classified as a T32. The Nissan X-Trail is regarded as a small SUV built in Japan with prices starting at $37,465 before on-road costs.
This Nissan X-Trail is powered by a 2.0L 4-cylinder engine that has 130 kW of power (at 3750 rpm) and 380 Nm of torque (at 2000 rpm) via a Variable SP AUTOMATIC transmission. Nissan claims the X-Trail TS uses 6.0L/100km of Diesel in the combined city and highway cycle while putting out 158g of CO2. It has a 60L fuel tank, meaning it should be able to travel 1000km per full tank
The Nissan X-Trail measures 1740mm (68.5 inches) in height, 4690mm (184.6 inches) in length, 1820mm (71.7 inches) in width with a 2705mm (106.5 inches) wheelbase that brings about a total of 1605kg (3538.4 lbs) of unladen weight. The X-Trail TS comes standard with 225/65 R17 front tyres and 225/65 R17 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2021 Nissan X-Trail TS has a 210mm ground clearance with a 1650kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the X-Trail compare?
Quickly see how the 2021 Nissan X-Trail TS stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
72.45 - 84.22 kW/t
64.14 kW/t
120.24 kW/t
Boot Space
565 litres
128 litres
720 litres
Fuel Efficiency
6 - 8.3 L/100km
1.5 L/100km
10.2 L/100km
Vehicle Range
723 - 1,000 km
224 km
2,176 km
Price
$30,665 - $45,965
$24,592
$147,300
Warranty (Years)
5 years
5 years
10 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
1 - 4 years
1 year
4 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Braked Towing Capacity
1,500 - 1,650 kg
480 kg
3,500 kg
Approach Angle
17.1°
16.7°
29.9°
Departure Angle
25.1°
18.7°
32.2°
Ground Clearance Unladen
210 mm
97 mm
230 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,690 mm
1,820 mm
1,740 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,690 mm |
| Overall Width | 1,820 mm |
| Overall Height | 1,740 mm |
| Wheelbase | 2,705 mm |
| Turning Circle | 11,300 mm |
Looking for complete Nissan X-Trail size & space specs?
Our Nissan X-Trail Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Nissan X-Trail Sales rolling 12-months#
Explore Nissan X-Trail Features & Specs
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 148
CO2 Level (Combined): 158
CO2 Level (Urban): 176
Standard Met: EU5
Engine
Engine (cc): 1995
Engine Configuration: In-Line
Engine Code: M9R
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 15.9
Main Capacity (L): 60
Main Capacity Uk Gallons: 13.2
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 7.0
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 5.0
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1000
ADR 81/02 Calculated Vehicle Range (miles): 621
ADR 81/02 Combined (km/L): 16.7
ADR 81/02 Combined (L/100km): 6.0
ADR 81/02 Combined (miles per UK gallon): 47
ADR 81/02 Combined (mpg): 39
ADR 81/02 Country Highway (km/L): 17.9
ADR 81/02 Country Highway (L/100km): 5.6
ADR 81/02 Country Highway (miles per UK gallon): 50
ADR 81/02 Country Highway (mpg): 42
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 14.9
ADR 81/02 Urban (L/100km): 6.7
ADR 81/02 Urban (miles per UK gallon): 42
ADR 81/02 Urban (mpg): 35
Fuel Economy
ADR 81/02 (L/100km): 6.0
Power
Maximum Power (hp/PS): 177
Maximum Power (kW): 130
Maximum Torque (Nm): 380
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3750
Rpm For Maximum Torque Low: 2000
Differential Lock
Location: Centre
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Manual & Automatic
Limited Slip Differential
Location: Front
Front Type: Electronic
Location: Rear
Rear Type: Electronic
Transmission
Description: Continuously Variable With Manual Mode
Manual Mode: yes
Number of Speeds: Variable
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 102
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Load Index: 102
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 33.4
Rear Seat Down (L): 945
Rear Seat Up to Lower Window (cu ft): 20.0
Rear Seat Up to Lower Window (L): 565
External Dimensions
Kerb to Kerb Turning Circle (mm): 11300
Front Track (in): 62.0
Front Track (mm): 1575
Ground Clearance Unladen (in): 8.3
Ground Clearance Unladen (mm): 210
Kerb To Kerb Turning Circle (ft): 37.1
Overall Height (in): 68.5
Overall Height (mm): 1740
Overall Length (in): 184.6
Overall Length (mm): 4690
Overall Width (in): 71.7
Overall Width (mm): 1820
Rear Track (in): 62.0
Rear Track (mm): 1575
Wheelbase (in): 106.5
Wheelbase (mm): 2705
Internal Dimensions
3rd Row Headroom (in): 34.6
3rd Row Headroom (mm): 879
Front Headroom (in): 41.6
Front Headroom (mm): 1057
Rear Headroom (in): 38.5
Rear Headroom (mm): 978
3rd Row Hip Room (in): 42.0
3rd Row Hip Room (mm): 1067
Front Hip Room (in): 54.0
Front Hip Room (mm): 1372
Rear Hip Room (in): 51.9
Rear Hip Room (mm): 1317
Front Leg Room (in): 43.0
Front Leg Room (mm): 1091
Rear Leg Room (in): 37.9
Rear Leg Room (mm): 963
3rd Row Shoulder Room (in): 57.0
3rd Row Shoulder Room (mm): 1449
Front Shoulder Room (in): 60.7
Front Shoulder Room (mm): 1543
Rear Shoulder Room (in): 60.4
Rear Shoulder Room (mm): 1534
Ramp Angles
Approach Angle: 17.1
Departure Angle: 25.1
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Cmf-Cd
Wheelbase Type: Short
Spoiler
Location: Roof
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: Rear Lights
Paint
External Colour: Black
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 1650
Gross Trailer Weight Braked (lb): 3638
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Published Kerb Weight (kg): 1605
Published Kerb Weight (lb): 3538
Tare Weight (kg): 1563
Audio System
Audio Player Reads MP3: yes
Digital Radio: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
USB (Front): yes
Total Front USB Connections: 1
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Distance System
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
USB Charging Port
Location: Front
Number of Ports in Front: 1
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Phone: yes
Luxury Trim
Centre Floor Console: Piano Black
Doors: Alloy Look
Instrument Panel: Piano Black
Airbags
Number of Airbags: 6
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Ventilation System
Heater Type: Combustion
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 12
