Peugeot Partner Base (2023) price & specs
Save $$$ with CarExpert*
From
$59,990â€
Base
Overview

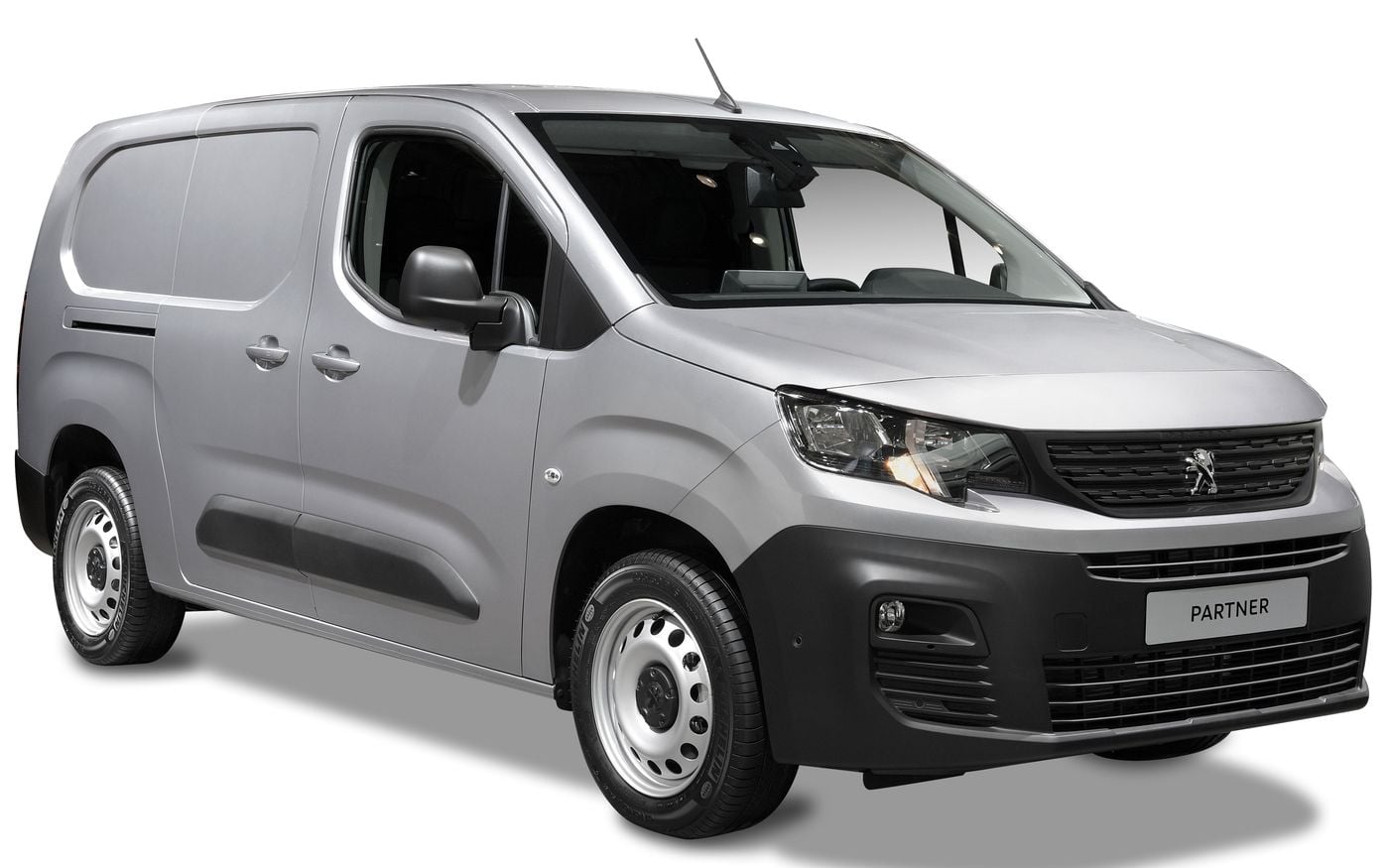

The 2023 Peugeot Partner Base is a front-wheel drive, 5-door Car Van that was released to the Australian market on 1st February 2024. The Peugeot Partner is regarded as a Van Under 3.5t built in France with prices starting at $59,990 before on-road costs.
This Peugeot Partner uses a fully electric engine.
The Peugeot Partner measures 1880mm (74.0 inches) in height, 4753mm (187.1 inches) in length, 1848mm (72.8 inches) in width with a 2975mm (117.1 inches) wheelbase that brings about a total of 1632kg (3597.9 lbs) of unladen weight. The Partner Base comes standard with 215/65 R16 front tyres and 215/65 R16 rear tyres. It has a 60 month, 200,000 km warranty.
The 2023 Peugeot Partner Base has a 157mm ground clearance with a 750kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Partner compare?
Quickly see how the 2023 Peugeot Partner Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
61.27 - 70.02 kW/t
36.67 kW/t
79.43 kW/t
Fuel Efficiency
5.8 - 6.3 L/100km
4.9 L/100km
8.4 L/100km
Vehicle Range
952 - 1,034 km
781 km
1,231 km
Price
$30,041 - $59,990
$30,041
$127,018
Warranty (Years)
5 years
5 years
Warranty (Distance)
200,000 km
160,000 km
Unlimited
Years on Sale
1 - 7 years
1 year
6 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
1,940 - 2,385 kg
1,940 kg
3,500 kg
Braked Towing Capacity
750 - 950 kg
750 kg
2,500 kg
Ground Clearance Unladen
157 mm
143 mm
202 mm
Payload Capacity
629 - 919 kg
629 kg
1,353 kg
Battery & Charging
Max. battery kilowatt hour
50 kWh
50 kWh
90 kWh
AC Charging (max kW)
7.4 kW
7.4 kW
11 kW
DC Fast Charging (max kW)
100 kW
80 kW
110 kW
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,753 mm
1,848 mm
inc mirror: 2,107 mm
inc mirror: 2,107 mm
1,880 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,753 mm |
| Overall Width | 1,848 mm |
| Overall Width (Inc Mirror) | 2,107 mm |
| Overall Height | 1,880 mm |
| Wheelbase | 2,975 mm |
| Turning Circle | 11,400 mm |
| Load Capacity | 753 mm |
Looking for complete Peugeot Partner size & space specs?
Our Peugeot Partner Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Peugeot Partner Sales rolling 12-months#
Explore Peugeot Partner Features & Specs
Driver Modes
Engine Mapping: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Mirrorlink Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
USB Charging Port
Location: Front
Number of Ports in Front: 1
Electrical System
Voltage: 12
WLTP Emissions
BEV Testing Type: BEV
Fuel
Generic Primary Fuel Type: Electric
Fuel Type: Electric
Charging Connector
CCS (Combo) Charging Socket DC 1: yes
CCS (Combo) Location of DC 1 Socket: Rear Side
CCS (Combo) Type: Ccs (Combo)
Type 2 (Mennekes) Charging Socket AC 1: yes
Type 2 (Mennekes) Location of AC 1 Socket: Rear Side
Type 2 (Mennekes) Type: Type 2 (Mennekes)
Charging Information
Mode 2 Amps: 10
Mode 2 Duration: 23.54
Mode 2 Quoted kW Supplied To Vehicle: 2.00
Mode 2 Scenario: Mode 2
Mode 2 State of Charge Ends At (%): 100
Mode 2 State of Charge Starts At (%): 0
Mode 2 Voltage: 240
Mode 3 amps (A): 32
Mode 3 Calc Duration Max Supplied 0% To 100%: 7.43
Mode 3 Calculated Duration 3.7 kW 0% To 100%: 14.93
Mode 3 Calculated Duration 7.4 kW 0% To 100%: 7.47
Mode 3 Duration: 7.26
Mode 3 Max kW Supplied To Vehicle: 7.40
Mode 3 Quoted kW Supplied To Vehicle: 7.00
Mode 3 Scenario: Mode 3
Mode 3 State of Charge Ends At (%): 100
Mode 3 State of Charge Starts At (%): 0
Mode 3 Voltage: 240
Mode 4 Calc Duration Max Supplied 10% To 80%: 0.47
Mode 4 Calculated Duration 100 kW 10% To 80%: 0.47
Mode 4 Calculated Duration 50 kW 10% To 80%: 0.95
Mode 4 Duration: 0.50
Mode 4 Max kW Supplied To Vehicle: 100.00
Mode 4 Quoted kW Supplied To Vehicle: 100.00
Mode 4 Scenario: Mode 4
Mode 4 State of Charge Ends At (%): 80
Mode 4 State of Charge Starts At (%): 0
Electric Driven Wheels
Electric Driven Wheels: Front
Electric Motor
Motor 1 Type: Ac Perm Magnet Synchronous
Motor 1 Max Torque Motor (Nm): 260
Motor 1 Location: Front
Motor 1 Number: 1
Motor 1 Power Output (hp/PS): 136.0
Motor 1 Power Output Motor (kW): 100.0
Electric Power Source
Battery (Ah): 125.0
Battery Cell Count: 200
Battery Supplier: Contemporary Amperex Tech
Battery Type: Nickel Manganese Cobalt
Battery Voltage: 400.0
Max Wireless Charging (kW): 0.0
Maximum Battery (kWh): 50.00
Number of kWh Included: Unlimited
Number of Months Subscription Included: 0
Onboard Charger: 7.4
Useable Battery (kWh): 47.70
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 8.00
Dashboard Centre 1 Touch Screen: yes
Fuel Consumption
ADR 81/02 Standard: Adr 81/02
Power
Maximum Power (hp/PS): 136
Maximum Power hp/PS Electric Motor: 136
Maximum Power (kW): 100
Maximum Power kW Electric Motor: 100
Maximum Torque (Nm): 260
Maximum Torque Electric Motor (Nm): 260
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3673
Power Consumption
Combined (km/kWh): 0.2
Combined (kWh/100 miles): 36.5
Combined (kWh/100km): 22.7
Combined (kWh/km): 0.6
Combined (kWh/mile): 0.4
Combined (miles/kWh): 0.4
Combined (Wh/km): 227
Combined (Wh/mile): 365
Drive
Driven Wheels: Front
Transmission
Description: Automatic
Number of Simulated Gears: 0
Number of Speeds: 1
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Front Wheels Tire Load Index: 102
Location: Front
Front Wheels Tire Low Rolling Resistance: yes
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 102
Rear Wheels Tire Location: Rear
Rear Wheels Tire Low Rolling Resistance: yes
Rear Wheels Tire Profile: 65
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Car Van
Cab Type: Single Cab
Local Body Type: Car Van
Platform Code: Emp2
Roof Type: Standard
Wheelbase Type: Long
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 137.7
Cargo Volume (L): 3900
Height (in): 48.9
Height (mm): 1527
Length (in): 85.3
Length (mm): 2167
Loading Floor Height (in): 24.3
Loading Floor Height (mm): 616
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 48.4
Width Between Wheelhouses (mm): 1229
Width (in): 60.1
Width (mm): 1527
External Dimensions
Kerb to Kerb Turning Circle (mm): 11400
Front Overhang (in): 35.1
Front Overhang (mm): 892
Front Track (in): 61.1
Front Track (mm): 1553
Ground Clearance Unladen (in): 6.2
Ground Clearance Unladen (mm): 157
Kerb To Kerb Turning Circle (ft): 37.4
Overall Height (in): 74.0
Overall Height (mm): 1880
Overall Length (in): 187.1
Overall Length (mm): 4753
Overall Width Folded Mirror (in): 75.6
Overall Width Folded Mirror (mm): 1921
Overall Width (in): 72.8
Overall Width Inc Mirror (in): 83.0
Overall Width Inc Mirror (mm): 2107
Overall Width (mm): 1848
Rear Overhang (in): 34.9
Rear Overhang (mm): 886
Rear Track (in): 61.5
Rear Track (mm): 1563
Wheelbase (in): 117.1
Wheelbase (mm): 2975
Cargo Doors
Driver Height (in): 42.2
Driver Height (mm): 1072
Driver Location: Driver
Driver Operation: Sliding
Driver Width (in): 26.6
Driver Width (mm): 675
Passenger Height (in): 42.2
Passenger Height (mm): 1072
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 26.6
Passenger Width (mm): 675
Rear Height (in): 45.4
Rear Height (mm): 1154
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Rear Width (in): 48.9
Rear Width (mm): 1241
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: Gray
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 1200
Front Axle Weight (lb): 2646
Gross Trailer Weight Braked (kg): 750
Gross Trailer Weight Braked (lb): 1653
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2385
Gross Vehicle Weight (lb): 5258
Manufacturer Driver Weight (kg): 74
Manufacturer Driver Weight (lb): 163
Payload Allowance (kg): 753
Payload Allowance (lb): 1660
Payload Inc Driver (kg): 753
Payload Inc Driver (lb): 1660
Published Kerb Weight (kg): 1632
Published Kerb Weight (lb): 3598
Rear Axle Weight (kg): 1400
Rear Axle Weight (lb): 3086
Tare Weight (kg): 1632
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: FM
Touch Screen: yes
External Connections
USB (Front): yes
Total 3rd Row USB Connections: 0
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Bulkhead
Solid Bulkhead Height: Full
Type: Solid
Solid Bulkhead Width: Full
Solid Bulkhead Window: yes
Overall Bulkhead Size
Full Height: yes
Full Width: yes
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Adult Occupant Score: 90.0
ANCAP Date Tested: 20180101
ANCAP Overall: 4.0
ANCAP Pedestrian Score: 58.0
ANCAP Rating Expiry Date: 20241231
ANCAP Rating Year: 2018
ANCAP Safety Assist Score: 74.0
ANCAP Standard: Ancap
ANCAP Version Tested: 1.5 Hdi Rifter Allure Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Lane Departure Warning
Activates Steering: yes
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Includes Trunk Hatch: yes
Operation: Remote
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
