Laramie
6.7L, 6-speed auto, 4-door Utility, Diesel, 4x4
Save $$$ with CarExpert*
$162,950â€

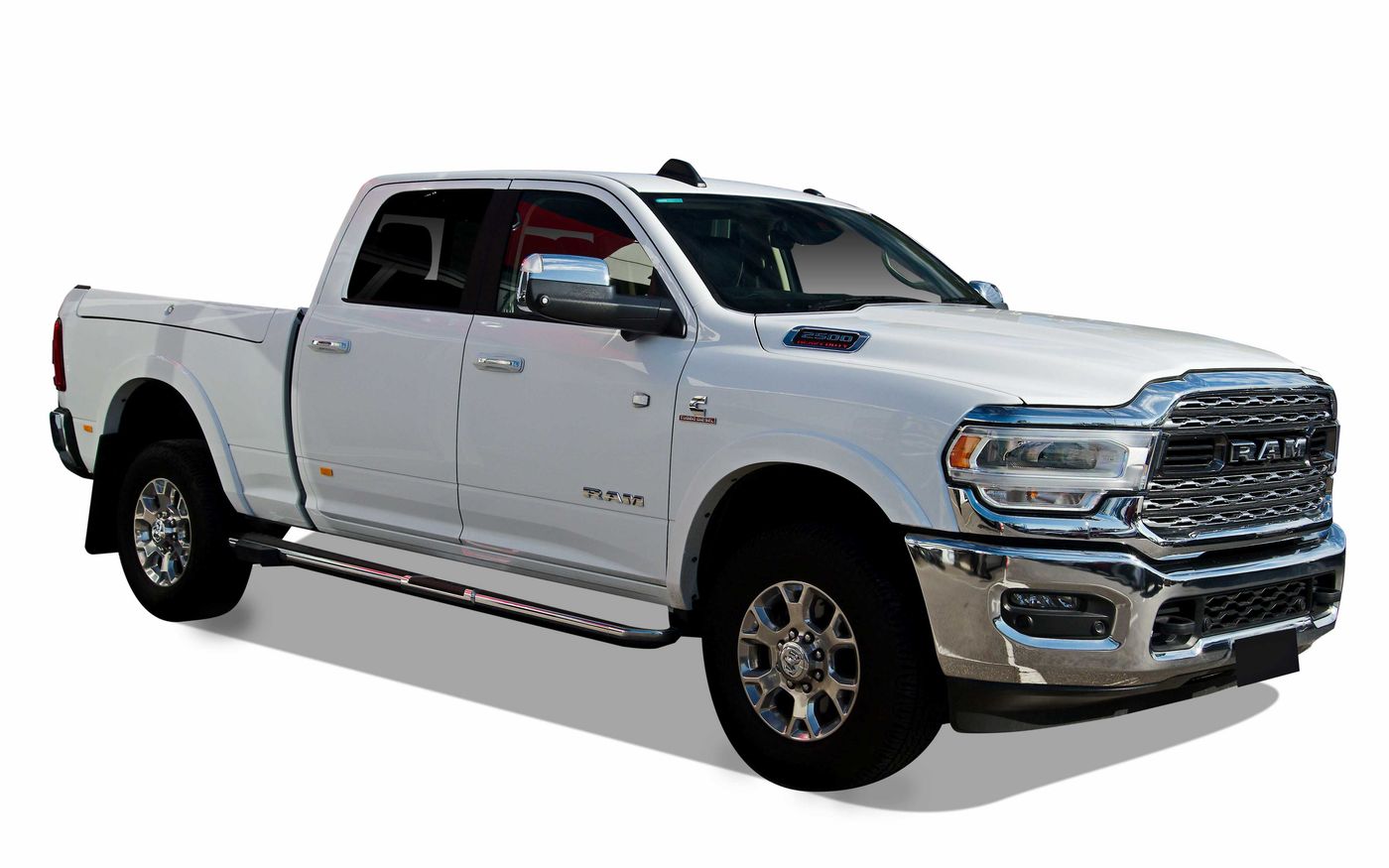

Ram 3500 Laramie (2022) price & specs
Save $$$ with CarExpert*
From
$162,950â€
Laramie
Overview
The 2022 Ram 3500 Laramie is a four-wheel drive, 4-door Utility that was released to the Australian market on 2nd October 2021 classified as a DT. The Ram 3500 is regarded as a Pickup built in Mexico with prices starting at $162,950 before on-road costs.
This Ram 3500 is powered by a 6.7L 6-cylinder engine that has 276 kW of power (at 2800 rpm) and 1084 Nm of torque (at 1600 rpm) via a Six-speed Automatic transmission. It has a 121L fuel tank
The Ram 3500 measures 2027mm (79.8 inches) in height, 6027mm (237.3 inches) in length, 2009mm (79.1 inches) in width with a 3797mm (149.5 inches) wheelbase that brings about a total of 3596kg (7927.8 lbs) of unladen weight. The 3500 Laramie comes standard with 275/70 R18 front tyres and 275/70 R18 rear tyres. It requires a service every 12 months or 12,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2022 Ram 3500 Laramie has a 218mm ground clearance with a 6171kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the 3500 compare?
Quickly see how the 2022 Ram 3500 Laramie stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
75 - 76.82 kW/t
47.8 kW/t
172.44 kW/t
Price
$162,950 - $174,950
$23,740
$219,950
Warranty (Years)
3 years
3 years
10 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 - 6 years
1 year
4 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
4,490 - 5,352 kg
2,700 kg
5,352 kg
Gross Comb. Mass
11,479 - 12,837 kg
4,435 kg
12,837 kg
Braked Towing Capacity
4,500 - 6,171 kg
1,800 kg
6,171 kg
Approach Angle
21.8 - 22.9°
15.2°
40.7°
Departure Angle
22.3 - 25.8°
15°
29.2°
Ground Clearance Unladen
218 mm
174 mm
300 mm
Payload Capacity
894 - 1,759 kg
693 kg
1,759 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
6,027 mm
2,009 mm
2,027 mm
| Specification | Measurement |
|---|---|
| Overall Length | 6,027 mm |
| Overall Width | 2,009 mm |
| Overall Height | 2,027 mm |
| Wheelbase | 3,797 mm |
| Turning Circle | 13,380 mm |
| Load Capacity | 894 mm |
Looking for complete Ram 3500 size & space specs?
Our Ram 3500 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Ram 3500 Sales rolling 12-months#
Explore Ram 3500 Features & Specs
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Engine
Bore Engine: 107.0
Engine (cc): 6690
Engine Configuration: V
Engine Code: I-6 Cummins
Engine (L): 6.7
Number of Cylinders: 6
Number of Valves per Cylinder: 4
Stroke Engine: 124.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel Tanks
Main Capacity Gal: 32.0
Main Capacity (L): 121
Main Capacity Uk Gallons: 26.6
Main Type: Total
Fuel Consumption
ADR 81/02 Standard: Adr 81/02
Power
Maximum Power (hp/PS): 375
Maximum Power (kW): 276
Maximum Torque (Nm): 1084
Measurement Standard: SAE
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 2800
Rpm For Maximum Torque Low: 1600
Differential Lock
Location: Rear
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Part-Time
Selection: Manual
Limited Slip Differential
Location: Rear
Rear Type: Mechanical
Transmission
Code: 68rfe
Description: Automatic With Manual Mode
Low High Gear Ranges: yes
Manual Mode: yes
Number of Speeds: 6
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.40
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 7.00
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Beam
Front Wheel Dependence: Rigid
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 118
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Speed Rating: T
Front Wheels Tire Type: All Seasons
Front Wheels Tire Width: 275
Rear Wheels Tire Load Index: 118
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Speed Rating: T
Rear Wheels Tire Type: All Seasons
Rear Wheels Tire Width: 275
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.0
Tray/Tub
Liner: Spray-In
Type: Straight Side
Cargo Area Dimensions
Height (in): 20.1
Height (mm): 1687
Length (in): 98.3
Length (mm): 2496
Width Between Wheelhouses (in): 51.0
Width Between Wheelhouses (mm): 1295
Width (in): 66.4
Width (mm): 1687
External Dimensions
Kerb to Kerb Turning Circle (mm): 13380
Front Track (in): 67.7
Front Track (mm): 1720
Ground Clearance Unladen (in): 8.6
Ground Clearance Unladen (mm): 218
Kerb To Kerb Turning Circle (ft): 43.9
Overall Height (in): 79.8
Overall Height (mm): 2027
Overall Length (in): 237.3
Overall Length (mm): 6027
Overall Width (in): 79.1
Overall Width (mm): 2009
Rear Track (in): 67.1
Rear Track (mm): 1704
Wheelbase (in): 149.5
Wheelbase (mm): 3797
Ramp Angles
Approach Angle: 21.8
Departure Angle: 22.3
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: DS
Roof Type: Standard
Wheelbase Type: Short
Step
Step Location: Rear
Rear Step Type: Platform
Step Location: Side
Bumpers
Front Bumper Colour: Chrome
Location: Front
Rear Bumper Colour: Chrome
Location: Rear
Cargo Doors
Location: Rear
Rear Opening Angle: 180
Rear Operation: Dropping Gate
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Dusk Sensor: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Paint
External Colour: White
Two Tone: yes
Type: Metallic
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Chrome
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Chrome
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Front Axle Weight (kg): 2722
Front Axle Weight (lb): 6001
Gross Trailer Weight Braked (kg): 6171
Gross Trailer Weight Braked (lb): 13605
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 11479
Gross Train Weight (lb): 25307
Gross Vehicle Weight (kg): 4490
Gross Vehicle Weight (lb): 9899
Kerb Weight Inc Driver (kg): 3596
Kerb Weight Inc Driver (lb): 7928
Kerb Weight Includes Driver: yes
Payload Allowance (kg): 894
Payload Allowance (lb): 1971
Published Kerb Weight (kg): 3596
Published Kerb Weight (lb): 7928
Rear Axle Weight (kg): 3176
Rear Axle Weight (lb): 7002
Tare Weight (kg): 3502
Audio System
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 1
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 9
Memorised Adjustment
Door Mirror Position: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
USB Charging Port
Location: Front
Number of Ports in Front: 1
Luxury Trim
Doors: Wood Or Woodlook
Gear Selector: Chrome
Instrument Panel: Wood Or Woodlook
Airbags
Number of Airbags: 6
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Location: Centre
Center Front Seat Type: 40/20/40 Split
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Reach Type: Memory
Driver Front Seat Type: 40/20/40 Split
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Type: 40/20/40 Split
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 6
Configuration: 3+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 12000
Distance (miles): 7456
Period (Months): 12
