Renault Master Integral (2004) price & specs
Save $$$ with CarExpert*
From
$42,990â€
Integral
Overview

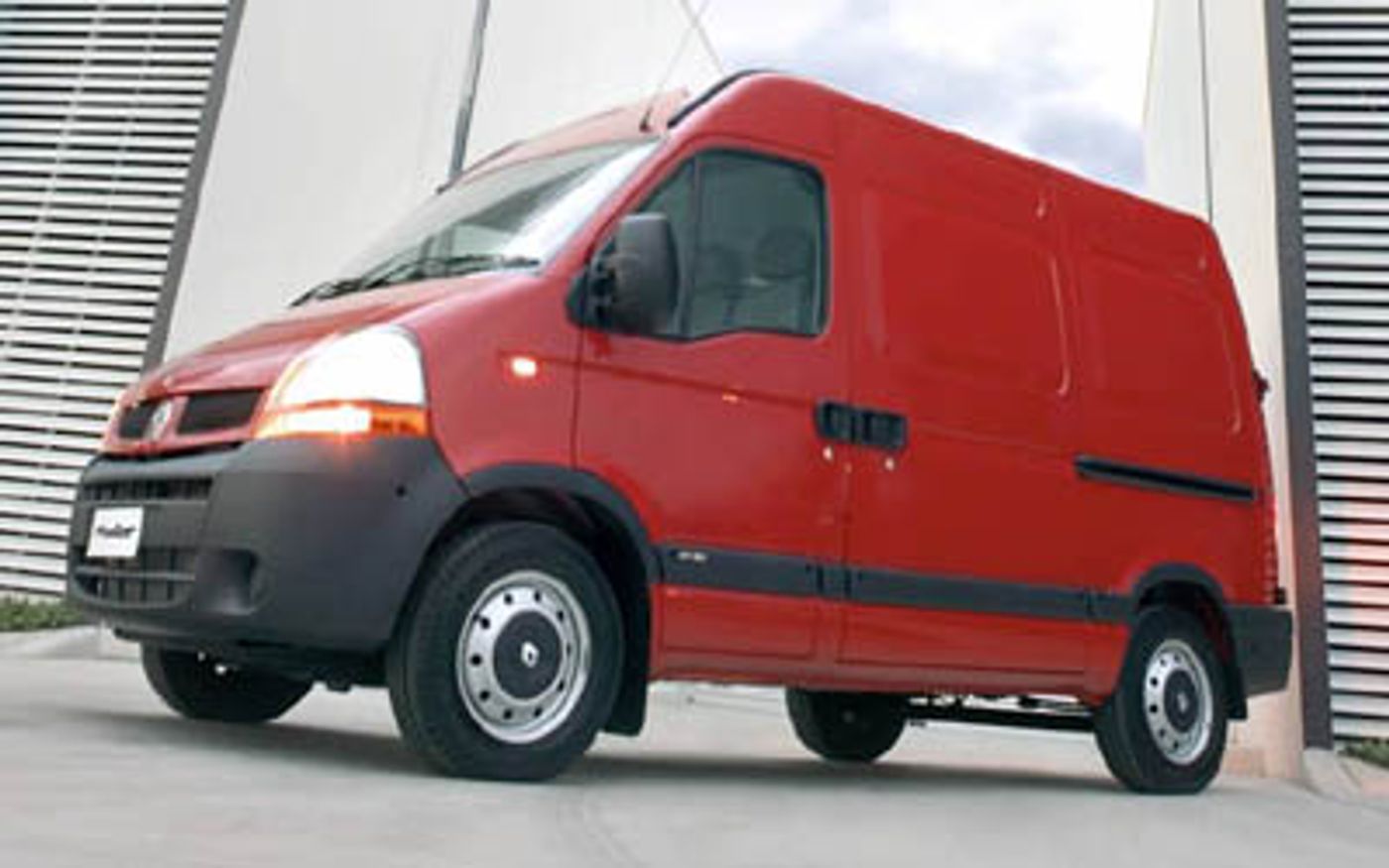

The 2004 Renault Master Integral is a front-wheel drive, 4-door Panel Van that was released to the Australian market on 4th January 1970. The Renault Master is regarded as a Van Over 3.5t built in France with prices starting at $42,990 before on-road costs.
This Renault Master is powered by a 2.5L 4-cylinder engine that has 84 kW of power (at 3500 rpm) and 290 Nm of torque (at 1600 rpm) via a Six-speed Manual transmission. Renault claims the Master Integral uses 8.9L/100km of Diesel in the combined city and highway cycle while putting out nullg of CO2. It has a 100L fuel tank, meaning it should be able to travel 1124km per full tank
The Renault Master measures 2496mm (98.3 inches) in height, 4888mm (192.4 inches) in length, 1990mm (78.3 inches) in width with a 3078mm (121.2 inches) wheelbase that brings about a total of 1837kg (4049.9 lbs) of unladen weight. The Master Integral comes standard with 225/65 R16 front tyres and 225/65 R16 rear tyres. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Master compare?
Quickly see how the 2004 Renault Master Integral stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
43.73 - 51.47 kW/t
42.59 kW/t
65.56 kW/t
Fuel Efficiency
8.9 L/100km
8.9 L/100km
Price
$38,690 - $46,190
$32,700
$47,780
Warranty (Years)
3 years
3 years
Warranty (Distance)
100,000 km
100,000 km
Years on Sale
6 years
1 year
5 years
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,888 mm
1,990 mm
2,496 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,888 mm |
| Overall Width | 1,990 mm |
| Overall Height | 2,496 mm |
| Wheelbase | 3,078 mm |
| Turning Circle | 12,070 mm |
| Load Capacity | 1,663 mm |
Looking for complete Renault Master size & space specs?
Our Renault Master Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Renault Master Sales rolling 12-months#
Explore Renault Master Features & Specs
Compressor
Compressor: Turbo
Engine
Bore Engine: 89
Engine (cc): 2463
Compression Ratio: 17.8
Engine Configuration: In-Line
Engine Code: G9u 754
Engine (L): 2.5
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 99
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 26.4
Main Capacity (L): 100
Main Fuel Type: Diesel
Main Type: Total
Fuel Consumption
ADR 81/02 Combined (L/100km): 8.9
ADR 81/02 Combined (mpg): 26
ADR 81/02 Standard: Adr 81/02
AS 2877 Standard: As 2877
AS 2877 Urban (L/100km): 10.7
AS 2877 Urban (mpg): 22
Fuel Economy
ADR 81/02 (L/100km): 8.9
AS 2877 City (L/100km): 10.7
Power
Maximum Power (hp/PS): 115
Maximum Power (kW): 84
Maximum Torque (Nm): 290
Measurement Standard: EEC
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 1600
Drive
Driven Wheels: Front
Transmission
Code: PK6
Number of Speeds: 6
Shift Lever Location: Steering Wheel
Type: Manual
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Width: 225
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Width: 225
Wheels
Front Covers: Partial
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6
Rear Covers: Partial
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6
Body Style
Body Type: Panel Van
Driver Location: RHD
Local Body Type: Panel Van
Platform Code: X70
Roof Type: Semi-High
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Plastic
Rear Bumper Colour: Black
Location: Rear
Rear Bumper Material: Plastic
Cargo Area Dimensions
Cargo Volume (cu ft): 321.4
Cargo Volume (L): 9100
Height (in): 75.3
Height (mm): 1764
Length (in): 106.9
Length (mm): 2714
Loading Floor Height (in): 21.5
Loading Floor Height (mm): 545
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 50.5
Width Between Wheelhouses (mm): 1282
Width (in): 69.4
Width (mm): 1764
External Dimensions
Kerb to Kerb Turning Circle (mm): 12070
Front Track (in): 68.5
Front Track (mm): 1740
Kerb To Kerb Turning Circle (ft): 39.6
Overall Height (in): 98.3
Overall Height (mm): 2496
Overall Length (in): 192.4
Overall Length (mm): 4888
Overall Width (in): 78.3
Overall Width (mm): 1990
Rear Track (in): 67.9
Rear Track (mm): 1725
Wall to Wall Turning Circle (ft): 40.9
Wall to Wall Turning Circle (mm): 12480
Wheelbase (in): 121.2
Wheelbase (mm): 3078
Cargo Doors
Passenger Height (in): 70.9
Passenger Height (mm): 1800
Passenger Internal Handles: yes
Location: Passenger
Passenger Opening Angle: 0
Passenger Operation: Sliding
Passenger Width (in): 43.3
Passenger Width (mm): 1099
Rear Height (in): 73.8
Rear Height (mm): 1874
Rear Internal Handles: yes
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Rear Width (in): 59.6
Rear Width (mm): 1515
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: Gray
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Wide Angle Driver Door Mirrors/Cameras: yes
Passenger Door Mirrors/Cameras Colour: Black
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Wide Angle Passenger Door Mirrors/Cameras: yes
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 1850
Front Axle Weight (lb): 4079
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5500
Gross Train Weight (lb): 12125
Gross Vehicle Weight (kg): 3500
Gross Vehicle Weight (lb): 7716
Payload Allowance (kg): 1663
Payload Allowance (lb): 3666
Published Kerb Weight (kg): 1837
Published Kerb Weight (lb): 4050
Rear Axle Weight (kg): 2060
Rear Axle Weight (lb): 4542
Audio System
In-Dash CD: yes
Radio Type: Am/Fm
Speakers
Number of Speakers: 2
Bulkhead
Solid Bulkhead Height: Full
Type: Solid
Solid Bulkhead Width: Full
Load Restraint
Type: Hooks
Cigar Lighter
Location: Front Seats
Power Outlet 12V
Location (12V): Front
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Operation: Reel
Center Seat Position: Center
Center Type: 3-Point
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 3
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Front Seats Type: Fixed
Door Pockets Bins
Location: Driver
Location: Passenger
Glove Compartment
Lid: yes
Lockable: yes
Anti-Theft Protection
Remote Operation: yes
Power Locks
Includes Trunk Hatch: yes
Operation: Remote
