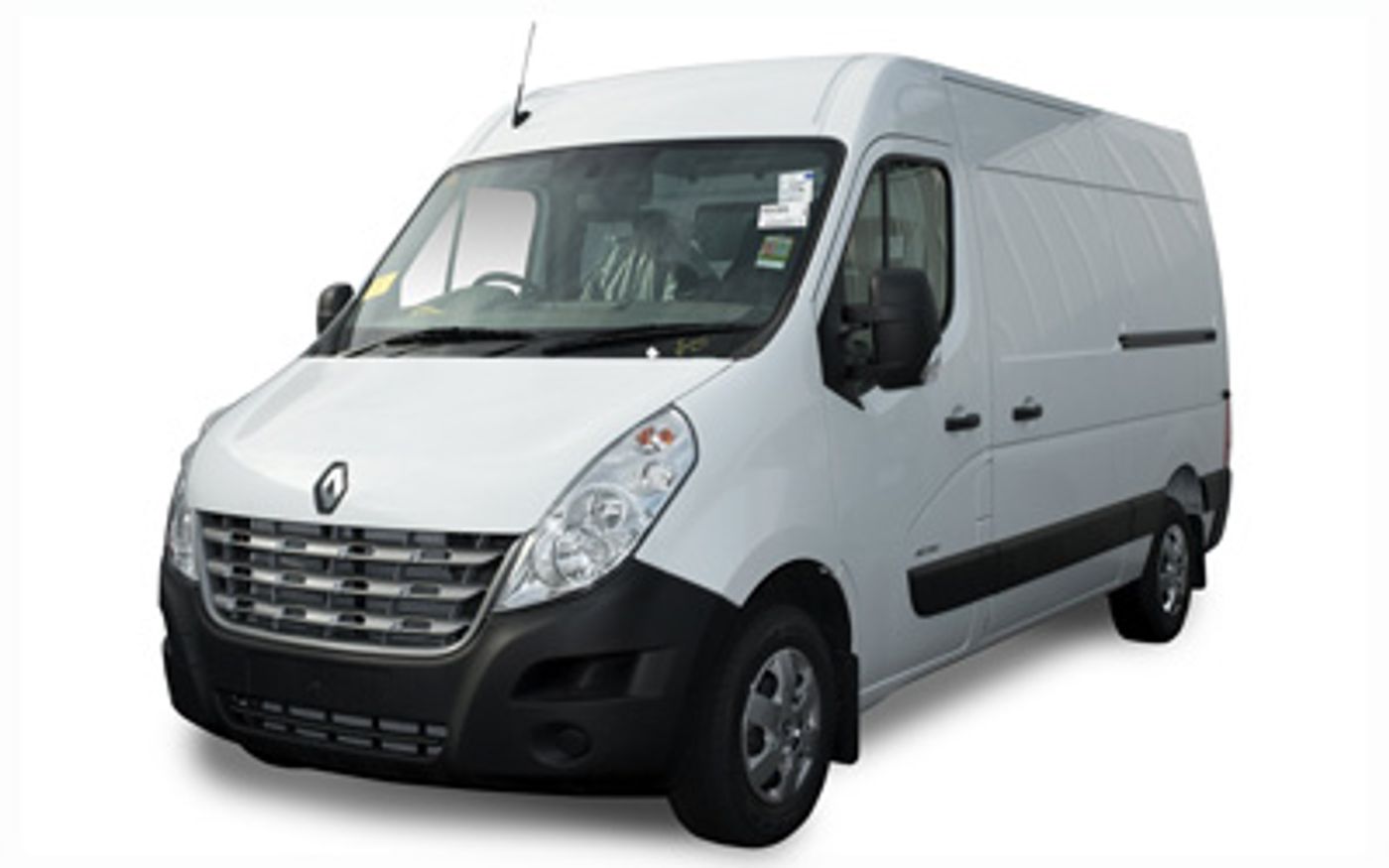

Renault Master Base (2014) price & specs
Save $$$ with CarExpert*
From
$39,990â€
Base
Overview
The 2014 Renault Master Base is a front-wheel drive, 4-door Panel Van that was released to the Australian market on 1st February 2014 classified as a X-62. The Renault Master is regarded as a Van Over 3.5t built in France with prices starting at $39,990 before on-road costs.
This Renault Master is powered by a 2.3L 4-cylinder engine that has 110 kW of power (at 3500 rpm) and 350 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. It has a 105L fuel tank
The Renault Master measures 2287mm (90.0 inches) in height, 5048mm (198.7 inches) in length, 2070mm (81.5 inches) in width with a 3182mm (125.3 inches) wheelbase that brings about a total of 1868kg (4118.2 lbs) of unladen weight. The Master Base comes standard with 225/65 R16 front tyres and 225/65 R16 rear tyres. It has a 36 month, 200,000 km warranty.
The 2014 Renault Master Base has a 219mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Master compare?
Quickly see how the 2014 Renault Master Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
46.37 - 58.89 kW/t
32.97 kW/t
66.67 kW/t
Fuel Efficiency
8.3 - 8.7 L/100km
7.7 L/100km
8.9 L/100km
Vehicle Range
1,207 - 1,265 km
1,011 km
1,265 km
Price
$39,990 - $53,990
$38,000
$103,400
Warranty (Years)
3 years
3 years
Warranty (Distance)
200,000 km
200,000 km
Unlimited
Years on Sale
6 years
1 year
5 years
Towing & Off-Road Capability
Gross Vehicle Weight
3,510 - 4,500 kg
3,510 kg
7,000 kg
Braked Towing Capacity
2,500 - 3,000 kg
2,000 kg
3,500 kg
Ground Clearance Unladen
166 - 219 mm
165 mm
219 mm
Payload Capacity
1,508 - 2,525 kg
945 kg
4,638 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,048 mm
2,070 mm
2,287 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,048 mm |
| Overall Width | 2,070 mm |
| Overall Height | 2,287 mm |
| Wheelbase | 3,182 mm |
| Turning Circle | 12,000 mm |
| Load Capacity | 1,642 mm |
Looking for complete Renault Master size & space specs?
Our Renault Master Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Renault Master Sales rolling 12-months#
Explore Renault Master Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 227
Standard Met: EU5
Engine
Bore Engine: 85.0
Engine (cc): 2299
Engine Configuration: In-Line
Engine Code: M9T
Engine (L): 2.3
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 101.3
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 27.7
Main Capacity (L): 105
Main Capacity Uk Gallons: 23.1
Main Type: Total
Power
Maximum Power (hp/PS): 150
Maximum Power (kW): 110
Maximum Torque (Nm): 350
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Front
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Code: PF6
Description: Manual
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 225
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Local Body Type: Panel Van
Platform Code: X62
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 282.5
Cargo Volume (L): 8000
Height (in): 66.9
Height (mm): 1765
Length (in): 101.7
Length (mm): 2583
Loading Floor Height (in): 22.2
Loading Floor Height (mm): 564
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 54.3
Width Between Wheelhouses (mm): 1380
Width (in): 69.5
Width (mm): 1765
External Dimensions
Kerb to Kerb Turning Circle (mm): 12000
Front Overhang (in): 33.1
Front Overhang (mm): 842
Front Track (in): 68.9
Front Track (mm): 1750
Ground Clearance Unladen (in): 8.6
Ground Clearance Unladen (mm): 219
Kerb To Kerb Turning Circle (ft): 39.4
Overall Height (in): 90.0
Overall Height (mm): 2287
Overall Length (in): 198.7
Overall Length (mm): 5048
Overall Width (in): 81.5
Overall Width (mm): 2070
Rear Overhang (in): 40.3
Rear Overhang (mm): 1024
Rear Track (in): 68.1
Rear Track (mm): 1730
Wall to Wall Turning Circle (ft): 41.0
Wall to Wall Turning Circle (mm): 12500
Wheelbase (in): 125.3
Wheelbase (mm): 3182
Cargo Doors
Driver Location: Driver
Driver Opening Angle: 0
Driver Operation: Sliding
Passenger Height (in): 62.2
Passenger Height (mm): 1581
Location: Passenger
Passenger Opening Angle: 0
Passenger Operation: Sliding
Passenger Width (in): 41.3
Passenger Width (mm): 1050
Rear Height (in): 64.1
Rear Height (mm): 1627
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Rear Width (in): 62.2
Rear Width (mm): 1580
Headlight Control
Directional Headlights: yes
Height Adjustment: Manual
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1850
Front Axle Weight (lb): 4079
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 3510
Gross Vehicle Weight (lb): 7738
Manufacturer Driver Weight (kg): 75
Manufacturer Driver Weight (lb): 165
Payload Allowance (kg): 1642
Payload Allowance (lb): 3620
Published Kerb Weight (kg): 1868
Published Kerb Weight (lb): 4118
Rear Axle Weight (kg): 2100
Rear Axle Weight (lb): 4630
Tare Weight (kg): 1787
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Bulkhead
Solid Bulkhead Height: Full
Type: Solid
Solid Bulkhead Width: Full
Overall Bulkhead Size
Full Height: yes
Full Width: yes
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Number of Outlets in Boot Cargo (12V): 1
Location (12V): Front
Floor Covering
Load Area: Wood
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Side Airbag
Location: D
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Seat Suspension: Mechanical
Driver Front Seat Type: Captains
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Below Seat Storage
Location: Passenger
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Climate Control - Number of Zones: 1
Fully Automated Climate Control: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 30000
Distance (miles): 18641
