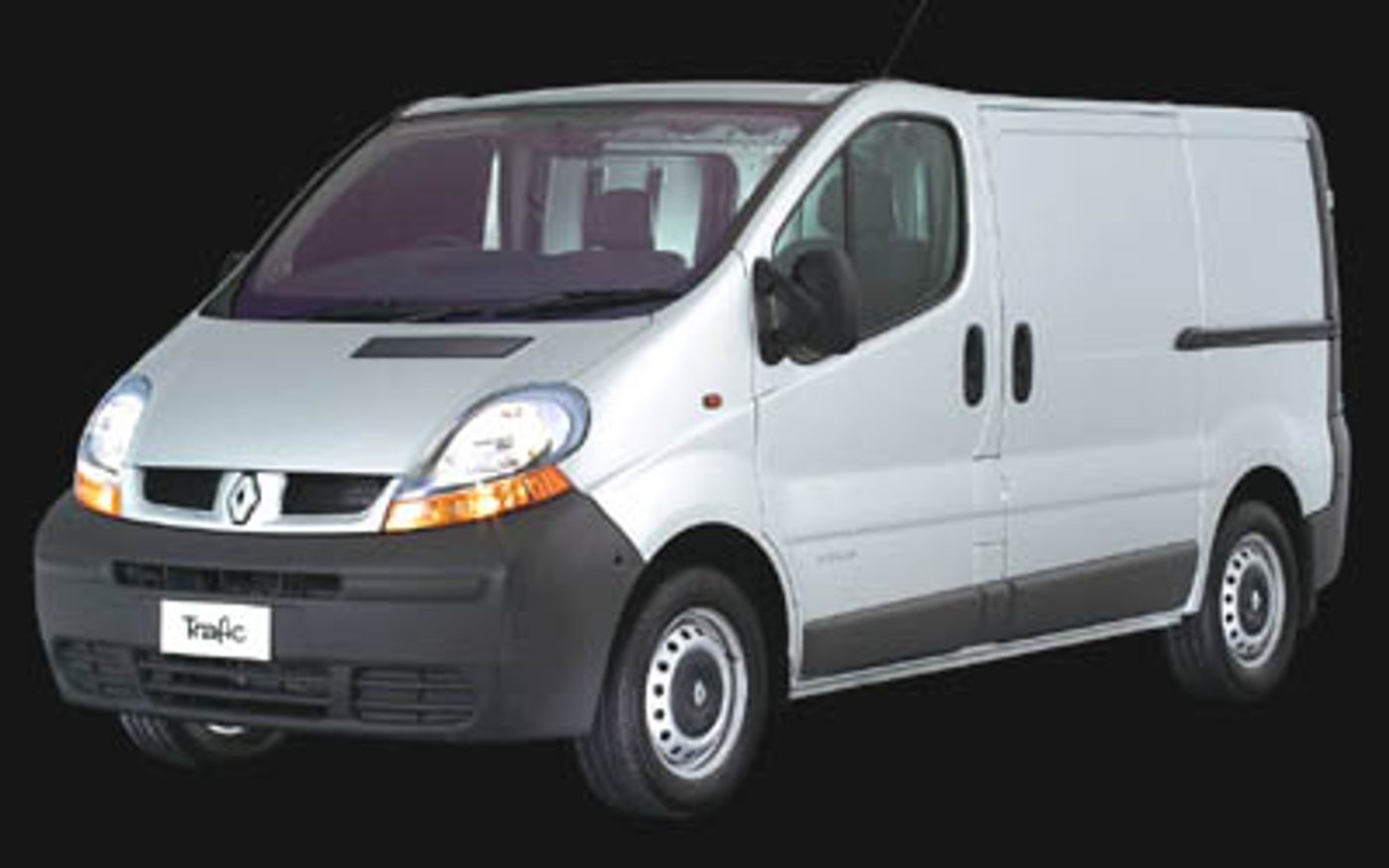

Renault Trafic Base (2004) price & specs
Save $$$ with CarExpert*
From
$33,990â€
Base
Overview
The 2004 Renault Trafic Base is a front-wheel drive, 4-door Panel Van that was released to the Australian market on 4th January 1970 classified as a X83. The Renault Trafic is regarded as a Van Under 3.5t built in Great Britain with prices starting at $33,990 before on-road costs.
This Renault Trafic is powered by a 1.9L 4-cylinder engine that has 74 kW of power (at 3500 rpm) and 240 Nm of torque (at 2000 rpm) via a Six-speed Manual transmission. It has a 90L fuel tank
The Renault Trafic measures 1959mm (77.1 inches) in height, 4782mm (188.3 inches) in length, 1904mm (75.0 inches) in width with a 3098mm (122.0 inches) wheelbase that brings about a total of 1745kg (3847.1 lbs) of unladen weight. The Trafic Base comes standard with 205/65 R16 front tyres and 205/65 R16 rear tyres. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Trafic compare?
Quickly see how the 2004 Renault Trafic Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
39.34 - 42.41 kW/t
35 kW/t
91.05 kW/t
Price
$33,490 - $43,690
$18,990
$58,500
Warranty (Years)
3 years
3 years
Warranty (Distance)
100,000 km
100,000 km
200,000 km
Years on Sale
4 years
1 year
6 years
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,782 mm
1,904 mm
1,959 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,782 mm |
| Overall Width | 1,904 mm |
| Overall Height | 1,959 mm |
| Wheelbase | 3,098 mm |
| Turning Circle | 11,840 mm |
| Load Capacity | 1,220 mm |
Looking for complete Renault Trafic size & space specs?
Our Renault Trafic Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Renault Trafic Sales rolling 12-months#
Explore Renault Trafic Features & Specs
Compressor
Compressor: Turbo
Engine
Bore Engine: 80
Engine (cc): 1870
Compression Ratio: 18.3
Engine Configuration: In-Line
Engine Code: F9Q
Engine (L): 1.9
Number of Cylinders: 4
Number of Valves per Cylinder: 2
Stroke Engine: 93
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 23.8
Main Capacity (L): 90
Main Fuel Type: Diesel
Main Type: Total
Power
Maximum Power (hp/PS): 100
Maximum Power (kW): 74
Maximum Torque (Nm): 240
Measurement Standard: EEC
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 2000
Drive
Driven Wheels: Front
Transmission
Code: PK6
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Width: 205
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Width: 205
Wheels
Front Covers: Partial
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6
Rear Covers: Partial
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Driver Location: RHD
Local Body Type: Panel Van
Platform Code: F83
Roof Type: Standard
Wheelbase Type: Short
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Plastic
Rear Bumper Colour: Black
Location: Rear
Rear Bumper Material: Plastic
Cargo Area Dimensions
Cargo Volume (cu ft): 176.6
Cargo Volume (L): 5000
Height (in): 54.6
Height (mm): 1904
Length (in): 94.5
Length (mm): 2400
Loading Floor Height (in): 21.4
Loading Floor Height (mm): 543
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 49.9
Width Between Wheelhouses (mm): 1268
Width (in): 75
Width (mm): 1904
External Dimensions
Kerb to Kerb Turning Circle (mm): 11840
Front Overhang (in): 32.8
Front Overhang (mm): 833
Front Track (in): 63.6
Front Track (mm): 1615
Kerb To Kerb Turning Circle (ft): 38.8
Overall Height (in): 77.1
Overall Height (mm): 1959
Overall Length (in): 188.3
Overall Length (mm): 4782
Overall Width (in): 75
Overall Width (mm): 1904
Rear Overhang (in): 33.5
Rear Overhang (mm): 851
Rear Track (in): 64.2
Rear Track (mm): 1630
Wall to Wall Turning Circle (ft): 40.7
Wall to Wall Turning Circle (mm): 12400
Wheelbase (in): 122
Wheelbase (mm): 3098
Cargo Doors
Passenger Height (in): 50.6
Passenger Height (mm): 1285
Passenger Internal Handles: yes
Location: Passenger
Passenger Opening Angle: 0
Passenger Operation: Sliding
Passenger Width (in): 39.4
Passenger Width (mm): 1000
Rear Height (in): 52.6
Rear Height (mm): 1335
Rear Internal Handles: yes
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Rear Width (in): 54.7
Rear Width (mm): 1390
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Internally Adjustable
Wide Angle Driver Door Mirrors/Cameras: yes
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Internally Adjustable
Wide Angle Passenger Door Mirrors/Cameras: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 1550
Front Axle Weight (lb): 3417
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 4965
Gross Train Weight (lb): 10946
Gross Vehicle Weight (kg): 2965
Gross Vehicle Weight (lb): 6537
Payload Allowance (kg): 1220
Payload Allowance (lb): 2690
Published Kerb Weight (kg): 1745
Published Kerb Weight (lb): 3847
Rear Axle Weight (kg): 1650
Rear Axle Weight (lb): 3638
Audio Anti-Theft Protection
Type: Code
Audio System
In-Dash CD: yes
Radio Type: Am/Fm
Bulkhead
Tubular Bulkhead Height: Full
Type: Tubular
Tubular Bulkhead Width: One Third
Load Restraint
Type: Hooks
Cigar Lighter
Location: Front Seats
Front Airbag
Location: Driver
Front Seat Belts
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 3
Front Seat
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Seat Upholstery
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Front Seats Type: Fixed
Door Pockets Bins
Location: Driver
Location: Passenger
Glove Compartment
Lid: yes
