Base
2.0L, 6-speed manual, 4-door Panel Van, Diesel, FWD
Save $$$ with CarExpert*
$34,990â€

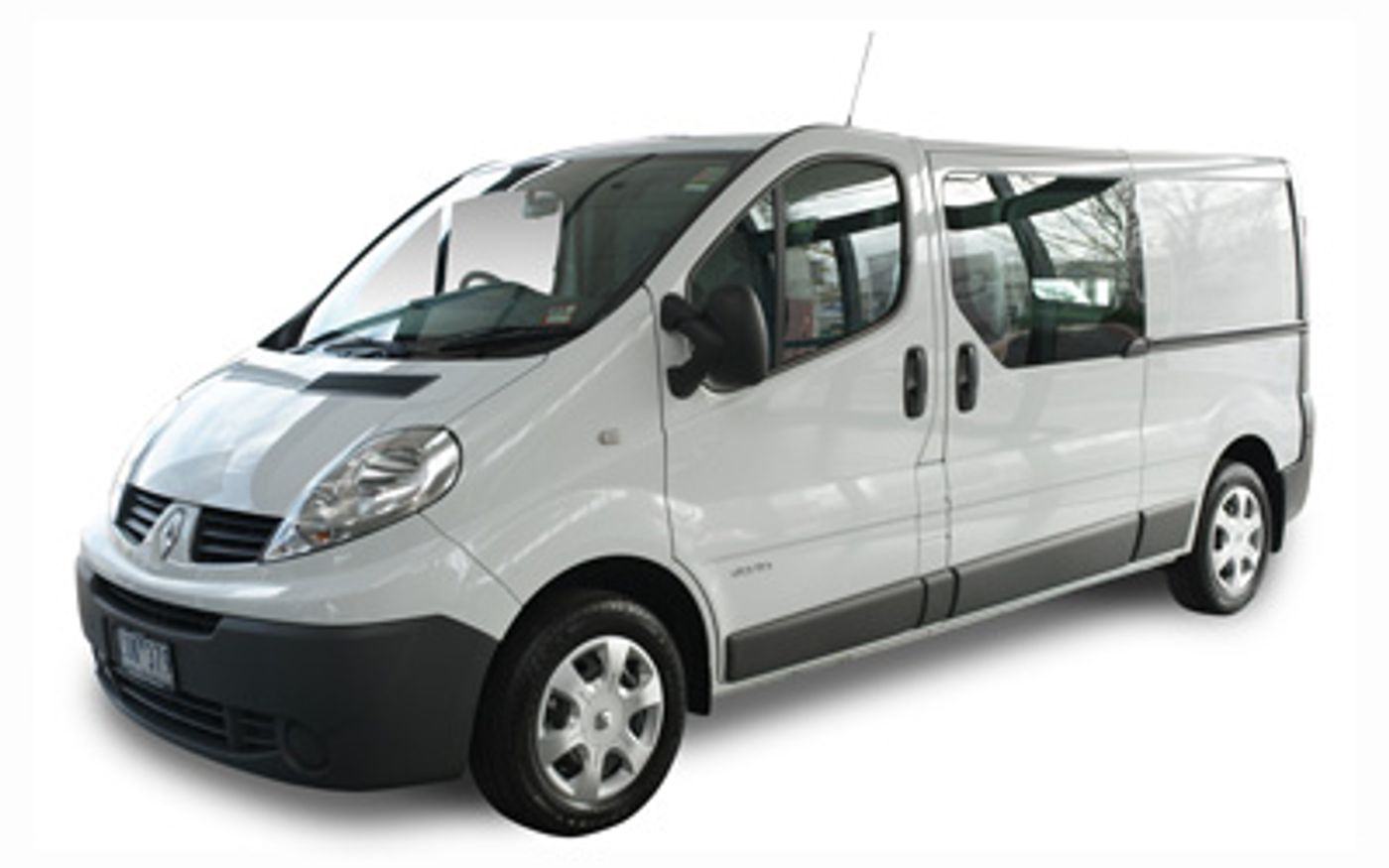

Renault Trafic Base (2011) price & specs
Save $$$ with CarExpert*
From
$34,990â€
Base
Overview
The 2011 Renault Trafic Base is a front-wheel drive, 4-door Panel Van that was released to the Australian market on 4th September 2011 classified as a X83. with prices starting at $34,990 before on-road costs.
This Renault Trafic is powered by a 2.0L 4-cylinder engine that has 85 kW of power (at 3500 rpm) and 290 Nm of torque (at 1600 rpm) via a Six-speed Manual transmission. Renault claims the Trafic Base uses 8.3L/100km of Diesel in the combined city and highway cycle while putting out 220g of CO2. It has a 90L fuel tank, meaning it should be able to travel 1084km per full tank
The Renault Trafic measures 1960mm (77.2 inches) in height, 4782mm (188.3 inches) in length, 1904mm (75.0 inches) in width with a 3098mm (122.0 inches) wheelbase that brings about a total of 1691kg (3728.0 lbs) of unladen weight. The Trafic Base comes standard with 205/65 R16 front tyres and 205/65 R16 rear tyres. It has a 36 month, 200,000 km warranty.
The 2011 Renault Trafic Base has a 184mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Trafic compare?
Quickly see how the 2011 Renault Trafic Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
47.27 - 50.27 kW/t
40.69 kW/t
75.99 kW/t
Fuel Efficiency
8 - 8.3 L/100km
5.2 L/100km
12.6 L/100km
Vehicle Range
1,084 - 1,125 km
529 km
1,154 km
Price
$34,990 - $38,490
$21,990
$58,990
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
150,000 - 200,000 km
100,000 km
Unlimited
Years on Sale
4 years
1 year
6 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,935 - 2,960 kg
1,949 kg
3,230 kg
Gross Comb. Mass
4,940 - 4,965 kg
3,800 kg
5,230 kg
Braked Towing Capacity
2,000 kg
1,050 kg
2,200 kg
Ground Clearance Unladen
150 - 184 mm
150 mm
190 mm
Payload Capacity
1,222 - 1,244 kg
650 kg
1,409 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,782 mm
1,904 mm
1,960 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,782 mm |
| Overall Width | 1,904 mm |
| Overall Height | 1,960 mm |
| Wheelbase | 3,098 mm |
| Turning Circle | 11,840 mm |
| Load Capacity | 1,244 mm |
Looking for complete Renault Trafic size & space specs?
Our Renault Trafic Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Renault Trafic Sales rolling 12-months#
Explore Renault Trafic Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 3.0
Australia Greenhouse Rating: 6.0
Australia Overall Emission Control Level Rating: 2.5
CO2 Level (Combined): 220
Standard Met: EU4
Engine
Bore Engine: 84.0
Engine (cc): 1995
Engine Configuration: In-Line
Engine Code: M9R
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 90.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 23.8
Main Capacity (L): 90
Main Capacity Uk Gallons: 19.8
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1084
ADR 81/02 Calculated Vehicle Range (miles): 674
ADR 81/02 Combined (km/L): 12.0
ADR 81/02 Combined (L/100km): 8.3
ADR 81/02 Combined (miles per UK gallon): 34
ADR 81/02 Combined (mpg): 28
ADR 81/02 Country Highway (km/L): 13.2
ADR 81/02 Country Highway (L/100km): 7.6
ADR 81/02 Country Highway (miles per UK gallon): 37
ADR 81/02 Country Highway (mpg): 31
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.5
ADR 81/02 Urban (L/100km): 9.5
ADR 81/02 Urban (miles per UK gallon): 30
ADR 81/02 Urban (mpg): 25
Fuel Economy
ADR 81/02 (L/100km): 8.3
Power
Maximum Power (hp/PS): 116
Maximum Power (kW): 85
Maximum Torque (Nm): 290
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 1600
Drive
Driven Wheels: Front
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Code: PK6
Description: Manual
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 107
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Load Index: 107
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Local Body Type: Panel Van
Platform Code: X83
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Rear Mud Flaps Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 176.6
Cargo Volume (L): 5000
Height (in): 54.6
Height (mm): 1690
Length (in): 94.5
Length (mm): 2400
Loading Floor Height (in): 21.3
Loading Floor Height (mm): 541
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 49.9
Width Between Wheelhouses (mm): 1268
Width (in): 66.5
Width (mm): 1690
External Dimensions
Kerb to Kerb Turning Circle (mm): 11840
Front Overhang (in): 32.8
Front Overhang (mm): 833
Front Track (in): 63.6
Front Track (mm): 1615
Ground Clearance Unladen (in): 7.2
Ground Clearance Unladen (mm): 184
Kerb To Kerb Turning Circle (ft): 38.8
Overall Height (in): 77.2
Overall Height (mm): 1960
Overall Length (in): 188.3
Overall Length (mm): 4782
Overall Width (in): 75.0
Overall Width (mm): 1904
Rear Overhang (in): 33.5
Rear Overhang (mm): 851
Rear Track (in): 64.2
Rear Track (mm): 1630
Wall to Wall Turning Circle (ft): 40.7
Wall to Wall Turning Circle (mm): 12400
Wheelbase (in): 122.0
Wheelbase (mm): 3098
Cargo Doors
Driver Height (in): 50.6
Driver Height (mm): 1285
Driver Internal Handles: yes
Driver Location: Driver
Driver Opening Angle: 0
Driver Operation: Sliding
Driver Width (in): 39.4
Driver Width (mm): 1000
Passenger Height (in): 50.6
Passenger Height (mm): 1285
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 39.4
Passenger Width (mm): 1000
Rear Height (in): 52.5
Rear Height (mm): 1334
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Rear Width (in): 54.7
Rear Width (mm): 1390
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: Blue
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Heat Reflective Glass
Location: ?
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Driver Type: Sliding
Location: Passenger
Passenger Type: Fixed
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 1580
Front Axle Weight (lb): 3483
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 4965
Gross Train Weight (lb): 10946
Gross Vehicle Weight (kg): 2935
Gross Vehicle Weight (lb): 6471
Payload Allowance (kg): 1244
Payload Allowance (lb): 2743
Published Kerb Weight (kg): 1691
Published Kerb Weight (lb): 3728
Rear Axle Weight (kg): 1650
Rear Axle Weight (lb): 3638
Tare Weight (kg): 1623
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
MP3 Devices Connection: yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Bulkhead
Type: Solid
Tubular Bulkhead Height: Full
Type: Tubular
Tubular Bulkhead Width: One Third
Overall Bulkhead Size
Full Height: yes
Bluetooth
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Front
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 2
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Location: Passenger
Passenger Front Seat Reclining: yes
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 1
Fully Automated Climate Control: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
