Renault Trafic Pro (2022) price & specs
Save $$$ with CarExpert*
From
$40,590†
Pro
Overview

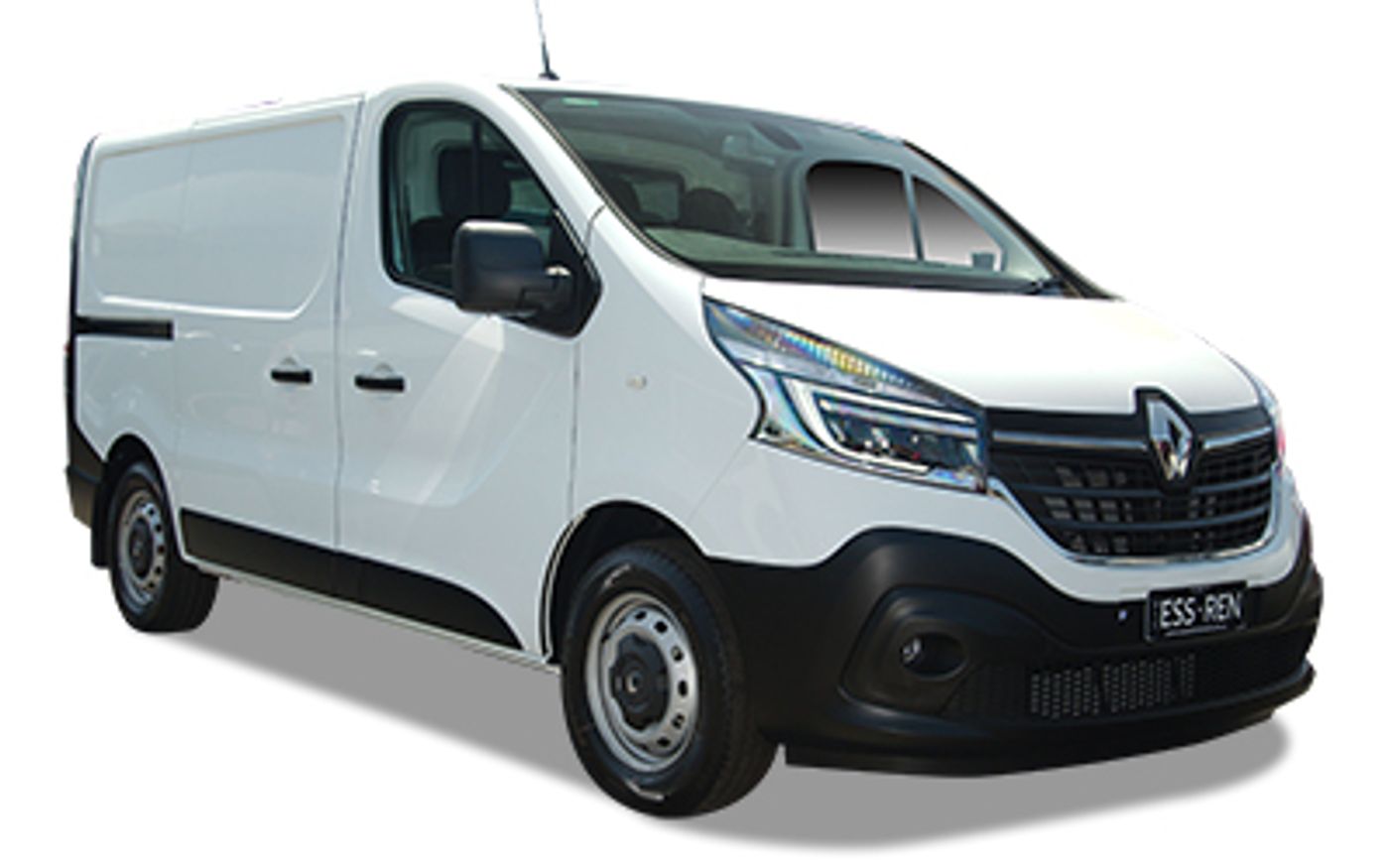

The 2022 Renault Trafic Pro is a front-wheel drive, 4-door Panel Van that was released to the Australian market on 2nd March 2022. The Renault Trafic is regarded as a Van Under 3.5t built in France with prices starting at $40,590 before on-road costs.
This Renault Trafic is powered by a 1.6L 4-cylinder engine that has 85 kW of power (at 3500 rpm) and 300 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. Renault claims the Trafic Pro uses 6.6L/100km of Diesel in the combined city and highway cycle while putting out 174g of CO2. It has a 80L fuel tank, meaning it should be able to travel 1212km per full tank
The Renault Trafic measures 1971mm (77.6 inches) in height, 5399mm (212.6 inches) in length, 1956mm (77.0 inches) in width with a 3498mm (137.7 inches) wheelbase that brings about a total of 1728kg (3809.6 lbs) of unladen weight. The Trafic Pro comes standard with 205/65 R16 front tyres and 205/65 R16 rear tyres. It requires a service every 12 months or 30,000 km, whichever comes first. It has a 60 month, 200,000 km warranty.
The 2022 Renault Trafic Pro has a 160mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Trafic compare?
Quickly see how the 2022 Renault Trafic Pro stacks up against its competition.
Select any benchmark to see more details.
Power to Weight
49.19 - 70.66 kW/t
36.12 kW/t
81.55 kW/t
Fuel Efficiency
6.2 - 7.3 L/100km
4.9 L/100km
11.1 L/100km
Vehicle Range
1,096 - 1,290 km
649 km
1,290 km
Price
$38,590 - $56,090
$26,990
$116,115
Warranty (Years)
5 years
3 years
10 years
Warranty (Distance)
200,000 km
100,000 km
Unlimited
Years on Sale
4 years
1 year
6 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,900 - 3,070 kg
1,940 kg
3,500 kg
Gross Comb. Mass
4,940 - 4,965 kg
4,100 kg
5,610 kg
Braked Towing Capacity
1,630 - 2,000 kg
900 kg
2,800 kg
Ground Clearance Unladen
160 mm
134 mm
234 mm
Payload Capacity
1,066 - 1,274 kg
655 kg
1,419 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,399 mm
1,956 mm
inc mirror: 2,283 mm
inc mirror: 2,283 mm
1,971 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,399 mm |
| Overall Width | 1,956 mm |
| Overall Width (Inc Mirror) | 2,283 mm |
| Overall Height | 1,971 mm |
| Wheelbase | 3,498 mm |
| Turning Circle | 13,200 mm |
| Load Capacity | 1,192 mm |
Looking for complete Renault Trafic size & space specs?
Our Renault Trafic Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Renault Trafic Sales rolling 12-months#
Explore Renault Trafic Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
USB Charging Port
Location: Front
Number of Ports in Front: 2
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 174
Standard Met: EU5
Engine
Bore Engine: 80.0
Engine (cc): 1598
Engine Configuration: In-Line
Engine Code: R9m 408
Engine (L): 1.6
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 79.5
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1212
ADR 81/02 Calculated Vehicle Range (miles): 753
ADR 81/02 Combined (km/L): 15.2
ADR 81/02 Combined (L/100km): 6.6
ADR 81/02 Combined (miles per UK gallon): 43
ADR 81/02 Combined (mpg): 36
ADR 81/02 Country Highway (km/L): 16.9
ADR 81/02 Country Highway (L/100km): 5.9
ADR 81/02 Country Highway (miles per UK gallon): 48
ADR 81/02 Country Highway (mpg): 40
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 12.7
ADR 81/02 Urban (L/100km): 7.9
ADR 81/02 Urban (miles per UK gallon): 36
ADR 81/02 Urban (mpg): 30
Fuel Economy
ADR 81/02 (L/100km): 6.6
Power
Maximum Power (hp/PS): 116
Maximum Power (kW): 85
Maximum Torque (Nm): 300
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Front
Terrain Type Selection
Includes TR ESP Adjustment: yes
Transmission
Code: PF6
Description: Manual
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Front Wheels Tire Load Index: 107
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: T
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Load Index: 107
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Speed Rating: T
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
Body Style
Body Type: Panel Van
Local Body Type: Panel Van
Platform Code: X82
Roof Type: Standard
Wheelbase Type: Long
Mud Flaps
Rear Mud Flaps Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 211.9
Cargo Volume (L): 6000
Height (in): 54.6
Height (mm): 1662
Length (in): 115.6
Length (mm): 2937
Loading Floor Height (in): 21.7
Loading Floor Height (mm): 552
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 49.9
Width Between Wheelhouses (mm): 1268
Width (in): 65.4
Width (mm): 1662
External Dimensions
Kerb to Kerb Turning Circle (mm): 13200
Front Overhang (in): 36.7
Front Overhang (mm): 933
Front Track (in): 63.6
Front Track (mm): 1615
Ground Clearance Unladen (in): 6.3
Ground Clearance Unladen (mm): 160
Kerb To Kerb Turning Circle (ft): 43.3
Overall Height (in): 77.6
Overall Height (mm): 1971
Overall Length (in): 212.6
Overall Length (mm): 5399
Overall Width (in): 77.0
Overall Width Inc Mirror (in): 89.9
Overall Width Inc Mirror (mm): 2283
Overall Width (mm): 1956
Rear Overhang (in): 38.1
Rear Overhang (mm): 968
Rear Track (in): 64.1
Rear Track (mm): 1628
Wall to Wall Turning Circle (ft): 45.0
Wall to Wall Turning Circle (mm): 13730
Wheelbase (in): 137.7
Wheelbase (mm): 3498
Cargo Doors
Driver Internal Handles: yes
Driver Location: Driver
Driver Opening Angle: 0
Driver Operation: Sliding
Passenger Height (in): 50.6
Passenger Height (mm): 1284
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 40.6
Passenger Width (mm): 1030
Rear Height (in): 52.0
Rear Height (mm): 1320
Rear Internal Handles: yes
Location: Rear
Rear Opening Angle: 0
Rear Operation: Lifting Gate
Rear Width (in): 54.8
Rear Width (mm): 1391
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Sliding
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Complex Surface
LED Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Paint
External Colour: Gray
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Wide Angle Driver Door Mirrors/Cameras: yes
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Wide Angle Passenger Door Mirrors/Cameras: yes
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Front Axle Weight (kg): 1585
Front Axle Weight (lb): 3494
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2920
Gross Vehicle Weight (lb): 6438
Kerb Weight Includes Driver: yes
Payload Allowance (kg): 1192
Payload Allowance (lb): 2628
Payload Inc Driver (kg): 1310
Payload Inc Driver (lb): 2888
Published Kerb Weight (kg): 1728
Published Kerb Weight (lb): 3810
Rear Axle Weight (kg): 1650
Rear Axle Weight (lb): 3638
Tare Weight (kg): 1669
Trailer Noseweight (kg): 80
Audio System
Radio Type: Am/Fm
External Connections
USB (Front): yes
Total Front USB Connections: 2
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Bulkhead
Solid Bulkhead Height: Full
Type: Solid
Solid Bulkhead Width: Full
Solid Bulkhead Window: yes
Overall Bulkhead Size
Full Height: yes
Full Width: yes
Floor Covering
Load Area: Wood
Load Area Protection Strips: yes
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 4
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Side Airbag
Location: Front
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 30000
Distance (miles): 18641
Period (Months): 12
Variable Distance Period: yes
