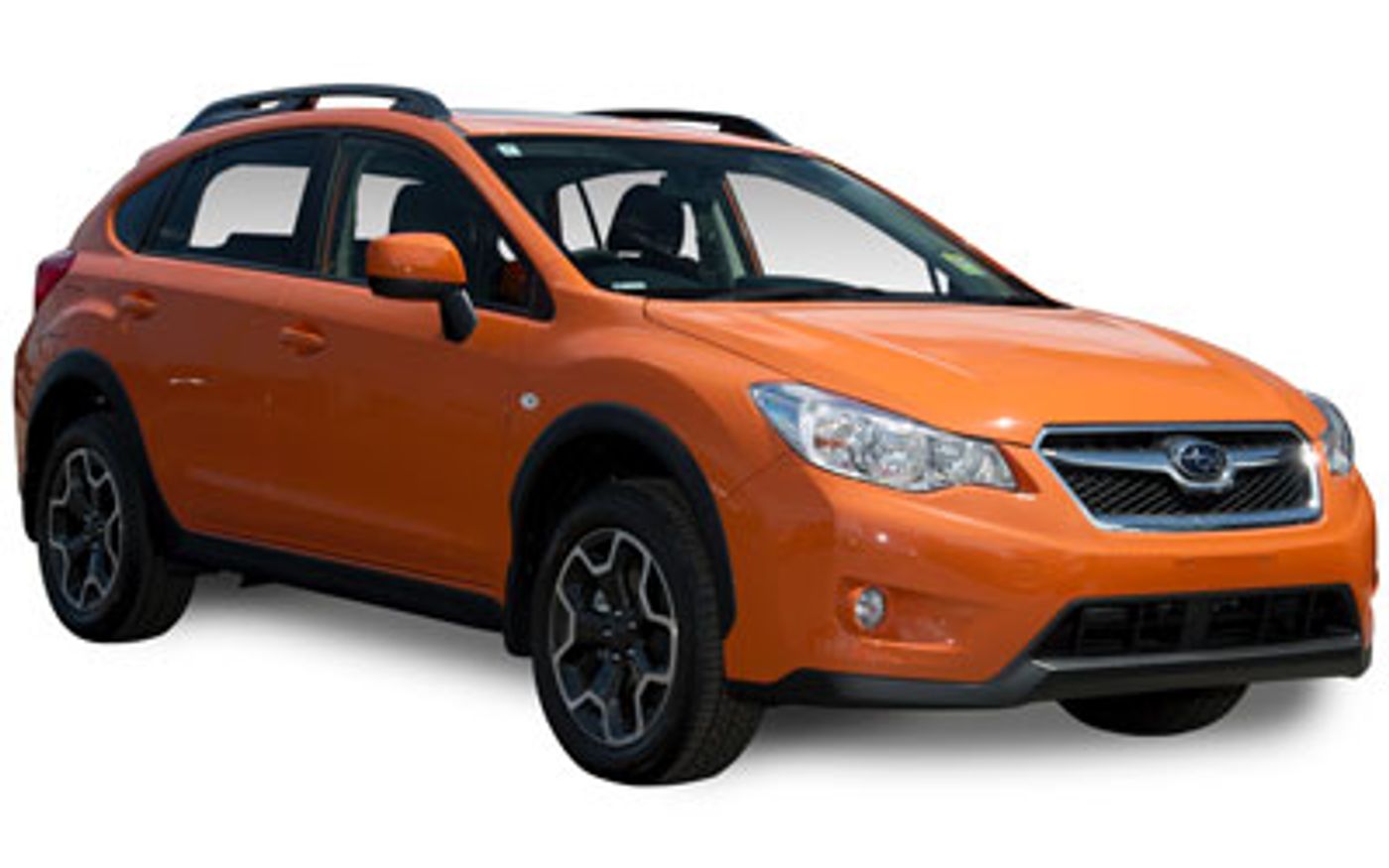

Subaru XV S (2017) price & specs
Save $$$ with CarExpert*
From
$35,540â€
Overview
The 2017 Subaru XV S is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 1970. The Subaru XV is regarded as a small SUV built in Japan with prices starting at $35,540 before on-road costs.
This Subaru XV is powered by a 2.0L 4-cylinder engine that has 110 kW of power (at 6200 rpm) and 196 Nm of torque (at 4200 rpm) via a Variable SP AUTOMATIC transmission. Subaru claims the XV S uses 7.0L/100km of Premium Unleaded in the combined city and highway cycle while putting out 162g of CO2. It has a 60L fuel tank, meaning it should be able to travel 857km per full tank
The Subaru XV measures 1615mm (63.6 inches) in height, 4450mm (175.2 inches) in length, 1780mm (70.1 inches) in width with a 2635mm (103.7 inches) wheelbase that brings about a total of 1450kg (3196.7 lbs) of unladen weight. The XV S comes standard with 225/55 R17 front tyres and 225/55 R17 rear tyres. It requires a service every 6 months or 12,500 km, whichever comes first. It has a 36 month, unlimited km warranty.
The 2017 Subaru XV S has a 220mm ground clearance with a 1400kg braked and 650kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the XV compare?
Quickly see how the 2017 Subaru XV S stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
75.86 - 79.42 kW/t
55.36 kW/t
88.03 kW/t
Boot Space
310 litres
264 litres
437 litres
Fuel Efficiency
7 - 7.3 L/100km
4.7 L/100km
7.6 L/100km
Vehicle Range
822 - 857 km
641 km
1,000 km
Price
$26,490 - $35,540
$15,990
$40,290
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Service Interval
6 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
1,890 kg
1,330 kg
2,060 kg
Braked Towing Capacity
1,400 kg
500 kg
1,400 kg
Approach Angle
18°
17.9°
30.5°
Departure Angle
27.7°
27.7°
35°
Ground Clearance Unladen
220 mm
160 mm
220 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,450 mm
1,780 mm
1,615 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,450 mm |
| Overall Width | 1,780 mm |
| Overall Height | 1,615 mm |
| Wheelbase | 2,635 mm |
| Turning Circle | 10,600 mm |
| Load Capacity | 440 mm |
Looking for complete Subaru XV size & space specs?
Our Subaru XV Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Subaru XV Sales rolling 12-months#
Explore Subaru XV Features & Specs
Emission Control Level
Australia Air Pollution Rating: 8.5
Australia Greenhouse Rating: 7.0
Australia Overall Emission Control Level Rating: 4.5
CO2 Level (Combined): 162
Standard Met: EU5
Engine
Bore Engine: 84.0
Engine (cc): 1995
Engine Configuration: Horizontal
Engine Code: Fb20
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 90.0
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 15.9
Main Capacity (L): 60
Main Capacity Uk Gallons: 13.2
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 2
Screen Size (in): 7.0
Touch Screen: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 857
ADR 81/02 Calculated Vehicle Range (miles): 533
ADR 81/02 Combined (km/L): 14.3
ADR 81/02 Combined (L/100km): 7.0
ADR 81/02 Combined (miles per UK gallon): 40
ADR 81/02 Combined (mpg): 34
ADR 81/02 Country Highway (km/L): 16.9
ADR 81/02 Country Highway (L/100km): 5.9
ADR 81/02 Country Highway (miles per UK gallon): 48
ADR 81/02 Country Highway (mpg): 40
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 11.2
ADR 81/02 Urban (L/100km): 8.9
ADR 81/02 Urban (miles per UK gallon): 32
ADR 81/02 Urban (mpg): 26
Fuel Economy
ADR 81/02 (L/100km): 7.0
Performance
Acceleration 0 To 100 km/h: 10.7
Maximum Speed (km/h): 187
Maximum Speed (mph): 116
Power
Maximum Power (hp/PS): 150
Maximum Power (kW): 110
Maximum Torque (Nm): 196
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6200
Rpm For Maximum Torque Low: 4200
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Transmission
Description: Continuously Variable With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: Variable
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Wishbone
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 97
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Mud & Snow
Front Wheels Tire Width: 225
Rear Wheels Tire Load Index: 97
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: Mud & Snow
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Rear Two Tone: yes
Cargo Capacity
Rear Seat Down (cu ft): 26.2
Rear Seat Down (L): 741
Rear Seat Up to Lower Window (cu ft): 10.9
Rear Seat Up to Lower Window (L): 310
External Dimensions
Kerb to Kerb Turning Circle (mm): 10600
Front Track (in): 60.0
Front Track (mm): 1525
Ground Clearance Unladen (in): 8.7
Ground Clearance Unladen (mm): 220
Kerb To Kerb Turning Circle (ft): 34.8
Overall Height (in): 63.6
Overall Height (mm): 1615
Overall Length (in): 175.2
Overall Length (mm): 4450
Overall Width (in): 70.1
Overall Width (mm): 1780
Rear Track (in): 60.0
Rear Track (mm): 1525
Wheelbase (in): 103.7
Wheelbase (mm): 2635
Internal Dimensions
Front Headroom (in): 39.8
Front Headroom (mm): 1010
Rear Headroom (in): 37.7
Rear Headroom (mm): 957
Front Hip Room (in): 55.6
Front Hip Room (mm): 1412
Rear Hip Room (in): 54.2
Rear Hip Room (mm): 1377
Front Leg Room (in): 43.5
Front Leg Room (mm): 1105
Rear Leg Room (in): 35.4
Rear Leg Room (mm): 900
Ramp Angles
Approach Angle: 18.0
Departure Angle: 27.7
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Impreza Ii
Wheelbase Type: Short
Spoiler
Location: Roof
Bumpers
Location: Front
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Xenon
Lens Type: Complex Surface
LED Lights
Location: Brake Lights
Location: Rear Lights
Paint
External Colour: Orange
Type: Pearl
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1400
Gross Trailer Weight Braked (lb): 3086
Gross Trailer Weight Unbraked (kg): 650
Gross Trailer Weight Unbraked (lb): 1433
Gross Vehicle Weight (kg): 1890
Gross Vehicle Weight (lb): 4167
Published Kerb Weight (kg): 1450
Published Kerb Weight (lb): 3197
Tare Weight (kg): 1410
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Voice Activating System
Includes Navigation System: yes
Includes Phone: yes
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Piano Black
Gear Selector: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 7
Crash Test Results
ANCAP Overall: 5.00
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Number of Electrical Adjustments: 4
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Sports
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 12500
Distance (miles): 7767
Period (Months): 6
