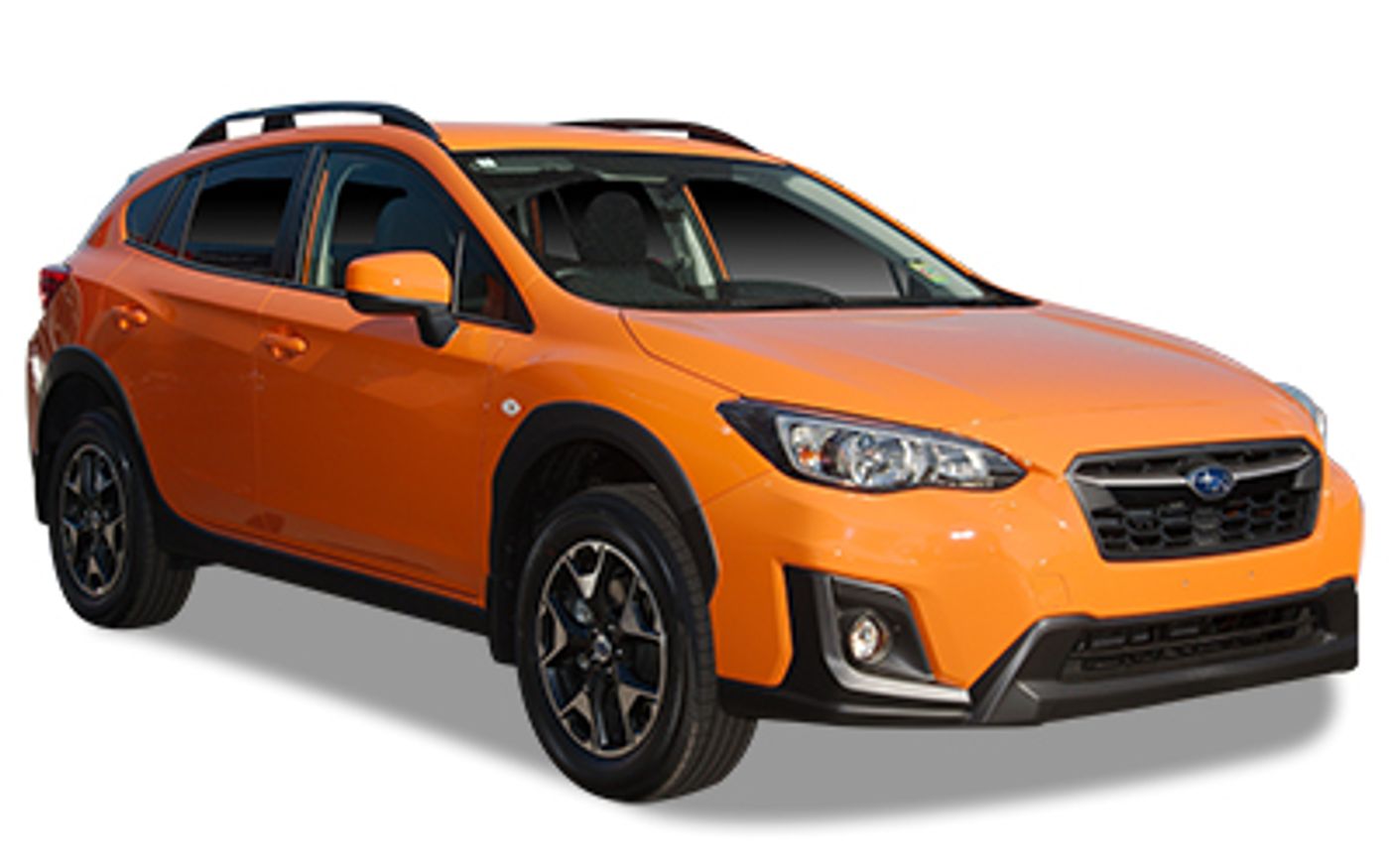

Subaru XV L (2020) price & specs
Save $$$ with CarExpert*
From
$31,610â€
Overview
The 2020 Subaru XV L is a four-wheel drive, 5-door SUV that was released to the Australian market on 1st February 2020 classified as a G-5x. The Subaru XV is regarded as a small SUV built in Japan with prices starting at $31,610 before on-road costs.
This Subaru XV is powered by a 2.0L 4-cylinder engine that has 115 kW of power (at 6000 rpm) and 196 Nm of torque (at 4000 rpm) via a Variable SP AUTOMATIC transmission. Subaru claims the XV L uses 7.0L/100km of Unleaded in the combined city and highway cycle while putting out 159g of CO2. It has a 63L fuel tank, meaning it should be able to travel 900km per full tank
The Subaru XV measures 1615mm (63.6 inches) in height, 4465mm (175.8 inches) in length, 1800mm (70.9 inches) in width with a 2665mm (104.9 inches) wheelbase that brings about a total of 1474kg (3249.6 lbs) of unladen weight. The XV L comes standard with 225/60 R17 front tyres and 225/60 R17 rear tyres. It requires a service every 12 months or 12,500 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2020 Subaru XV L has a 220mm ground clearance with a 1400kg braked and 650kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the XV compare?
Quickly see how the 2020 Subaru XV L stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
71.61 - 78.66 kW/t
58.22 kW/t
94.75 kW/t
Boot Space
310 - 345 litres
264 litres
551 litres
Fuel Efficiency
6.5 - 7 L/100km
3.8 L/100km
9.7 L/100km
Vehicle Range
738 - 900 km
610 km
1,053 km
Price
$29,240 - $36,530
$19,990
$65,290
Warranty (Years)
5 years
5 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
1,940 - 2,070 kg
1,600 kg
2,189 kg
Braked Towing Capacity
1,270 - 1,400 kg
400 kg
2,000 kg
Approach Angle
18°
15.8°
30.3°
Departure Angle
27.7 - 28.6°
22°
33.6°
Ground Clearance Unladen
220 mm
125 mm
225 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,465 mm
1,800 mm
1,615 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,465 mm |
| Overall Width | 1,800 mm |
| Overall Height | 1,615 mm |
| Wheelbase | 2,665 mm |
| Turning Circle | 10,800 mm |
| Load Capacity | 466 mm |
Looking for complete Subaru XV size & space specs?
Our Subaru XV Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Subaru XV Sales rolling 12-months#
Explore Subaru XV Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Media Control
Touch Screen: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: 0
Apple Carplay: yes
Apple Number of Months Subscription: 0
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Distance System
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
USB Charging Port
Location: Front
Number of Ports in Front: 2
Location: Rear
Number of Ports in Rear: 2
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Phone: yes
Virtual Assistant: Siri
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 159
Standard Met: EU6
Engine
Bore Engine: 84.0
Engine (cc): 1995
Engine Configuration: Horizontal
Engine Code: Fb20
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 90.0
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 16.6
Main Capacity (L): 63
Main Capacity Uk Gallons: 13.9
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.0
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 900
ADR 81/02 Calculated Vehicle Range (miles): 559
ADR 81/02 Combined (km/L): 14.3
ADR 81/02 Combined (L/100km): 7.0
ADR 81/02 Combined (miles per UK gallon): 40
ADR 81/02 Combined (mpg): 34
ADR 81/02 Country Highway (km/L): 16.7
ADR 81/02 Country Highway (L/100km): 6.0
ADR 81/02 Country Highway (miles per UK gallon): 47
ADR 81/02 Country Highway (mpg): 39
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 11.4
ADR 81/02 Urban (L/100km): 8.8
ADR 81/02 Urban (miles per UK gallon): 32
ADR 81/02 Urban (mpg): 27
Fuel Economy
ADR 81/02 (L/100km): 7.0
Performance
Acceleration 0 To 100 km/h: 10.4
Maximum Speed (km/h): 194
Maximum Speed (mph): 121
Power
Maximum Power (hp/PS): 156
Maximum Power (kW): 115
Maximum Torque (Nm): 196
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 4000
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Transmission
Description: Continuously Variable With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: Variable
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Wishbone
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 99
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Mud & Snow
Front Wheels Tire Width: 225
Rear Wheels Tire Load Index: 99
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Mud & Snow
Rear Wheels Tire Width: 225
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Rear Two Tone: yes
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 27.0
Rear Seat Down (L): 765
Rear Seat Up to Lower Window (cu ft): 10.9
Rear Seat Up to Lower Window (L): 310
External Dimensions
Kerb to Kerb Turning Circle (mm): 10800
Front Track (in): 61.0
Front Track (mm): 1550
Ground Clearance Unladen (in): 8.7
Ground Clearance Unladen (mm): 220
Kerb To Kerb Turning Circle (ft): 35.4
Overall Height (in): 63.6
Overall Height (mm): 1615
Overall Length (in): 175.8
Overall Length (mm): 4465
Overall Width (in): 70.9
Overall Width (mm): 1800
Rear Track (in): 61.2
Rear Track (mm): 1555
Wheelbase (in): 104.9
Wheelbase (mm): 2665
Internal Dimensions
Front Headroom (in): 39.8
Front Headroom (mm): 1010
Rear Headroom (in): 37.7
Rear Headroom (mm): 957
Front Hip Room (in): 55.6
Front Hip Room (mm): 1412
Rear Hip Room (in): 54.2
Rear Hip Room (mm): 1377
Front Leg Room (in): 43.5
Front Leg Room (mm): 1105
Rear Leg Room (in): 35.4
Rear Leg Room (mm): 900
Ramp Angles
Approach Angle: 18.0
Departure Angle: 27.7
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: SGP
Wheelbase Type: Short
Spoiler
Location: Roof
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
LED Lights
Location: Brake Lights
Location: Rear Lights
Paint
External Colour: Silver
Type: Pearl
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 1400
Gross Trailer Weight Braked (lb): 3086
Gross Trailer Weight Unbraked (kg): 650
Gross Trailer Weight Unbraked (lb): 1433
Gross Vehicle Weight (kg): 1940
Gross Vehicle Weight (lb): 4277
Published Kerb Weight (kg): 1474
Published Kerb Weight (lb): 3250
Tare Weight (kg): 1434
Trailer Noseweight (kg): 140
Audio System
Audio Player Reads MP3: yes
CD Player Reads MP3: yes
Colour Screen: yes
Digital Radio: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
USB (Rear): yes
Total Front USB Connections: 2
Total Rear USB Connections: 2
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Centre Floor Console: Piano Black
Doors: Carbon Fibre Look
Gear Selector: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Adult Occupant Score: 0.00
ANCAP Child Occupant Score: 0.00
ANCAP Date Tested: 20170518
ANCAP Overall: 5.00
ANCAP Pedestrian: Good
ANCAP Pedestrian Score: 0.00
ANCAP Rating Year: 2017
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Safety Assist Score: 0.00
ANCAP Standard: Ancap
ANCAP Version Tested: Impreza 2.0 Petrol
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Sports
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Heater Type: Combustion
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 12500
Distance (miles): 7767
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
