Base
Overview

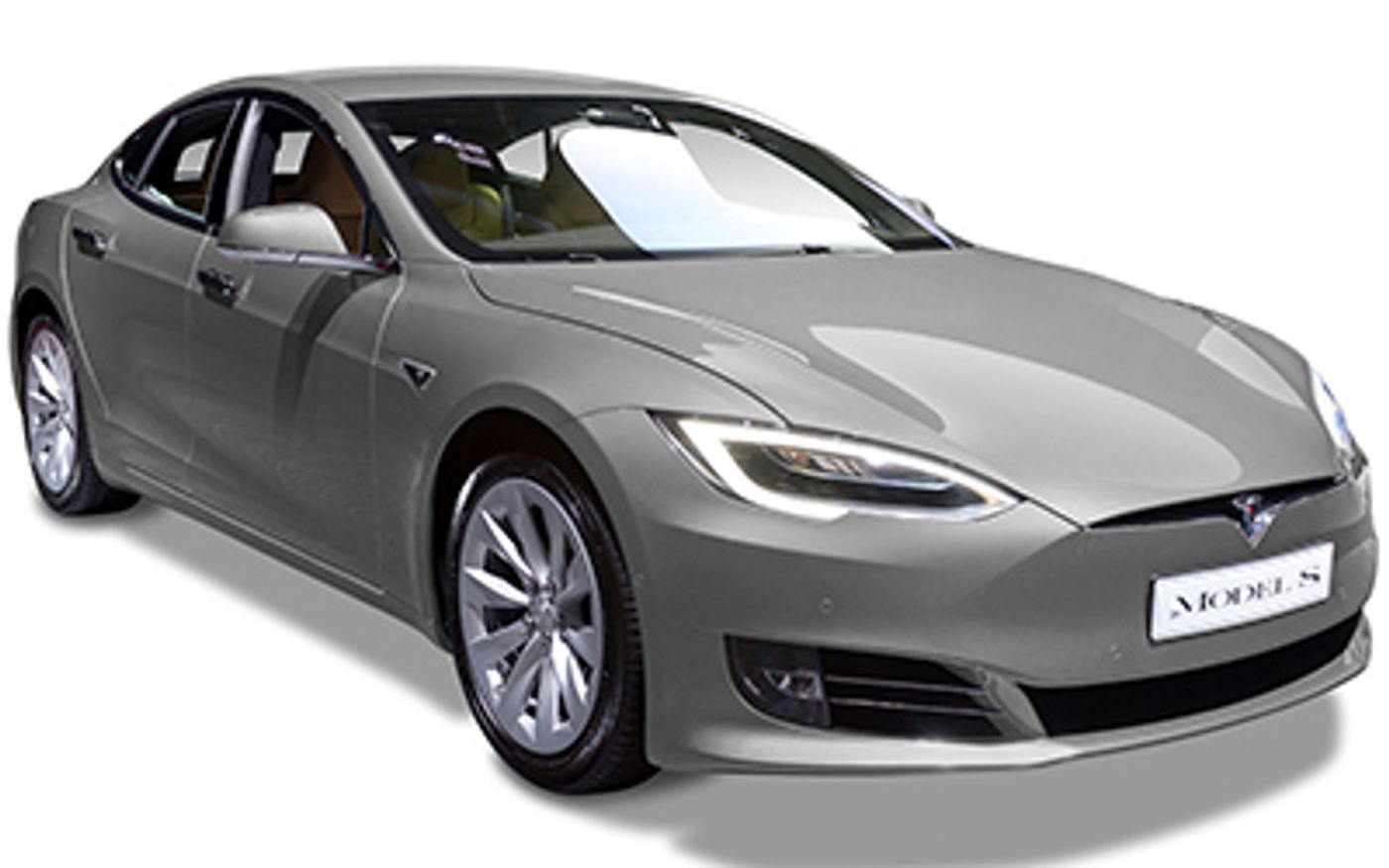

The 2017 Tesla Model S Base is a rear-wheel drive, 5-door Sedan that was released to the Australian market on 4th August 2017. The Tesla Model S is regarded as a Medium Luxury built in USA with prices starting at $114,037 before on-road costs.
This Tesla Model S uses a fully electric engine.
The Tesla Model S measures 1445mm (56.9 inches) in height, 4970mm (195.7 inches) in length, 1964mm (77.3 inches) in width with a 2960mm (116.5 inches) wheelbase that brings about a total of 1999kg (4407.0 lbs) of unladen weight. The Model S Base comes standard with 245/45 R19 front tyres and 245/45 R19 rear tyres. It requires a service every 12 months or 20,000 km, whichever comes first. It has a 48 month, 80,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Model S compare?
Quickly see how the 2017 Tesla Model S Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
111.48 - 198.13 kW/t
63.29 kW/t
231.34 kW/t
Boot Space
894 litres
370 litres
894 litres
Price
$108,382 - $261,002
$49,990
$261,002
Warranty (Years)
4 years
3 years
4 years
Warranty (Distance)
80,000 km
80,000 km
Unlimited
Service Interval
12 months
12 months
24 months
Towing & Off-Road Capability
Ground Clearance Unladen
134 - 160 mm
100 mm
201 mm
Battery & Charging
Max. battery kilowatt hour
60 - 100 kWh
1.5 kWh
100 kWh
Vehicle Range (EV)
400 - 632 km
31 km
632 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,970 mm
1,964 mm
1,445 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,970 mm |
| Overall Width | 1,964 mm |
| Overall Height | 1,445 mm |
| Wheelbase | 2,960 mm |
| Turning Circle | 11,280 mm |
Looking for complete Tesla Model S size & space specs?
Our Tesla Model S Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Tesla Model S Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Manufacturer Name: Traffic-Aware
Driver Modes
Stability Control: yes
Traction Control: yes
Memorised Adjustment
Door Mirror Position: yes
Parking Assistance
Location: Front
Front Type: Full Automatic Parking
Location: Rear
Rear Type: Full Automatic Parking
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor
Power Outlet 12V
Location (12V): Front
Remote Battery Management
Includes Battery Status Checking: yes
Includes Charge Completion Alert: yes
Includes Remote Charge Activation: yes
Includes Timer Remote Charge Activation: yes
Remote HVAC Control
Includes Internet: yes
Includes Phone: yes
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Telematics
Connection Type: Via Sim In Vehicle
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Voice Activating System
Includes Air Conditioning: yes
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Emission Control Level
CO2 Level (Combined): 0
Standard Met: ZEV
Fuel
Generic Primary Fuel Type: Electric
Minimum Fuel Type: Electric
Fuel Type: Electric
Charging Information
Mode 2 Duration: 7.00
Mode 2 Scenario: Mode 2
Mode 2 Voltage: 120
Mode 4 Duration: 3.50
Mode 4 Scenario: Mode 4
Mode 4 Voltage: 240
Electric Driven Wheels
Electric Driven Wheels: Rear
Electric Motor
Motor 1 Max Torque Motor (Nm): 441
Motor 1 Number: 1
Electric Power Source
Battery Swap Time: 2
Battery Type: Lithium Ion
Maximum Battery (kWh): 75.0
Onboard Charger: 10.0
Range (km): 480.00
Range (miles): 298.26
Swappable Battery: yes
Computer
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Screen Size (in): 17.0
Touch Screen: yes
Instrument Cluster
Reconfigurable: yes
Performance
Acceleration 0 To 100 km/h: 5.8
Max Speed On Electric Power Only (km/h): 225
Maximum Speed (km/h): 225
Maximum Speed (mph): 140
Power
Maximum Power (hp/PS): 315
Maximum Power (kW): 232
Maximum Torque (Nm): 440
Measurement Standard: SAE
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5000
Rpm For Maximum Torque Low: 0
Drive
Driven Wheels: Rear
Transmission
Description: Automatic
Number of Speeds: 1
Shift Lever Location: Column
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Electric Adjustment: yes
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Suspension
Location: Front
Front Spring Type: air
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: air
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 102
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 245
Rear Wheels Tire Load Index: 102
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.0
Location: Rear
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.0
Body Style
Body Type: Hatchback
Local Body Type: Sedan
Platform Code: Tesla1
Wheelbase Type: Short
Cargo Capacity
Measurement Standard: Manufacturer’S Own
Rear Seat Down (cu ft): 63.3
Rear Seat Down (L): 1792
Rear Seat Up to Lower Window (cu ft): 31.6
Rear Seat Up to Lower Window (L): 894
External Dimensions
Kerb to Kerb Turning Circle (mm): 11280
Front Track (in): 65.4
Front Track (mm): 1662
Ground Clearance Unladen (in): 5.5
Ground Clearance Unladen (mm): 139
Kerb To Kerb Turning Circle (ft): 37.0
Overall Height (in): 56.9
Overall Height (mm): 1445
Overall Length (in): 195.7
Overall Length (mm): 4970
Overall Width (in): 77.3
Overall Width (mm): 1964
Rear Track (in): 66.9
Rear Track (mm): 1700
Wheelbase (in): 116.5
Wheelbase (mm): 2960
Internal Dimensions
Front Headroom (in): 38.8
Front Headroom (mm): 986
Rear Headroom (in): 35.3
Rear Headroom (mm): 897
Front Hip Room (in): 55.0
Front Hip Room (mm): 1397
Rear Hip Room (in): 54.7
Rear Hip Room (mm): 1389
Front Leg Room (in): 42.7
Front Leg Room (mm): 1085
Rear Leg Room (in): 35.4
Rear Leg Room (mm): 899
Front Shoulder Room (in): 57.7
Front Shoulder Room (mm): 1466
Rear Shoulder Room (in): 55.0
Rear Shoulder Room (mm): 1397
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Directional Headlights: yes
Dusk Sensor: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: Front Fog Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Black
Multi Coat: yes
Type: Black
Luxury Inner Roof Upholstery
Material: Synthetic Suede
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Auto-Dimming Passenger Door Mirrors: yes
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 0
Gross Trailer Weight Braked (lb): 0
Gross Trailer Weight Unbraked (kg): 0
Gross Trailer Weight Unbraked (lb): 0
Published Kerb Weight (kg): 1999
Published Kerb Weight (lb): 4407
Tare Weight (kg): 1999
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Satellite Radio: yes
Touch Screen: yes
External Connections
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 7
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Doors: Alloy
Instrument Panel: Piano Black
Airbags
Number of Airbags: 8
Crash Test Results
ANCAP Date Tested: 20150416
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Standard: Ancap
ANCAP Version Tested: Model S
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Location: Passenger
Overtaking Sensor
Manufacturer Name: Blind Spot Warning (Bsw)
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 6
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Memory
Location: Passenger
Passenger Front Seat Lumbar Type: Electric
Passenger Front Seat Number of Electrical Adjustments: 6
Passenger Front Seat Reach Type: Memory
Passenger Front Seat Reclining Type: Memory
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Upgraded Cloth/Velour
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Active Carbon Filter: yes
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 20000
Distance (miles): 12427
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
