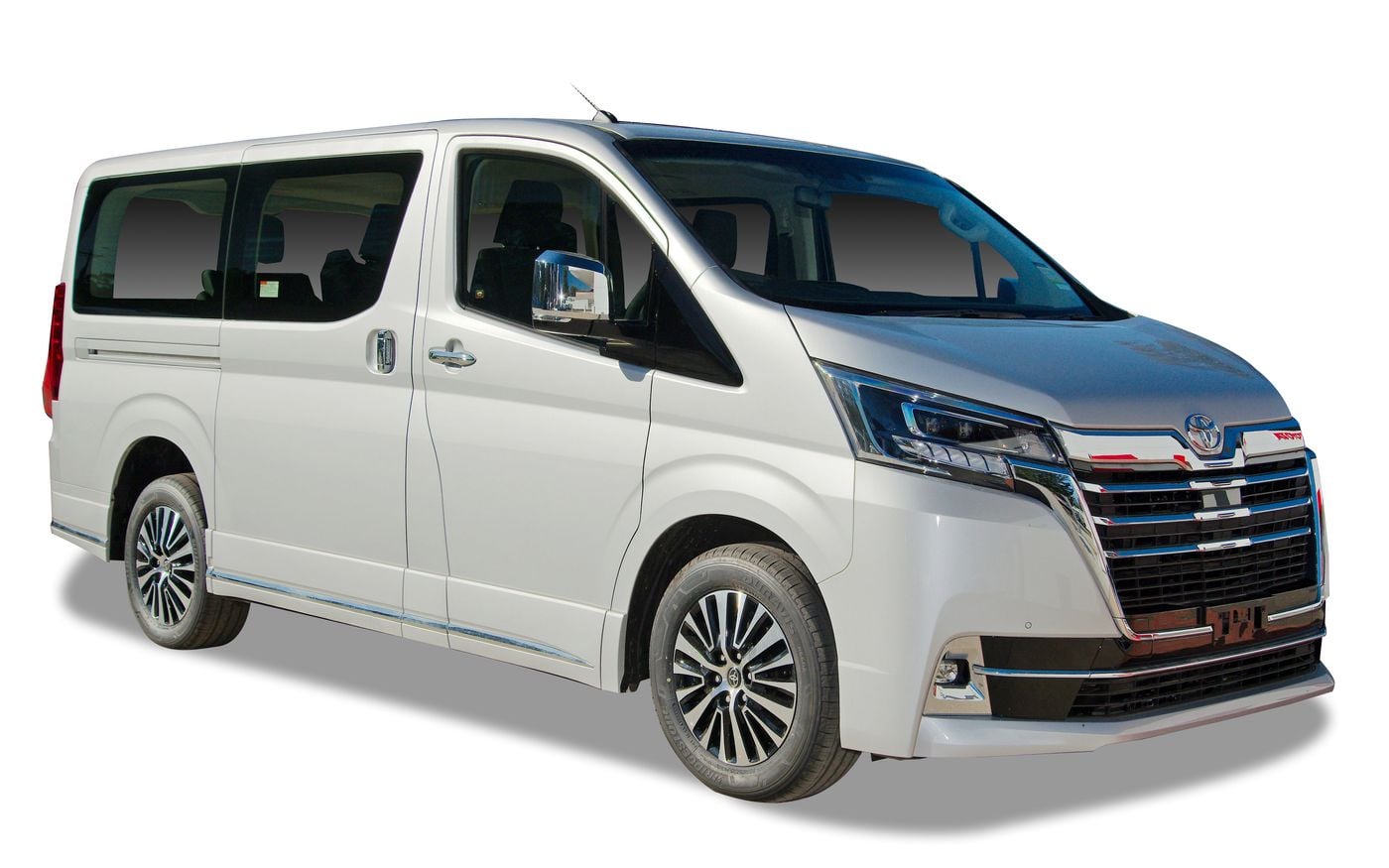

Toyota Granvia Base (2024) price & specs
Save $$$ with CarExpert*
From
$70,306†
Base
Overview
The 2024 Toyota Granvia Base is a rear-wheel drive, 5-door Mpv that was released to the Australian market on 4th November 2023. The Toyota Granvia is regarded as a Mpv built in Japan with prices starting at $70,306 before on-road costs.
This Toyota Granvia is powered by a 2.8L 4-cylinder engine that has 130 kW of power (at 3400 rpm) and 450 Nm of torque (at 1600 rpm) via a Six-speed Automatic transmission. Toyota claims the Granvia Base uses 8.0L/100km of Diesel in the combined city and highway cycle while putting out 211g of CO2. It has a 70L fuel tank, meaning it should be able to travel 875km per full tank
The Toyota Granvia measures 1990mm (78.3 inches) in height, 5300mm (208.7 inches) in length, 1970mm (77.6 inches) in width with a 3210mm (126.4 inches) wheelbase that brings about a total of 2660kg (5864.3 lbs) of unladen weight. The Granvia Base comes standard with 235/60 R17 front tyres and 235/60 R17 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2024 Toyota Granvia Base has a 175mm ground clearance with a 1500kg braked and 400kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Granvia compare?
Quickly see how the 2024 Toyota Granvia Base stacks up against its competition.
Select any benchmark to see more details.
Power to Weight
48.87 - 49.9 kW/t
48.87 kW/t
93.37 kW/t
Fuel Efficiency
8 L/100km
4.9 L/100km
10.5 L/100km
Vehicle Range
875 km
714 km
1,212 km
Price
$68,306 - $77,476
$49,000
$77,476
Warranty (Years)
5 years
5 years
Warranty (Distance)
Unlimited
Unlimited
Service Interval
6 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,340 - 3,500 kg
2,220 kg
3,500 kg
Braked Towing Capacity
1,500 kg
1,500 kg
2,500 kg
Approach Angle
13.6°
13.6°
21.2°
Departure Angle
15.4°
15.4°
19.3°
Ground Clearance Unladen
175 mm
143 mm
222 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,300 mm
1,970 mm
1,990 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,300 mm |
| Overall Width | 1,970 mm |
| Overall Height | 1,990 mm |
| Wheelbase | 3,210 mm |
| Turning Circle | 11,000 mm |
| Load Capacity | 840 mm |
Looking for complete Toyota Granvia size & space specs?
Our Toyota Granvia Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Toyota Granvia Sales rolling 12-months#
Explore Toyota Granvia Features & Specs
Cruise Control
Adaptive Cruise Control: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Telematics
Advanced Auto Collision Notification: yes
Concierge Months Included: 0
Connection Type: Via Sim In Vehicle
Tracker System: yes
USB Charging Port
Location: 3rd Row
Number of Ports in Third Row: 4
Location: Front
Number of Ports in Front: 1
Location: Rear
Number of Ports in Rear: 2
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 198
CO2 Level (Combined): 211
CO2 Level (Urban): 234
Standard Met: EU5
Engine
Bore Engine: 92.0
Engine (cc): 2755
Engine Configuration: In-Line
Engine Code: 1gd-Ftv
Engine (L): 2.8
Number of Cylinders: 4
Stroke Engine: 103.6
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Capacity Uk Gallons: 15.4
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 8.00
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 4.20
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 875
ADR 81/02 Calculated Vehicle Range (miles): 544
ADR 81/02 Combined (km/L): 12.5
ADR 81/02 Combined (L/100km): 8.0
ADR 81/02 Combined (miles per UK gallon): 35
ADR 81/02 Combined (mpg): 29
ADR 81/02 Country Highway (km/L): 13.3
ADR 81/02 Country Highway (L/100km): 7.5
ADR 81/02 Country Highway (miles per UK gallon): 38
ADR 81/02 Country Highway (mpg): 31
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 11.2
ADR 81/02 Urban (L/100km): 8.9
ADR 81/02 Urban (miles per UK gallon): 32
ADR 81/02 Urban (mpg): 26
Fuel Economy
ADR 81/02 (L/100km): 8.0
Power
Maximum Power (hp/PS): 177
Maximum Power (kW): 130
Maximum Torque (Nm): 450
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3400
Rpm For Maximum Torque Low: 1600
Drive
Driven Wheels: Rear
Limited Slip Differential
Location: Rear
Rear Type: Electronic
Transmission
Code: Ac60e
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Simulated Gears: 0
Number of Speeds: 6
Shift Lever Location: Dash
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 109
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: T
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 109
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: T
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Rear Two Tone: yes
External Dimensions
Kerb to Kerb Turning Circle (mm): 11000
Front Track (in): 65.9
Front Track (mm): 1675
Ground Clearance Unladen (in): 6.9
Ground Clearance Unladen (mm): 175
Kerb To Kerb Turning Circle (ft): 36.1
Overall Height (in): 78.3
Overall Height (mm): 1990
Overall Length (in): 208.7
Overall Length (mm): 5300
Overall Width (in): 77.6
Overall Width (mm): 1970
Rear Track (in): 65.7
Rear Track (mm): 1670
Wall to Wall Turning Circle (ft): 39.4
Wall to Wall Turning Circle (mm): 12000
Wheelbase (in): 126.4
Wheelbase (mm): 3210
Ramp Angles
Approach Angle: 13.6
Departure Angle: 15.4
Body Style
Body Type: MPV
Local Body Type: MPV
Wheelbase Type: Short
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Sliding
Location: Rear Passenger
Rear Passenger Door Type: Sliding
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Black
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Chrome
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Chrome
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Privacy Glass
Location: Rear
Location: Rear Side
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1500
Gross Trailer Weight Braked (lb): 3307
Gross Trailer Weight Unbraked (kg): 400
Gross Trailer Weight Unbraked (lb): 882
Gross Vehicle Weight (kg): 3500
Gross Vehicle Weight (lb): 7716
Published Kerb Weight (kg): 2660
Published Kerb Weight (lb): 5864
Tare Weight (kg): 2609
Trailer Noseweight (kg): 150
Audio System
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total 3rd Row USB Connections: 0
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Luxury Trim
Doors: Piano Black
Instrument Panel: Piano Black
Airbags
Number of Airbags: 9
Autonomous Drive
Level: 1 - Driver Assistance
Crash Test Results
ANCAP Adult Occupant Score: 94.0
ANCAP Child Occupant Score: 88.0
ANCAP Date Tested: 20191014
ANCAP Overall: 5.0
ANCAP Pedestrian Score: 84.0
ANCAP Rating Year: 2019
ANCAP Safety Assist Score: 79.0
ANCAP Standard: Ancap
ANCAP Version Tested: Hiace 2.8 Litre Diesel Rhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Location: 3rd Row Seats
3rd Row Seats Number: 2
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 2
Knee Airbags
Location: Driver
Overtaking Sensor
Active Without Turn Signal: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: All Three Rows
Third Row Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 1
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 8
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Rear Seats Location: Rear Seats
Ventilation System
Engine Heater: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 6
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
† Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
