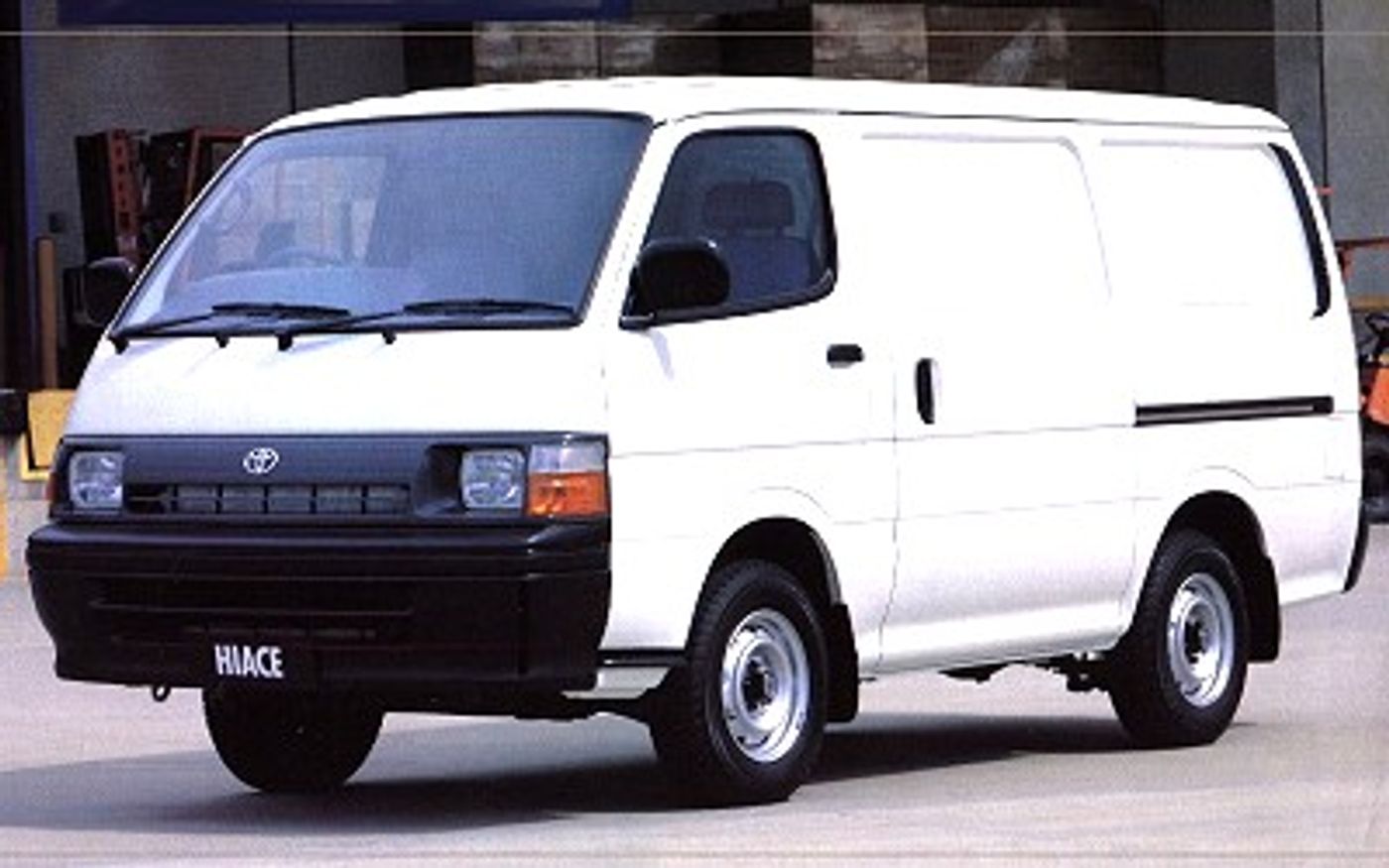

Toyota HiAce Base (1997) price & specs
Save $$$ with CarExpert*
From
$34,030â€
Base
Overview
The 1997 Toyota HiAce Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 4th January 1970. The Toyota HiAce is regarded as a Van Under 3.5t built in Japan with prices starting at $34,030 before on-road costs.
This Toyota HiAce is powered by a 2.8L 4-cylinder engine that has 60 kW of power (at 4000 rpm) and 185 Nm of torque (at 2400 rpm) via a Five-speed Manual transmission. It has a 70L fuel tank
The Toyota HiAce measures 1930mm (76.0 inches) in height, 4830mm (190.2 inches) in length, 1690mm (66.5 inches) in width with a 2590mm (102.0 inches) wheelbase that brings about a total of 1550kg (3417.2 lbs) of unladen weight. The HiAce Base comes standard with 185/80 R14 front tyres and 185/80 R14 rear tyres. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the HiAce compare?
Quickly see how the 1997 Toyota HiAce Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
38.46 - 59.26 kW/t
30.47 kW/t
71.59 kW/t
Price
$27,360 - $36,040
$21,400
$41,490
Warranty (Years)
3 years
1 year
3 years
Warranty (Distance)
100,000 km
50,000 km
Unlimited
Years on Sale
4 - 7 years
1 year
6 years
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,830 mm
1,690 mm
1,930 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,830 mm |
| Overall Width | 1,690 mm |
| Overall Height | 1,930 mm |
| Wheelbase | 2,590 mm |
| Load Capacity | 1,250 mm |
Looking for complete Toyota HiAce size & space specs?
Our Toyota HiAce Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Toyota HiAce Sales rolling 12-months#
Explore Toyota HiAce Features & Specs
Catalytic Converter
Type: Diesel
Engine
Bore Engine: 96
Engine (cc): 2779
Compression Ratio: 22.2
Engine Configuration: In-Line
Engine (L): 2.8
Engine Location: mid
Number of Cylinders: 4
Number of Valves per Cylinder: 2
Engine Orientation: Longitudinal
Stroke Engine: 96
Valve Gear Type: Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Ignition Type: Diesel
Injection Carburetion: Diesel Indirect Injection
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Type: Total
Clock
Type: Digital
Instrument Cluster
Type: Analogue
Odometer
Number of Odometers: 1
Oil Pressure
Type: Warning Light
Water Temperature
Type: Gauge
Power
Maximum Power (hp/PS): 82
Maximum Power (kW): 60
Maximum Torque (Nm): 185
Measurement Standard: DIN
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 2400
Drive
Driven Wheels: Rear
Transmission
Number of Speeds: 5
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 80
Front Wheels Tire Speed Rating: S
Front Wheels Tire Width: 185
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 80
Rear Wheels Tire Speed Rating: S
Rear Wheels Tire Width: 185
Wheels
Location: Front
Front Wheels Rim Diameter (In): 14
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 5.5
Location: Rear
Rear Rim Diameter (In): 14
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 5.5
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Local Body Type: Panel Van
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Side
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Plastic
Rear Bumper Colour: Black
Location: Rear
Rear Bumper Material: Plastic
Cargo Area Dimensions
Cargo Volume (cu ft): 226
Cargo Volume (L): 6400
Height (in): 53
Height (mm): 1540
Length (in): 117.1
Length (mm): 2975
Loading Floor Height (in): 23
Loading Floor Height (mm): 585
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 44.1
Width Between Wheelhouses (mm): 1120
Width (in): 60.6
Width (mm): 1540
External Dimensions
Front Track (in): 57.1
Front Track (mm): 1450
Overall Height (in): 76
Overall Height (mm): 1930
Overall Length (in): 190.2
Overall Length (mm): 4830
Overall Width (in): 66.5
Overall Width (mm): 1690
Rear Track (in): 56.3
Rear Track (mm): 1430
Wall to Wall Turning Circle (ft): 38.1
Wall to Wall Turning Circle (mm): 11600
Wheelbase (in): 102
Wheelbase (mm): 2590
Cargo Doors
Passenger Internal Handles: yes
Location: Passenger
Passenger Operation: Sliding
Location: Rear
Rear Operation: Lifting Gate
Headlights
Low Beam Bulb Type: Halogen
Configuration: Single
Lens Type: Conventional
Paint
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Number of Windshield Wiper Speeds: 2
Weights
Front Axle Weight (kg): 1330
Front Axle Weight (lb): 2932
Gross Trailer Weight Braked (kg): 1400
Gross Trailer Weight Braked (lb): 3086
Gross Trailer Weight Unbraked (kg): 400
Gross Trailer Weight Unbraked (lb): 882
Gross Vehicle Weight (kg): 2800
Gross Vehicle Weight (lb): 6173
Payload Allowance (kg): 1250
Payload Allowance (lb): 2756
Published Kerb Weight (kg): 1550
Published Kerb Weight (lb): 3417
Rear Axle Weight (kg): 1680
Rear Axle Weight (lb): 3704
Audio System
Radio Type: Am/Fm
Speakers
Number of Speakers: 2
Load Restraint
Type: Hooks
Ashtray
Location: Front
Cigar Lighter
Location: Front Seats
Courtesy Lights
Number of Door Switches: 2
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Load Area Side Covering
Exposed Metal: Partial
Type: Board
Front Seat Belts
Center Operation: Static
Center Seat Position: Center
Center Type: lap
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Location: Front Seats
Front Seat
Location: Centre
Center Front Seat Type: Split Bench
Driver Front Seat Fore/Aft Adjustment: yes
Location: Driver
Driver Front Seat Reclining: yes
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Split Bench
Seat Upholstery
Additional Seat Material: Vinyl
Main Seat Material: Cloth
Seating
Capacity: 3
Console
Location: Dashboard
Dashboard Storage: Open
Dashboard Type: Partial
Door Pockets Bins
Location: Driver
Location: Passenger
Glove Compartment
Lid: yes
Seat Back Storage
Location: Front
Air Conditioning
CFC Free Liquid Aircon: yes
Ventilation System
Number of Fan Speeds: 4
Power Locks
Operation: key
