Base
2.4L, 5-speed manual, 4-door Panel Van, Petrol, RWD
Save $$$ with CarExpert*
$28,640â€

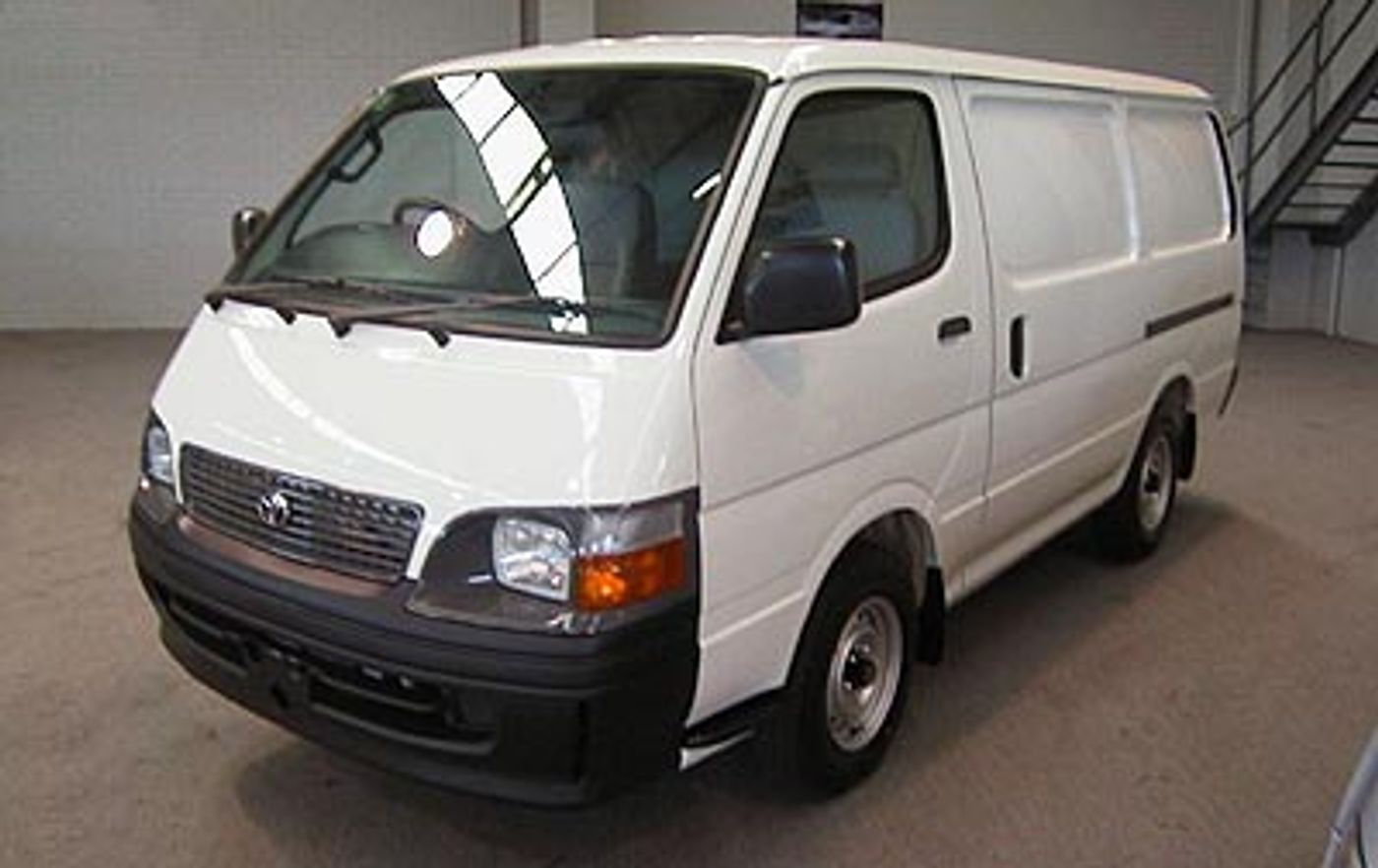

Toyota HiAce Base (1998) price & specs
Save $$$ with CarExpert*
From
$28,640â€
Base
Overview
The 1998 Toyota HiAce Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 4th January 1970. The Toyota HiAce is regarded as a Van Under 3.5t built in Japan with prices starting at $28,640 before on-road costs.
This Toyota HiAce is powered by a 2.4L 4-cylinder engine that has 85 kW of power (at 4800 rpm) and 200 Nm of torque (at 2600 rpm) via a Five-speed Manual transmission. It has a 70L fuel tank
It has a 36 month, 100,000 km warranty.
The 1998 Toyota HiAce Base has a 190mm ground clearance with a 1400kg braked and 400kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the HiAce compare?
Quickly see how the 1998 Toyota HiAce Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
33.8 - 58.22 kW/t
33.8 kW/t
71.59 kW/t
Price
$26,893 - $46,760
$21,400
$46,760
Warranty (Years)
3 years
3 years
Warranty (Distance)
100,000 km
100,000 km
Years on Sale
4 - 7 years
1 year
6 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,800 - 2,850 kg
2,305 kg
2,850 kg
Braked Towing Capacity
1,400 kg
1,000 kg
1,400 kg
Ground Clearance Unladen
190 mm
190 mm
Payload Capacity
1,058 - 1,340 kg
855 kg
1,340 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,570 mm
1,690 mm
1,940 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,570 mm |
| Overall Width | 1,690 mm |
| Overall Height | 1,940 mm |
| Wheelbase | 2,330 mm |
| Load Capacity | 1,335 mm |
Looking for complete Toyota HiAce size & space specs?
Our Toyota HiAce Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Toyota HiAce Features & Specs
Engine
Bore Engine: 95
Engine (cc): 2438
Compression Ratio: 8.8
Engine Configuration: In-Line
Engine (L): 2.4
Number of Cylinders: 4
Number of Valves per Cylinder: 2
Stroke Engine: 86
Valve Gear Type: Overhead Cam
Fuel
Generic Primary Fuel Type: Petrol
Fuel Type: Unleaded
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Fuel Type: Unleaded
Main Type: Total
Water Temperature
Type: Gauge
Power
Maximum Power (hp/PS): 116
Maximum Power (kW): 85
Maximum Torque (Nm): 200
Measurement Standard: DIN
Rpm For Maximum Power Low: 4800
Rpm For Maximum Torque Low: 2600
Drive
Driven Wheels: Rear
Transmission
Number of Speeds: 5
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Width: 185
Rear Wheels Tire Location: Rear
Rear Wheels Tire Width: 185
Wheels
Location: Front
Front Wheels Rim Diameter (In): 14
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 5.5
Location: Rear
Rear Rim Diameter (In): 14
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 5.5
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Driver Location: RHD
Local Body Type: Panel Van
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Plastic
Rear Bumper Colour: Black
Location: Rear
Rear Bumper Material: Plastic
Cargo Area Dimensions
Cargo Volume (cu ft): 208.4
Cargo Volume (L): 5900
Height (in): 53
Height (mm): 1540
Length (in): 106.9
Length (mm): 2715
Loading Floor Height (in): 23
Loading Floor Height (mm): 585
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 44.1
Width Between Wheelhouses (mm): 1120
Width (in): 60.6
Width (mm): 1540
External Dimensions
Front Track (in): 57.1
Front Track (mm): 1450
Ground Clearance Unladen (in): 7.5
Ground Clearance Unladen (mm): 190
Overall Height (in): 76.4
Overall Height (mm): 1940
Overall Length (in): 179.9
Overall Length (mm): 4570
Overall Width (in): 66.5
Overall Width (mm): 1690
Rear Track (in): 56.3
Rear Track (mm): 1430
Wall to Wall Turning Circle (ft): 34.8
Wall to Wall Turning Circle (mm): 10600
Wheelbase (in): 91.7
Wheelbase (mm): 2330
Cargo Doors
Passenger Internal Handles: yes
Location: Passenger
Passenger Opening Angle: 0
Passenger Operation: Sliding
Location: Rear
Rear Opening Angle: 90
Rear Operation: Lifting Gate
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Conventional
Paint
Type: Gloss
Door Mirrors/Cameras
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Gross Trailer Weight Braked (kg): 1400
Gross Trailer Weight Braked (lb): 3086
Gross Trailer Weight Unbraked (kg): 400
Gross Trailer Weight Unbraked (lb): 882
Gross Vehicle Weight (kg): 2800
Gross Vehicle Weight (lb): 6173
Payload Allowance (kg): 1335
Payload Allowance (lb): 2943
Published Kerb Weight (kg): 1465
Published Kerb Weight (lb): 3230
Audio System
Radio Type: Am/Fm
Speakers
Number of Speakers: 2
Load Restraint
Type: Hooks
Ashtray
Location: Front
Cigar Lighter
Location: Front Seats
Load Area Side Covering
Exposed Metal: Partial
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Operation: Static
Center Seat Position: Center
Center Type: lap
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 2
Front Seat
Location: Centre
Center Front Seat Type: Bench
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Door Pockets Bins
Location: Driver
Location: Passenger
Glove Compartment
Lid: yes
Power Locks
Operation: key
