Toyota HiAce Base (1999) price & specs
Save $$$ with CarExpert*
From
$30,810â€
Base
Overview

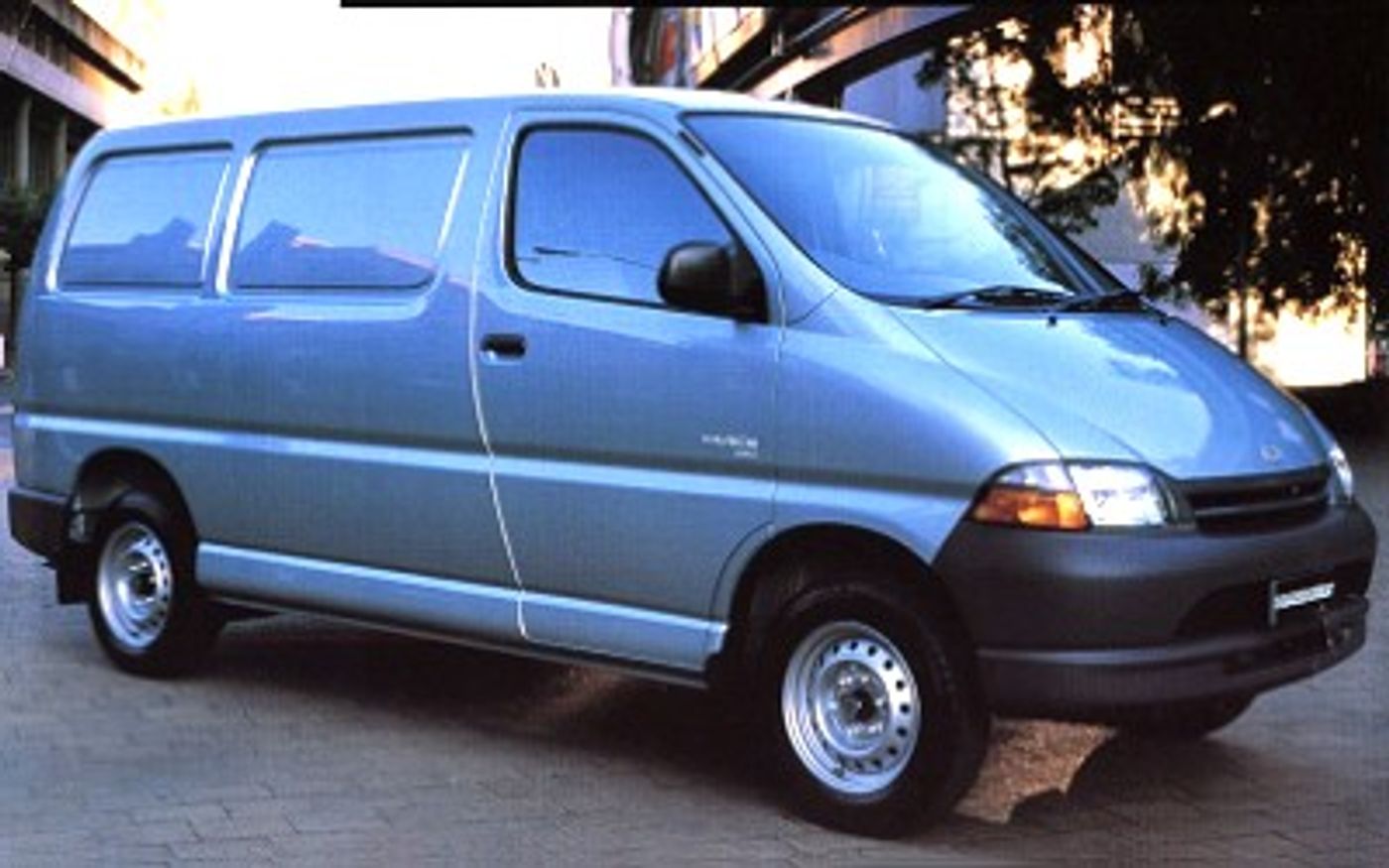

The 1999 Toyota HiAce Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 4th January 1970. The Toyota HiAce is regarded as a Van Under 3.5t built in Japan with prices starting at $30,810 before on-road costs.
This Toyota HiAce is powered by a 2.4L 4-cylinder engine that has 88 kW of power (at 4800 rpm) and 200 Nm of torque (at 3600 rpm) via a Five-speed Manual transmission. It has a 75L fuel tank
The Toyota HiAce measures 2000mm (78.7 inches) in height, 4715mm (185.6 inches) in length, 1800mm (70.9 inches) in width with a 2985mm (117.5 inches) wheelbase that brings about a total of 1535kg (3384.1 lbs) of unladen weight. The HiAce Base comes standard with 195/70 R15 front tyres and 195/70 R15 rear tyres. It has a 36 month, 100,000 km warranty.
The 1999 Toyota HiAce Base has a 190mm ground clearance with a 1400kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the HiAce compare?
Quickly see how the 1999 Toyota HiAce Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
54.69 - 57.33 kW/t
30.47 kW/t
71.59 kW/t
Price
$30,810 - $35,040
$21,380
$44,490
Warranty (Years)
3 years
2 years
3 years
Warranty (Distance)
100,000 km
60,000 km
100,000 km
Years on Sale
4 - 7 years
1 year
6 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,750 - 2,950 kg
2,305 kg
2,950 kg
Braked Towing Capacity
1,400 kg
1,000 kg
2,000 kg
Ground Clearance Unladen
190 mm
190 mm
Payload Capacity
1,215 - 1,341 kg
830 kg
1,410 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,715 mm
1,800 mm
2,000 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,715 mm |
| Overall Width | 1,800 mm |
| Overall Height | 2,000 mm |
| Wheelbase | 2,985 mm |
| Turning Circle | 11,000 mm |
| Load Capacity | 1,215 mm |
Looking for complete Toyota HiAce size & space specs?
Our Toyota HiAce Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Toyota HiAce Features & Specs
Catalytic Converter
Type: 3-Way
Engine
Bore Engine: 95
Engine (cc): 2438
Compression Ratio: 8.8
Engine Configuration: In-Line
Engine (L): 2.4
Number of Cylinders: 4
Number of Valves per Cylinder: 2
Stroke Engine: 86
Valve Gear Type: Overhead Cam
Fuel
Generic Primary Fuel Type: Petrol
Fuel Type: Unleaded
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 19.8
Main Capacity (L): 75
Main Fuel Type: Unleaded
Main Type: Total
Water Temperature
Type: Gauge
Power
Maximum Power (hp/PS): 120
Maximum Power (kW): 88
Maximum Torque (Nm): 200
Measurement Standard: EEC
Rpm For Maximum Power Low: 4800
Rpm For Maximum Torque Low: 3600
Drive
Driven Wheels: Rear
Transmission
Number of Speeds: 5
Type: Manual
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Trailing Arm
Rear Wheel Dependence: Independent
Tires
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Width: 195
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Width: 195
Wheels
Location: Front
Front Wheels Rim Diameter (In): 15
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 5.5
Location: Rear
Rear Rim Diameter (In): 15
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 5.5
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Driver Location: RHD
Local Body Type: Panel Van
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Side
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Plastic
Rear Bumper Colour: Black
Location: Rear
Rear Bumper Material: Plastic
Cargo Area Dimensions
Cargo Volume (cu ft): 190.7
Cargo Volume (L): 5400
Height (in): 55.9
Height (mm): 1600
Length (in): 100.6
Length (mm): 2555
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 48.2
Width Between Wheelhouses (mm): 1225
Width (in): 63
Width (mm): 1600
External Dimensions
Kerb to Kerb Turning Circle (mm): 11000
Front Track (in): 61.4
Front Track (mm): 1560
Ground Clearance Unladen (in): 7.5
Ground Clearance Unladen (mm): 190
Kerb To Kerb Turning Circle (ft): 36.1
Overall Height (in): 78.7
Overall Height (mm): 2000
Overall Length (in): 185.6
Overall Length (mm): 4715
Overall Width (in): 70.9
Overall Width (mm): 1800
Rear Track (in): 60.6
Rear Track (mm): 1540
Wheelbase (in): 117.5
Wheelbase (mm): 2985
Cargo Doors
Passenger Internal Handles: yes
Location: Passenger
Passenger Opening Angle: 0
Passenger Operation: Sliding
Rear Internal Handles: yes
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Conventional
Paint
Type: Gloss
Door Mirrors/Cameras
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Tinted Glass
Location: Cabin
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Gross Trailer Weight Braked (kg): 1400
Gross Trailer Weight Braked (lb): 3086
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2750
Gross Vehicle Weight (lb): 6063
Payload Allowance (kg): 1215
Payload Allowance (lb): 2679
Published Kerb Weight (kg): 1535
Published Kerb Weight (lb): 3384
Audio System
Cassette Player: yes
Speakers
Number of Speakers: 2
Load Restraint
Type: Hooks
Ashtray
Location: Front
Cigar Lighter
Location: Front Seats
Load Area Side Covering
Exposed Metal: Partial
Front Airbag
Location: Driver
Front Seat Belts
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 2
Front Seat
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Seat Upholstery
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Door Pockets Bins
Location: Driver
Glove Compartment
Lid: yes
