Overview

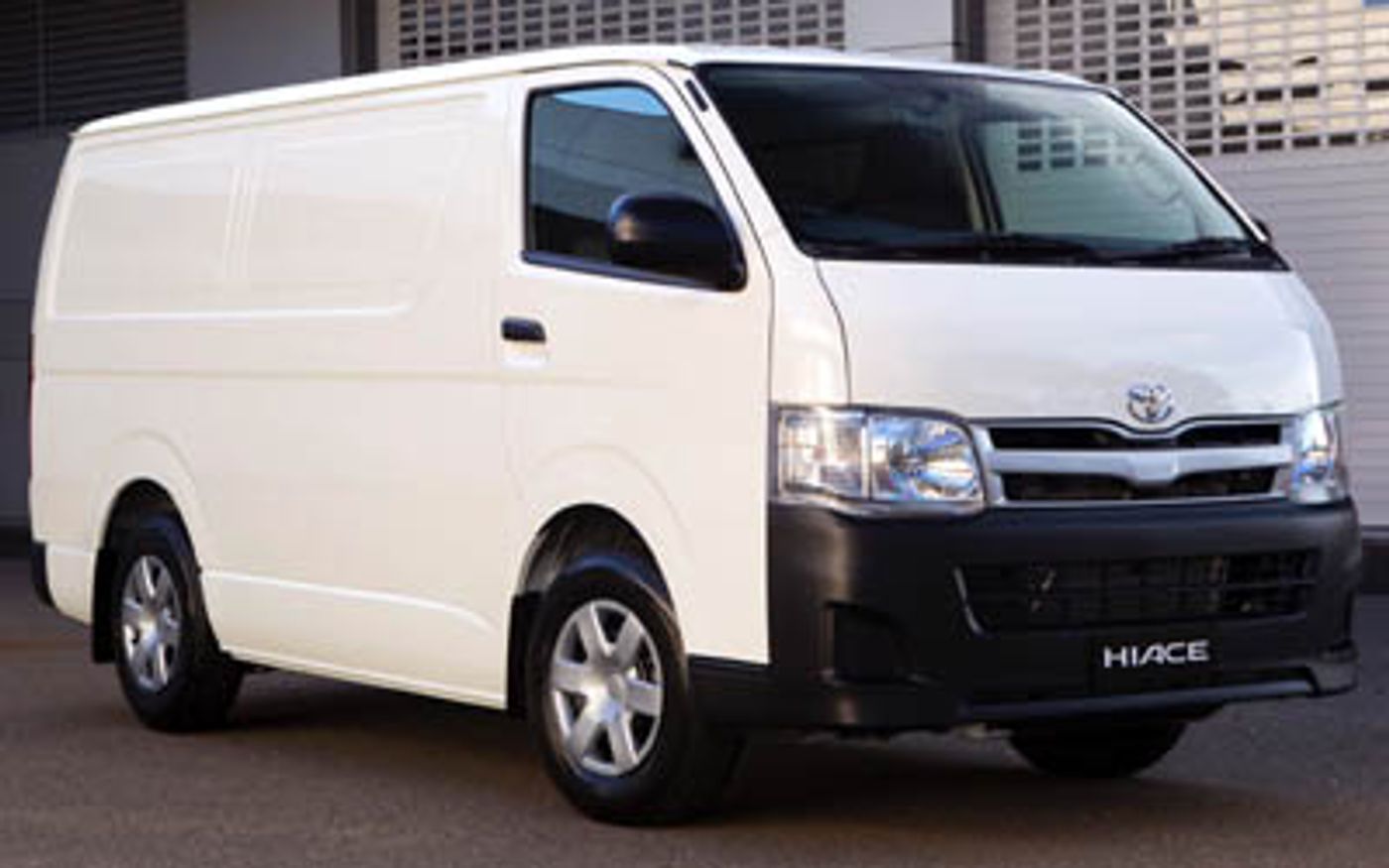

The 2010 Toyota HiAce Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 5th October 2010 classified as a Kdh200r. The Toyota HiAce is regarded as a Van Under 3.5t built in Japan with prices starting at $40,190 before on-road costs.
This Toyota HiAce is powered by a 3.0L 4-cylinder engine that has 100 kW of power (at 3400 rpm) and 300 Nm of torque (at 1200 rpm) via a Four-speed Automatic transmission. Toyota claims the HiAce Base uses 8.5L/100km of Diesel in the combined city and highway cycle while putting out 230g of CO2. It has a 70L fuel tank, meaning it should be able to travel 824km per full tank
The Toyota HiAce measures 1980mm (78.0 inches) in height, 4695mm (184.8 inches) in length, 1695mm (66.7 inches) in width with a 2570mm (101.2 inches) wheelbase that brings about a total of 1830kg (4034.5 lbs) of unladen weight. The HiAce Base comes standard with 195/80 R15 front tyres and 195/80 R15 rear tyres. It has a 36 month, 100,000 km warranty.
The 2010 Toyota HiAce Base has a 185mm ground clearance with a 1400kg braked and 400kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Towing & Off-Road Capability
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | In-Line |
|---|---|
| Size (cc) | 2982 |
| Size (L) | 3.0L |
| Cylinders | 4 |
| Camshaft | - |
| Valves/Ports per Cylinder | - |
| Power | 100kW |
| Power RPM | 3400 |
| Torque | 300Nm |
| Torque RPM | 1200 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 4 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | Plastic |
| Drive | rear |
| Fuel Combined (L/100km) | 8.5 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 70 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 230 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | - |
|---|---|
| Brake Rear | - |
| Tyre Front | 195/80 R15 |
| Tyre Rear | 195/80 R15 |
| Front Rim Size | - |
| Rear Rim Size | - |
| Vehicle Height (mm) | 1980 |
|---|---|
| Vehicle Length (mm) | 4695 |
| Vehicle Width (mm) | 1695 |
| Ground Clearance (mm) | 185 |
| Wheelbase (mm) | 2570 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 1830 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2800 |
| Track Front (mm) | 1470 |
| Track Rear (mm) | 1465 |
| Towing Capacity Brake (kg) | 1400 |
| Towing Capacity Unbraked (kg) | 400 |
| Country Of Origin | Japan |
|---|---|
| Number of Doors | 4 |
| Seats | 3 |
| Service Interval KMs | 10000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2011-11-06 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
