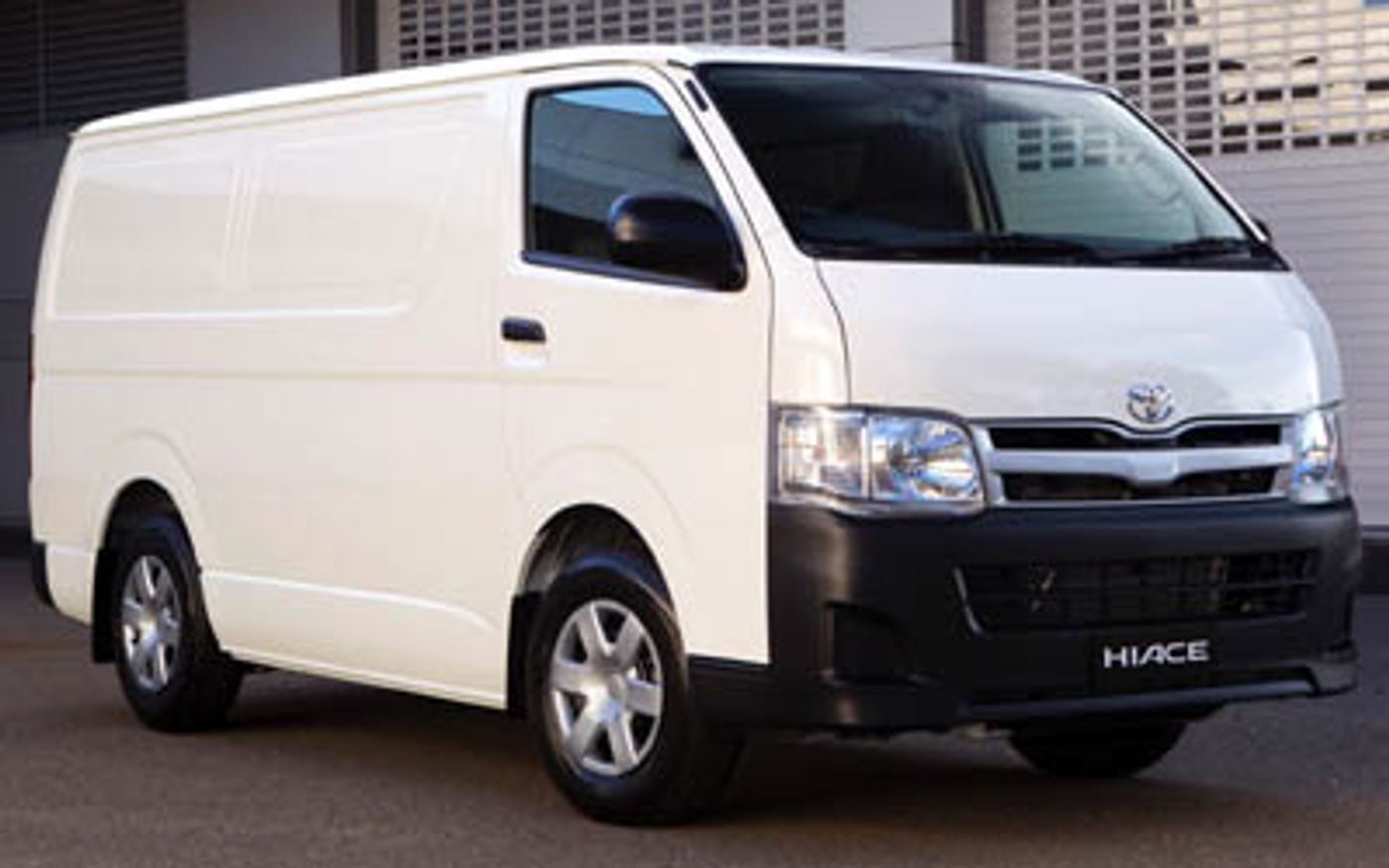

Toyota HiAce Base (2011) price & specs
Save $$$ with CarExpert*
From
$37,690â€
Base
Overview
The 2011 Toyota HiAce Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 1st November 2011 classified as a Kdh200r. The Toyota HiAce is regarded as a Van Under 3.5t built in Japan with prices starting at $37,690 before on-road costs.
This Toyota HiAce is powered by a 3.0L 4-cylinder engine that has 100 kW of power (at 3400 rpm) and 300 Nm of torque (at 1200 rpm) via a Five-speed Manual transmission. Toyota claims the HiAce Base uses 8.0L/100km of Diesel in the combined city and highway cycle while putting out 225g of CO2. It has a 70L fuel tank, meaning it should be able to travel 875km per full tank
The Toyota HiAce measures 1980mm (78.0 inches) in height, 4695mm (184.8 inches) in length, 1695mm (66.7 inches) in width with a 2570mm (101.2 inches) wheelbase that brings about a total of 1820kg (4012.4 lbs) of unladen weight. The HiAce Base comes standard with 195/80 R15 front tyres and 195/80 R15 rear tyres. It has a 36 month, 100,000 km warranty.
The 2011 Toyota HiAce Base has a 185mm ground clearance with a 1400kg braked and 400kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the HiAce compare?
Quickly see how the 2011 Toyota HiAce Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
50.13 - 64.72 kW/t
40.69 kW/t
75.99 kW/t
Fuel Efficiency
8 - 12.6 L/100km
5.2 L/100km
12.6 L/100km
Vehicle Range
556 - 875 km
529 km
1,154 km
Price
$33,890 - $45,190
$21,990
$58,990
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
4 - 7 years
1 year
6 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,800 - 3,200 kg
1,949 kg
3,230 kg
Gross Comb. Mass
3,800 - 4,600 kg
3,800 kg
5,230 kg
Braked Towing Capacity
1,400 kg
1,050 kg
2,200 kg
Ground Clearance Unladen
155 - 185 mm
150 mm
190 mm
Payload Capacity
970 - 1,305 kg
650 kg
1,409 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,695 mm
1,695 mm
1,980 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,695 mm |
| Overall Width | 1,695 mm |
| Overall Height | 1,980 mm |
| Wheelbase | 2,570 mm |
| Turning Circle | 10,000 mm |
| Load Capacity | 980 mm |
Looking for complete Toyota HiAce size & space specs?
Our Toyota HiAce Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Toyota HiAce Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 3.0
Australia Greenhouse Rating: 5.5
Australia Overall Emission Control Level Rating: 2.5
CO2 Level (Combined): 225
Standard Met: EU4
Engine
Bore Engine: 96.0
Engine (cc): 2982
Engine Configuration: In-Line
Engine Code: 1kd-Ftv
Engine (L): 3.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 103.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Direct Injection
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Capacity Uk Gallons: 15.4
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 875
ADR 81/02 Calculated Vehicle Range (miles): 544
ADR 81/02 Combined (km/L): 12.5
ADR 81/02 Combined (L/100km): 8.0
ADR 81/02 Combined (miles per UK gallon): 35
ADR 81/02 Combined (mpg): 29
ADR 81/02 Country Highway (km/L): 15.4
ADR 81/02 Country Highway (L/100km): 6.5
ADR 81/02 Country Highway (miles per UK gallon): 44
ADR 81/02 Country Highway (mpg): 36
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 9.5
ADR 81/02 Urban (L/100km): 10.5
ADR 81/02 Urban (miles per UK gallon): 27
ADR 81/02 Urban (mpg): 22
Fuel Economy
ADR 81/02 (L/100km): 8.0
Power
Maximum Power (hp/PS): 136
Maximum Power (kW): 100
Maximum Torque (Nm): 300
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3400
Rpm For Maximum Torque Low: 1200
Drive
Driven Wheels: Rear
Transmission
Code: R351
Description: Manual
Number of Speeds: 5
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 106
Location: Front
Front Wheels Tire Profile: 80
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 195
Rear Wheels Tire Load Index: 106
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 80
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 195
Wheels
Front Covers: Full
Location: Front
Front Wheels Rim Diameter (In): 15
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Location: 1
Rear Covers: Full
Location: Rear
Rear Rim Diameter (In): 15
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Local Body Type: Panel Van
Platform Code: IMV
Roof Type: Standard
Wheelbase Type: Long
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 211.9
Cargo Volume (L): 6000
Height (in): 52.6
Height (mm): 1545
Length (in): 115.4
Length (mm): 2930
Loading Floor Height (in): 23.0
Loading Floor Height (mm): 585
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 44.1
Width Between Wheelhouses (mm): 1120
Width (in): 60.8
Width (mm): 1545
External Dimensions
Kerb to Kerb Turning Circle (mm): 10000
Front Track (in): 57.9
Front Track (mm): 1470
Ground Clearance Unladen (in): 7.3
Ground Clearance Unladen (mm): 185
Kerb To Kerb Turning Circle (ft): 32.8
Overall Height (in): 78.0
Overall Height (mm): 1980
Overall Length (in): 184.8
Overall Length (mm): 4695
Overall Width (in): 66.7
Overall Width (mm): 1695
Rear Track (in): 57.7
Rear Track (mm): 1465
Wheelbase (in): 101.2
Wheelbase (mm): 2570
Cargo Doors
Location: Passenger
Passenger Operation: Sliding
Location: Rear
Rear Opening Angle: 90
Rear Operation: Lifting Gate
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: Blue
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Gross Trailer Weight Braked (kg): 1400
Gross Trailer Weight Braked (lb): 3086
Gross Trailer Weight Unbraked (kg): 400
Gross Trailer Weight Unbraked (lb): 882
Gross Train Weight (kg): 3800
Gross Train Weight (lb): 8378
Gross Vehicle Weight (kg): 2800
Gross Vehicle Weight (lb): 6173
Payload Allowance (kg): 980
Payload Allowance (lb): 2161
Published Kerb Weight (kg): 1820
Published Kerb Weight (lb): 4012
Tare Weight (kg): 1769
Audio System
Brand Name: Manufacturer'S Own
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
Speakers
Number of Speakers: 2
Bulkhead
Type: Tubular
Tubular Bulkhead Width: Full
Overall Bulkhead Size
Full Width: yes
Bluetooth
Includes Phone Connection: yes
Power Outlet 12V
Location (12V): Front
Crash Test Results
ANCAP Date Tested: 20111107
ANCAP Overall: 4.0
ANCAP Standard: Ancap
ANCAP Version Tested: 2.7 Lwb Van
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seat
Location: Centre
Center Front Seat Type: Bench
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
