Base
2.7L, 5-speed manual, 5-door Panel Van, Petrol, RWD
Save $$$ with CarExpert*
$40,990â€
Toyota HiAce Base (2015) price & specs
Save $$$ with CarExpert*
From
$40,990â€
Base
Overview

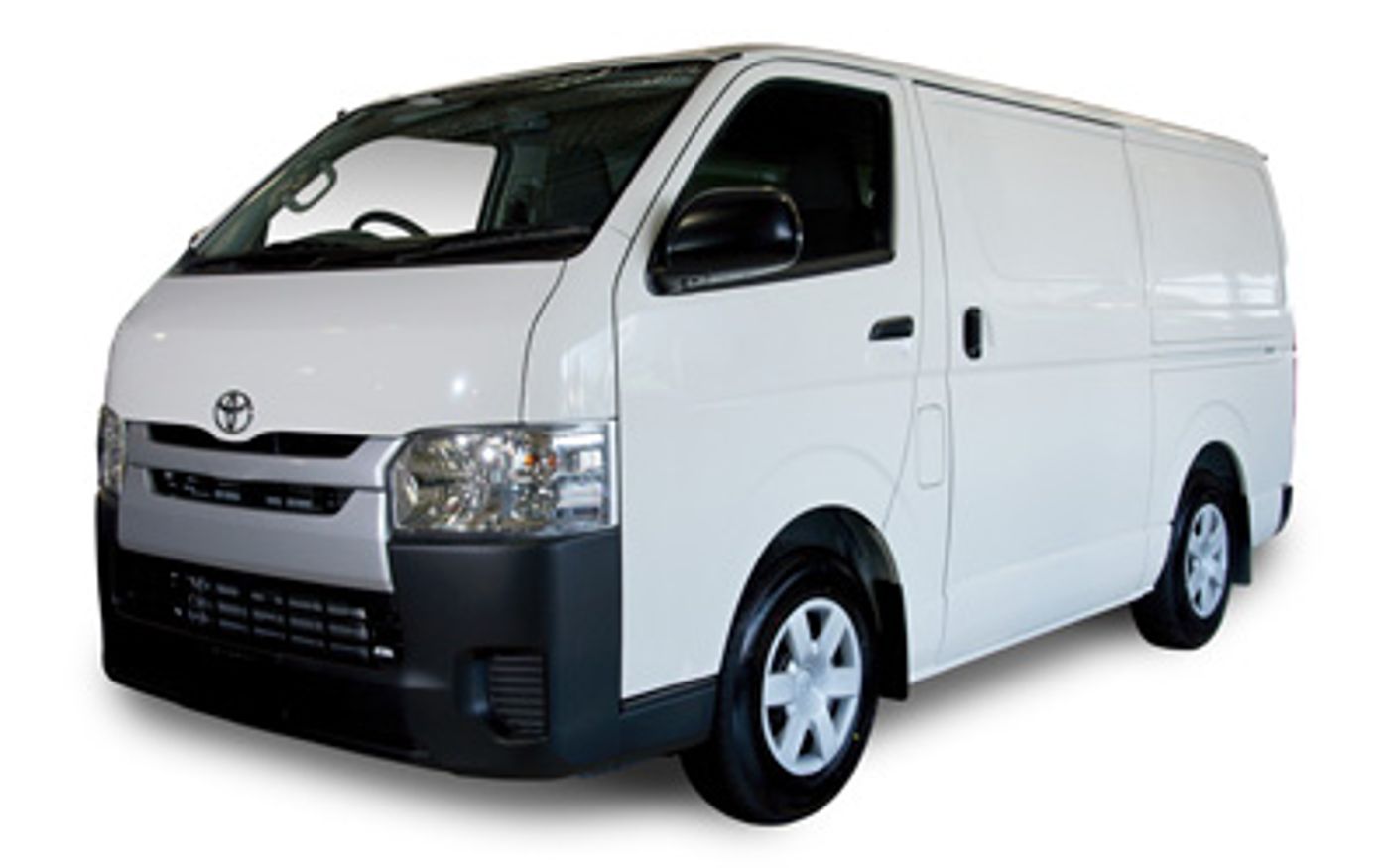

The 2015 Toyota HiAce Base is a rear-wheel drive, 5-door Panel Van that was released to the Australian market on 4th January 1970 classified as a Trh221r. The Toyota HiAce is regarded as a Van Under 3.5t built in Japan with prices starting at $40,990 before on-road costs.
This Toyota HiAce is powered by a 2.7L 4-cylinder engine that has 118 kW of power (at 5200 rpm) and 243 Nm of torque (at 4000 rpm) via a Five-speed Manual transmission. Toyota claims the HiAce Base uses 10.8L/100km of Unleaded in the combined city and highway cycle while putting out 250g of CO2. It has a 70L fuel tank, meaning it should be able to travel 648km per full tank
The Toyota HiAce measures 2285mm (90.0 inches) in height, 5380mm (211.8 inches) in length, 1880mm (74.0 inches) in width with a 3110mm (122.4 inches) wheelbase that brings about a total of 1890kg (4166.7 lbs) of unladen weight. The HiAce Base comes standard with 195/80 R15 front tyres and 195/80 R15 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2015 Toyota HiAce Base has a 155mm ground clearance with a 1400kg braked and 400kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the HiAce compare?
Quickly see how the 2015 Toyota HiAce Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
49.63 - 68.6 kW/t
39.64 kW/t
75.86 kW/t
Fuel Efficiency
8 - 10.8 L/100km
4.9 L/100km
10.8 L/100km
Vehicle Range
648 - 875 km
648 km
1,290 km
Price
$32,990 - $47,490
$22,000
$57,190
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
4 - 7 years
1 year
6 years
Service Interval
6 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,800 - 3,200 kg
2,030 kg
3,230 kg
Gross Comb. Mass
3,800 - 4,600 kg
3,800 kg
5,200 kg
Braked Towing Capacity
1,400 kg
1,000 kg
2,000 kg
Ground Clearance Unladen
155 - 185 mm
152 mm
190 mm
Payload Capacity
885 - 1,310 kg
659 kg
1,351 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,380 mm
1,880 mm
2,285 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,380 mm |
| Overall Width | 1,880 mm |
| Overall Height | 2,285 mm |
| Wheelbase | 3,110 mm |
| Turning Circle | 12,400 mm |
| Load Capacity | 1,310 mm |
Looking for complete Toyota HiAce size & space specs?
Our Toyota HiAce Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Toyota HiAce Sales rolling 12-months#
Explore Toyota HiAce Features & Specs
Emission Control Level
CO2 Level (Combined): 250
Standard Met: EU5
Engine
Bore Engine: 95.0
Engine (cc): 2694
Engine Configuration: In-Line
Engine Code: 2tr-Fe
Engine (L): 2.7
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 95.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Capacity Uk Gallons: 15.4
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 648
ADR 81/02 Calculated Vehicle Range (miles): 403
ADR 81/02 Combined (km/L): 9.3
ADR 81/02 Combined (L/100km): 10.8
ADR 81/02 Combined (miles per UK gallon): 26
ADR 81/02 Combined (mpg): 22
ADR 81/02 Country Highway (km/L): 10.9
ADR 81/02 Country Highway (L/100km): 9.2
ADR 81/02 Country Highway (miles per UK gallon): 31
ADR 81/02 Country Highway (mpg): 26
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 7.3
ADR 81/02 Urban (L/100km): 13.7
ADR 81/02 Urban (miles per UK gallon): 21
ADR 81/02 Urban (mpg): 17
Fuel Economy
ADR 81/02 (L/100km): 10.8
Power
Maximum Power (hp/PS): 160
Maximum Power (kW): 118
Maximum Torque (Nm): 243
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5200
Rpm For Maximum Torque Low: 4000
Drive
Driven Wheels: Rear
Transmission
Code: R351
Description: Manual
Number of Speeds: 5
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 106
Location: Front
Front Wheels Tire Profile: 80
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 195
Rear Wheels Tire Load Index: 106
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 80
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 195
Wheels
Location: Front
Front Wheels Rim Diameter (In): 15
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 15
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Local Body Type: Panel Van
Platform Code: IMV
Roof Type: Semi-High
Wheelbase Type: Extra Long
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 346.1
Cargo Volume (L): 9800
Height (in): 64.4
Height (mm): 1730
Length (in): 136.6
Length (mm): 3470
Loading Floor Height (in): 23.0
Loading Floor Height (mm): 585
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 51.0
Width Between Wheelhouses (mm): 1295
Width (in): 68.1
Width (mm): 1730
External Dimensions
Kerb to Kerb Turning Circle (mm): 12400
Front Track (in): 65.2
Front Track (mm): 1655
Ground Clearance Unladen (in): 6.1
Ground Clearance Unladen (mm): 155
Kerb To Kerb Turning Circle (ft): 40.7
Overall Height (in): 90.0
Overall Height (mm): 2285
Overall Length (in): 211.8
Overall Length (mm): 5380
Overall Width (in): 74.0
Overall Width (mm): 1880
Rear Track (in): 65.0
Rear Track (mm): 1650
Wheelbase (in): 122.4
Wheelbase (mm): 3110
Cargo Doors
Driver Location: Driver
Driver Operation: Sliding
Location: Passenger
Passenger Operation: Sliding
Location: Rear
Rear Opening Angle: 90
Rear Operation: Lifting Gate
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Gross Trailer Weight Braked (kg): 1400
Gross Trailer Weight Braked (lb): 3086
Gross Trailer Weight Unbraked (kg): 400
Gross Trailer Weight Unbraked (lb): 882
Gross Train Weight (kg): 4600
Gross Train Weight (lb): 10141
Gross Vehicle Weight (kg): 3200
Gross Vehicle Weight (lb): 7055
Payload Allowance (kg): 1310
Payload Allowance (lb): 2888
Published Kerb Weight (kg): 1890
Published Kerb Weight (lb): 4167
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Bulkhead
Type: Tubular
Tubular Bulkhead Width: Full
Overall Bulkhead Size
Full Width: yes
Bluetooth
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Front
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 2
Crash Test Results
ANCAP Date Tested: 20111107
ANCAP Overall: 4.00
ANCAP Standard: Ancap
ANCAP Version Tested: 2.7 Lwb Van
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seat
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 6
