    Toyota HiAce Commuter (2016) price & specs

    Save $$$ with CarExpert*
    From
    $58,640†
    2.7L petrol4D bus6 SP AUTOMATICRWD

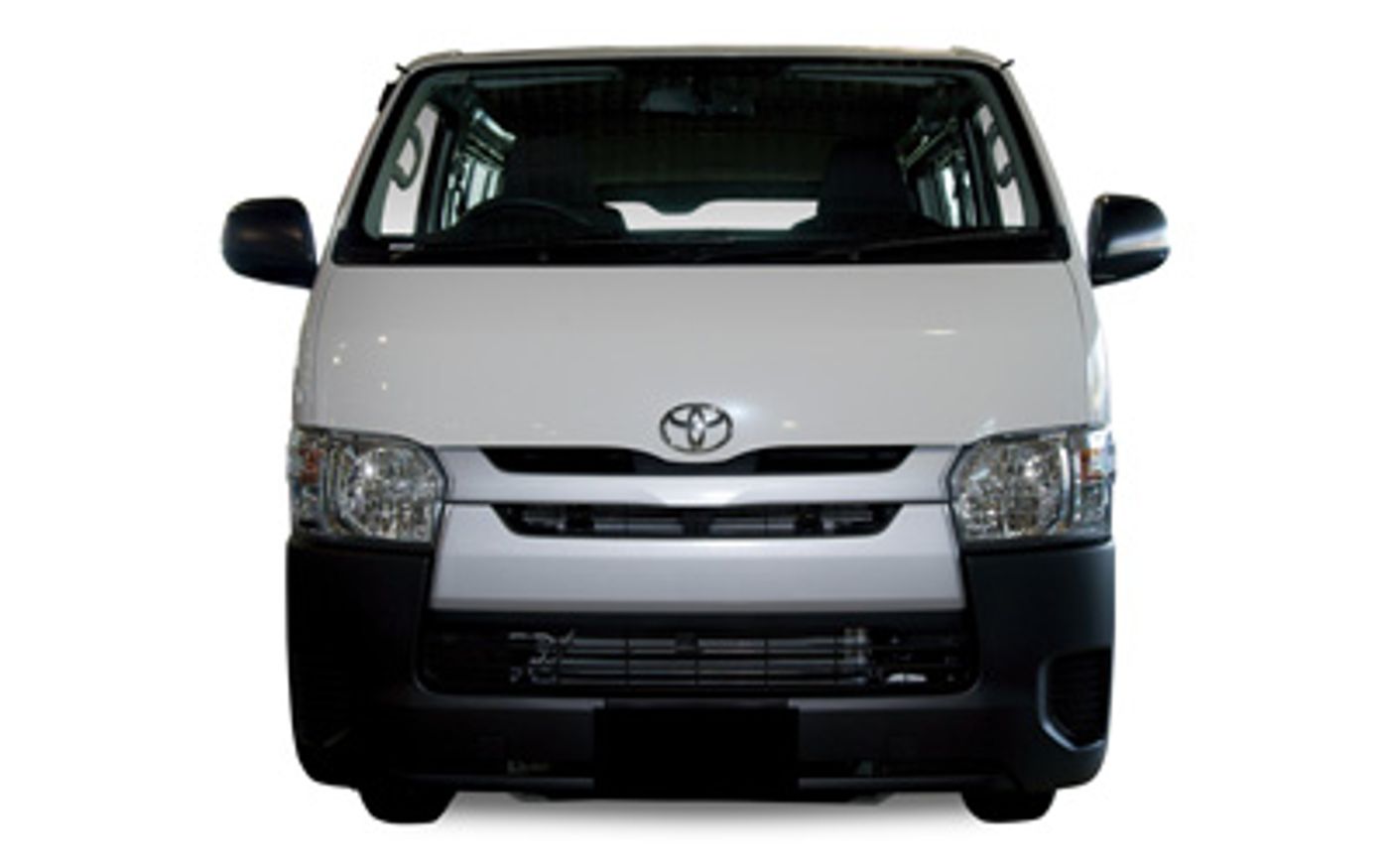

    Hero image of a new Toyota HiAce Commuter (2016) price & specs available with CarExpert deals.

    Commuter

    Find a deal

    Overview

    The 2016 Toyota HiAce Commuter is a rear-wheel drive, 4-door Bus that was released to the Australian market on 4th January 1970 classified as a Trh223r. The Toyota HiAce is regarded as a people mover built in Japan with prices starting at $58,640 before on-road costs.

    This Toyota HiAce is powered by a 2.7L 4-cylinder engine that has 118 kW of power (at 5200 rpm) and 243 Nm of torque (at 4000 rpm) via a Six-speed Automatic transmission. Toyota claims the HiAce Commuter uses 10.9L/100km of Unleaded in the combined city and highway cycle while putting out 254g of CO2. It has a 70L fuel tank, meaning it should be able to travel 642km per full tank

    The Toyota HiAce measures 2285mm (90.0 inches) in height, 5380mm (211.8 inches) in length, 1880mm (74.0 inches) in width with a 3110mm (122.4 inches) wheelbase that brings about a total of 2095kg (4618.7 lbs) of unladen weight. The HiAce Commuter comes standard with 195/80 R15 front tyres and 195/80 R15 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.

    The 2016 Toyota HiAce Commuter has a 155mm ground clearance with a 1400kg braked and 400kg unbraked towing capacity.

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    How does the HiAce compare?

    Quickly see how the 2016 Toyota HiAce Commuter stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    45.35 - 56.32 kW/t
    41.7 kW/t
    56.32 kW/t
    Fuel Efficiency
    8.9 - 10.9 L/100km
    8.9 L/100km
    10.9 L/100km
    Vehicle Range
    642 - 787 km
    642 km
    787 km
    Price
    $58,640 - $62,210
    $58,640
    $62,210
    Warranty (Years)
    3 years
    3 years
    Warranty (Distance)
    100,000 km
    100,000 km
    200,000 km
    Years on Sale
    7 years
    6 years
    6 years
    Service Interval
    6 months
    6 months
    12 months

    Towing & Off-Road Capability

    Gross Vehicle Weight
    3,150 - 3,250 kg
    3,150 kg
    3,890 kg
    Gross Comb. Mass
    4,200 - 4,550 kg
    4,200 kg
    4,550 kg
    Braked Towing Capacity
    1,400 kg
    1,400 kg
    2,500 kg
    Ground Clearance Unladen
    155 - 185 mm
    155 mm
    200 mm
    Payload Capacity
    1,045 - 1,055 kg
    1,045 kg
    1,252 kg

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    Dimensions

    5,380 mm
    1,880 mm
    2,285 mm
    SpecificationMeasurement
    Overall Length5,380 mm
    Overall Width1,880 mm
    Overall Height2,285 mm
    Wheelbase3,110 mm
    Turning Circle12,400 mm
    Load Capacity1,055 mm

    Looking for complete Toyota HiAce size & space specs?

    Our Toyota HiAce Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Explore Toyota HiAce Features & Specs

    Commuter

    2.7L, 6-speed auto, 4-door Bus, Petrol, RWD

    Save $$$ with CarExpert*
    $58,640†
    Find a deal

    Emission Control Level

    CO2 Level (Combined): 254
    Standard Met: EU5

    Engine

    Bore Engine: 95.0
    Engine (cc): 2694
    Engine Configuration: In-Line
    Engine Code: 2tr-Fe
    Engine (L): 2.7
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 95.0

    Fuel

    Generic Primary Fuel Type: Petrol
    Minimum Fuel Octane Number: 91
    Minimum Fuel Type: Unleaded
    Fuel Type: Unleaded
    Octane Number: 91

    Fuel System

    Injection Carburetion: Multi-Point Injection

    Fuel Tanks

    Main Capacity Gal: 18.5
    Main Capacity (L): 70
    Main Capacity Uk Gallons: 15.4
    Main Type: Total

    Interested in buying a Toyota HiAce Commuter?

    Save $$$ with CarExpert*
    From
    $58,640†
    Find a deal

    Fuel Consumption

    ADR 81/02 Calculated Vehicle Range (km): 642
    ADR 81/02 Calculated Vehicle Range (miles): 399
    ADR 81/02 Combined (km/L): 9.2
    ADR 81/02 Combined (L/100km): 10.9
    ADR 81/02 Combined (miles per UK gallon): 26
    ADR 81/02 Combined (mpg): 22
    ADR 81/02 Country Highway (km/L): 10.6
    ADR 81/02 Country Highway (L/100km): 9.4
    ADR 81/02 Country Highway (miles per UK gallon): 30
    ADR 81/02 Country Highway (mpg): 25
    ADR 81/02 Standard: Adr 81/02
    ADR 81/02 Urban (km/L): 7.4
    ADR 81/02 Urban (L/100km): 13.5
    ADR 81/02 Urban (miles per UK gallon): 21
    ADR 81/02 Urban (mpg): 17

    Fuel Economy

    ADR 81/02 (L/100km): 10.9

    Power

    Maximum Power (hp/PS): 160
    Maximum Power (kW): 118
    Maximum Torque (Nm): 243
    Measurement Standard: DIN
    Primary or Secondary Fuel Power Figure: Primary
    Rpm For Maximum Power Low: 5200
    Rpm For Maximum Torque Low: 4000

    Drive

    Driven Wheels: Rear

    Transmission

    Code: Ac60e
    Description: Automatic With Manual Mode
    Manual Mode: yes
    Number of Speeds: 6
    Type: Automatic

    Disc Brakes

    Number of Disc Brakes: 2
    Number of Ventilated Disc Brakes: 2

    Power Steering

    Type: Hydraulic

    Steering Wheel

    Height Adjustment: yes
    Type: Plastic

    Suspension

    Location: Front
    Front Spring Type: Torsion
    Front Stabilizer Bar: yes
    Front Type: Wishbone
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Leaf
    Rear Type: Beam
    Rear Wheel Dependence: Rigid

    Tires

    Front Wheels Tire Load Index: 106
    Location: Front
    Front Wheels Tire Profile: 80
    Front Wheels Tire Type: Conventional/Summer
    Front Wheels Tire Width: 195
    Rear Wheels Tire Load Index: 106
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 80
    Rear Wheels Tire Type: Conventional/Summer
    Rear Wheels Tire Width: 195

    Wheels

    Location: Front
    Front Wheels Rim Diameter (In): 15
    Front Wheels Rim Type: Steel
    Front Wheels Rim Width (In): 6.0
    Location: 1
    Location: Rear
    Rear Rim Diameter (In): 15
    Rear Rim Type: Steel
    Rear Wheels Rim Width (In): 6.0

    Body Style

    Body Type: bus
    Local Body Type: bus
    Platform Code: IMV
    Roof Type: Semi-High
    Wheelbase Type: Extra Long

    Mud Flaps

    Front Mud Flaps Location: Front
    Rear Mud Flaps Location: Rear

    Bumpers

    Front Bumper Colour: Black
    Location: Front
    Rear Bumper Colour: Black
    Location: Rear

    External Dimensions

    Kerb to Kerb Turning Circle (mm): 12400
    Front Track (in): 65.2
    Front Track (mm): 1655
    Ground Clearance Unladen (in): 6.1
    Ground Clearance Unladen (mm): 155
    Kerb To Kerb Turning Circle (ft): 40.7
    Overall Height (in): 90.0
    Overall Height (mm): 2285
    Overall Length (in): 211.8
    Overall Length (mm): 5380
    Overall Width (in): 74.0
    Overall Width (mm): 1880
    Rear Track (in): 65.0
    Rear Track (mm): 1650
    Wheelbase (in): 122.4
    Wheelbase (mm): 3110

    Cargo Doors

    Location: Passenger
    Passenger Operation: Sliding
    Location: Rear
    Rear Opening Angle: 90
    Rear Operation: Lifting Gate

    Doors

    Location: Driver
    Driver Door Type: Front Hinged
    Location: Passenger
    Passenger Door Type: Front Hinged

    Headlights

    High Beam Bulb Type: Halogen
    Low Beam Bulb Type: Halogen
    Lens Type: Complex Surface

    Paint

    External Colour: White
    Type: Gloss

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Black
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Black
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Power Windows

    Front Electric Windows: Front

    Rear Side Windows

    Location: Driver
    Driver Type: Fixed
    Location: Passenger
    Passenger Type: Fixed

    Rear View Mirror Camera

    Auto Dimming: yes

    Third Row Windows

    Location: Driver
    Driver Type: Fixed
    Location: Passenger
    Passenger Type: Fixed

    Windshield Wipers

    Intermittent Wipe Windshield Wipers: Fixed

    Weights

    Gross Trailer Weight Braked (kg): 1400
    Gross Trailer Weight Braked (lb): 3086
    Gross Trailer Weight Unbraked (kg): 400
    Gross Trailer Weight Unbraked (lb): 882
    Gross Train Weight (kg): 4550
    Gross Train Weight (lb): 10031
    Gross Vehicle Weight (kg): 3150
    Gross Vehicle Weight (lb): 6945
    Payload Allowance (kg): 1055
    Payload Allowance (lb): 2326
    Published Kerb Weight (kg): 2095
    Published Kerb Weight (lb): 4619

    Audio System

    CD Player Reads MP3: yes
    In-Dash CD: yes
    Radio Type: Am/Fm

    External Connections

    Aux Jack (Front): yes
    iPod Connection (Front): yes
    USB (Front): yes

    Remote Audio Controls

    Type: Steering Wheel Mounted

    Speakers

    Number of Speakers: 4

    Automatic Door Closing

    Side Doors: yes

    Bluetooth

    Includes Phone Connection: yes

    Parking Distance System

    Location: Rear
    Rear Type: Camera

    Power Outlet 12V

    Location (12V): Front

    Airbags

    Number of Airbags: 2

    Crash Test Results

    ANCAP Date Tested: 20111107
    ANCAP Overall: 4.00
    ANCAP Standard: Ancap
    ANCAP Version Tested: 2.7 Lwb Van

    Fourth Row Seat Belts

    Center Seat Position: Centre
    Driver Seat Position: Driver
    Passenger Seat Position: Passenger

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Passenger Pre Tensioners: yes
    Passenger Seat Position: Passenger

    Head Restraints

    Location: 3rd Row Seats
    3rd Row Seats Number: 3
    Location: 4th Row Seats
    Front Seats Location: Front Seats
    Rear Seats Location: Rear Seats
    Rear Seats Number: 2

    Rear Seat Belts

    Center Seat Position: Centre
    Center Type: 3-Point
    Driver Seat Position: Driver

    Third Row Seat Belts

    Center Operation: Reel
    Center Seat Position: Centre
    Center Type: 3-Point
    Driver Seat Position: Driver
    Passenger Seat Position: Passenger

    Front Seat

    Location: Driver
    Driver Front Seat Reach Type: Manual
    Driver Front Seat Type: Bucket
    Location: Passenger
    Passenger Front Seat Reach Type: Manual
    Passenger Front Seat Type: Bucket

    Seat Upholstery

    Additional Seat Material: Cloth
    Main Seat Material: Cloth

    Seating

    Capacity: 14

    Cup Holders

    Location: Front Seats

    Air Conditioning

    Type: Manual

    Power Locks

    Operation: Remote

    Intermediate Service

    Distance (km): 10000
    Distance (miles): 6214
    Period (Months): 6
