    Toyota HiAce Base (2020) price & specs

    Save $$$ with CarExpert*
    From
    $49,740†
    3.5L petrol5D Panel Van6 SP AUTOMATICRWD

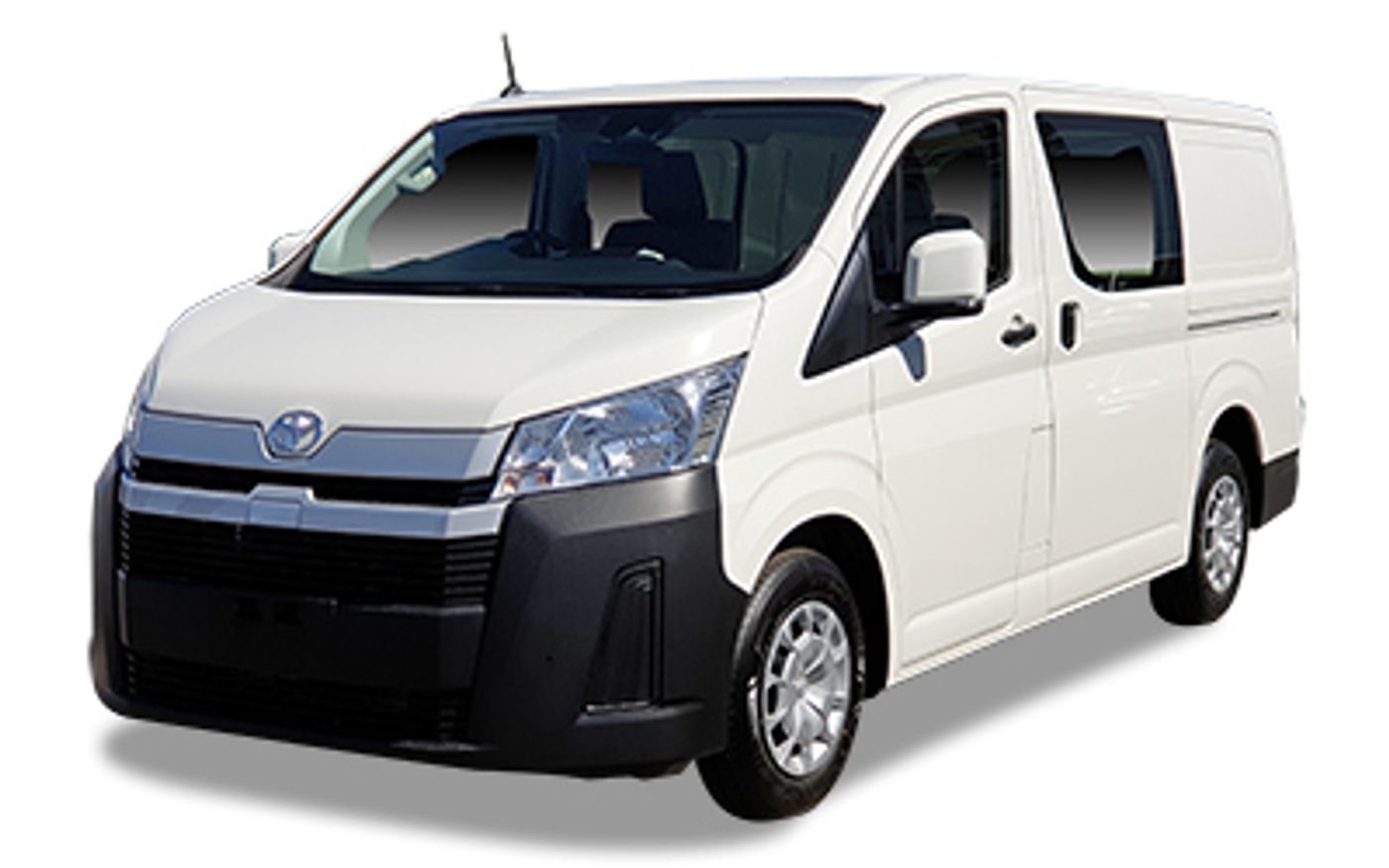

    Hero image of a new Toyota HiAce Base (2020) price & specs available with CarExpert deals.

    Base

    Find a deal

    Overview

    The 2020 Toyota HiAce Base is a rear-wheel drive, 5-door Panel Van that was released to the Australian market on 3rd July 2020 classified as a H30. The Toyota HiAce is regarded as a Van Under 3.5t built in Japan with prices starting at $49,740 before on-road costs.

    This Toyota HiAce is powered by a 3.5L 6-cylinder engine that has 207 kW of power (at 6000 rpm) and 351 Nm of torque (at 4600 rpm) via a Six-speed Automatic transmission. Toyota claims the HiAce Base uses 12.0L/100km of Unleaded in the combined city and highway cycle while putting out 275g of CO2. It has a 70L fuel tank, meaning it should be able to travel 583km per full tank

    The Toyota HiAce measures 2280mm (89.8 inches) in height, 5915mm (232.9 inches) in length, 1950mm (76.8 inches) in width with a 3860mm (152.0 inches) wheelbase that brings about a total of 2260kg (4982.4 lbs) of unladen weight. The HiAce Base comes standard with 215/70 R16 front tyres and 215/70 R16 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 60 month, unlimited km warranty.

    The 2020 Toyota HiAce Base has a 183mm ground clearance with a 1500kg braked and 400kg unbraked towing capacity.

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    How does the HiAce compare?

    Quickly see how the 2020 Toyota HiAce Base stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    55.56 - 97.64 kW/t
    39.13 kW/t
    97.64 kW/t
    Fuel Efficiency
    7.5 - 12.4 L/100km
    5 L/100km
    12.4 L/100km
    Vehicle Range
    565 - 933 km
    565 km
    1,290 km
    Price
    $39,740 - $53,240
    $25,490
    $64,200
    Warranty (Years)
    5 years
    3 years
    5 years
    Warranty (Distance)
    Unlimited
    160,000 km
    Unlimited
    Years on Sale
    4 - 7 years
    1 year
    6 years
    Service Interval
    6 months
    6 months
    12 months

    Towing & Off-Road Capability

    Gross Vehicle Weight
    3,200 - 3,500 kg
    1,810 kg
    4,050 kg
    Braked Towing Capacity
    1,400 - 1,900 kg
    850 kg
    2,800 kg
    Approach Angle
    15.2°
    13.2°
    21.2°
    Departure Angle
    15.4°
    14.8°
    19.9°
    Ground Clearance Unladen
    180 - 183 mm
    150 mm
    202 mm
    Payload Capacity
    995 - 1,160 kg
    540 kg
    1,640 kg

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    Dimensions

    5,915 mm
    1,950 mm
    2,280 mm
    SpecificationMeasurement
    Overall Length5,915 mm
    Overall Width1,950 mm
    Overall Height2,280 mm
    Wheelbase3,860 mm
    Turning Circle11,000 mm
    Load Capacity1,140 mm

    Looking for complete Toyota HiAce size & space specs?

    Our Toyota HiAce Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Sales Data

    Toyota HiAce Sales rolling 12-months#

    Explore Toyota HiAce Features & Specs

    Base

    3.5L, 6-speed auto, 5-door Panel Van, Petrol, RWD

    Save $$$ with CarExpert*
    $49,740†
    Find a deal

    Emission Control Level

    CO2 Level (Combined): 275
    Standard Met: EU5

    Engine

    Bore Engine: 94.0
    Engine (cc): 3456
    Engine Configuration: V
    Engine Code: 7gr-Fks
    Engine (L): 3.5
    Number of Cylinders: 6
    Number of Valves per Cylinder: 4
    Stroke Engine: 83.0

    Fuel

    Generic Primary Fuel Type: Petrol
    Minimum Fuel Octane Number: 91
    Minimum Fuel Type: Unleaded
    Fuel Type: Unleaded
    Octane Number: 91

    Fuel System

    Injection Carburetion: Multi-Point Injection

    Fuel Tanks

    Main Capacity Gal: 18.5
    Main Capacity (L): 70
    Main Capacity Uk Gallons: 15.4
    Main Type: Total

    Interested in buying a Toyota HiAce Base?

    Save $$$ with CarExpert*
    From
    $49,740†
    Find a deal

    Fuel Consumption

    ADR 81/02 Calculated Vehicle Range (km): 583
    ADR 81/02 Calculated Vehicle Range (miles): 362
    ADR 81/02 Combined (km/L): 8.3
    ADR 81/02 Combined (L/100km): 12.0
    ADR 81/02 Combined (miles per UK gallon): 24
    ADR 81/02 Combined (mpg): 20
    ADR 81/02 Country Highway (km/L): 10.5
    ADR 81/02 Country Highway (L/100km): 9.5
    ADR 81/02 Country Highway (miles per UK gallon): 30
    ADR 81/02 Country Highway (mpg): 25
    ADR 81/02 Standard: Adr 81/02
    ADR 81/02 Urban (km/L): 6.1
    ADR 81/02 Urban (L/100km): 16.5
    ADR 81/02 Urban (miles per UK gallon): 17
    ADR 81/02 Urban (mpg): 14

    Fuel Economy

    ADR 81/02 (L/100km): 12.0

    Power

    Maximum Power (hp/PS): 282
    Maximum Power (kW): 207
    Maximum Torque (Nm): 351
    Measurement Standard: DIN
    Primary or Secondary Fuel Power Figure: Primary
    Rpm For Maximum Power Low: 6000
    Rpm For Maximum Torque Low: 4600

    Drive

    Driven Wheels: Rear

    Transmission

    Code: Ac60e
    Description: Automatic With Manual Mode
    Manual Mode: yes
    Number of Speeds: 6
    Type: Automatic

    Disc Brakes

    Number of Disc Brakes: 4
    Number of Ventilated Disc Brakes: 4

    Steering Wheel

    Height Adjustment: yes
    Telescopic Adjustment: yes
    Type: Leather Covered

    Suspension

    Location: Front
    Front Spring Type: Torsion
    Front Stabilizer Bar: yes
    Front Type: Strut
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Leaf
    Rear Type: Beam
    Rear Wheel Dependence: Rigid

    Tires

    Front Wheels Tire Load Index: 108
    Location: Front
    Front Wheels Tire Profile: 70
    Front Wheels Tire Speed Rating: T
    Front Wheels Tire Type: Conventional/Summer
    Front Wheels Tire Width: 215
    Rear Wheels Tire Load Index: 108
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 70
    Rear Wheels Tire Speed Rating: T
    Rear Wheels Tire Type: Conventional/Summer
    Rear Wheels Tire Width: 215

    Wheels

    Location: Front
    Front Wheels Rim Diameter (In): 16
    Front Wheels Rim Type: Steel
    Front Wheels Rim Width (In): 7.0
    Location: 1
    Location: Rear
    Rear Rim Diameter (In): 16
    Rear Rim Type: Steel
    Rear Wheels Rim Width (In): 7.0

    Cargo Area Dimensions

    Cargo Volume (cu ft): 328.4
    Cargo Volume (L): 9300
    Height (in): 63.6
    Height (mm): 1760
    Length (in): 125.2
    Length (mm): 3180
    Standard Measurement: Manufacturer'S Own
    Width Between Wheelhouses (in): 49.9
    Width Between Wheelhouses (mm): 1268
    Width (in): 69.3
    Width (mm): 1760

    External Dimensions

    Kerb to Kerb Turning Circle (mm): 11000
    Front Overhang (in): 37.4
    Front Overhang (mm): 950
    Front Track (in): 65.7
    Front Track (mm): 1670
    Ground Clearance Unladen (in): 7.2
    Ground Clearance Unladen (mm): 183
    Kerb To Kerb Turning Circle (ft): 36.1
    Overall Height (in): 89.8
    Overall Height (mm): 2280
    Overall Length (in): 232.9
    Overall Length (mm): 5915
    Overall Width (in): 76.8
    Overall Width (mm): 1950
    Rear Overhang (in): 43.5
    Rear Overhang (mm): 1105
    Rear Track (in): 65.7
    Rear Track (mm): 1670
    Wall to Wall Turning Circle (ft): 38.7
    Wall to Wall Turning Circle (mm): 11800
    Wheelbase (in): 152.0
    Wheelbase (mm): 3860

    Ramp Angles

    Approach Angle: 15.2
    Departure Angle: 15.4

    Body Style

    Body Type: Panel Van
    Local Body Type: Panel Van
    Roof Type: Semi-High
    Wheelbase Type: Extra Long

    Bumpers

    Front Bumper Colour: Black
    Location: Front
    Rear Bumper Colour: Black
    Location: Rear

    Cargo Doors

    Driver Location: Driver
    Driver Operation: Sliding
    Location: Passenger
    Passenger Operation: Sliding
    Location: Rear
    Rear Opening Angle: 90
    Rear Operation: Lifting Gate

    Doors

    Location: Driver
    Driver Door Type: Front Hinged
    Location: Passenger
    Passenger Door Type: Front Hinged

    Headlights

    High Beam Bulb Type: Halogen
    Low Beam Bulb Type: Halogen
    Lens Type: Complex Surface

    Paint

    External Colour: White
    Type: Gloss

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Painted
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Painted
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Power Windows

    Front Electric Windows: Front

    Rear Side Windows

    Location: Passenger
    Passenger Type: Fixed

    Windshield Wipers

    Intermittent Wipe Windshield Wipers: Variable

    Weights

    Front Axle Weight (kg): 1750
    Front Axle Weight (lb): 3858
    Gross Trailer Weight Braked (kg): 1500
    Gross Trailer Weight Braked (lb): 3307
    Gross Trailer Weight Unbraked (kg): 400
    Gross Trailer Weight Unbraked (lb): 882
    Gross Vehicle Weight (kg): 3400
    Gross Vehicle Weight (lb): 7496
    Payload Allowance (kg): 1140
    Payload Allowance (lb): 2513
    Published Kerb Weight (kg): 2260
    Published Kerb Weight (lb): 4982
    Rear Axle Weight (kg): 2000
    Rear Axle Weight (lb): 4409
    Tare Weight (kg): 2215

    Audio System

    Colour Screen: yes
    Digital Radio: yes
    In-Dash CD: yes
    Radio Type: Am/Fm
    Touch Screen: yes

    External Connections

    USB (Front): yes

    Remote Audio Controls

    Type: Steering Wheel Mounted

    Speakers

    Number of Speakers: 2

    Bluetooth

    Includes Music Streaming: yes
    Includes Phone Connection: yes

    Mobile Integration

    Android Auto: yes
    Apple Carplay: yes

    Navigational Systems

    Information Type: 3d And Voice
    Traffic Info: yes

    Parking Distance System

    Location: Front
    Front Type: Sensor
    Location: Rear
    Rear Type: Sensor & Camera

    Power Outlet 12V

    Location (12V): Front

    Display Screen

    Location: Dashboard Centre 1
    Dashboard Centre 1 Screen Size (in): 7.00
    Dashboard Centre 1 Touch Screen: yes
    Location: Instrument Cluster 1
    Instrument Cluster 1 Screen Size (in): 4.20

    Floor Covering

    Vehicle Cab Compartment: Plastic/Rubber

    Airbags

    Number of Airbags: 7

    Crash Test Results

    ANCAP Date Tested: 20190501
    ANCAP Overall: 5.0
    ANCAP Pedestrian: Good
    ANCAP Rear Crash Protect Head Restraint Rating: Good
    ANCAP Standard: Ancap
    ANCAP Version Tested: 2.8 Rhd Litre Diesel Rhd

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Driver Height Adjustable: yes
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Passenger Height Adjustable: yes
    Passenger Pre Tensioners: yes
    Passenger Seat Position: Passenger

    Head Restraints

    Front Seats Location: Front Seats

    Knee Airbags

    Location: Driver

    Lane Departure Warning

    Activates Brakes: yes

    Rear Cross Traffic Collision Avoidance

    Type: Sensor

    Side Airbag

    Location: Front

    Side Curtain Airbag

    Location: Front

    Front Seat

    Driver Front Seat Height Type: Manual
    Location: Driver
    Driver Front Seat Reach Type: Manual
    Driver Front Seat Type: Bucket
    Location: Passenger
    Passenger Front Seat Reach Type: Manual
    Passenger Front Seat Type: Bucket

    Seat Upholstery

    Additional Seat Material: Cloth
    Main Seat Material: Cloth

    Seating

    Capacity: 2
    Configuration: 2+0

    Cup Holders

    Location: Front Seats

    Air Conditioning

    Type: Manual

    Power Locks

    Operation: Remote

    Intermediate Service

    Distance (km): 10000
    Distance (miles): 6214
    Period (Months): 6
