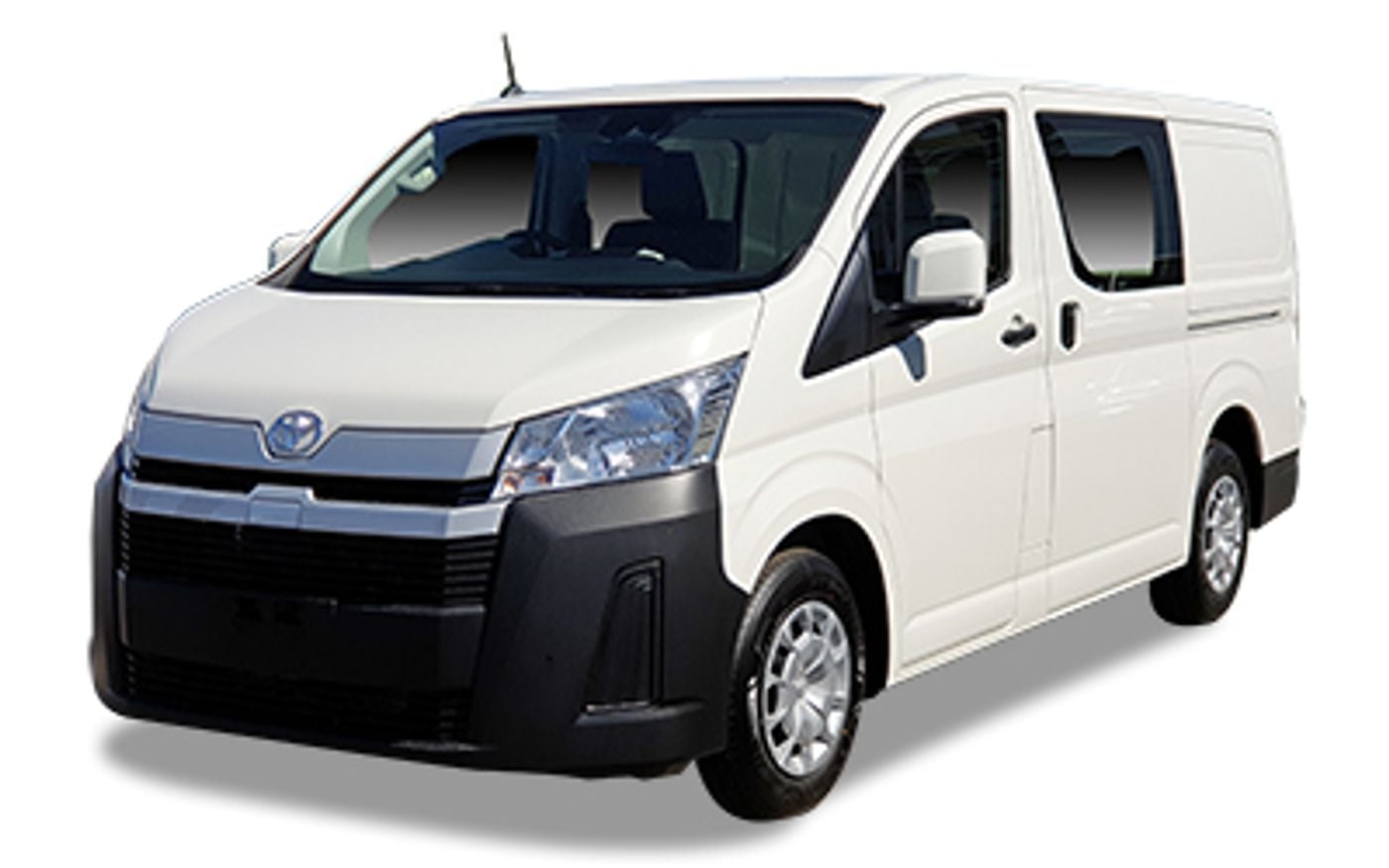

Toyota HiAce Base (2022) price & specs
Save $$$ with CarExpert*
From
$47,510â€
Base
Overview
The 2022 Toyota HiAce Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 2nd August 2022 classified as a H30. The Toyota HiAce is regarded as a Van Under 3.5t built in Japan with prices starting at $47,510 before on-road costs.
This Toyota HiAce is powered by a 2.8L 4-cylinder engine that has 130 kW of power (at 3400 rpm) and 450 Nm of torque (at 1600 rpm) via a Six-speed Automatic transmission. Toyota claims the HiAce Base uses 8.2L/100km of Diesel in the combined city and highway cycle while putting out 214g of CO2. It has a 70L fuel tank, meaning it should be able to travel 854km per full tank
The Toyota HiAce measures 1990mm (78.3 inches) in height, 5265mm (207.3 inches) in length, 1950mm (76.8 inches) in width with a 3210mm (126.4 inches) wheelbase that brings about a total of 2205kg (4861.2 lbs) of unladen weight. The HiAce Base comes standard with 215/70 R16 front tyres and 215/70 R16 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2022 Toyota HiAce Base has a 180mm ground clearance with a 1500kg braked and 400kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the HiAce compare?
Quickly see how the 2022 Toyota HiAce Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
55.56 - 58.96 kW/t
36.12 kW/t
81.55 kW/t
Fuel Efficiency
7.5 - 8.4 L/100km
4.9 L/100km
11.1 L/100km
Vehicle Range
833 - 933 km
649 km
1,290 km
Price
$44,650 - $56,070
$26,990
$116,115
Warranty (Years)
5 years
3 years
10 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
4 - 7 years
1 year
6 years
Service Interval
6 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,300 - 3,500 kg
1,940 kg
3,500 kg
Braked Towing Capacity
1,500 - 1,900 kg
900 kg
2,800 kg
Approach Angle
15.2°
15.2°
21.2°
Departure Angle
15.4°
15.4°
19.9°
Ground Clearance Unladen
180 - 183 mm
134 mm
234 mm
Payload Capacity
995 - 1,160 kg
655 kg
1,419 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,265 mm
1,950 mm
1,990 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,265 mm |
| Overall Width | 1,950 mm |
| Overall Height | 1,990 mm |
| Wheelbase | 3,210 mm |
| Turning Circle | 11,000 mm |
| Load Capacity | 1,095 mm |
Looking for complete Toyota HiAce size & space specs?
Our Toyota HiAce Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Toyota HiAce Features & Specs
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 197
CO2 Level (Combined): 214
CO2 Level (Urban): 242
Standard Met: EU5
Engine
Bore Engine: 92.0
Engine (cc): 2755
Engine Configuration: In-Line
Engine Code: 1gd-Ftv
Engine (L): 2.8
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 103.6
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Direct Injection
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Capacity Uk Gallons: 15.4
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 8.00
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 4.20
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 854
ADR 81/02 Calculated Vehicle Range (miles): 531
ADR 81/02 Combined (km/L): 12.2
ADR 81/02 Combined (L/100km): 8.2
ADR 81/02 Combined (miles per UK gallon): 34
ADR 81/02 Combined (mpg): 29
ADR 81/02 Country Highway (km/L): 13.2
ADR 81/02 Country Highway (L/100km): 7.6
ADR 81/02 Country Highway (miles per UK gallon): 37
ADR 81/02 Country Highway (mpg): 31
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.9
ADR 81/02 Urban (L/100km): 9.2
ADR 81/02 Urban (miles per UK gallon): 31
ADR 81/02 Urban (mpg): 26
Fuel Economy
ADR 81/02 (L/100km): 8.2
Power
Maximum Power (hp/PS): 177
Maximum Power (kW): 130
Maximum Torque (Nm): 450
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3400
Rpm For Maximum Torque Low: 1600
Drive
Driven Wheels: Rear
Transmission
Code: Ac60e
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Dash
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 108
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Speed Rating: T
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 108
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Speed Rating: T
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 7.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 7.0
Cargo Area Dimensions
Cargo Volume (cu ft): 219.0
Cargo Volume (L): 6200
Height (in): 52.8
Height (mm): 1760
Length (in): 99.6
Length (mm): 2530
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 49.9
Width Between Wheelhouses (mm): 1268
Width (in): 69.3
Width (mm): 1760
External Dimensions
Kerb to Kerb Turning Circle (mm): 11000
Front Overhang (in): 37.4
Front Overhang (mm): 950
Front Track (in): 65.7
Front Track (mm): 1670
Ground Clearance Unladen (in): 7.1
Ground Clearance Unladen (mm): 180
Kerb To Kerb Turning Circle (ft): 36.1
Overall Height (in): 78.3
Overall Height (mm): 1990
Overall Length (in): 207.3
Overall Length (mm): 5265
Overall Width (in): 76.8
Overall Width (mm): 1950
Rear Overhang (in): 43.5
Rear Overhang (mm): 1105
Rear Track (in): 65.7
Rear Track (mm): 1670
Wall to Wall Turning Circle (ft): 38.7
Wall to Wall Turning Circle (mm): 11800
Wheelbase (in): 126.4
Wheelbase (mm): 3210
Ramp Angles
Approach Angle: 15.2
Departure Angle: 15.4
Body Style
Body Type: Panel Van
Local Body Type: Panel Van
Roof Type: Standard
Wheelbase Type: Long
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Doors
Location: Passenger
Passenger Operation: Sliding
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Auto Highbeam: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Passenger
Passenger Type: Fixed
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1750
Front Axle Weight (lb): 3858
Gross Trailer Weight Braked (kg): 1500
Gross Trailer Weight Braked (lb): 3307
Gross Trailer Weight Unbraked (kg): 400
Gross Trailer Weight Unbraked (lb): 882
Gross Vehicle Weight (kg): 3300
Gross Vehicle Weight (lb): 7275
Payload Allowance (kg): 1095
Payload Allowance (lb): 2414
Published Kerb Weight (kg): 2205
Published Kerb Weight (lb): 4861
Rear Axle Weight (kg): 2000
Rear Axle Weight (lb): 4409
Tare Weight (kg): 2154
Trailer Noseweight (kg): 150
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Entertainment Display Screen
Location: Front
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Remote Services
Find My Car: yes
Geo Fencing: yes
Months Subscription Included: 36
Speed Alert: yes
Telematics
Advanced Auto Collision Notification: yes
Concierge Months Included: 0
Connection Type: Via Sim In Vehicle
Tracker System: yes
USB Charging Port
Location: Front
Number of Ports in Front: 1
Voice Activating System
Virtual Assistant: Other
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Load Area Side Covering
Exposed Metal: Partial
Type: Board
Airbags
Number of Airbags: 7
Crash Test Results
ANCAP Adult Occupant Score: 94.0
ANCAP Child Occupant Score: 88.0
ANCAP Date Tested: 20190501
ANCAP Overall: 5.0
ANCAP Pedestrian: Good
ANCAP Pedestrian Score: 84.0
ANCAP Rating Year: 2019
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Safety Assist Score: 77.0
ANCAP Standard: Ancap
ANCAP Version Tested: 2.8 Rhd Litre Diesel Rhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Lane Departure Warning
Activates Brakes: yes
Maximum Speed For Operation (km/h): 180
Maximum Speed For Operation (mph): 112
Overtaking Sensor
Active Without Turn Signal: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 6
# Based on VFACTS and EVC data
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
