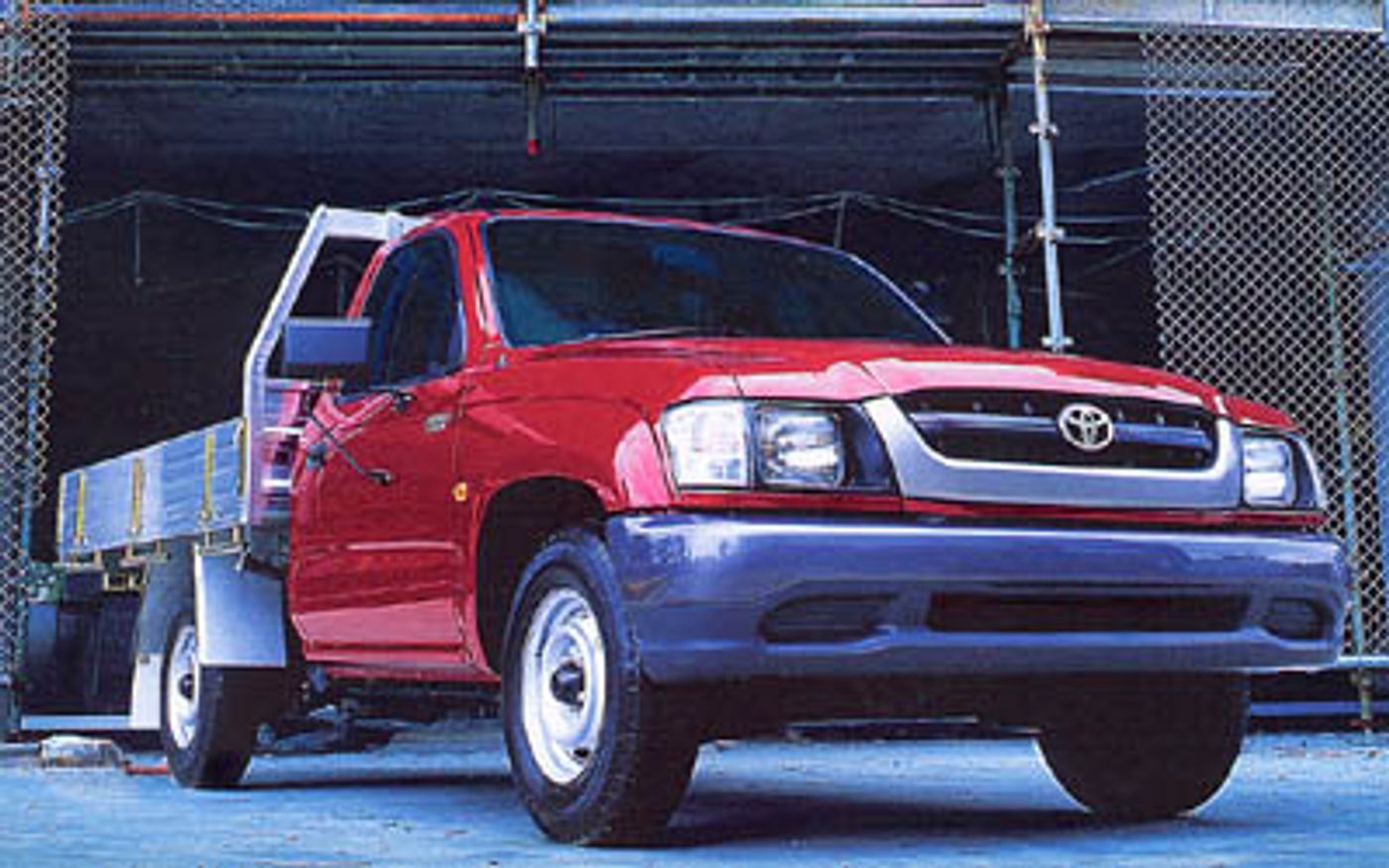

Toyota HiLux Workmate (2002) price & specs
Save $$$ with CarExpert*
From
$17,990†
Workmate
Overview
The 2002 Toyota HiLux Workmate is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 4th January 1970. The Toyota HiLux is regarded as a Pickup built in Thailand with prices starting at $17,990 before on-road costs.
This Toyota HiLux is powered by a 2L 4-cylinder engine that has 80 kW of power (at 5200 rpm) and 166 Nm of torque (at 2800 rpm) via a Five-speed Manual transmission. It has a 69L fuel tank
It has a 36 month, 100,000 km warranty.
The 2002 Toyota HiLux Workmate has a 200mm ground clearance with a 1800kg braked and 700kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the HiLux compare?
Quickly see how the 2002 Toyota HiLux Workmate stacks up against its competition.
Select any benchmark to see more details.
Power to Weight
38.83 - 90.53 kW/t
38.83 kW/t
95 kW/t
Price
$17,990 - $46,425
$17,990
$53,540
Warranty (Years)
3 years
3 years
Warranty (Distance)
100,000 km
100,000 km
Years on Sale
1 - 11 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,730 - 2,750 kg
2,440 kg
3,500 kg
Braked Towing Capacity
1,800 kg
1,500 kg
3,500 kg
Approach Angle
36°
36°
50°
Departure Angle
34°
30.8°
35°
Ground Clearance Unladen
200 - 225 mm
180 mm
225 mm
Payload Capacity
966 - 1,552 kg
966 kg
1,651 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,725 mm
1,690 mm
1,605 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,725 mm |
| Overall Width | 1,690 mm |
| Overall Height | 1,605 mm |
| Wheelbase | 2,850 mm |
| Turning Circle | 11,800 mm |
| Load Capacity | 1,552 mm |
Looking for complete Toyota HiLux size & space specs?
Our Toyota HiLux Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Toyota HiLux Features & Specs
Engine
Bore Engine: 86
Engine (cc): 1998
Compression Ratio: 9
Engine Configuration: In-Line
Engine (L): 2
Number of Cylinders: 4
Number of Valves per Cylinder: 2
Stroke Engine: 86
Valve Gear Type: Overhead Cam
Fuel
Generic Primary Fuel Type: Petrol
Fuel Type: Unleaded
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 18.2
Main Capacity (L): 69
Main Fuel Type: Unleaded
Main Type: Total
Water Temperature
Type: Gauge
Power
Maximum Power (hp/PS): 109
Maximum Power (kW): 80
Maximum Torque (Nm): 166
Measurement Standard: DIN
Rpm For Maximum Power Low: 5200
Rpm For Maximum Torque Low: 2800
Drive
Driven Wheels: Rear
Transmission
Number of Speeds: 5
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Width: 195
Rear Wheels Tire Location: Rear
Rear Wheels Tire Width: 195
Wheels
Location: Front
Front Wheels Rim Diameter (In): 14
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 5.5
Location: Rear
Rear Rim Diameter (In): 14
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 5.5
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Driver Location: RHD
Local Body Type: Cab Chassis
Roof Type: Standard
Wheelbase Type: Short
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Metal
External Dimensions
Kerb to Kerb Turning Circle (mm): 11800
Front Track (in): 54.9
Front Track (mm): 1395
Ground Clearance Unladen (in): 7.9
Ground Clearance Unladen (mm): 200
Kerb To Kerb Turning Circle (ft): 38.7
Overall Height (in): 63.2
Overall Height (mm): 1605
Overall Length (in): 186
Overall Length (mm): 4725
Overall Width (in): 66.5
Overall Width (mm): 1690
Rear Track (in): 55.5
Rear Track (mm): 1410
Wheelbase (in): 112.2
Wheelbase (mm): 2850
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Conventional
Paint
Type: Gloss
Door Mirrors/Cameras
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 970
Front Axle Weight (lb): 2138
Gross Trailer Weight Braked (kg): 1800
Gross Trailer Weight Braked (lb): 3968
Gross Trailer Weight Unbraked (kg): 700
Gross Trailer Weight Unbraked (lb): 1543
Gross Vehicle Weight (kg): 2730
Gross Vehicle Weight (lb): 6019
Payload Allowance (kg): 1552
Payload Allowance (lb): 3422
Published Kerb Weight (kg): 1178
Published Kerb Weight (lb): 2597
Rear Axle Weight (kg): 1760
Rear Axle Weight (lb): 3880
Audio Anti-Theft Protection
Type: Code
Audio System
Cassette Player: yes
Radio Type: Am/Fm
Speakers
Number of Speakers: 2
Ashtray
Location: Front
Cigar Lighter
Location: Front Seats
Front Seat Belts
Center Operation: Static
Center Seat Position: Center
Center Type: lap
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 2
Front Seat
Location: Centre
Center Front Seat Type: Bench
Location: Driver
Driver Front Seat Type: Bench
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Main Seat Material: Vinyl
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Front Seats Type: Fixed
Glove Compartment
Lid: yes
