Toyota HiLux Base (2003) price & specs
Save $$$ with CarExpert*
From
$31,650â€
Base
Overview

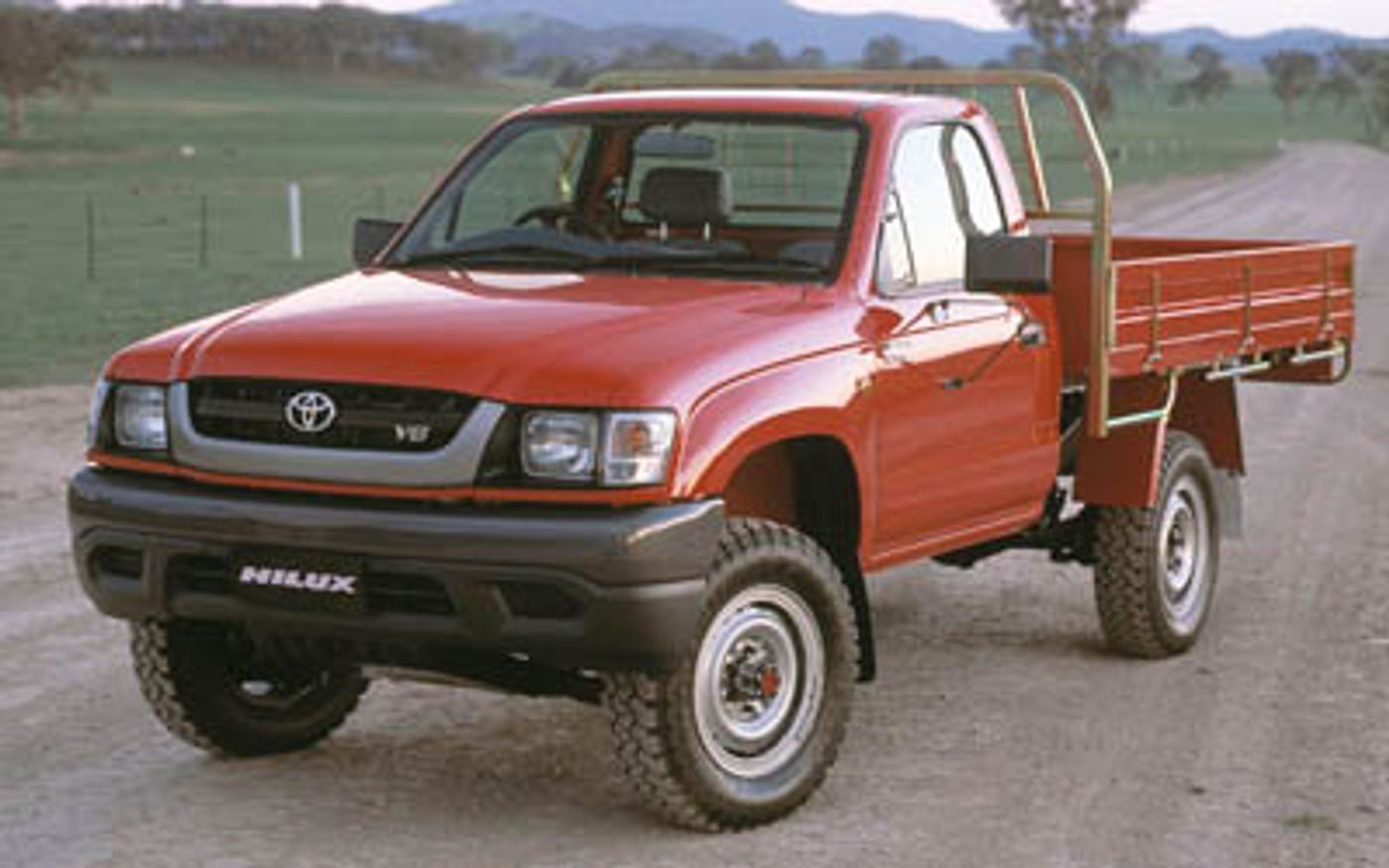

The 2003 Toyota HiLux Base is a four-wheel drive, 2-door Cab Chassis that was released to the Australian market on 4th January 1970. The Toyota HiLux is regarded as a Pickup built in Thailand with prices starting at $31,650 before on-road costs.
This Toyota HiLux is powered by a 3L 4-cylinder engine that has 71 kW of power (at 4000 rpm) and 200 Nm of torque (at 2600 rpm) via a Five-speed Manual transmission. It has a 77L fuel tank
It has a 36 month, 100,000 km warranty.
The 2003 Toyota HiLux Base has a 225mm ground clearance with a 1800kg braked and 700kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the HiLux compare?
Quickly see how the 2003 Toyota HiLux Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
41.45 - 91.37 kW/t
41.04 kW/t
95 kW/t
Price
$18,990 - $47,650
$18,990
$50,950
Warranty (Years)
3 years
3 years
Warranty (Distance)
100,000 km
100,000 km
Years on Sale
1 - 11 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,730 kg
2,440 kg
3,500 kg
Braked Towing Capacity
1,800 kg
1,500 kg
3,500 kg
Approach Angle
36 - 37°
36°
50°
Departure Angle
34 - 35°
34°
35°
Ground Clearance Unladen
200 - 225 mm
190 mm
225 mm
Payload Capacity
969 - 1,548 kg
969 kg
1,548 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,785 mm
1,700 mm
1,780 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,785 mm |
| Overall Width | 1,700 mm |
| Overall Height | 1,780 mm |
| Wheelbase | 2,860 mm |
| Turning Circle | 12,200 mm |
| Load Capacity | 1,197 mm |
Looking for complete Toyota HiLux size & space specs?
Our Toyota HiLux Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Toyota HiLux Features & Specs
Engine
Bore Engine: 99.5
Engine (cc): 2986
Compression Ratio: 22.2
Engine Configuration: In-Line
Engine Code: 5l-E
Engine (L): 3
Number of Cylinders: 4
Number of Valves per Cylinder: 2
Stroke Engine: 96
Valve Gear Type: Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Indirect Injection
Fuel Tanks
Main Capacity Gal: 20.3
Main Capacity (L): 77
Main Fuel Type: Diesel
Main Type: Total
Power
Maximum Power (hp/PS): 97
Maximum Power (kW): 71
Maximum Torque (Nm): 200
Measurement Standard: DIN
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 2600
Drive
Driven Wheels: 4x4
Four-Wheel Drive Hub Engagement: Manual Hubs
Four-Wheel Drive Type: Part-Time
Transmission
Code: G52
Low High Gear Ranges: yes
Number of Speeds: 5
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Suspension
Location: Front
Front Spring Type: Torsion
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Width: 205
Rear Wheels Tire Location: Rear
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 5.5
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 5.5
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Driver Location: RHD
Local Body Type: Cab Chassis
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
External Dimensions
Kerb to Kerb Turning Circle (mm): 12200
Front Track (in): 56.7
Front Track (mm): 1440
Ground Clearance Unladen (in): 8.9
Ground Clearance Unladen (mm): 225
Kerb To Kerb Turning Circle (ft): 40
Overall Height (in): 70.1
Overall Height (mm): 1780
Overall Length (in): 188.4
Overall Length (mm): 4785
Overall Width (in): 66.9
Overall Width (mm): 1700
Rear Track (in): 56.1
Rear Track (mm): 1425
Wheelbase (in): 112.6
Wheelbase (mm): 2860
Ramp Angles
Approach Angle: 37
Departure Angle: 35
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Metal
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Conventional
Paint
Type: Gloss
Door Mirrors/Cameras
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1170
Front Axle Weight (lb): 2579
Gross Trailer Weight Braked (kg): 1800
Gross Trailer Weight Braked (lb): 3968
Gross Trailer Weight Unbraked (kg): 700
Gross Trailer Weight Unbraked (lb): 1543
Gross Vehicle Weight (kg): 2730
Gross Vehicle Weight (lb): 6019
Payload Allowance (kg): 1197
Payload Allowance (lb): 2639
Published Kerb Weight (kg): 1533
Published Kerb Weight (lb): 3380
Rear Axle Weight (kg): 1560
Rear Axle Weight (lb): 3439
Audio Anti-Theft Protection
Type: Code
Audio System
Cassette Player: yes
Radio Type: Am/Fm
Speakers
Number of Speakers: 2
Cigar Lighter
Location: Front Seats
Front Seat Belts
Center Operation: Static
Center Seat Position: Center
Center Type: lap
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 2
Front Seat
Location: Centre
Center Front Seat Type: Bench
Location: Driver
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Front Seats Type: Pop Out
Door Pockets Bins
Location: Driver
Location: Passenger
Glove Compartment
Lid: yes
