2.7L, 5-speed manual, 2-door Cab Chassis, Petrol, RWD
Save $$$ with CarExpert*
$18,490â€

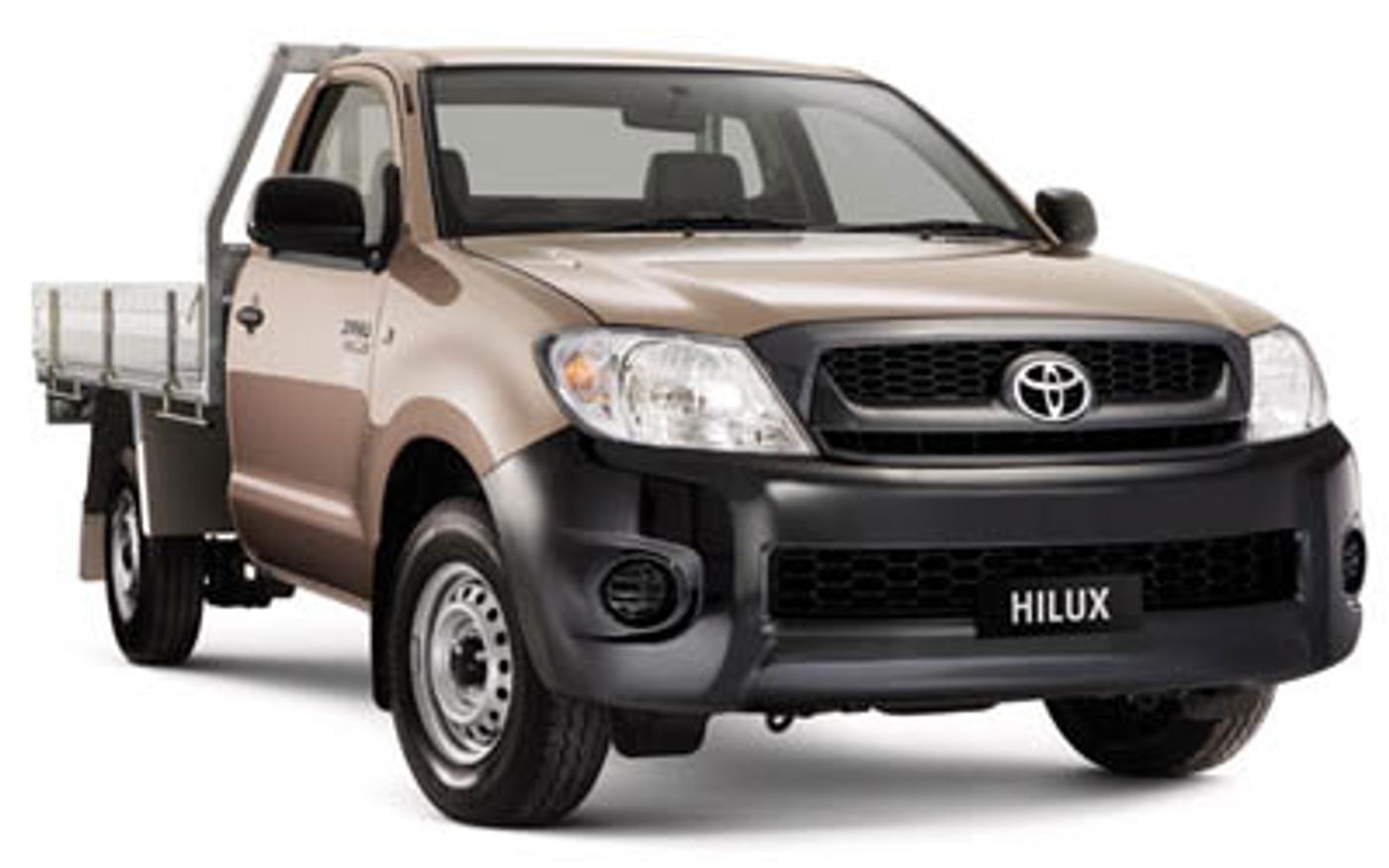

Toyota HiLux Workmate (2008) price & specs
Save $$$ with CarExpert*
From
$18,490â€
Workmate
Overview
The 2008 Toyota HiLux Workmate is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 1st September 2009 classified as a Tgn16r. The Toyota HiLux is regarded as a Pickup built in Thailand with prices starting at $18,490 before on-road costs.
This Toyota HiLux is powered by a 2.7L 4-cylinder engine that has 116 kW of power (at 5200 rpm) and 240 Nm of torque (at 3800 rpm) via a Five-speed Manual transmission. Toyota claims the HiLux Workmate uses 11.2L/100km of Unleaded in the combined city and highway cycle while putting out 266g of CO2. It has a 76L fuel tank, meaning it should be able to travel 679km per full tank
The Toyota HiLux measures 1680mm (66.1 inches) in height, 4975mm (195.9 inches) in length, 1760mm (69.3 inches) in width with a 3085mm (121.5 inches) wheelbase that brings about a total of 1465kg (3229.8 lbs) of unladen weight. The HiLux Workmate comes standard with 205/70 R15 front tyres and 205/70 R15 rear tyres. It has a 36 month, 100,000 km warranty.
The 2008 Toyota HiLux Workmate has a 203mm ground clearance with a 2250kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the HiLux compare?
Quickly see how the 2008 Toyota HiLux Workmate stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
67.38 - 118.24 kW/t
55.25 kW/t
118.24 kW/t
Fuel Efficiency
8.1 - 13.3 L/100km
8.1 L/100km
14 L/100km
Vehicle Range
571 - 938 km
571 km
938 km
Price
$17,990 - $55,690
$17,990
$55,690
Warranty (Years)
3 years
2 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 - 11 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,710 - 2,875 kg
2,710 kg
3,400 kg
Gross Comb. Mass
4,600 - 5,085 kg
4,445 kg
6,200 kg
Braked Towing Capacity
2,250 - 2,500 kg
1,800 kg
3,200 kg
Approach Angle
21 - 30°
21°
37°
Departure Angle
18 - 26°
18°
33.5°
Ground Clearance Unladen
177 - 298 mm
177 mm
298 mm
Payload Capacity
900 - 1,340 kg
751 kg
1,449 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,975 mm
1,760 mm
1,680 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,975 mm |
| Overall Width | 1,760 mm |
| Overall Height | 1,680 mm |
| Wheelbase | 3,085 mm |
| Turning Circle | 11,800 mm |
| Load Capacity | 1,315 mm |
Looking for complete Toyota HiLux size & space specs?
Our Toyota HiLux Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Toyota HiLux Features & Specs
Emission Control Level
Australia Air Pollution Rating: 6.0
Australia Greenhouse Rating: 4.5
Australia Overall Emission Control Level Rating: 3.0
CO2 Level (Combined): 266
Standard Met: EU4
Engine
Bore Engine: 95.0
Engine (cc): 2694
Engine Configuration: In-Line
Engine Code: 2tr-Fe
Engine (L): 2.7
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 95.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 20.1
Main Capacity (L): 76
Main Capacity Uk Gallons: 16.7
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 679
ADR 81/02 Calculated Vehicle Range (miles): 422
ADR 81/02 Combined (km/L): 8.9
ADR 81/02 Combined (L/100km): 11.2
ADR 81/02 Combined (miles per UK gallon): 25
ADR 81/02 Combined (mpg): 21
ADR 81/02 Country Highway (km/L): 10.9
ADR 81/02 Country Highway (L/100km): 9.2
ADR 81/02 Country Highway (miles per UK gallon): 31
ADR 81/02 Country Highway (mpg): 26
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 6.8
ADR 81/02 Urban (L/100km): 14.7
ADR 81/02 Urban (miles per UK gallon): 19
ADR 81/02 Urban (mpg): 16
Fuel Economy
ADR 81/02 (L/100km): 11.2
Power
Maximum Power (hp/PS): 158
Maximum Power (kW): 116
Maximum Torque (Nm): 240
Measurement Standard: DIN
Rpm For Maximum Power Low: 5200
Rpm For Maximum Torque Low: 3800
Drive
Driven Wheels: Rear
Transmission
Description: Manual
Number of Speeds: 5
Type: Manual
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Type: Extra Load
Front Wheels Tire Width: 205
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Type: Extra Load
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 15
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 15
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Local Body Type: Cab Chassis
Platform Code: IMV
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Bumpers
Front Bumper Colour: Black
Location: Front
External Dimensions
Kerb to Kerb Turning Circle (mm): 11800
Front Overhang (in): 34.8
Front Overhang (mm): 885
Front Track (in): 59.4
Front Track (mm): 1510
Ground Clearance Unladen (in): 8.0
Ground Clearance Unladen (mm): 203
Kerb To Kerb Turning Circle (ft): 38.7
Overall Height (in): 66.1
Overall Height (mm): 1680
Overall Length (in): 195.9
Overall Length (mm): 4975
Overall Width (in): 69.3
Overall Width (mm): 1760
Rear Overhang (in): 39.6
Rear Overhang (mm): 1005
Rear Track (in): 59.4
Rear Track (mm): 1510
Wheelbase (in): 121.5
Wheelbase (mm): 3085
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: Green
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Weights
Front Axle Weight (kg): 1145
Front Axle Weight (lb): 2524
Gross Trailer Weight Braked (kg): 2250
Gross Trailer Weight Braked (lb): 4960
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5030
Gross Train Weight (lb): 11089
Gross Vehicle Weight (kg): 2780
Gross Vehicle Weight (lb): 6129
Payload Allowance (kg): 1315
Payload Allowance (lb): 2899
Published Kerb Weight (kg): 1465
Published Kerb Weight (lb): 3230
Rear Axle Weight (kg): 1750
Rear Axle Weight (lb): 3858
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
USB (Front): yes
Speakers
Number of Speakers: 2
Crash Test Results
ANCAP Date Tested: 20060421
ANCAP Overall: 4.00
ANCAP Standard: Ancap
ANCAP Version Tested: 2.7 Workmate Cab Chassis
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Front Seat
Location: Centre
Center Front Seat Type: Bench
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Vinyl
Main Seat Material: Vinyl
Seating
Capacity: 3
Configuration: 3+0
Cup Holders
Location: Front Seats
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
