3.0L, 4-speed auto, 4-door Utility, Diesel, 4x4
Save $$$ with CarExpert*
$40,990â€

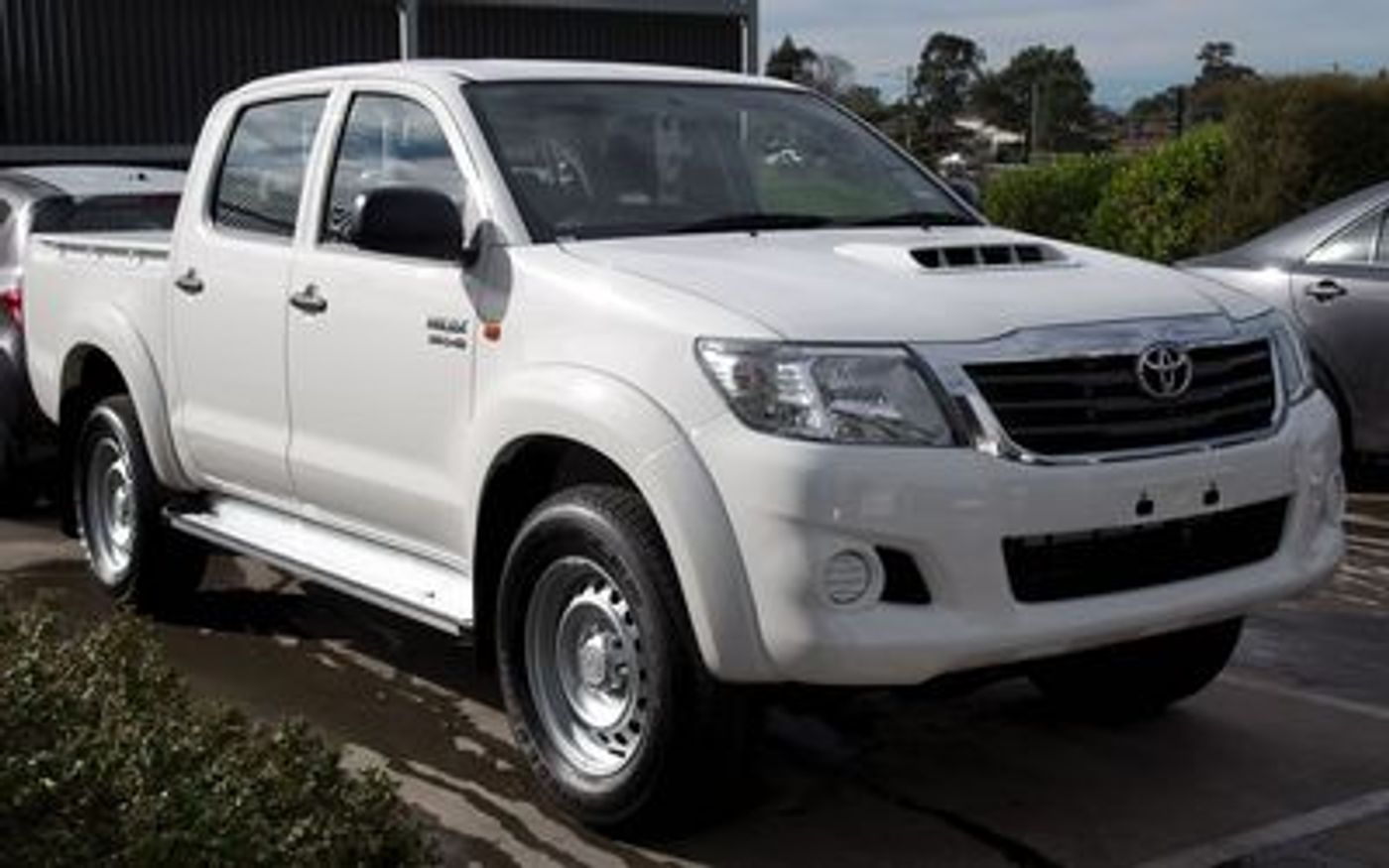

Toyota HiLux Workmate (2012) price & specs
Save $$$ with CarExpert*
From
$40,990â€
Workmate
Overview
The 2012 Toyota HiLux Workmate is a four-wheel drive, 4-door Utility that was released to the Australian market on 3rd January 2014 classified as a Kun26r. The Toyota HiLux is regarded as a Pickup built in Thailand with prices starting at $40,990 before on-road costs.
This Toyota HiLux is powered by a 3.0L 4-cylinder engine that has 126 kW of power (at 3600 rpm) and 343 Nm of torque (at 1400 rpm) via a Four-speed Automatic transmission. Toyota claims the HiLux Workmate uses 9.3L/100km of Diesel in the combined city and highway cycle while putting out 245g of CO2. It has a 76L fuel tank, meaning it should be able to travel 817km per full tank
It has a 36 month, 100,000 km warranty.
The 2012 Toyota HiLux Workmate has a 212mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the HiLux compare?
Quickly see how the 2012 Toyota HiLux Workmate stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
64.78 - 114.01 kW/t
42 kW/t
114.01 kW/t
Fuel Efficiency
8.1 - 13.1 L/100km
7.3 L/100km
13.1 L/100km
Vehicle Range
580 - 938 km
580 km
1,096 km
Price
$18,990 - $53,490
$18,990
$67,990
Warranty (Years)
3 years
2 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 - 11 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,710 - 2,835 kg
2,710 kg
3,500 kg
Braked Towing Capacity
2,250 - 2,500 kg
1,800 kg
3,500 kg
Ground Clearance Unladen
212 - 227 mm
135 mm
314 mm
Payload Capacity
835 - 1,375 kg
726 kg
1,648 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,135 mm
1,760 mm
1,850 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,135 mm |
| Overall Width | 1,760 mm |
| Overall Height | 1,850 mm |
| Wheelbase | 3,085 mm |
| Turning Circle | 12,400 mm |
| Load Capacity | 840 mm |
Looking for complete Toyota HiLux size & space specs?
Our Toyota HiLux Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Toyota HiLux Sales rolling 12-months#
Explore Toyota HiLux Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 3.0
Australia Greenhouse Rating: 5.0
Australia Overall Emission Control Level Rating: 2.5
CO2 Level (Combined): 245
Standard Met: EU4
Engine
Bore Engine: 96.0
Engine (cc): 2982
Engine Configuration: In-Line
Engine Code: 1kd-Ftv
Engine (L): 3.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 103.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 20.1
Main Capacity (L): 76
Main Capacity Uk Gallons: 16.7
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 817
ADR 81/02 Calculated Vehicle Range (miles): 508
ADR 81/02 Combined (km/L): 10.8
ADR 81/02 Combined (L/100km): 9.3
ADR 81/02 Combined (miles per UK gallon): 30
ADR 81/02 Combined (mpg): 25
ADR 81/02 Country Highway (km/L): 12.7
ADR 81/02 Country Highway (L/100km): 7.9
ADR 81/02 Country Highway (miles per UK gallon): 36
ADR 81/02 Country Highway (mpg): 30
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 8.5
ADR 81/02 Urban (L/100km): 11.7
ADR 81/02 Urban (miles per UK gallon): 24
ADR 81/02 Urban (mpg): 20
Fuel Economy
ADR 81/02 (L/100km): 9.3
Power
Maximum Power (hp/PS): 171
Maximum Power (kW): 126
Maximum Torque (Nm): 343
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 1400
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Part-Time
Selection: Manual
Limited Slip Differential
Location: Rear
Transmission
Description: Automatic
Low High Gear Ranges: yes
Number of Speeds: 4
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Width: 205
Rear Wheels Tire Location: Rear
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Front Wheels Structure: yes
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
Rear Structure: yes
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: IMV
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Tray/Tub
Type: Straight Side
Bumpers
Front Bumper Colour: Black
Location: Front
Cargo Area Dimensions
Height (in): 17.7
Height (mm): 1515
Length (in): 59.8
Length (mm): 1520
Standard Measurement: Manufacturer'S Own
Width (in): 59.6
Width (mm): 1515
External Dimensions
Kerb to Kerb Turning Circle (mm): 12400
Front Overhang (in): 35.0
Front Overhang (mm): 890
Front Track (in): 59.4
Front Track (mm): 1510
Ground Clearance Unladen (in): 8.3
Ground Clearance Unladen (mm): 212
Kerb To Kerb Turning Circle (ft): 40.7
Overall Height (in): 72.8
Overall Height (mm): 1850
Overall Length (in): 202.2
Overall Length (mm): 5135
Overall Width (in): 69.3
Overall Width (mm): 1760
Rear Overhang (in): 45.7
Rear Overhang (mm): 1160
Rear Track (in): 59.4
Rear Track (mm): 1510
Wheelbase (in): 121.5
Wheelbase (mm): 3085
Cargo Doors
Location: Rear
Rear Opening Angle: 90
Rear Operation: Dropping Gate
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Rear Side Windows
Location: Driver
Location: Passenger
Weights
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2780
Gross Vehicle Weight (lb): 6129
Payload Allowance (kg): 840
Payload Allowance (lb): 1852
Published Kerb Weight (kg): 1940
Published Kerb Weight (lb): 4277
Tare Weight (kg): 1884
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
USB (Front): yes
Speakers
Number of Speakers: 2
Bluetooth
Includes Phone Connection: yes
Power Outlet 12V
Location (12V): Front
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Crash Test Results
ANCAP Date Tested: 20060421
ANCAP Overall: 4.00
ANCAP Standard: Ancap
ANCAP Version Tested: 2.7 Workmate Cab Chassis
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Static
Center Seat Position: Centre
Center Type: lap
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Vinyl
Main Seat Material: Vinyl
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
