2.7L, 4-speed auto, 4-door Utility, Petrol, RWD
Save $$$ with CarExpert*
$28,990â€

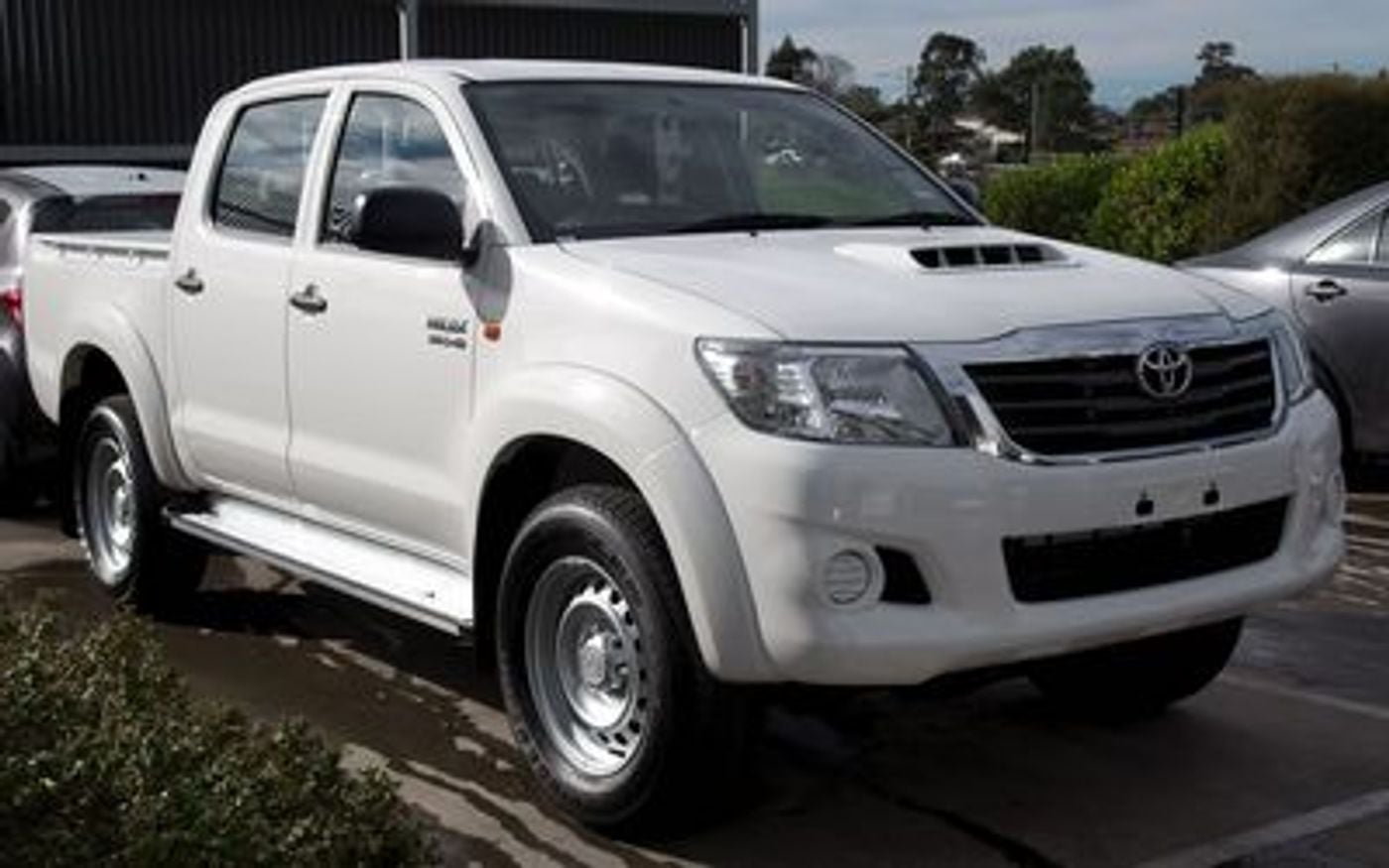

Toyota HiLux Workmate (2012) price & specs
Save $$$ with CarExpert*
From
$28,990â€
Workmate
Overview
The 2012 Toyota HiLux Workmate is a rear-wheel drive, 4-door Utility that was released to the Australian market on 4th November 2012 classified as a Tgn16r. The Toyota HiLux is regarded as a Pickup built in Thailand with prices starting at $28,990 before on-road costs.
This Toyota HiLux is powered by a 2.7L 4-cylinder engine that has 116 kW of power (at 5200 rpm) and 240 Nm of torque (at 3800 rpm) via a Four-speed Automatic transmission. Toyota claims the HiLux Workmate uses 11.6L/100km of Unleaded in the combined city and highway cycle while putting out 273g of CO2. It has a 76L fuel tank, meaning it should be able to travel 655km per full tank
The Toyota HiLux measures 1735mm (68.3 inches) in height, 5135mm (202.2 inches) in length, 1760mm (69.3 inches) in width with a 3085mm (121.5 inches) wheelbase that brings about a total of 1625kg (3582.5 lbs) of unladen weight. The HiLux Workmate comes standard with 205/70 R15 front tyres and 205/70 R15 rear tyres. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the HiLux compare?
Quickly see how the 2012 Toyota HiLux Workmate stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
64.78 - 114.01 kW/t
42 kW/t
114.01 kW/t
Fuel Efficiency
8.1 - 13.1 L/100km
7.3 L/100km
13.1 L/100km
Vehicle Range
580 - 938 km
580 km
1,096 km
Price
$18,990 - $53,490
$18,990
$67,990
Warranty (Years)
3 years
2 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 - 11 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,710 - 2,835 kg
2,710 kg
3,500 kg
Braked Towing Capacity
2,250 - 2,500 kg
1,800 kg
3,500 kg
Ground Clearance Unladen
212 - 227 mm
135 mm
314 mm
Payload Capacity
835 - 1,375 kg
726 kg
1,648 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,135 mm
1,760 mm
1,735 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,135 mm |
| Overall Width | 1,760 mm |
| Overall Height | 1,735 mm |
| Wheelbase | 3,085 mm |
| Turning Circle | 11,800 mm |
| Load Capacity | 1,085 mm |
Looking for complete Toyota HiLux size & space specs?
Our Toyota HiLux Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Toyota HiLux Features & Specs
Emission Control Level
Australia Air Pollution Rating: 6.0
Australia Greenhouse Rating: 4.5
Australia Overall Emission Control Level Rating: 3.0
CO2 Level (Combined): 273
Standard Met: EU4
Engine
Bore Engine: 95.0
Engine (cc): 2694
Engine Configuration: In-Line
Engine Code: 2tr-Fe
Engine (L): 2.7
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 95.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 20.1
Main Capacity (L): 76
Main Capacity Uk Gallons: 16.7
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 655
ADR 81/02 Calculated Vehicle Range (miles): 407
ADR 81/02 Combined (km/L): 8.6
ADR 81/02 Combined (L/100km): 11.6
ADR 81/02 Combined (miles per UK gallon): 24
ADR 81/02 Combined (mpg): 20
ADR 81/02 Country Highway (km/L): 10.8
ADR 81/02 Country Highway (L/100km): 9.3
ADR 81/02 Country Highway (miles per UK gallon): 30
ADR 81/02 Country Highway (mpg): 25
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 6.5
ADR 81/02 Urban (L/100km): 15.5
ADR 81/02 Urban (miles per UK gallon): 18
ADR 81/02 Urban (mpg): 15
Fuel Economy
ADR 81/02 (L/100km): 11.6
Power
Maximum Power (hp/PS): 158
Maximum Power (kW): 116
Maximum Torque (Nm): 240
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5200
Rpm For Maximum Torque Low: 3800
Drive
Driven Wheels: Rear
Transmission
Description: Automatic
Number of Speeds: 4
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 70
Front Wheels Tire Width: 205
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 70
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 15
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 15
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: IMV
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Tray/Tub
Type: Straight Side
Bumpers
Front Bumper Colour: Black
Location: Front
Cargo Area Dimensions
Height (in): 17.7
Height (mm): 1515
Length (in): 59.8
Length (mm): 1520
Standard Measurement: Manufacturer'S Own
Width (in): 59.6
Width (mm): 1515
External Dimensions
Kerb to Kerb Turning Circle (mm): 11800
Front Overhang (in): 35.0
Front Overhang (mm): 890
Front Track (in): 59.4
Front Track (mm): 1510
Kerb To Kerb Turning Circle (ft): 38.7
Overall Height (in): 68.3
Overall Height (mm): 1735
Overall Length (in): 202.2
Overall Length (mm): 5135
Overall Width (in): 69.3
Overall Width (mm): 1760
Rear Overhang (in): 45.7
Rear Overhang (mm): 1160
Rear Track (in): 59.4
Rear Track (mm): 1510
Wheelbase (in): 121.5
Wheelbase (mm): 3085
Cargo Doors
Location: Rear
Rear Opening Angle: 90
Rear Operation: Dropping Gate
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Rear Side Windows
Location: Driver
Location: Passenger
Weights
Gross Trailer Weight Braked (kg): 2250
Gross Trailer Weight Braked (lb): 4960
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2710
Gross Vehicle Weight (lb): 5975
Payload Allowance (kg): 1085
Payload Allowance (lb): 2392
Published Kerb Weight (kg): 1625
Published Kerb Weight (lb): 3583
Tare Weight (kg): 1576
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
USB (Front): yes
Speakers
Number of Speakers: 2
Bluetooth
Includes Phone Connection: yes
Power Outlet 12V
Location (12V): Front
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Crash Test Results
ANCAP Date Tested: 20060421
ANCAP Overall: 4.00
ANCAP Standard: Ancap
ANCAP Version Tested: 2.7 Workmate Cab Chassis
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Static
Center Seat Position: Centre
Center Type: lap
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Vinyl
Main Seat Material: Vinyl
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
