Black Edition
3.0L, 5-speed manual, 4-door Utility, Diesel, 4x4
Save $$$ with CarExpert*
$53,240â€

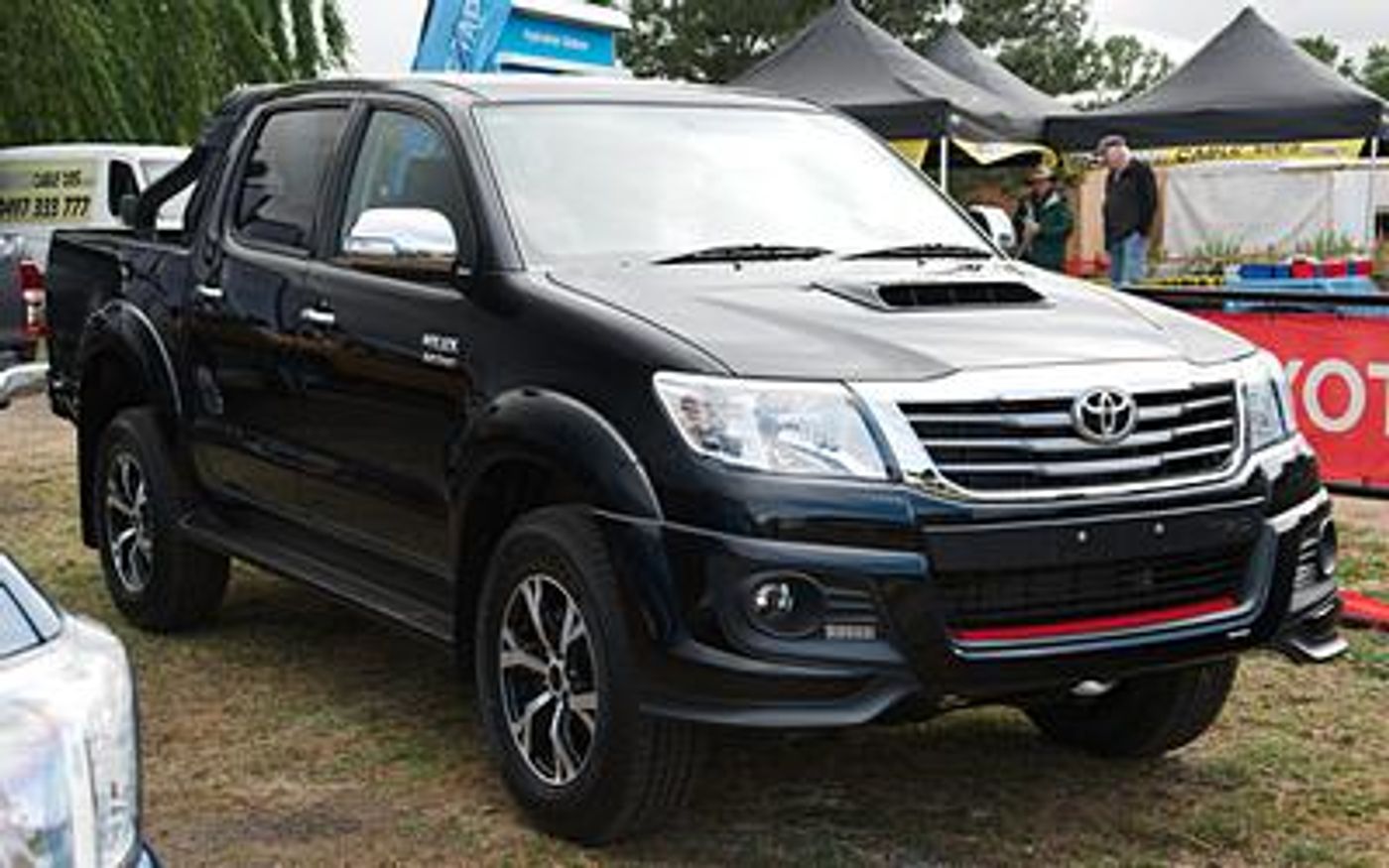

Toyota HiLux Black Edition (2014) price & specs
Save $$$ with CarExpert*
From
$53,240â€
Black Edition
Overview
The 2014 Toyota HiLux Black Edition is a four-wheel drive, 4-door Utility that was released to the Australian market on 1st January 2014 classified as a Kun26r. The Toyota HiLux is regarded as a Pickup built in Thailand with prices starting at $53,240 before on-road costs.
This Toyota HiLux is powered by a 3.0L 4-cylinder engine that has 126 kW of power (at 3600 rpm) and 343 Nm of torque (at 1400 rpm) via a Five-speed Manual transmission. Toyota claims the HiLux Black Edition uses 8.3L/100km of Diesel in the combined city and highway cycle while putting out 219g of CO2. It has a 76L fuel tank, meaning it should be able to travel 916km per full tank
The Toyota HiLux measures 1860mm (73.2 inches) in height, 5260mm (207.1 inches) in length, 1835mm (72.2 inches) in width with a 3085mm (121.5 inches) wheelbase that brings about a total of 1920kg (4232.9 lbs) of unladen weight. The HiLux Black Edition comes standard with 265/65 R17 front tyres and 265/65 R17 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2014 Toyota HiLux Black Edition has a 227mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the HiLux compare?
Quickly see how the 2014 Toyota HiLux Black Edition stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
64.29 - 109.38 kW/t
42 kW/t
109.38 kW/t
Fuel Efficiency
8.1 - 13 L/100km
7.3 L/100km
13 L/100km
Vehicle Range
585 - 938 km
585 km
1,096 km
Price
$18,990 - $55,990
$18,990
$62,990
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 - 11 years
1 year
4 years
Service Interval
6 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,710 - 2,835 kg
2,710 kg
3,500 kg
Gross Comb. Mass
5,030 kg
4,480 kg
6,000 kg
Braked Towing Capacity
2,250 - 2,500 kg
1,800 kg
3,500 kg
Ground Clearance Unladen
212 - 227 mm
190 mm
314 mm
Payload Capacity
820 - 1,375 kg
726 kg
1,648 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,260 mm
1,835 mm
1,860 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,260 mm |
| Overall Width | 1,835 mm |
| Overall Height | 1,860 mm |
| Wheelbase | 3,085 mm |
| Turning Circle | 12,400 mm |
| Load Capacity | 860 mm |
Looking for complete Toyota HiLux size & space specs?
Our Toyota HiLux Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Toyota HiLux Sales rolling 12-months#
Explore Toyota HiLux Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 3.0
Australia Greenhouse Rating: 6.0
Australia Overall Emission Control Level Rating: 2.5
CO2 Level (Combined): 219
Standard Met: EU4
Engine
Bore Engine: 96.0
Engine (cc): 2982
Engine Configuration: In-Line
Engine Code: 1kd-Ftv
Engine (L): 3.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 103.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 20.1
Main Capacity (L): 76
Main Capacity Uk Gallons: 16.7
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 916
ADR 81/02 Calculated Vehicle Range (miles): 569
ADR 81/02 Combined (km/L): 12.0
ADR 81/02 Combined (L/100km): 8.3
ADR 81/02 Combined (miles per UK gallon): 34
ADR 81/02 Combined (mpg): 28
ADR 81/02 Country Highway (km/L): 14.1
ADR 81/02 Country Highway (L/100km): 7.1
ADR 81/02 Country Highway (miles per UK gallon): 40
ADR 81/02 Country Highway (mpg): 33
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 9.7
ADR 81/02 Urban (L/100km): 10.3
ADR 81/02 Urban (miles per UK gallon): 27
ADR 81/02 Urban (mpg): 23
Fuel Economy
ADR 81/02 (L/100km): 8.3
Power
Maximum Power (hp/PS): 171
Maximum Power (kW): 126
Maximum Torque (Nm): 343
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 1400
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Part-Time
Selection: Manual
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Manual
Low High Gear Ranges: yes
Number of Speeds: 5
Type: Manual
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 112
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Width: 265
Rear Wheels Tire Load Index: 112
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Width: 265
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Front Wheels Two Tone: yes
Location: 1
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Rear Two Tone: yes
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: IMV
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Rear
Rear Step Type: Platform
Step Location: Side
Tray/Tub
Type: Straight Side
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Chrome
Location: Rear
Cargo Area Dimensions
Height (in): 17.7
Height (mm): 1515
Length (in): 59.8
Length (mm): 1520
Standard Measurement: Manufacturer'S Own
Width (in): 59.6
Width (mm): 1515
External Dimensions
Kerb to Kerb Turning Circle (mm): 12400
Front Overhang (in): 35.0
Front Overhang (mm): 890
Front Track (in): 60.6
Front Track (mm): 1540
Ground Clearance Unladen (in): 8.9
Ground Clearance Unladen (mm): 227
Kerb To Kerb Turning Circle (ft): 40.7
Overall Height (in): 73.2
Overall Height (mm): 1860
Overall Length (in): 207.1
Overall Length (mm): 5260
Overall Width (in): 72.2
Overall Width (mm): 1835
Rear Overhang (in): 50.6
Rear Overhang (mm): 1285
Rear Track (in): 60.6
Rear Track (mm): 1540
Wheelbase (in): 121.5
Wheelbase (mm): 3085
Cargo Doors
Location: Rear
Rear Opening Angle: 90
Rear Operation: Dropping Gate
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Dusk Sensor: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: Black
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Chrome
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Chrome
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Location: Passenger
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5030
Gross Train Weight (lb): 11089
Gross Vehicle Weight (kg): 2780
Gross Vehicle Weight (lb): 6129
Payload Allowance (kg): 860
Payload Allowance (lb): 1896
Published Kerb Weight (kg): 1920
Published Kerb Weight (lb): 4233
Tare Weight (kg): 1864
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Bluetooth
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Front
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 6.1
Touch Screen: yes
Floor Covering
Vehicle Cab Compartment: Textile
Luxury Trim
Doors: Alloy Look
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Date Tested: 20131121
ANCAP Overall: 5.00
ANCAP Standard: Ancap
ANCAP Version Tested: 3.0 Turbo Diesel Double Cab 4x4
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Static
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Reach Type: Electric
Driver Front Seat Type: Sports
Location: Passenger
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Synthetic Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Ventilation System
Digital Display: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 6
