2.7L, 6-speed auto, 4-door Utility, Petrol, RWD
Save $$$ with CarExpert*
$32,690â€

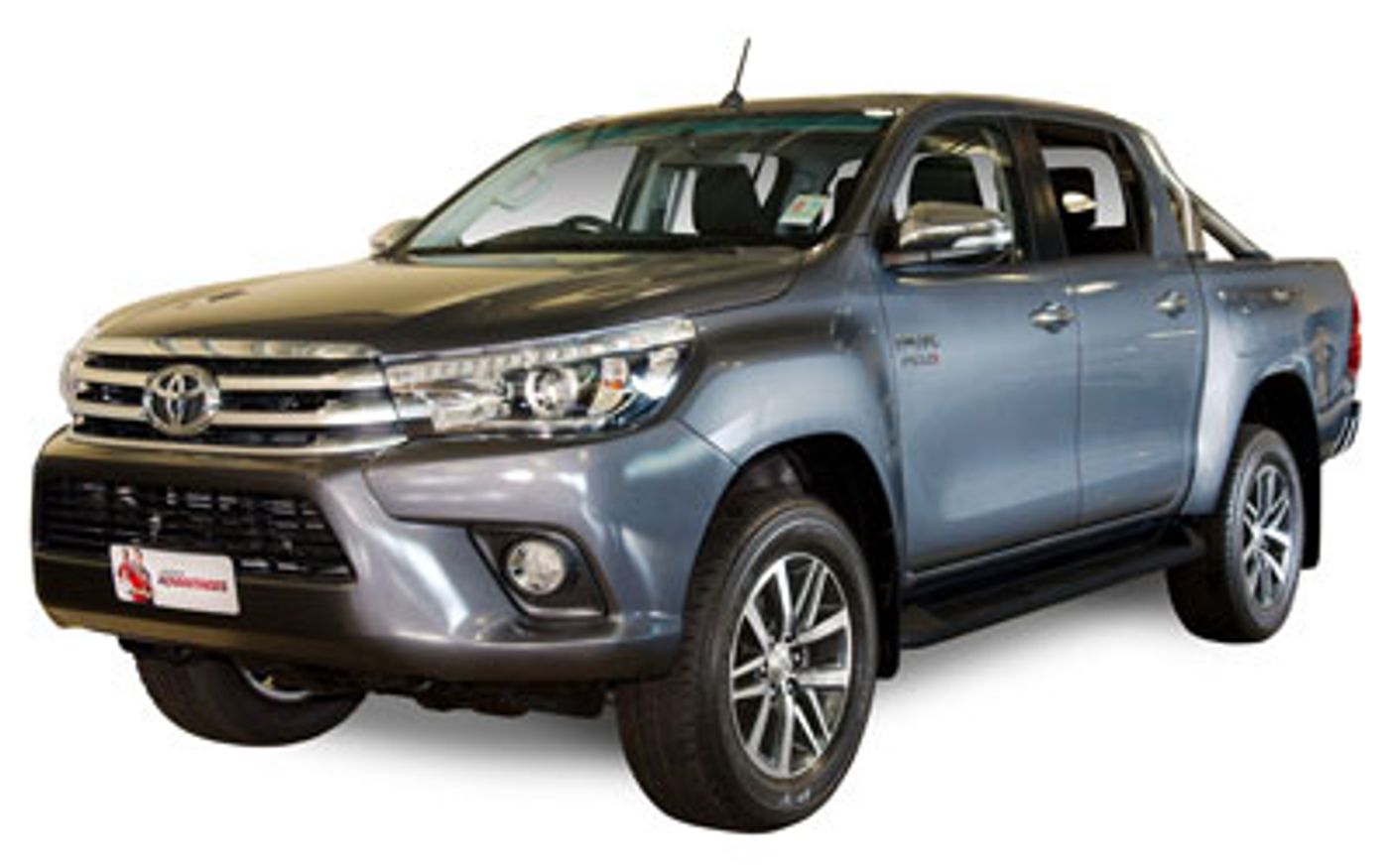

Toyota HiLux Workmate (2015) price & specs
Save $$$ with CarExpert*
From
$32,690â€
Workmate
Overview
The 2015 Toyota HiLux Workmate is a rear-wheel drive, 4-door Utility that was released to the Australian market on 4th January 1970 classified as a Tgn121r. The Toyota HiLux is regarded as a Pickup built in Thailand with prices starting at $32,690 before on-road costs.
This Toyota HiLux is powered by a 2.7L 4-cylinder engine that has 122 kW of power (at 5200 rpm) and 245 Nm of torque (at 4000 rpm) via a Six-speed Automatic transmission. Toyota claims the HiLux Workmate uses 10.4L/100km of Unleaded in the combined city and highway cycle while putting out 241g of CO2. It has a 80L fuel tank, meaning it should be able to travel 769km per full tank
The Toyota HiLux measures 1700mm (66.9 inches) in height, 5330mm (209.8 inches) in length, 1800mm (70.9 inches) in width with a 3085mm (121.5 inches) wheelbase that brings about a total of 1755kg (3869.1 lbs) of unladen weight. The HiLux Workmate comes standard with 215/65 R16 front tyres and 215/65 R16 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the HiLux compare?
Quickly see how the 2015 Toyota HiLux Workmate stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
53.79 - 97.49 kW/t
42 kW/t
97.49 kW/t
Fuel Efficiency
7.1 - 12 L/100km
6.6 L/100km
12 L/100km
Vehicle Range
667 - 1,127 km
667 km
1,212 km
Price
$20,990 - $56,390
$19,990
$65,990
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 - 11 years
1 year
4 years
Service Interval
6 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,700 - 3,050 kg
2,700 kg
3,500 kg
Gross Comb. Mass
5,200 - 5,850 kg
4,480 kg
6,800 kg
Braked Towing Capacity
2,500 - 3,500 kg
1,800 kg
3,500 kg
Ground Clearance Unladen
279 mm
190 mm
314 mm
Payload Capacity
920 - 1,240 kg
740 kg
1,528 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,330 mm
1,800 mm
1,700 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,330 mm |
| Overall Width | 1,800 mm |
| Overall Height | 1,700 mm |
| Wheelbase | 3,085 mm |
| Turning Circle | 11,800 mm |
| Load Capacity | 1,025 mm |
Looking for complete Toyota HiLux size & space specs?
Our Toyota HiLux Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Toyota HiLux Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Parking Distance System
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Front
Emission Control Level
CO2 Level (Combined): 241
Standard Met: EU5
Engine
Bore Engine: 95.0
Engine (cc): 2694
Engine Configuration: In-Line
Engine Code: 2tr-Fe
Engine (L): 2.7
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 95.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 769
ADR 81/02 Calculated Vehicle Range (miles): 478
ADR 81/02 Combined (km/L): 9.6
ADR 81/02 Combined (L/100km): 10.4
ADR 81/02 Combined (miles per UK gallon): 27
ADR 81/02 Combined (mpg): 23
ADR 81/02 Country Highway (km/L): 11.6
ADR 81/02 Country Highway (L/100km): 8.6
ADR 81/02 Country Highway (miles per UK gallon): 33
ADR 81/02 Country Highway (mpg): 27
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 7.5
ADR 81/02 Urban (L/100km): 13.4
ADR 81/02 Urban (miles per UK gallon): 21
ADR 81/02 Urban (mpg): 18
Fuel Economy
ADR 81/02 (L/100km): 10.4
Power
Maximum Power (hp/PS): 166
Maximum Power (kW): 122
Maximum Torque (Nm): 245
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5200
Rpm For Maximum Torque Low: 4000
Drive
Driven Wheels: Rear
Transmission
Code: Ac60
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 6
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 106
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 106
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Step
Step Location: Rear
Rear Step Type: Platform
Tray/Tub
Type: Straight Side
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Toned
Location: Rear
Cargo Area Dimensions
Height (in): 18.9
Height (mm): 1645
Length (in): 61.8
Length (mm): 1569
Loading Floor Height (in): 33.9
Loading Floor Height (mm): 861
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 43.7
Width Between Wheelhouses (mm): 1109
Width (in): 64.8
Width (mm): 1645
External Dimensions
Kerb to Kerb Turning Circle (mm): 11800
Front Track (in): 59.4
Front Track (mm): 1510
Kerb To Kerb Turning Circle (ft): 38.7
Overall Height (in): 66.9
Overall Height (mm): 1700
Overall Length (in): 209.8
Overall Length (mm): 5330
Overall Width (in): 70.9
Overall Width (mm): 1800
Rear Overhang (in): 49.2
Rear Overhang (mm): 1250
Rear Track (in): 59.4
Rear Track (mm): 1510
Wheelbase (in): 121.5
Wheelbase (mm): 3085
Cargo Doors
Location: Rear
Rear Opening Angle: 90
Rear Operation: Dropping Gate
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: red
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5250
Gross Train Weight (lb): 11574
Gross Vehicle Weight (kg): 2780
Gross Vehicle Weight (lb): 6129
Payload Allowance (kg): 1025
Payload Allowance (lb): 2260
Published Kerb Weight (kg): 1755
Published Kerb Weight (lb): 3869
Tare Weight (kg): 1703
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 6.1
Touch Screen: yes
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Luxury Trim
Instrument Panel: Piano Black
Airbags
Number of Airbags: 7
Crash Test Results
ANCAP Overall: 5.00
ANCAP Pedestrian: Good
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 6
