2.8L, 6-speed auto, 4-door Utility, Diesel, 4x4
Save $$$ with CarExpert*
$63,690â€

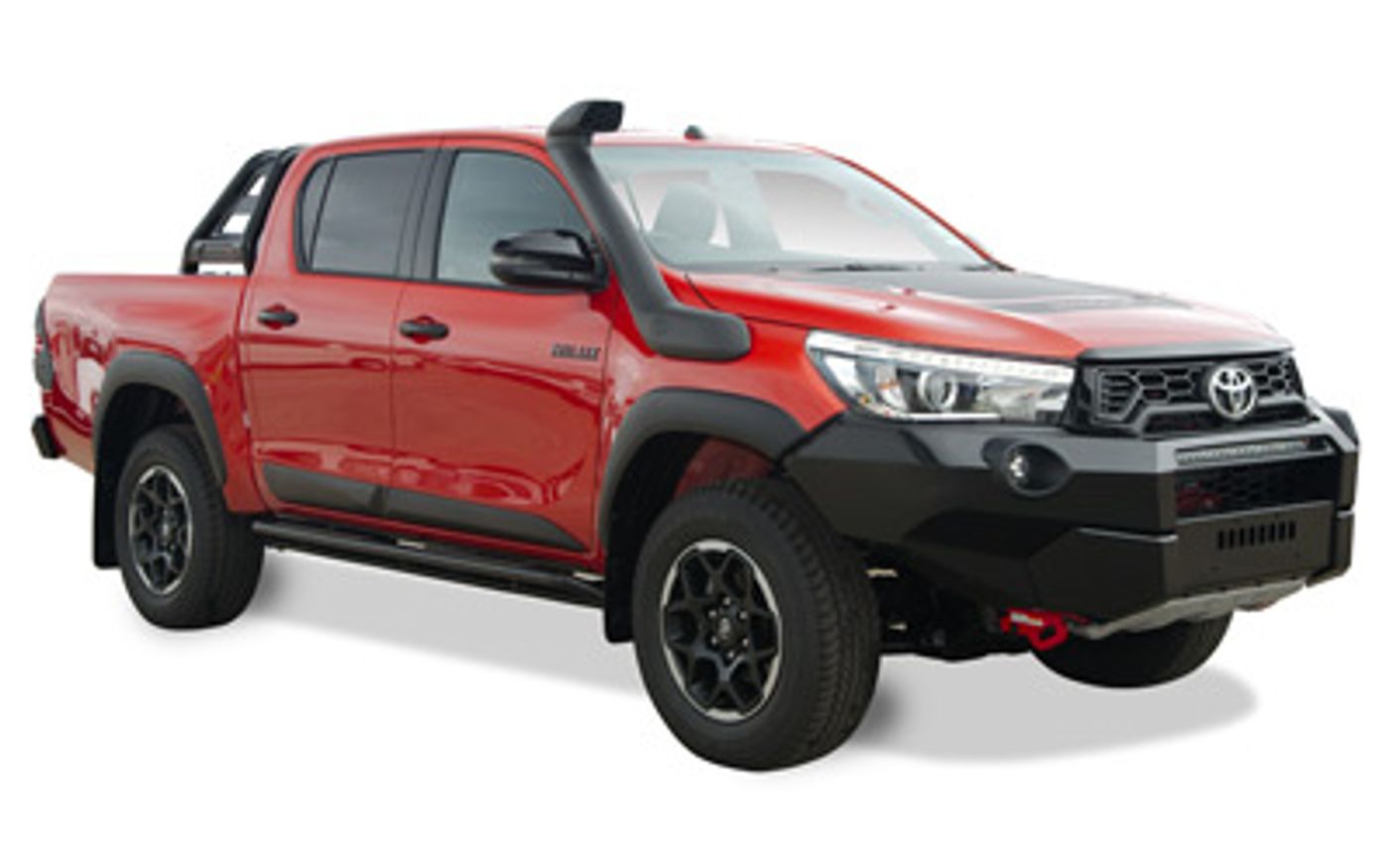

Toyota HiLux Rugged X (2019) price & specs
Save $$$ with CarExpert*
From
$63,690â€
Rugged X
Overview
The 2019 Toyota HiLux Rugged X is a four-wheel drive, 4-door Utility that was released to the Australian market on 4th January 1970 classified as a Gun126r. The Toyota HiLux is regarded as a Pickup built in Thailand with prices starting at $63,690 before on-road costs.
This Toyota HiLux is powered by a 2.8L 4-cylinder engine that has 130 kW of power (at 3400 rpm) and 450 Nm of torque (at 1600 rpm) via a Six-speed Automatic transmission. Toyota claims the HiLux Rugged X uses 8.6L/100km of Diesel in the combined city and highway cycle while putting out 226g of CO2. It has a 80L fuel tank, meaning it should be able to travel 930km per full tank
The Toyota HiLux measures 1815mm (71.5 inches) in height, 5350mm (210.6 inches) in length, 1885mm (74.2 inches) in width with a 3085mm (121.5 inches) wheelbase that brings about a total of 2252kg (4964.8 lbs) of unladen weight. The HiLux Rugged X comes standard with 265/65 R17 front tyres and 265/65 R17 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2019 Toyota HiLux Rugged X has a 251mm ground clearance with a 3200kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the HiLux compare?
Quickly see how the 2019 Toyota HiLux Rugged X stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
53.79 - 82.71 kW/t
49.52 kW/t
111.71 kW/t
Fuel Efficiency
7.1 - 11.1 L/100km
6.3 L/100km
12.2 L/100km
Vehicle Range
721 - 1,127 km
658 km
1,270 km
Price
$20,990 - $64,490
$20,990
$139,990
Warranty (Years)
3 - 5 years
3 years
7 years
Warranty (Distance)
100,000 km - Unlimited
100,000 km
Unlimited
Years on Sale
1 - 11 years
1 year
4 years
Service Interval
6 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,700 - 3,050 kg
2,700 kg
4,491 kg
Gross Comb. Mass
5,200 - 5,850 kg
4,435 kg
9,801 kg
Braked Towing Capacity
2,500 - 3,500 kg
1,800 kg
5,890 kg
Approach Angle
28 - 31°
15.2°
35°
Departure Angle
20 - 26°
15°
29°
Ground Clearance Unladen
216 - 279 mm
190 mm
283 mm
Payload Capacity
748 - 1,240 kg
724 kg
1,483 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,350 mm
1,885 mm
1,815 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,350 mm |
| Overall Width | 1,885 mm |
| Overall Height | 1,815 mm |
| Wheelbase | 3,085 mm |
| Turning Circle | 12,600 mm |
| Load Capacity | 748 mm |
Looking for complete Toyota HiLux size & space specs?
Our Toyota HiLux Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Toyota HiLux Sales rolling 12-months#
Explore Toyota HiLux Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Parking Distance System
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Compressor
Compressor: Turbo
Number of Compressors: 1
Emission Control Level
CO2 Level (Combined): 226
Standard Met: EU5
Engine
Bore Engine: 92.0
Engine (cc): 2755
Engine Configuration: In-Line
Engine Code: 1gd-Ftv
Engine (L): 2.8
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 103.6
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 930
ADR 81/02 Calculated Vehicle Range (miles): 578
ADR 81/02 Combined (km/L): 11.6
ADR 81/02 Combined (L/100km): 8.6
ADR 81/02 Combined (miles per UK gallon): 33
ADR 81/02 Combined (mpg): 27
ADR 81/02 Country Highway (km/L): 13.0
ADR 81/02 Country Highway (L/100km): 7.7
ADR 81/02 Country Highway (miles per UK gallon): 37
ADR 81/02 Country Highway (mpg): 31
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.0
ADR 81/02 Urban (L/100km): 10.0
ADR 81/02 Urban (miles per UK gallon): 28
ADR 81/02 Urban (mpg): 24
Fuel Economy
ADR 81/02 (L/100km): 8.6
Power
Maximum Power (hp/PS): 177
Maximum Power (kW): 130
Maximum Torque (Nm): 450
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3400
Rpm For Maximum Torque Low: 1600
Differential Lock
Location: Rear
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Part-Time
Selection: Manual
Transmission
Code: Ac60
Description: Automatic With Manual Mode
Low High Gear Ranges: yes
Manual Mode: yes
Number of Speeds: 6
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 112
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: S
Front Wheels Tire Type: All Terrain
Front Wheels Tire Width: 265
Rear Wheels Tire Load Index: 112
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Speed Rating: S
Rear Wheels Tire Type: All Terrain
Rear Wheels Tire Width: 265
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Front Wheels Two Tone: yes
Location: 1
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Rear Two Tone: yes
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Roll Bar
Structural Roll Bar: yes
Step
Step Location: Rear
Rear Step Type: Platform
Step Location: Side
Tray/Tub
Liner: Insert
Type: Straight Side
Cargo Area Dimensions
Height (in): 18.9
Height (mm): 1645
Length (in): 61.8
Length (mm): 1569
Loading Floor Height (in): 33.9
Loading Floor Height (mm): 861
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 43.7
Width Between Wheelhouses (mm): 1109
Width (in): 64.8
Width (mm): 1645
External Dimensions
Kerb to Kerb Turning Circle (mm): 12600
Front Track (in): 60.4
Front Track (mm): 1535
Ground Clearance Unladen (in): 9.9
Ground Clearance Unladen (mm): 251
Kerb To Kerb Turning Circle (ft): 41.3
Overall Height (in): 71.5
Overall Height (mm): 1815
Overall Length (in): 210.6
Overall Length (mm): 5350
Overall Width (in): 74.2
Overall Width (mm): 1885
Rear Track (in): 61.0
Rear Track (mm): 1550
Wheelbase (in): 121.5
Wheelbase (mm): 3085
Ramp Angles
Approach Angle: 28.0
Departure Angle: 21.0
Bumpers
Front Bumper Colour: Toned
Location: Front
Rear Bumper Colour: Toned
Location: Rear
Cargo Doors
Location: Rear
Rear Opening Angle: 90
Rear Operation: Dropping Gate
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Paint
External Colour: Gray
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Toned
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Toned
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 3200
Gross Trailer Weight Braked (lb): 7055
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5650
Gross Train Weight (lb): 12456
Gross Vehicle Weight (kg): 3000
Gross Vehicle Weight (lb): 6614
Payload Allowance (kg): 748
Payload Allowance (lb): 1649
Published Kerb Weight (kg): 2252
Published Kerb Weight (lb): 4965
Tare Weight (kg): 2193
Trailer Noseweight (kg): 320
Audio System
Colour Screen: yes
Digital Radio: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Display Screen
Location: Dashboard Centre 3
Dashboard Centre 3 Screen Size (in): 4.2
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 7.0
Floor Covering
Vehicle Cab Compartment: Textile
Luxury Trim
Centre Floor Console: Piano Black
Doors: Piano Black
Gear Selector: Piano Black
Instrument Panel: Piano Black
Airbags
Number of Airbags: 7
Crash Test Results
ANCAP Overall: 5.00
ANCAP Pedestrian: Good
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Reach Type: Electric
Driver Front Seat Type: Sports
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 6
