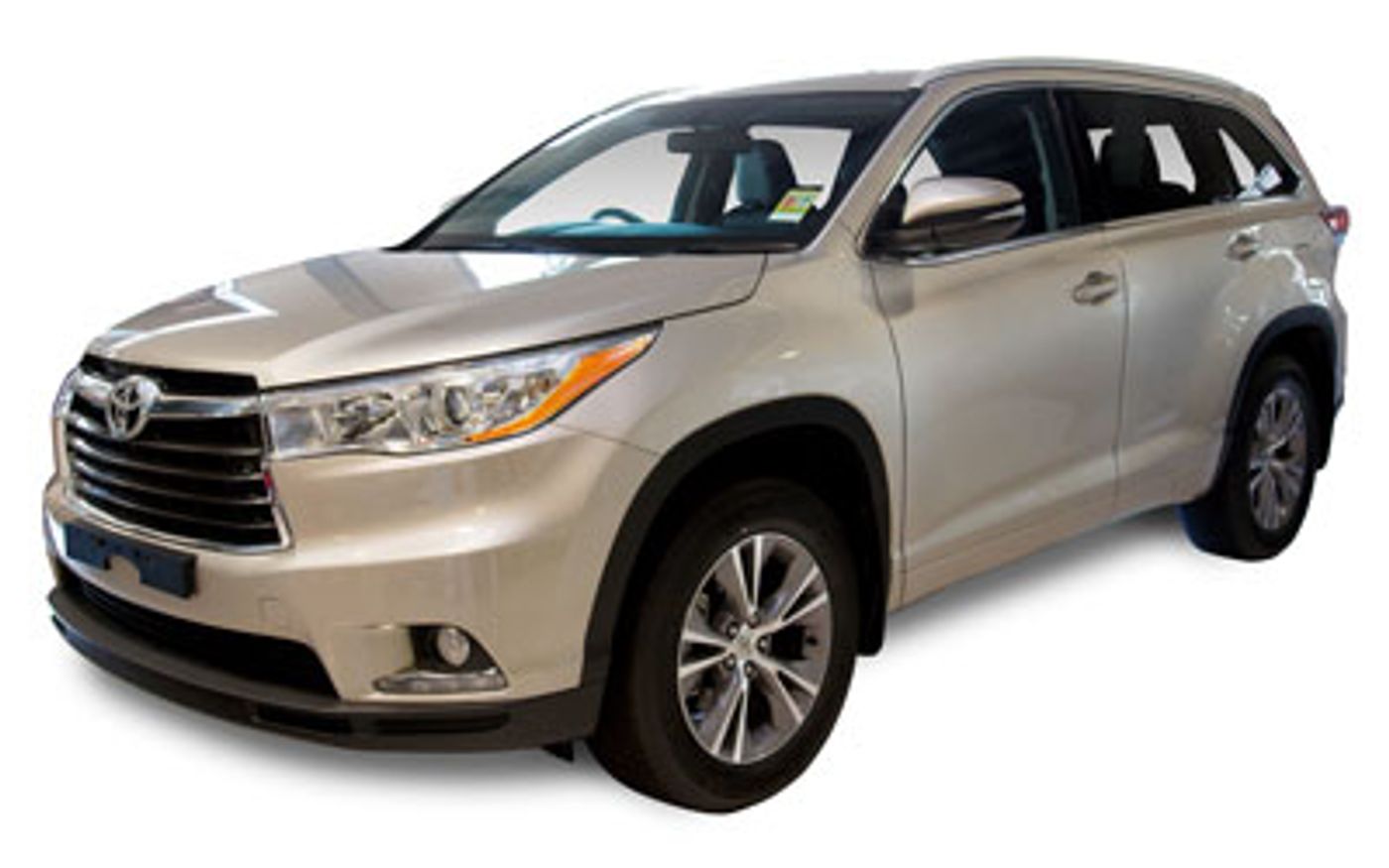

Toyota Kluger GXL (2016) price & specs
Save $$$ with CarExpert*
From
$51,190â€
GXL
Overview
The 2016 Toyota Kluger GXL is a front-wheel drive, 5-door SUV that was released to the Australian market on 2nd March 2014 classified as a Gsu50r. The Toyota Kluger is regarded as a large SUV built in USA with prices starting at $51,190 before on-road costs.
This Toyota Kluger is powered by a 3.5L 6-cylinder engine that has 201 kW of power (at 6200 rpm) and 337 Nm of torque (at 4700 rpm) via a Six-speed Automatic transmission. Toyota claims the Kluger GXL uses 10.2L/100km of Unleaded in the combined city and highway cycle while putting out 237g of CO2. It has a 72L fuel tank, meaning it should be able to travel 706km per full tank
The Toyota Kluger measures 1730mm (68.1 inches) in height, 4865mm (191.5 inches) in length, 1925mm (75.8 inches) in width with a 2790mm (109.8 inches) wheelbase that brings about a total of 1935kg (4265.9 lbs) of unladen weight. The Kluger GXL comes standard with 245/60 R18 front tyres and 245/60 R18 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2016 Toyota Kluger GXL has a 203mm ground clearance with a 2000kg braked and 700kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Kluger compare?
Quickly see how the 2016 Toyota Kluger GXL stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
97.57 - 103.88 kW/t
53.17 kW/t
120.05 kW/t
Fuel Efficiency
10.2 - 10.6 L/100km
5.7 L/100km
11.9 L/100km
Vehicle Range
679 - 706 km
606 km
1,101 km
Price
$42,190 - $68,330
$35,000
$85,900
Warranty (Years)
3 years
3 years
7 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
5 years
1 year
5 years
Service Interval
6 months
3 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,670 - 2,740 kg
2,100 kg
3,030 kg
Braked Towing Capacity
2,000 kg
1,500 kg
3,100 kg
Approach Angle
18°
14.7°
36.6°
Departure Angle
23.1°
21.1°
28°
Ground Clearance Unladen
203 mm
165 mm
235 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,865 mm
1,925 mm
1,730 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,865 mm |
| Overall Width | 1,925 mm |
| Overall Height | 1,730 mm |
| Wheelbase | 2,790 mm |
| Turning Circle | 11,800 mm |
| Load Capacity | 735 mm |
Looking for complete Toyota Kluger size & space specs?
Our Toyota Kluger Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Toyota Kluger Sales rolling 12-months#
Explore Toyota Kluger Features & Specs
Emission Control Level
Australia Air Pollution Rating: 7.5
Australia Greenhouse Rating: 5.5
Australia Overall Emission Control Level Rating: 3.5
CO2 Level (Combined): 237
Standard Met: EU4
Engine
Bore Engine: 94.0
Engine (cc): 3456
Engine Configuration: V
Engine Code: 2gr-Fe
Engine (L): 3.5
Number of Cylinders: 6
Number of Valves per Cylinder: 4
Stroke Engine: 83.0
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Fuel Type: Unleaded
Octane Number: 91
Fuel System
Injection Carburetion: Multi-Point Injection
Fuel Tanks
Main Capacity Gal: 19.0
Main Capacity (L): 72
Main Capacity Uk Gallons: 15.8
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Screen Size (in): 6.1
Touch Screen: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 706
ADR 81/02 Calculated Vehicle Range (miles): 439
ADR 81/02 Combined (km/L): 9.8
ADR 81/02 Combined (L/100km): 10.2
ADR 81/02 Combined (miles per UK gallon): 28
ADR 81/02 Combined (mpg): 23
ADR 81/02 Country Highway (km/L): 12.5
ADR 81/02 Country Highway (L/100km): 8.0
ADR 81/02 Country Highway (miles per UK gallon): 35
ADR 81/02 Country Highway (mpg): 29
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 7.1
ADR 81/02 Urban (L/100km): 14.0
ADR 81/02 Urban (miles per UK gallon): 20
ADR 81/02 Urban (mpg): 17
Fuel Economy
ADR 81/02 (L/100km): 10.2
Performance
Acceleration 0 To 100 km/h: 8.3
Maximum Speed (km/h): 180
Maximum Speed (mph): 112
Power
Maximum Power (hp/PS): 273
Maximum Power (kW): 201
Maximum Torque (Nm): 337
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6200
Rpm For Maximum Torque Low: 4700
Drive
Driven Wheels: Front
Transmission
Code: U660e
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Wishbone
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 105
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 245
Rear Wheels Tire Load Index: 105
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: TMC
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Spoiler
Location: Roof
Cargo Capacity
Measurement Standard: Manufacturer’S Own
Rear Seat Down (cu ft): 78.6
Rear Seat Down (L): 2226
External Dimensions
Kerb to Kerb Turning Circle (mm): 11800
Front Track (in): 64.4
Front Track (mm): 1636
Ground Clearance Unladen (in): 8.0
Ground Clearance Unladen (mm): 203
Kerb To Kerb Turning Circle (ft): 38.7
Overall Height (in): 68.1
Overall Height (mm): 1730
Overall Length (in): 191.5
Overall Length (mm): 4865
Overall Width (in): 75.8
Overall Width (mm): 1925
Rear Track (in): 64.2
Rear Track (mm): 1631
Wheelbase (in): 109.8
Wheelbase (mm): 2790
Internal Dimensions
Front Headroom (in): 40.7
Front Headroom (mm): 1034
Rear Headroom (in): 39.9
Rear Headroom (mm): 1013
Front Hip Room (in): 57.2
Front Hip Room (mm): 1453
Rear Hip Room (in): 57.1
Rear Hip Room (mm): 1450
Front Leg Room (in): 44.2
Front Leg Room (mm): 1123
Rear Leg Room (in): 38.4
Rear Leg Room (mm): 975
Front Shoulder Room (in): 59.3
Front Shoulder Room (mm): 1506
Rear Shoulder Room (in): 59.6
Rear Shoulder Room (mm): 1514
Ramp Angles
Approach Angle: 18.0
Departure Angle: 23.1
Bumpers
Location: Front
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 700
Gross Trailer Weight Unbraked (lb): 1543
Gross Vehicle Weight (kg): 2670
Gross Vehicle Weight (lb): 5886
Published Kerb Weight (kg): 1935
Published Kerb Weight (lb): 4266
Tare Weight (kg): 1889
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Phone: yes
Luxury Trim
Doors: Alloy Look
Gear Selector: Alloy Look
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 7
Crash Test Results
ANCAP Date Tested: 20140303
ANCAP Overall: 5.00
ANCAP Standard: Ancap
ANCAP Version Tested: 3.5 V6 Petrol 4x2
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Location: 3rd Row Seats
3rd Row Seats Number: 2
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: All Three Rows
Third Row Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 6
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Thigh Support Type: Electric
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Number of Electrical Adjustments: 2
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 7
Configuration: 2+3+2
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 3
Rear Control For Climate Control: yes
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Rear Seats Location: Rear Seats
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 6
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
