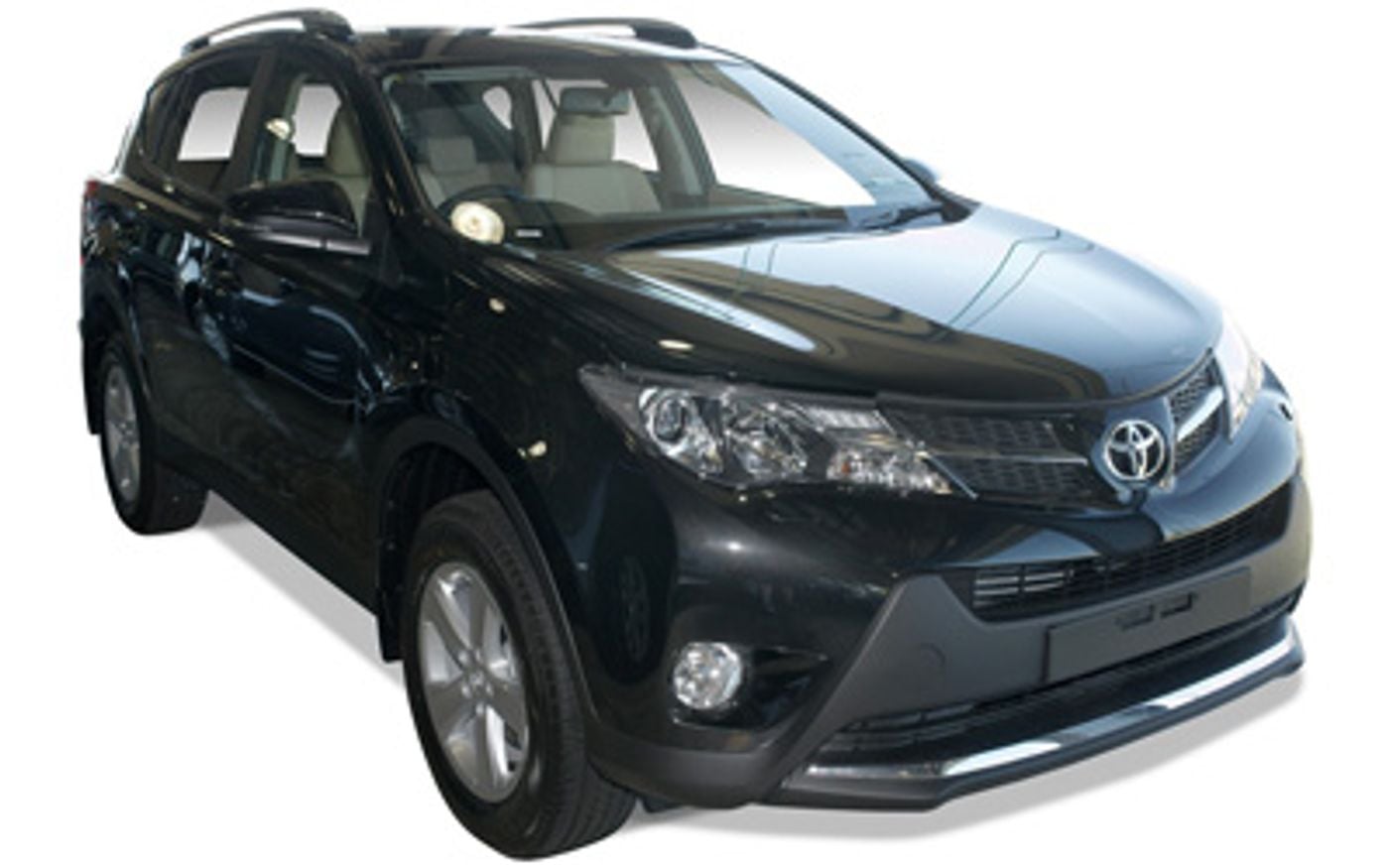

Toyota RAV4 Cruiser (2015) price & specs
Save $$$ with CarExpert*
From
$48,490â€
Cruiser
Overview
The 2015 Toyota RAV4 Cruiser is a four-wheel drive, 5-door SUV that was released to the Australian market on 3rd January 2014 classified as a Ala49r. The Toyota RAV4 is regarded as a small SUV built in Japan with prices starting at $48,490 before on-road costs.
This Toyota RAV4 is powered by a 2.2L 4-cylinder engine that has 110 kW of power (at 3600 rpm) and 340 Nm of torque (at 2000 rpm) via a Six-speed Automatic transmission. Toyota claims the RAV4 Cruiser uses 6.5L/100km of Diesel in the combined city and highway cycle while putting out 172g of CO2. It has a 60L fuel tank, meaning it should be able to travel 923km per full tank
The Toyota RAV4 measures 1715mm (67.5 inches) in height, 4570mm (179.9 inches) in length, 1845mm (72.6 inches) in width with a 2660mm (104.7 inches) wheelbase that brings about a total of 1660kg (3659.7 lbs) of unladen weight. The RAV4 Cruiser comes standard with 235/55 R18 front tyres and 235/55 R18 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
The 2015 Toyota RAV4 Cruiser has a 197mm ground clearance with a 1000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the RAV4 compare?
Quickly see how the 2015 Toyota RAV4 Cruiser stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
66.27 - 82.24 kW/t
43.77 kW/t
108.52 kW/t
Boot Space
577 litres
395 litres
740 litres
Fuel Efficiency
5.6 - 8.5 L/100km
5.6 L/100km
11.1 L/100km
Vehicle Range
706 - 1,071 km
600 km
1,071 km
Price
$27,490 - $48,490
$25,990
$50,610
Warranty (Years)
3 years
3 years
7 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 - 7 years
1 year
4 years
Service Interval
6 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,000 - 2,190 kg
1,975 kg
3,050 kg
Braked Towing Capacity
800 - 1,500 kg
800 kg
3,500 kg
Ground Clearance Unladen
176 - 197 mm
150 mm
323 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,570 mm
1,845 mm
1,715 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,570 mm |
| Overall Width | 1,845 mm |
| Overall Height | 1,715 mm |
| Wheelbase | 2,660 mm |
| Turning Circle | 11,200 mm |
| Load Capacity | 530 mm |
Looking for complete Toyota RAV4 size & space specs?
Our Toyota RAV4 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Toyota RAV4 Sales rolling 12-months#
Explore Toyota RAV4 Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Steering: yes
Traction Control: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Telematics
Connection Type: Via Own Phone
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Phone: yes
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 5.0
Australia Greenhouse Rating: 7.0
Australia Overall Emission Control Level Rating: 3.5
CO2 Level (Combined): 172
Standard Met: EU4
Engine
Bore Engine: 86.0
Engine (cc): 2231
Engine Configuration: In-Line
Engine Code: 2ad-Ftv
Engine (L): 2.2
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 96.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 15.9
Main Capacity (L): 60
Main Capacity Uk Gallons: 13.2
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 6.1
Touch Screen: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 923
ADR 81/02 Calculated Vehicle Range (miles): 574
ADR 81/02 Combined (km/L): 15.4
ADR 81/02 Combined (L/100km): 6.5
ADR 81/02 Combined (miles per UK gallon): 44
ADR 81/02 Combined (mpg): 36
ADR 81/02 Country Highway (km/L): 18.2
ADR 81/02 Country Highway (L/100km): 5.5
ADR 81/02 Country Highway (miles per UK gallon): 51
ADR 81/02 Country Highway (mpg): 43
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 12.2
ADR 81/02 Urban (L/100km): 8.2
ADR 81/02 Urban (miles per UK gallon): 34
ADR 81/02 Urban (mpg): 29
Fuel Economy
ADR 81/02 (L/100km): 6.5
Power
Maximum Power (hp/PS): 150
Maximum Power (kW): 110
Maximum Torque (Nm): 340
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 2000
Differential Lock
Location: Centre
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Code: U660f
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Wishbone
Rear Wheel Dependence: Independent
Tires
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Width: 235
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Two Tone: yes
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: TMC
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Spoiler
Location: Roof
Underbody Protection
Location: Engine
Location: Transfer Case
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 26.8
Rear Seat Down (L): 760
Rear Seat Up to Lower Window (cu ft): 20.4
Rear Seat Up to Lower Window (L): 577
External Dimensions
Kerb to Kerb Turning Circle (mm): 11200
Front Track (in): 61.8
Front Track (mm): 1570
Ground Clearance Unladen (in): 7.8
Ground Clearance Unladen (mm): 197
Kerb To Kerb Turning Circle (ft): 36.7
Overall Height (in): 67.5
Overall Height (mm): 1715
Overall Length (in): 179.9
Overall Length (mm): 4570
Overall Width (in): 72.6
Overall Width (mm): 1845
Rear Track (in): 61.8
Rear Track (mm): 1570
Wheelbase (in): 104.7
Wheelbase (mm): 2660
Internal Dimensions
Front Headroom (in): 38.9
Front Headroom (mm): 988
Rear Headroom (in): 38.9
Rear Headroom (mm): 989
Front Hip Room (in): 54.3
Front Hip Room (mm): 1378
Rear Hip Room (in): 48.9
Rear Hip Room (mm): 1241
Front Leg Room (in): 42.6
Front Leg Room (mm): 1081
Rear Leg Room (in): 37.2
Rear Leg Room (mm): 944
Front Shoulder Room (in): 57.3
Front Shoulder Room (mm): 1455
Rear Shoulder Room (in): 55.4
Rear Shoulder Room (mm): 1407
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Xenon
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Electrically Foldable Mirrors
Operation: Electric
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1000
Gross Trailer Weight Braked (lb): 2205
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2190
Gross Vehicle Weight (lb): 4828
Published Kerb Weight (kg): 1660
Published Kerb Weight (lb): 3660
Tare Weight (kg): 1618
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
Digital Radio: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: JBL
Number of Speakers: 11
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Centre Floor Console: Carbon Fibre Look
Doors: Alloy Look
Gear Selector: Alloy Look
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 7
Crash Test Results
ANCAP Date Tested: 20130308
ANCAP Overall: 5.00
ANCAP Standard: Ancap
ANCAP Version Tested: 2.2 Diesel Suv
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Electric
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Bucket
Passenger Front Seat Heated: yes
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 6
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
