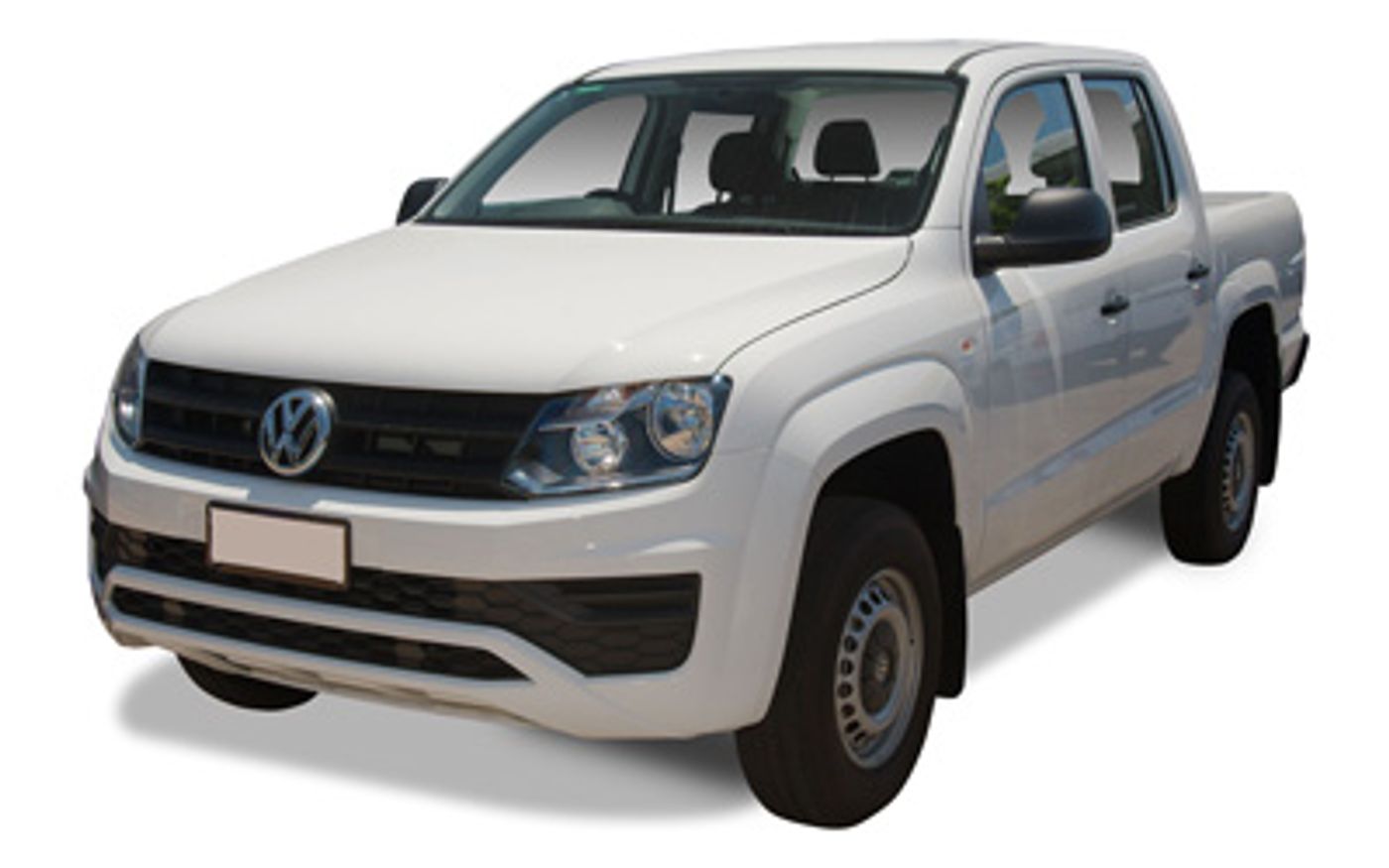

Volkswagen Amarok Sportline (2020) price & specs
Save $$$ with CarExpert*
From
$56,590â€
Sportline
Overview
The 2020 Volkswagen Amarok Sportline is a four-wheel drive, 4-door Utility that was released to the Australian market on 7th September 2019 classified as a 2H. The Volkswagen Amarok is regarded as a Pickup built in Argentina with prices starting at $56,590 before on-road costs.
This Volkswagen Amarok is powered by a 3.0L 6-cylinder engine that has 180 kW of power (at 2500 rpm) and 550 Nm of torque (at 1500 rpm) via an Eight-speed Automatic transmission. Volkswagen claims the Amarok Sportline uses 9.0L/100km of Diesel in the combined city and highway cycle while putting out 236g of CO2. It has a 80L fuel tank, meaning it should be able to travel 889km per full tank
The Volkswagen Amarok measures 1834mm (72.2 inches) in height, 5254mm (206.9 inches) in length, 1954mm (76.9 inches) in width with a 3095mm (121.9 inches) wheelbase that brings about a total of 2104kg (4638.5 lbs) of unladen weight. The Amarok Sportline comes standard with 255/60 R18 front tyres and 255/60 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2020 Volkswagen Amarok Sportline has a 192mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Amarok compare?
Quickly see how the 2020 Volkswagen Amarok Sportline stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
63.1 - 93.15 kW/t
47.8 kW/t
120.94 kW/t
Fuel Efficiency
8.4 - 9.7 L/100km
6.3 L/100km
12.4 L/100km
Vehicle Range
825 - 952 km
658 km
1,270 km
Price
$38,490 - $94,785
$22,490
$113,990
Warranty (Years)
5 years
3 years
7 years
Warranty (Distance)
Unlimited
57,936 km
Unlimited
Years on Sale
1 - 3 years
1 year
4 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,040 - 3,080 kg
2,631 kg
3,450 kg
Gross Comb. Mass
5,550 - 6,000 kg
4,435 kg
7,237 kg
Braked Towing Capacity
3,000 - 3,500 kg
1,800 kg
4,500 kg
Approach Angle
28°
15.2°
40.7°
Departure Angle
23.6 - 28°
15°
29°
Ground Clearance Unladen
192 - 230 mm
174 mm
283 mm
Payload Capacity
751 - 1,155 kg
527 kg
1,476 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,254 mm
1,954 mm
inc mirror: 2,228 mm
inc mirror: 2,228 mm
1,834 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,254 mm |
| Overall Width | 1,954 mm |
| Overall Width (Inc Mirror) | 2,228 mm |
| Overall Height | 1,834 mm |
| Wheelbase | 3,095 mm |
| Turning Circle | 12,950 mm |
| Load Capacity | 976 mm |
Looking for complete Volkswagen Amarok size & space specs?
Our Volkswagen Amarok Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Volkswagen Amarok Sales rolling 12-months#
Explore Volkswagen Amarok Features & Specs
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 212
CO2 Level (Combined): 236
CO2 Level (Urban): 278
Standard Met: EU5
Energy Recuperation
Engine: yes
Engine
Bore Engine: 83.0
Engine (cc): 2967
Engine Configuration: V
Engine Code: Ddxc
Engine (L): 3.0
Number of Cylinders: 6
Number of Valves per Cylinder: 4
Stroke Engine: 91.4
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Capacity Uk Gallons: 17.6
Main Type: Total
Interested in buying a Volkswagen Amarok Sportline?
Save $$$ with CarExpert*
From
$56,590â€
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 6.3
Dashboard Centre 1 Touch Screen: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 889
ADR 81/02 Calculated Vehicle Range (miles): 552
ADR 81/02 Combined (km/L): 11.1
ADR 81/02 Combined (L/100km): 9.0
ADR 81/02 Combined (miles per UK gallon): 31
ADR 81/02 Combined (mpg): 26
ADR 81/02 Country Highway (km/L): 12.3
ADR 81/02 Country Highway (L/100km): 8.1
ADR 81/02 Country Highway (miles per UK gallon): 35
ADR 81/02 Country Highway (mpg): 29
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 9.4
ADR 81/02 Urban (L/100km): 10.6
ADR 81/02 Urban (miles per UK gallon): 27
ADR 81/02 Urban (mpg): 22
Fuel Economy
ADR 81/02 (L/100km): 9.0
Power
Maximum Power (hp/PS): 245
Maximum Power (kW): 180
Maximum Torque (Nm): 550
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 2500
Rpm For Maximum Torque Low: 1500
Differential Lock
Location: Rear
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Limited Slip Differential
Location: Centre
Center Type: Mechanical
Transmission
Code: 0DR
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 112
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 255
Rear Wheels Tire Load Index: 112
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Black Trim
Around Side Windows: yes
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: A1
Roof Type: Standard
Wheelbase Type: Short
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Tray/Tub
Type: Straight Side
Cargo Area Dimensions
Cargo Volume (cu ft): 89.0
Cargo Volume (L): 2520
Height (in): 20.0
Height (mm): 1620
Length (in): 61.2
Length (mm): 1555
Loading Floor Height (in): 30.7
Loading Floor Height (mm): 780
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 48.1
Width Between Wheelhouses (mm): 1222
Width (in): 63.8
Width (mm): 1620
External Dimensions
Kerb to Kerb Turning Circle (mm): 12950
Front Overhang (in): 35.4
Front Overhang (mm): 898
Front Track (in): 65.1
Front Track (mm): 1654
Ground Clearance Unladen (in): 7.6
Ground Clearance Unladen (mm): 192
Kerb To Kerb Turning Circle (ft): 42.5
Overall Height (in): 72.2
Overall Height (mm): 1834
Overall Length (in): 206.9
Overall Length (mm): 5254
Overall Width (in): 76.9
Overall Width Inc Mirror (in): 87.7
Overall Width Inc Mirror (mm): 2228
Overall Width (mm): 1954
Rear Overhang (in): 49.6
Rear Overhang (mm): 1261
Rear Track (in): 65.3
Rear Track (mm): 1658
Wheelbase (in): 121.9
Wheelbase (mm): 3095
Ramp Angles
Approach Angle: 28.0
Departure Angle: 23.6
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Chrome
Location: Rear
Cargo Doors
Rear Height (in): 20.0
Rear Height (mm): 508
Location: Rear
Rear Opening Angle: 90
Rear Operation: Dropping Gate
Rear Width (in): 53.7
Rear Width (mm): 1364
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
LED Lights
Location: Brake Lights
Paint
External Colour: Silver
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Front Axle Weight (kg): 1445
Front Axle Weight (lb): 3186
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 6000
Gross Train Weight (lb): 13228
Gross Vehicle Weight (kg): 3080
Gross Vehicle Weight (lb): 6790
Payload Allowance (kg): 976
Payload Allowance (lb): 2152
Published Kerb Weight (kg): 2104
Published Kerb Weight (lb): 4639
Rear Axle Weight (kg): 1630
Rear Axle Weight (lb): 3594
Tare Weight (kg): 2044
Trailer Noseweight (kg): 300
Audio System
Audio Player Reads MP3: yes
Colour Screen: yes
Digital Media Card: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Mirrorlink: yes
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
USB Charging Port
Location: Front
Number of Ports in Front: 1
Floor Covering
Vehicle Cab Compartment: Textile
Luxury Trim
Gear Selector: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 4
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Front Head Protection: yes
Location: Front
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Lumbar Type: Manual
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Power Locks
Includes Power Windows: yes
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
