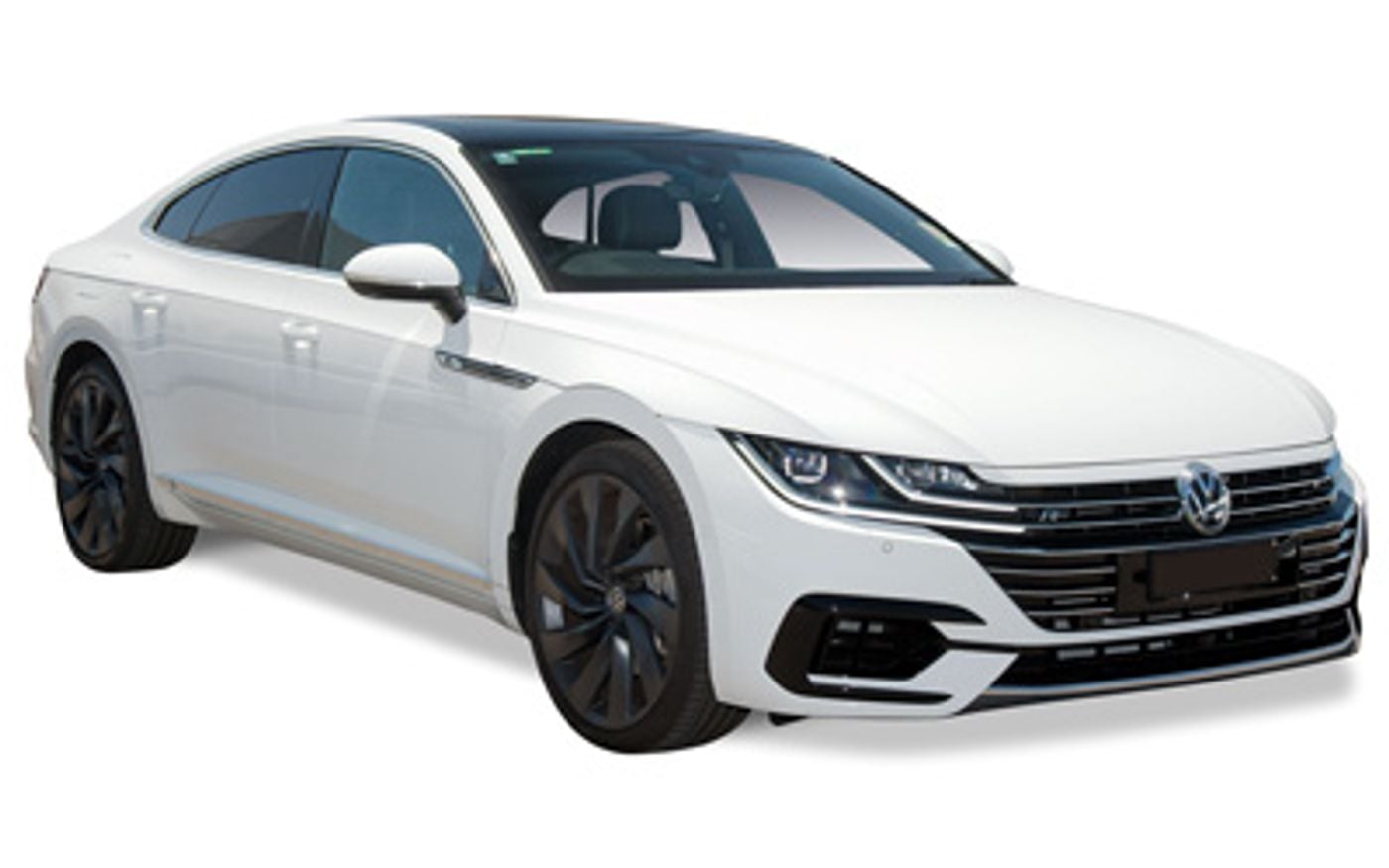

Volkswagen Arteon R-Line (2018) price & specs
Save $$$ with CarExpert*
From
$65,490â€
R-Line
Overview
The 2018 Volkswagen Arteon R-Line is a four-wheel drive, 5-door Hatchback that was released to the Australian market on 5th October 2017 classified as a MK1. The Volkswagen Arteon is regarded as a Medium Luxury built in Germany with prices starting at $65,490 before on-road costs.
This Volkswagen Arteon is powered by a 2.0L 4-cylinder engine that has 206 kW of power (at 5700 rpm) and 350 Nm of torque (at 1800 rpm) via a 7 SP MANUAL transmission. Volkswagen claims the Arteon R-Line uses 7.5L/100km of Premium Unleaded in the combined city and highway cycle while putting out 170g of CO2. It has a 66L fuel tank, meaning it should be able to travel 880km per full tank
The Volkswagen Arteon measures 1450mm (57.1 inches) in height, 4862mm (191.4 inches) in length, 1871mm (73.7 inches) in width with a 2837mm (111.7 inches) wheelbase that brings about a total of 1700kg (3747.9 lbs) of unladen weight. The Arteon R-Line comes standard with 245/40 R19 front tyres and 245/40 R19 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Arteon compare?
Quickly see how the 2018 Volkswagen Arteon R-Line stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
121.18 kW/t
70.18 kW/t
231.34 kW/t
Boot Space
563 litres
335 litres
894 litres
Fuel Efficiency
7.5 L/100km
2.1 L/100km
9.5 L/100km
Vehicle Range
880 km
652 km
1,511 km
Price
$65,490
$49,990
$234,872
Warranty (Years)
3 years
3 years
8 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Service Interval
12 months
12 months
24 months
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,862 mm
1,871 mm
1,450 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,862 mm |
| Overall Width | 1,871 mm |
| Overall Height | 1,450 mm |
| Wheelbase | 2,837 mm |
| Turning Circle | 11,700 mm |
| Load Capacity | 540 mm |
Looking for complete Volkswagen Arteon size & space specs?
Our Volkswagen Arteon Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Volkswagen Arteon Sales rolling 12-months#
Explore Volkswagen Arteon Features & Specs
Automatic Door Closing
Rear Boot Hatch: yes
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Driver Modes
Engine Mapping: yes
Steering: yes
Suspension: yes
Memorised Adjustment
Door Mirror Position: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Mirrorlink: yes
Parking Assistance
Location: Rear
Rear Type: Full Auto Park & Exit
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 170
Standard Met: EU6
Engine
Bore Engine: 82.5
Engine (cc): 1984
Engine Configuration: In-Line
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 92.8
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 98
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 98
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 17.4
Main Capacity (L): 66
Main Capacity Uk Gallons: 14.5
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Screen Size (in): 12.3
Touch Screen: yes
Instrument Cluster
Head Up Display: yes
Reconfigurable: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 880
ADR 81/02 Calculated Vehicle Range (miles): 547
ADR 81/02 Combined (km/L): 13.3
ADR 81/02 Combined (L/100km): 7.5
ADR 81/02 Combined (miles per UK gallon): 38
ADR 81/02 Combined (mpg): 31
ADR 81/02 Country Highway (km/L): 15.9
ADR 81/02 Country Highway (L/100km): 6.3
ADR 81/02 Country Highway (miles per UK gallon): 45
ADR 81/02 Country Highway (mpg): 37
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.6
ADR 81/02 Urban (L/100km): 9.4
ADR 81/02 Urban (miles per UK gallon): 30
ADR 81/02 Urban (mpg): 25
Fuel Economy
ADR 81/02 (L/100km): 7.5
Performance
Acceleration 0 To 100 km/h: 5.6
Maximum Speed (km/h): 250
Maximum Speed (mph): 155
Power
Maximum Power (hp/PS): 280
Maximum Power (kW): 206
Maximum Torque (Nm): 350
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5700
Rpm For Maximum Torque Low: 1800
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Limited Slip Differential
Location: Front
Front Type: Electronic
Transmission
Automatic Mode: yes
Description: Dual Clutch Sequential Trans (Dct)
Gear Change Paddles: yes
Manual Sequential: yes
Number of Speeds: 7
Shift Lever Location: Steering Wheel
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Variable Rack: yes
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Diameter: 20
Front Wheels Tire Load Index: 95
Location: Front
Front Wheels Tire Profile: 40
Front Wheels Tire Run Flat: yes
Front Wheels Tire Self-Sealing Tires: yes
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 245
Rear Wheels Tire Diameter: 20
Rear Wheels Tire Load Index: 95
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 40
Rear Wheels Tire Run Flat: yes
Rear Wheels Tire Self-Sealing Tires: yes
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.0
Location: Rear
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.0
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Platform Code: MQB
Wheelbase Type: Short
Spoiler
Location: Boot/Hatch
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 55.0
Rear Seat Down (L): 1557
Rear Seat Up to Lower Window (cu ft): 19.9
Rear Seat Up to Lower Window (L): 563
External Dimensions
Kerb to Kerb Turning Circle (mm): 11700
Front Track (in): 62.5
Front Track (mm): 1587
Kerb To Kerb Turning Circle (ft): 38.4
Overall Height (in): 57.1
Overall Height (mm): 1450
Overall Length (in): 191.4
Overall Length (mm): 4862
Overall Width (in): 73.7
Overall Width (mm): 1871
Rear Track (in): 62.1
Rear Track (mm): 1577
Wheelbase (in): 111.7
Wheelbase (mm): 2837
Internal Dimensions
Front Headroom (in): 39.7
Front Headroom (mm): 1008
Rear Headroom (in): 37.0
Rear Headroom (mm): 940
Front Hip Room (in): 59.1
Front Hip Room (mm): 1500
Rear Hip Room (in): 58.3
Rear Hip Room (mm): 1481
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Directional Headlights: yes
Dusk Sensor: yes
Fog Light Function: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Yellow
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Remote
Front Sunroof Sliding: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2200
Gross Trailer Weight Braked (lb): 4850
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2240
Gross Vehicle Weight (lb): 4938
Published Kerb Weight (kg): 1700
Published Kerb Weight (lb): 3748
Tare Weight (kg): 1658
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
Digital Media Card: yes
Disc Autochanger: yes
Autochanger Disc Capacity: 1
Radio Type: Am/Fm
Touch Screen: yes
Disc Player
Glove Box Capacity: 1
Location: Glove Box
Glove Box Media Type: CD
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 8
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Centre Floor Console: Piano Black
Doors: Alloy
Gear Selector: Leather
Instrument Panel: Alloy
Airbags
Number of Airbags: 9
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Manufacturer Name: Side Assist
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Location: Rear
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Active Massage: yes
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Memory
Driver Front Seat Number of Electrical Adjustments: 7
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Electric
Passenger Front Seat Number of Electrical Adjustments: 7
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 3
Rear Control For Climate Control: yes
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Rear Seats Location: Rear Seats
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
