Volkswagen Arteon R-Line (2022) price & specs
Save $$$ with CarExpert*
From
$68,740â€
R-Line
Overview

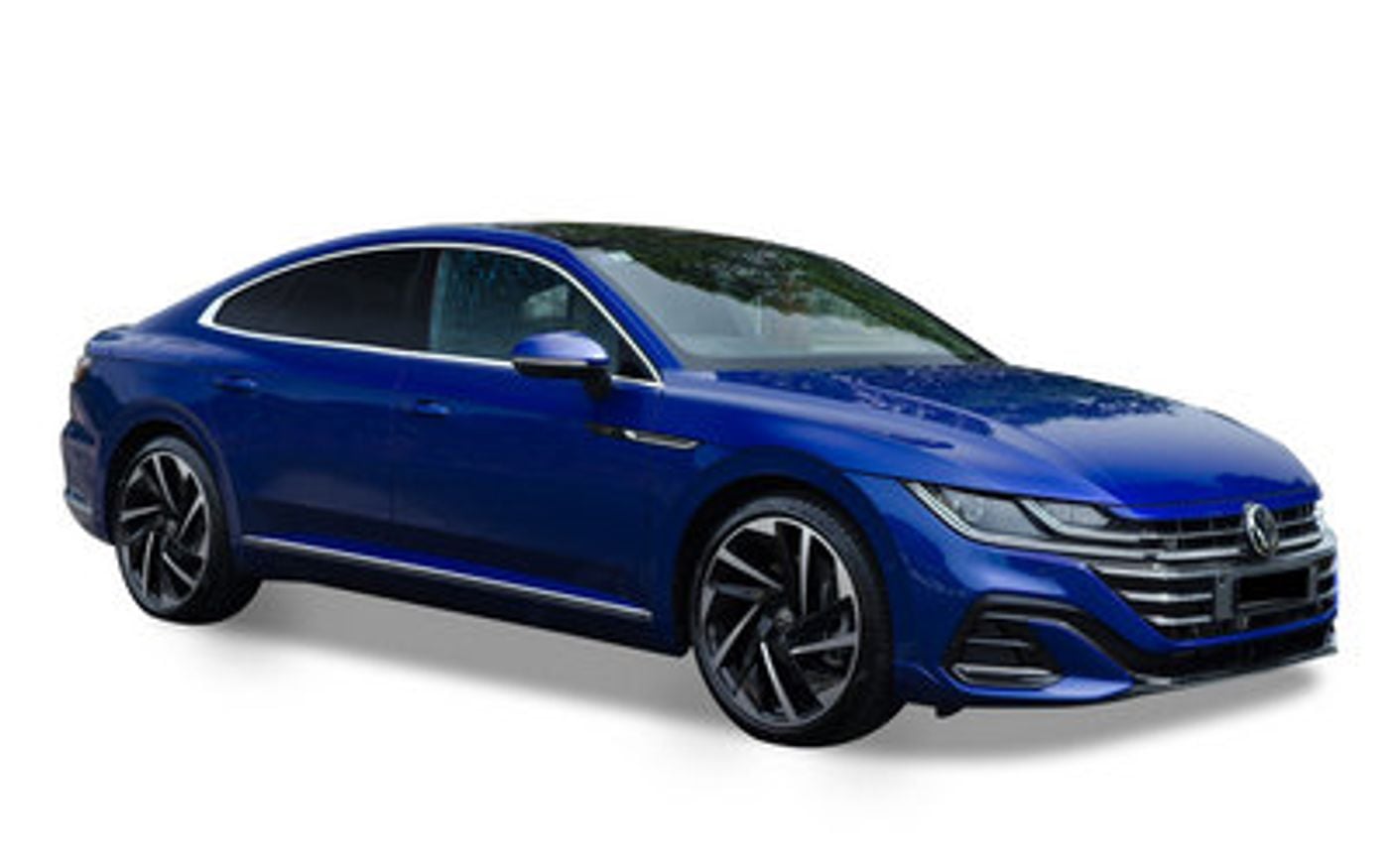

The 2022 Volkswagen Arteon R-Line is a four-wheel drive, 5-door Coupe that was released to the Australian market on 3rd September 2021 classified as a MK1. The Volkswagen Arteon is regarded as a Medium Luxury built in Germany with prices starting at $68,740 before on-road costs.
This Volkswagen Arteon is powered by a 2.0L 4-cylinder engine that has 206 kW of power (at 4950 rpm) and 400 Nm of torque (at 2000 rpm) via a Seven-speed Automatic transmission. Volkswagen claims the Arteon R-Line uses 7.7L/100km of Premium Unleaded in the combined city and highway cycle while putting out 177g of CO2. It has a 66L fuel tank, meaning it should be able to travel 857km per full tank
The Volkswagen Arteon measures 1442mm (56.8 inches) in height, 4866mm (191.6 inches) in length, 1871mm (73.7 inches) in width with a 2841mm (111.9 inches) wheelbase that brings about a total of 1734kg (3822.8 lbs) of unladen weight. The Arteon R-Line comes standard with 245/35 R20 front tyres and 245/35 R20 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Arteon compare?
Quickly see how the 2022 Volkswagen Arteon R-Line stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
86.31 - 119.21 kW/t
72.61 kW/t
231.34 kW/t
Boot Space
563 litres
370 litres
649 litres
Fuel Efficiency
6.2 - 7.7 L/100km
2.2 L/100km
10.2 L/100km
Vehicle Range
857 - 1,065 km
465 km
1,864 km
Price
$59,990 - $71,240
$57,700
$169,500
Warranty (Years)
5 years
3 years
5 years
Warranty (Distance)
Unlimited
80,000 km
Unlimited
Service Interval
12 months
12 months
24 months
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,866 mm
1,871 mm
1,442 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,866 mm |
| Overall Width | 1,871 mm |
| Overall Height | 1,442 mm |
| Wheelbase | 2,841 mm |
| Load Capacity | 536 mm |
Looking for complete Volkswagen Arteon size & space specs?
Our Volkswagen Arteon Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Volkswagen Arteon Sales rolling 12-months#
Explore Volkswagen Arteon Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Facial Gesture Control
Location: Front
Media Control
Touch Screen: yes
Memorised Adjustment
Door Mirror Position: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Android Wireless Connection: yes
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Apple Wireless Connection: yes
Mirrorlink: yes
Mirrorlink Months Subscription Included: Unlimited
Mirrorlink Wireless Connection: yes
Other Months Subscription Included: 0
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
USB Charging Port
Location: Front
Number of Ports in Front: 2
Location: Rear
Number of Ports in Rear: 1
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Virtual Assistant: Other
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 177
Standard Met: EU6
Energy Recuperation
Engine: yes
Engine
Bore Engine: 82.5
Engine (cc): 1984
Engine Configuration: In-Line
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 92.8
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 98
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 98
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 17.4
Main Capacity (L): 66
Main Capacity Uk Gallons: 14.5
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 9.2
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 10.3
Instrument Cluster
Head Up Display: Panel
Reconfigurable: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 857
ADR 81/02 Calculated Vehicle Range (miles): 533
ADR 81/02 Combined (km/L): 13.0
ADR 81/02 Combined (L/100km): 7.7
ADR 81/02 Combined (miles per UK gallon): 37
ADR 81/02 Combined (mpg): 31
ADR 81/02 Country Highway (km/L): 14.7
ADR 81/02 Country Highway (L/100km): 6.8
ADR 81/02 Country Highway (miles per UK gallon): 42
ADR 81/02 Country Highway (mpg): 35
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.4
ADR 81/02 Urban (L/100km): 9.6
ADR 81/02 Urban (miles per UK gallon): 29
ADR 81/02 Urban (mpg): 25
Fuel Economy
ADR 81/02 (L/100km): 7.7
Performance
Acceleration 0 To 100 km/h: 5.6
Maximum Speed (km/h): 250
Maximum Speed (mph): 155
Power
Maximum Power (hp/PS): 280
Maximum Power (kW): 206
Maximum Torque (Nm): 400
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4950
Rpm For Maximum Torque Low: 2000
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Limited Slip Differential
Location: Front
Front Type: Electronic
Transmission
Description: Dual Clutch Sequential Trans (Dct)
Gear Change Paddles: yes
Manual Mode: yes
Manual Sequential: yes
Number of Speeds: 7
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Variable Rack: yes
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 95
Location: Front
Front Wheels Tire Profile: 35
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 245
Rear Wheels Tire Load Index: 95
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 35
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 20
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.0
Location: Rear
Rear Rim Diameter (In): 20
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.0
Body Style
Body Type: Hatchback
Local Body Type: Coupe
Platform Code: MQB
Wheelbase Type: Short
Spoiler
Location: Boot/Hatch
Cargo Capacity
Measurement Standard: ISO
Rear Seat Down (cu ft): 55.0
Rear Seat Down (L): 1557
Rear Seat Up to Lower Window (cu ft): 19.9
Rear Seat Up to Lower Window (L): 563
External Dimensions
Front Track (in): 62.5
Front Track (mm): 1587
Overall Height (in): 56.8
Overall Height (mm): 1442
Overall Length (in): 191.6
Overall Length (mm): 4866
Overall Width (in): 73.7
Overall Width (mm): 1871
Rear Track (in): 62.0
Rear Track (mm): 1576
Wall to Wall Turning Circle (ft): 39.0
Wall to Wall Turning Circle (mm): 11900
Wheelbase (in): 111.9
Wheelbase (mm): 2841
Internal Dimensions
Front Headroom (in): 39.7
Front Headroom (mm): 1008
Rear Headroom (in): 37.0
Rear Headroom (mm): 940
Front Hip Room (in): 59.1
Front Hip Room (mm): 1500
Rear Hip Room (in): 58.3
Rear Hip Room (mm): 1481
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Hands Free Release: yes
Type: Lifting Gate
Headlight Control
Active High Beam: yes
Directional Headlights: yes
Dusk Sensor: yes
Fog Light Function: yes
Height Adjustment: Automatic
Matrix: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: red
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Remote
Front Sunroof Sliding: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2200
Gross Trailer Weight Braked (lb): 4850
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2270
Gross Vehicle Weight (lb): 5005
Published Kerb Weight (kg): 1734
Published Kerb Weight (lb): 3823
Tare Weight (kg): 1692
Trailer Noseweight (kg): 90
Audio System
Audio Player Reads MP3: yes
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 2
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Harman/Kardon
Number of Speakers: 11
Subwoofer: yes
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Centre Floor Console: Piano Black
Doors: Alloy
Gear Selector: Leather
Instrument Panel: Alloy
Airbags
Number of Airbags: 9
Autonomous Drive
Active Lane Control: yes
Lane Changing: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Adult Occupant Score: 96.00
ANCAP Child Occupant Score: 85.00
ANCAP Date Tested: 20171221
ANCAP Overall: 5.00
ANCAP Pedestrian: Good
ANCAP Pedestrian Score: 85.00
ANCAP Rating Year: 2017
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Safety Assist Score: 74.00
ANCAP Standard: Ancap
ANCAP Version Tested: Elegance Diesel Hatch
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Location: Rear
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Active Massage: yes
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Memory
Driver Front Seat Number of Electrical Adjustments: 7
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Sports
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Memory
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Memory
Passenger Front Seat Number of Electrical Adjustments: 7
Passenger Front Seat Reach Type: Memory
Passenger Front Seat Reclining Type: Memory
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Premium Leather
Main Seat Material: Premium Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 3
Rear Control For Climate Control: yes
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Rear Seats Location: Rear Seats
Ventilation System
Digital Display: yes
Heater Type: Combustion
Power Locks
Includes Power Windows: yes
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
