1.6L, 5-speed manual, 5-door Mini Mpv, Diesel, FWD
Save $$$ with CarExpert*
$30,290â€
Volkswagen Caddy Trendline (2015) price & specs
Save $$$ with CarExpert*
From
$30,290â€
Trendline
Overview

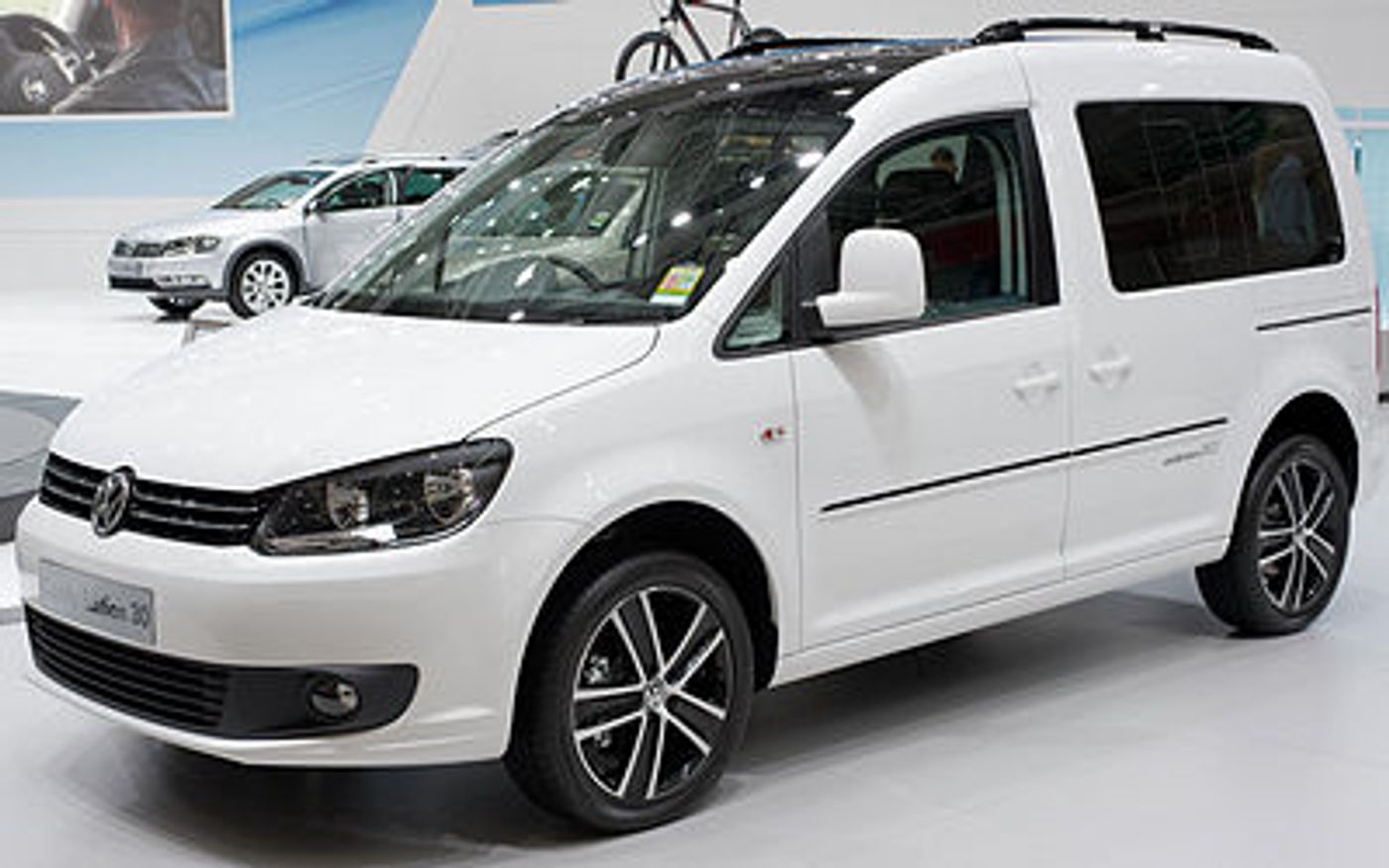

The 2015 Volkswagen Caddy Trendline is a front-wheel drive, 5-door Mini Mpv that was released to the Australian market on 5th August 2014. The Volkswagen Caddy is regarded as a Mpv built in Poland with prices starting at $30,290 before on-road costs.
This Volkswagen Caddy is powered by a 1.6L 4-cylinder engine that has 75 kW of power (at 4400 rpm) and 250 Nm of torque (at 1500 rpm) via a Five-speed Manual transmission. Volkswagen claims the Caddy Trendline uses 5.9L/100km of Diesel in the combined city and highway cycle while putting out 152g of CO2. It has a 60L fuel tank, meaning it should be able to travel 1017km per full tank
The Volkswagen Caddy measures 1822mm (71.7 inches) in height, 4406mm (173.5 inches) in length, 1794mm (70.6 inches) in width with a 2681mm (105.6 inches) wheelbase that brings about a total of 1500kg (3306.9 lbs) of unladen weight. The Caddy Trendline comes standard with 195/65 R15 front tyres and 195/65 R15 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, unlimited km warranty.
The 2015 Volkswagen Caddy Trendline has a 157mm ground clearance with a 1300kg braked and 710kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Caddy compare?
Quickly see how the 2015 Volkswagen Caddy Trendline stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
45.26 - 61.75 kW/t
45.15 kW/t
98.1 kW/t
Boot Space
530 - 750 litres
492 litres
960 litres
Fuel Efficiency
5.9 - 6.8 L/100km
5.9 L/100km
11.6 L/100km
Vehicle Range
882 - 1,017 km
690 km
1,039 km
Price
$30,290 - $45,790
$29,990
$59,990
Warranty (Years)
3 years
3 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
4 - 5 years
1 year
2 years
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,264 - 2,415 kg
2,200 kg
3,030 kg
Braked Towing Capacity
1,300 kg
1,000 kg
2,000 kg
Ground Clearance Unladen
149 - 157 mm
149 mm
190 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,406 mm
1,794 mm
1,822 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,406 mm |
| Overall Width | 1,794 mm |
| Overall Height | 1,822 mm |
| Wheelbase | 2,681 mm |
| Load Capacity | 764 mm |
Looking for complete Volkswagen Caddy size & space specs?
Our Volkswagen Caddy Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Volkswagen Caddy Sales rolling 12-months#
Explore Volkswagen Caddy Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 6.0
Australia Greenhouse Rating: 7.5
Australia Overall Emission Control Level Rating: 3.5
CO2 Level (Combined): 152
Standard Met: EU5
Engine
Bore Engine: 79.5
Engine (cc): 1598
Engine Configuration: In-Line
Engine (L): 1.6
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 80.5
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 15.9
Main Capacity (L): 60
Main Capacity Uk Gallons: 13.2
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1017
ADR 81/02 Calculated Vehicle Range (miles): 632
ADR 81/02 Combined (km/L): 16.9
ADR 81/02 Combined (L/100km): 5.9
ADR 81/02 Combined (miles per UK gallon): 48
ADR 81/02 Combined (mpg): 40
ADR 81/02 Country Highway (km/L): 18.5
ADR 81/02 Country Highway (L/100km): 5.4
ADR 81/02 Country Highway (miles per UK gallon): 52
ADR 81/02 Country Highway (mpg): 44
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 14.7
ADR 81/02 Urban (L/100km): 6.8
ADR 81/02 Urban (miles per UK gallon): 42
ADR 81/02 Urban (mpg): 35
Fuel Economy
ADR 81/02 (L/100km): 5.9
Performance
Acceleration 0 To 100 km/h: 12.9
Maximum Speed (km/h): 168
Maximum Speed (mph): 104
Power
Maximum Power (hp/PS): 102
Maximum Power (kW): 75
Maximum Torque (Nm): 250
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4400
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Front
Transmission
Description: Manual
Number of Speeds: 5
Shift Lever Location: Floor
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Plastic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 91
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: T
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 195
Rear Wheels Tire Load Index: 91
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Speed Rating: T
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 195
Wheels
Location: Front
Front Wheels Rim Diameter (In): 15
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Location: Rear
Rear Rim Diameter (In): 15
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
Body Style
Body Type: Mini Mpv
Local Body Type: Mini Mpv
Platform Code: Pq35
Wheelbase Type: Short
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Capacity
Measurement Standard: Manufacturer’S Own
Rear Seat Down (cu ft): 107.0
Rear Seat Down (L): 3030
Rear Seat Up to Lower Window (cu ft): 26.5
Rear Seat Up to Lower Window (L): 750
External Dimensions
Front Track (in): 60.5
Front Track (mm): 1537
Ground Clearance Unladen (in): 6.2
Ground Clearance Unladen (mm): 157
Overall Height (in): 71.7
Overall Height (mm): 1822
Overall Length (in): 173.5
Overall Length (mm): 4406
Overall Width (in): 70.6
Overall Width (mm): 1794
Rear Track (in): 60.3
Rear Track (mm): 1531
Wall to Wall Turning Circle (ft): 36.4
Wall to Wall Turning Circle (mm): 11100
Wheelbase (in): 105.6
Wheelbase (mm): 2681
Internal Dimensions
Rear Hip Room (in): 45.7
Rear Hip Room (mm): 1161
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Sliding
Location: Rear Passenger
Rear Passenger Door Type: Sliding
Rear Door
Type: Lifting Gate
Headlight Control
Height Adjustment: Manual
Internal Height Adjustment: yes
Time Delay Switch Off: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: White
Type: Gloss
Roof Rails
Colour: Black
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Privacy Glass
Location: 3rd Row Side
Location: Rear
Location: Rear Side
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Weights
Gross Trailer Weight Braked (kg): 1300
Gross Trailer Weight Braked (lb): 2866
Gross Trailer Weight Unbraked (kg): 710
Gross Trailer Weight Unbraked (lb): 1565
Gross Vehicle Weight (kg): 2264
Gross Vehicle Weight (lb): 4991
Published Kerb Weight (kg): 1500
Published Kerb Weight (lb): 3307
Tare Weight (kg): 1458
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Parking Distance System
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Number of Outlets in Front (12V): 2
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Floor Covering
Load Area: Plastic/Rubber
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Date Tested: 20071121
ANCAP Overall: 4.00
ANCAP Pedestrian: 2
ANCAP Standard: Ancap
ANCAP Version Tested: 1.9 Tdi Life Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Front Head Protection: yes
Location: Front
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Height Adjustment: yes
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Anti-Theft Protection
Remote Operation: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
