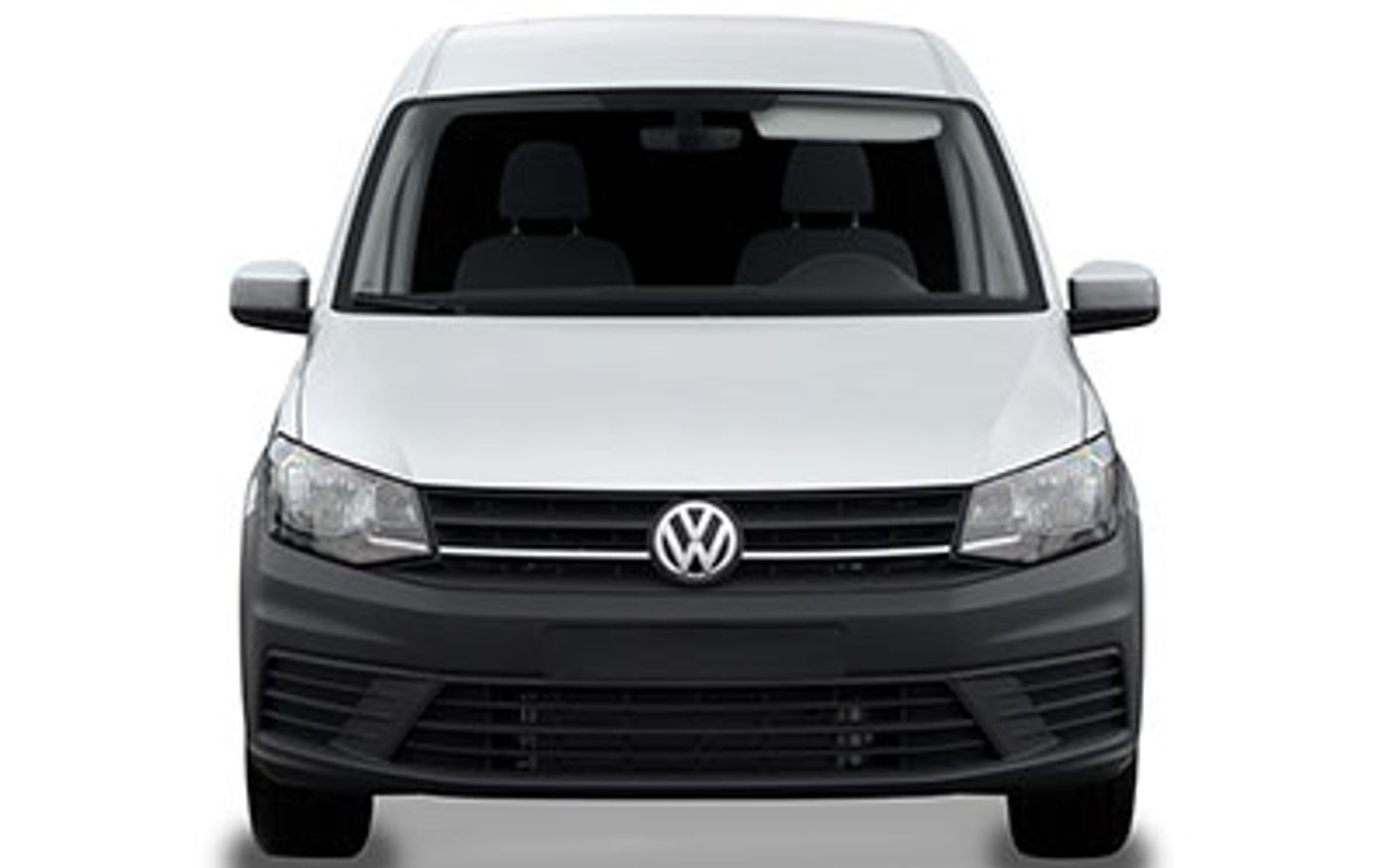

Volkswagen Caddy Maxi Crewvan (2020) price & specs
Save $$$ with CarExpert*
From
$35,040â€
Maxi Crewvan
Overview
The 2020 Volkswagen Caddy Maxi Crewvan is a front-wheel drive, 5-door Combi that was released to the Australian market on 3rd January 2020. The Volkswagen Caddy is regarded as a Van Under 3.5t built in Poland with prices starting at $35,040 before on-road costs.
This Volkswagen Caddy is powered by a 1.4L 4-cylinder engine that has 92 kW of power (at 4800 rpm) and 220 Nm of torque (at 1500 rpm) via a 7 SP MANUAL transmission. Volkswagen claims the Caddy Maxi Crewvan uses 6.0L/100km of Premium Unleaded in the combined city and highway cycle while putting out 138g of CO2. It has a 55L fuel tank, meaning it should be able to travel 917km per full tank
The Volkswagen Caddy measures 1831mm (72.1 inches) in height, 4878mm (192.0 inches) in length, 1793mm (70.6 inches) in width with a 3006mm (118.3 inches) wheelbase that brings about a total of 1524kg (3359.8 lbs) of unladen weight. The Caddy Maxi Crewvan comes standard with 205/55 R16 front tyres and 205/55 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Caddy compare?
Quickly see how the 2020 Volkswagen Caddy Maxi Crewvan stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
46.58 - 69.59 kW/t
39.13 kW/t
97.64 kW/t
Fuel Efficiency
5.3 - 6.2 L/100km
5 L/100km
12.4 L/100km
Vehicle Range
887 - 1,038 km
565 km
1,290 km
Price
$25,590 - $37,240
$25,490
$64,200
Warranty (Years)
5 years
3 years
5 years
Warranty (Distance)
Unlimited
160,000 km
Unlimited
Years on Sale
4 - 5 years
1 year
6 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,034 - 2,329 kg
1,810 kg
4,050 kg
Braked Towing Capacity
1,300 - 1,400 kg
850 kg
2,800 kg
Approach Angle
13.2 - 17.1°
13.2°
21.2°
Departure Angle
14.8 - 18.1°
14.8°
19.9°
Ground Clearance Unladen
172 - 187 mm
150 mm
202 mm
Payload Capacity
719 - 842 kg
540 kg
1,640 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,878 mm
1,793 mm
1,831 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,878 mm |
| Overall Width | 1,793 mm |
| Overall Height | 1,831 mm |
| Wheelbase | 3,006 mm |
| Turning Circle | 12,200 mm |
| Load Capacity | 725 mm |
Looking for complete Volkswagen Caddy size & space specs?
Our Volkswagen Caddy Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Volkswagen Caddy Sales rolling 12-months#
Explore Volkswagen Caddy Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Manufacturer Name: Adaptive Cruise Control
Speed Limiter: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Mirrorlink: yes
Parking Distance System
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Reading Lights
Location: Front
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Compressor
Compressor: Turbo
Number of Compressors: 1
Emission Control Level
CO2 Level (Combined): 138
Standard Met: EU5
Energy Recuperation
Engine: yes
Engine
Bore Engine: 74.5
Engine (cc): 1395
Engine Configuration: In-Line
Engine (L): 1.4
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 80.0
Interested in buying a Volkswagen Caddy Maxi Crewvan?
Save $$$ with CarExpert*
From
$35,040â€
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 14.5
Main Capacity (L): 55
Main Capacity Uk Gallons: 12.1
Main Type: Total
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 917
ADR 81/02 Calculated Vehicle Range (miles): 570
ADR 81/02 Combined (km/L): 16.7
ADR 81/02 Combined (L/100km): 6.0
ADR 81/02 Combined (miles per UK gallon): 47
ADR 81/02 Combined (mpg): 39
ADR 81/02 Country Highway (km/L): 18.5
ADR 81/02 Country Highway (L/100km): 5.4
ADR 81/02 Country Highway (miles per UK gallon): 52
ADR 81/02 Country Highway (mpg): 44
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 14.3
ADR 81/02 Urban (L/100km): 7.0
ADR 81/02 Urban (miles per UK gallon): 40
ADR 81/02 Urban (mpg): 34
Fuel Economy
ADR 81/02 (L/100km): 6.0
Power
Maximum Power (hp/PS): 125
Maximum Power (kW): 92
Maximum Torque (Nm): 220
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4800
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Front
Limited Slip Differential
Location: Front
Front Type: Electronic
Transmission
Automatic Mode: yes
Description: Dual Clutch Sequential Trans (Dct)
Manual Sequential: yes
Number of Speeds: 7
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Electro-Hydraulic
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Alternate Suspension
Type: Heavy Duty
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 94
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Load Index: 94
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.0
Cargo Area Dimensions
Cargo Volume (cu ft): 139.5
Cargo Volume (L): 3950
Height (in): 48.8
Height (mm): 1190
Length (in): 71.8
Length (mm): 1823
Loading Floor Height (in): 22.9
Loading Floor Height (mm): 581
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 46.0
Width Between Wheelhouses (mm): 1168
Width (in): 46.9
Width (mm): 1190
External Dimensions
Kerb to Kerb Turning Circle (mm): 12200
Front Overhang (in): 34.6
Front Overhang (mm): 879
Front Track (in): 60.5
Front Track (mm): 1537
Ground Clearance Unladen (in): 7.4
Ground Clearance Unladen (mm): 187
Kerb To Kerb Turning Circle (ft): 40.0
Overall Height (in): 72.1
Overall Height (mm): 1831
Overall Length (in): 192.0
Overall Length (mm): 4878
Overall Width (in): 70.6
Overall Width (mm): 1793
Rear Overhang (in): 39.1
Rear Overhang (mm): 993
Rear Track (in): 60.8
Rear Track (mm): 1544
Wheelbase (in): 118.3
Wheelbase (mm): 3006
Ramp Angles
Approach Angle: 15.9
Departure Angle: 15.3
Body Style
Body Type: Combi
Local Body Type: Combi
Platform Code: MQB
Roof Type: Standard
Wheelbase Type: Long
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Doors
Driver Height (in): 42.7
Driver Height (mm): 1084
Driver Location: Driver
Driver Operation: Sliding
Driver Width (in): 27.6
Driver Width (mm): 701
Passenger Height (in): 42.7
Passenger Height (mm): 1084
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 27.6
Passenger Width (mm): 701
Rear Height (in): 44.6
Rear Height (mm): 1134
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Rear Width (in): 46.6
Rear Width (mm): 1183
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Sliding
Location: Rear Passenger
Rear Passenger Door Type: Sliding
Headlight Control
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
LED Lights
Location: Day Time Running Lights
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Driver Type: Sliding
Location: Passenger
Passenger Type: Sliding
Third Row Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1150
Front Axle Weight (lb): 2535
Gross Trailer Weight Braked (kg): 0
Gross Trailer Weight Braked (lb): 0
Gross Trailer Weight Unbraked (kg): 0
Gross Trailer Weight Unbraked (lb): 0
Gross Vehicle Weight (kg): 2249
Gross Vehicle Weight (lb): 4958
Payload Allowance (kg): 725
Payload Allowance (lb): 1598
Published Kerb Weight (kg): 1524
Published Kerb Weight (lb): 3360
Rear Axle Weight (kg): 1250
Rear Axle Weight (lb): 2756
Tare Weight (kg): 1490
Antenna
Type: Element
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
Digital Media Card: yes
In-Dash CD: yes
Radio Type: Am/Fm
RDS: yes
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 5.0
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Number of Screens: 1
Number of Screens: 1
Screen Size (in): 6.3
Touch Screen: yes
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 4
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Lane Departure Warning
Activates Steering: yes
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Front Head Protection: yes
Location: Front
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Height Adjustment: yes
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
