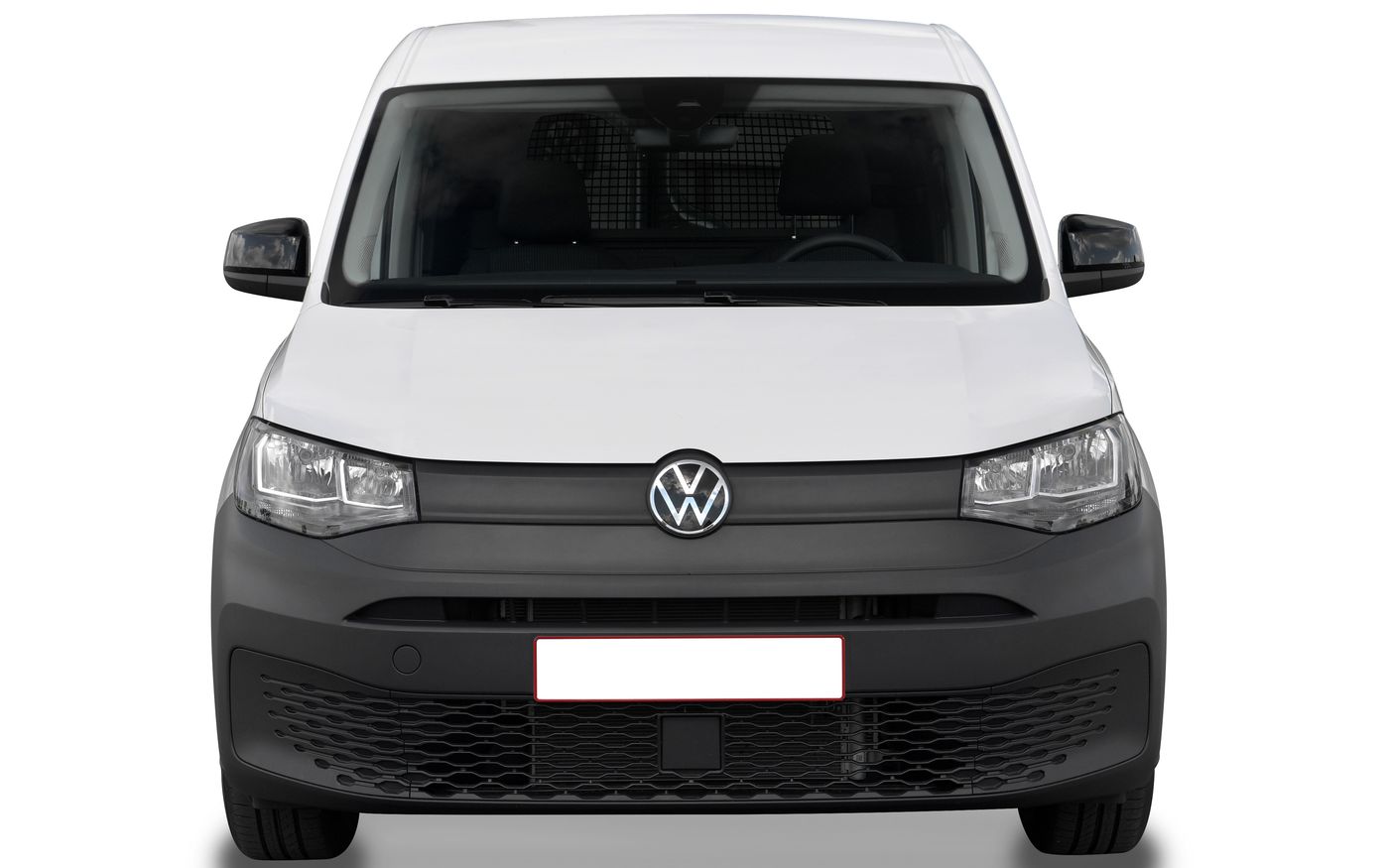

Volkswagen Caddy Maxi Crewvan (2023) price & specs
Save $$$ with CarExpert*
From
$48,490†
Maxi Crewvan
Overview
The 2023 Volkswagen Caddy Maxi Crewvan is a front-wheel drive, 5-door Combi that was released to the Australian market on 7th January 2023. The Volkswagen Caddy is regarded as a Van Under 3.5t built in Poland with prices starting at $48,490 before on-road costs.
This Volkswagen Caddy is powered by a 2.0L 4-cylinder engine that has 90 kW of power (at 4250 rpm) and 320 Nm of torque (at 1500 rpm) via a Seven-speed Automatic transmission. Volkswagen claims the Caddy Maxi Crewvan uses 4.9L/100km of Diesel in the combined city and highway cycle while putting out 129g of CO2. It has a 50L fuel tank, meaning it should be able to travel 1020km per full tank
The Volkswagen Caddy measures 1860mm (73.2 inches) in height, 4853mm (191.1 inches) in length, 1855mm (73.0 inches) in width with a 2970mm (116.9 inches) wheelbase that brings about a total of 1700kg (3747.9 lbs) of unladen weight. The Caddy Maxi Crewvan comes standard with 215/55 R17 front tyres and 215/55 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2023 Volkswagen Caddy Maxi Crewvan has a 143mm ground clearance with a 1500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Caddy compare?
Quickly see how the 2023 Volkswagen Caddy Maxi Crewvan stacks up against its competition.
Select any benchmark to see more details.
Power to Weight
47.89 - 58.98 kW/t
36.67 kW/t
79.43 kW/t
Fuel Efficiency
4.9 - 6.4 L/100km
4.9 L/100km
8.4 L/100km
Vehicle Range
781 - 1,020 km
781 km
1,231 km
Price
$36,990 - $50,090
$30,041
$127,018
Warranty (Years)
5 years
5 years
Warranty (Distance)
Unlimited
160,000 km
Unlimited
Years on Sale
4 - 5 years
1 year
6 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,150 - 2,450 kg
1,940 kg
3,500 kg
Braked Towing Capacity
1,400 - 1,500 kg
750 kg
2,500 kg
Ground Clearance Unladen
143 - 160 mm
143 mm
202 mm
Payload Capacity
692 - 754 kg
629 kg
1,353 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,853 mm
1,855 mm
inc mirror: 2,100 mm
inc mirror: 2,100 mm
1,860 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,853 mm |
| Overall Width | 1,855 mm |
| Overall Width (Inc Mirror) | 2,100 mm |
| Overall Height | 1,860 mm |
| Wheelbase | 2,970 mm |
| Turning Circle | 12,100 mm |
| Load Capacity | 750 mm |
Looking for complete Volkswagen Caddy size & space specs?
Our Volkswagen Caddy Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Volkswagen Caddy Sales rolling 12-months#
Explore Volkswagen Caddy Features & Specs
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 129
Standard Met: EU6
Energy Recuperation
Engine: yes
Engine
Bore Engine: 81.0
Engine (cc): 1968
Engine Configuration: In-Line
Engine (L): 2.0
Number of Cylinders: 4
Stroke Engine: 95.5
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 13.2
Main Capacity (L): 50
Main Capacity Uk Gallons: 11.0
Main Type: Total
Interested in buying a Volkswagen Caddy Maxi Crewvan?
Save $$$ with CarExpert*
From
$48,490†
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 8.30
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 10.30
Instrument Cluster
Type: Lcd Screen
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1020
ADR 81/02 Calculated Vehicle Range (miles): 634
ADR 81/02 Combined (km/L): 20.4
ADR 81/02 Combined (L/100km): 4.9
ADR 81/02 Combined (miles per UK gallon): 58
ADR 81/02 Combined (mpg): 48
ADR 81/02 Country Highway (km/L): 22.7
ADR 81/02 Country Highway (L/100km): 4.4
ADR 81/02 Country Highway (miles per UK gallon): 64
ADR 81/02 Country Highway (mpg): 53
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 17.2
ADR 81/02 Urban (L/100km): 5.8
ADR 81/02 Urban (miles per UK gallon): 49
ADR 81/02 Urban (mpg): 41
Fuel Economy
ADR 81/02 (L/100km): 4.9
Power
Maximum Power (hp/PS): 122
Maximum Power (kW): 90
Maximum Torque (Nm): 320
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4250
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Front
Limited Slip Differential
Location: Front
Front Type: Electronic
Transmission
Code: Mq381-7f
Description: Dual Clutch Sequential Trans (Dct)
Manual Mode: yes
Manual Sequential: yes
Number of Speeds: 7
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Diameter: 17
Front Wheels Tire Load Index: 98
Location: Front
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Diameter: 17
Rear Wheels Tire Load Index: 98
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Combi
Local Body Type: Combi
Platform Code: MQB
Roof Type: Standard
Wheelbase Type: Long
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 109.7
Cargo Volume (L): 3105
Height (in): 47.7
Height (mm): 1616
Length (in): 89.2
Length (mm): 2265
Loading Floor Height (in): 22.2
Loading Floor Height (mm): 563
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 46.7
Width Between Wheelhouses (mm): 1185
Width (in): 63.6
Width (mm): 1616
External Dimensions
Kerb to Kerb Turning Circle (mm): 12100
Front Overhang (in): 35.0
Front Overhang (mm): 890
Ground Clearance Unladen (in): 5.6
Ground Clearance Unladen (mm): 143
Kerb To Kerb Turning Circle (ft): 39.7
Overall Height (in): 73.2
Overall Height (mm): 1860
Overall Length (in): 191.1
Overall Length (mm): 4853
Overall Width (in): 73.0
Overall Width Inc Mirror (in): 82.7
Overall Width Inc Mirror (mm): 2100
Overall Width (mm): 1855
Rear Overhang (in): 39.1
Rear Overhang (mm): 993
Wheelbase (in): 116.9
Wheelbase (mm): 2970
Cargo Doors
Driver Height (in): 42.2
Driver Height (mm): 1072
Driver Location: Driver
Driver Opening Angle: 0
Driver Operation: Sliding
Driver Width (in): 33.2
Driver Width (mm): 844
Passenger Height (in): 42.2
Passenger Height (mm): 1072
Location: Passenger
Passenger Opening Angle: 0
Passenger Operation: Sliding
Passenger Width (in): 33.2
Passenger Width (mm): 844
Rear Height (in): 43.2
Rear Height (mm): 1098
Location: Rear
Rear Opening Angle: 90
Rear Operation: Double Hinged
Rear Width (in): 46.7
Rear Width (mm): 1185
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Rear Driver Auxiliary Door Shut: yes
Location: Rear Driver
Rear Driver Door Type: Sliding
Rear Passenger Auxiliary Door Shut: yes
Location: Rear Passenger
Rear Passenger Door Type: Sliding
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Roof Rails
Colour: Black
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Toned
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Toned
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Privacy Glass
Location: Rear
Location: Rear Side
Rear Side Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 1220
Front Axle Weight (lb): 2690
Gross Trailer Weight Braked (kg): 1500
Gross Trailer Weight Braked (lb): 3307
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2450
Gross Vehicle Weight (lb): 5401
Payload Allowance (kg): 750
Payload Allowance (lb): 1653
Payload Inc Driver (kg): 750
Payload Inc Driver (lb): 1653
Published Kerb Weight (kg): 1700
Published Kerb Weight (lb): 3748
Rear Axle Weight (kg): 1150
Rear Axle Weight (lb): 2535
Tare Weight (kg): 1666
Trailer Noseweight (kg): 75
Audio System
Colour Screen: yes
Radio Type: FM
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 2
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink: yes
Mirrorlink Months Subscription Included: Unlimited
Other Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Semi-Auto Park, Perpendicular & Exit
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
USB Charging Port
Location: Front
Number of Ports in Front: 2
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Floor Covering
Vehicle Cab Compartment: Textile
Load Area Side Covering
Exposed Metal: Partial
Type: Plastic/Rubber
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
Level: 1 - Driver Assistance
Crash Test Results
ANCAP Adult Occupant Score: 84.0
ANCAP Child Occupant Score: 87.0
ANCAP Date Tested: 20221201
ANCAP Overall: 5.0
ANCAP Pedestrian Score: 69.0
ANCAP Rating Year: 2021
ANCAP Safety Assist Score: 76.0
ANCAP Standard: Ancap
ANCAP Version Tested: 2.0 Litre Diesel Mpv Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Electric
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Electric
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Manual
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Power Locks
Includes Trunk Hatch: yes
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
† Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
