Overview

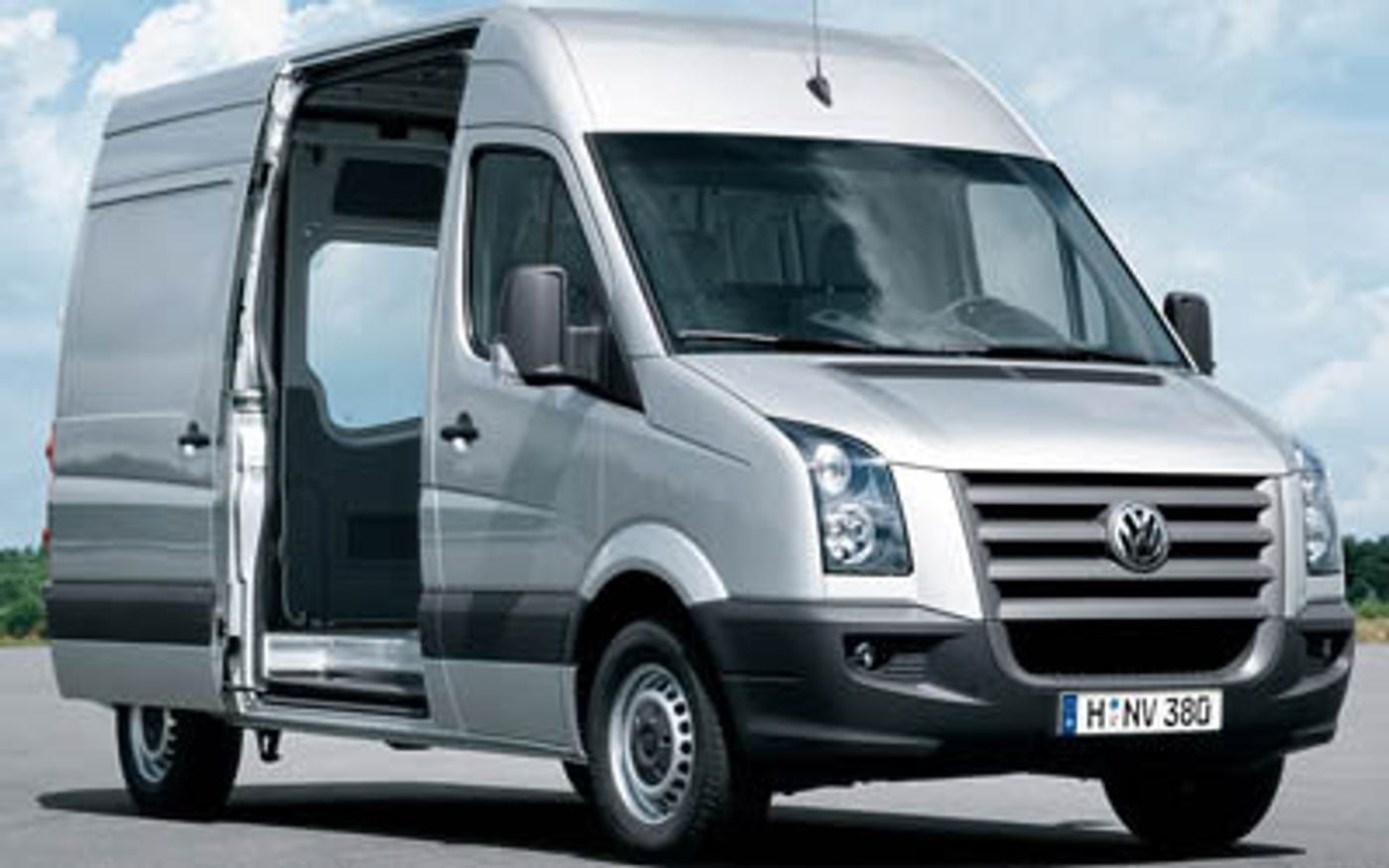

The 2009 Volkswagen Crafter Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 4th January 1970. The Volkswagen Crafter is regarded as a Van Over 3.5t built in Germany with prices starting at $58,690 before on-road costs.
This Volkswagen Crafter is powered by a 2.5L 4-cylinder engine that has 120 kW of power (at 3500 rpm) and 350 Nm of torque (at 2000 rpm) via a Six-speed Manual transmission. It has a 75L fuel tank
The Volkswagen Crafter measures 2940mm (115.7 inches) in height, 7340mm (289.0 inches) in length, 1993mm (78.5 inches) in width with a 4325mm (170.3 inches) wheelbase that brings about a total of 2280kg (5026.5 lbs) of unladen weight. The Crafter Base comes standard with 225/75 R16 front tyres and 225/75 R16 rear tyres. It has a 36 month, 200,000 km warranty.
The 2009 Volkswagen Crafter Base has a 176mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Towing & Off-Road Capability
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | In-Line |
|---|---|
| Size (cc) | 2461 |
| Size (L) | 2.5L |
| Cylinders | 4 |
| Camshaft | - |
| Valves/Ports per Cylinder | - |
| Power | 120kW |
| Power RPM | 3500 |
| Torque | 350Nm |
| Torque RPM | 2000 |
| Bore Stroke | - |
| Compression Ratio | 16.8 |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 75 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | - |
|---|---|
| Brake Rear | - |
| Tyre Front | 225/75 R16 |
| Tyre Rear | 225/75 R16 |
| Front Rim Size | - |
| Rear Rim Size | - |
| Vehicle Height (mm) | 2940 |
|---|---|
| Vehicle Length (mm) | 7340 |
| Vehicle Width (mm) | 1993 |
| Ground Clearance (mm) | 176 |
| Wheelbase (mm) | 4325 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 2280 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 3550 |
| Track Front (mm) | 1710 |
| Track Rear (mm) | 1716 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Germany |
|---|---|
| Number of Doors | 4 |
| Seats | 2 |
| Service Interval KMs | 30000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 200 |
| Warranty Months | 36 |
| Discontinued Date | 2009-06-21 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
