Base
2.5L, 6-speed manual, 4-door Cab Chassis, Diesel, RWD
Save $$$ with CarExpert*
$56,450â€

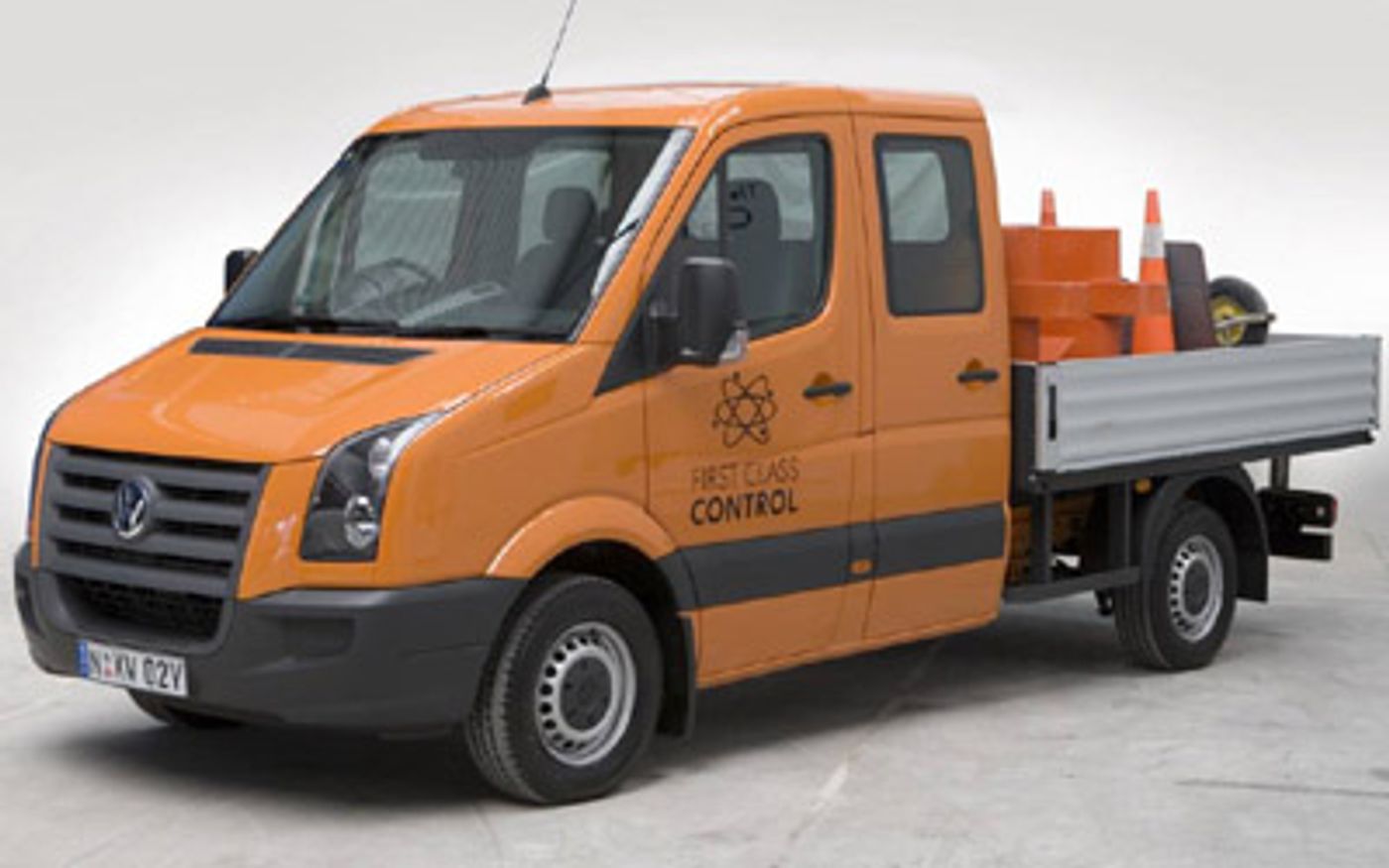

Volkswagen Crafter Base (2011) price & specs
Save $$$ with CarExpert*
From
$56,450â€
Base
Overview
The 2011 Volkswagen Crafter Base is a rear-wheel drive, 4-door Cab Chassis that was released to the Australian market on 4th January 1970. The Volkswagen Crafter is regarded as a Van Over 3.5t built in Germany with prices starting at $56,450 before on-road costs.
This Volkswagen Crafter is powered by a 2.5L 5-cylinder engine that has 120 kW of power (at 3500 rpm) and 350 Nm of torque (at 2000 rpm) via a Six-speed Manual transmission. It has a 75L fuel tank
The Volkswagen Crafter measures 2385mm (93.9 inches) in height, 6842mm (269.4 inches) in length, 1990mm (78.3 inches) in width with a 4325mm (170.3 inches) wheelbase that brings about a total of 2183kg (4812.7 lbs) of unladen weight. The Crafter Base comes standard with 195/75 R16 front tyres and 195/75 R16 rear tyres. It has a 36 month, 200,000 km warranty.
The 2011 Volkswagen Crafter Base has a 176mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Crafter compare?
Quickly see how the 2011 Volkswagen Crafter Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
33.9 - 55.53 kW/t
33.9 kW/t
66.67 kW/t
Price
$40,600 - $66,240
$40,600
$93,690
Warranty (Years)
3 years
3 years
Warranty (Distance)
200,000 km - Unlimited
200,000 km
Unlimited
Years on Sale
1 - 8 years
1 year
5 years
Towing & Off-Road Capability
Gross Vehicle Weight
3,550 - 4,490 kg
3,550 kg
5,000 kg
Gross Comb. Mass
5,500 - 6,490 kg
5,500 kg
6,490 kg
Braked Towing Capacity
2,000 kg
2,000 kg
Ground Clearance Unladen
176 mm
176 mm
Payload Capacity
1,137 - 2,355 kg
1,018 kg
2,955 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
6,842 mm
1,990 mm
2,385 mm
| Specification | Measurement |
|---|---|
| Overall Length | 6,842 mm |
| Overall Width | 1,990 mm |
| Overall Height | 2,385 mm |
| Wheelbase | 4,325 mm |
| Load Capacity | 2,307 mm |
Looking for complete Volkswagen Crafter size & space specs?
Our Volkswagen Crafter Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Volkswagen Crafter Sales rolling 12-months#
Explore Volkswagen Crafter Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Standard Met: EU4
Engine
Bore Engine: 81.0
Engine (cc): 2459
Engine Configuration: In-Line
Engine (L): 2.5
Number of Cylinders: 5
Number of Valves per Cylinder: 2
Stroke Engine: 95.5
Valve Gear Type: Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 19.8
Main Capacity (L): 75
Main Capacity Uk Gallons: 16.5
Main Fuel Type: Diesel
Main Type: Total
Computer
Average Fuel Consumption: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Power
Maximum Power (hp/PS): 163
Maximum Power (kW): 120
Maximum Torque (Nm): 350
Measurement Standard: EEC
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 2000
Drive
Driven Wheels: Rear
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Manual
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Type: Plastic
Alternate Suspension
Type: Heavy Duty
Suspension
Location: Front
Front Spring Type: Leaf
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 195
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 195
Wheels
Front Covers: Partial
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 5.5
Rear Axle Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 5.5
Body Style
Body Type: Cab Chassis
Cab Type: Double Cab
Local Body Type: Cab Chassis
Roof Type: Standard
Wheelbase Type: Long
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Plastic
Front Bumper Type: Integrated
Rear Bumper Colour: Painted
Location: Rear
Rear Bumper Material: Plastic
Rear Bumper Type: Integrated
External Dimensions
Front Overhang (in): 39.4
Front Overhang (mm): 1000
Front Track (in): 67.2
Front Track (mm): 1708
Ground Clearance Unladen (in): 6.9
Ground Clearance Unladen (mm): 176
Overall Height (in): 93.9
Overall Height (mm): 2385
Overall Length (in): 269.4
Overall Length (mm): 6842
Overall Width (in): 78.3
Overall Width (mm): 1990
Rear Overhang (in): 67.3
Rear Overhang (mm): 1709
Rear Track (in): 59.9
Rear Track (mm): 1521
Wall to Wall Turning Circle (ft): 51.2
Wall to Wall Turning Circle (mm): 15600
Wheelbase (in): 170.3
Wheelbase (mm): 4325
Headlight Control
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Paint
External Colour: Green
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Location: Passenger
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 2000
Front Axle Weight (lb): 4409
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 4490
Gross Vehicle Weight (lb): 9899
Payload Allowance (kg): 2307
Payload Allowance (lb): 5086
Published Kerb Weight (kg): 2183
Published Kerb Weight (lb): 4813
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Power Outlet 12V
Location (12V): Front
Number of Outlets in Front (12V): 2
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 4
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Height Adjustment: yes
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bucket
Front Seat Center Armrest
Center Front Seat Armrest Folding: yes
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 6
Configuration: 2+4
Cup Holders
Location: Front Seats
Air Conditioning
Type: Semi-Auto
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 30000
Distance (miles): 18641
