Base
2.0L, 6-speed manual, 2-door Cab Chassis, Diesel, RWD
Save $$$ with CarExpert*
$40,600â€

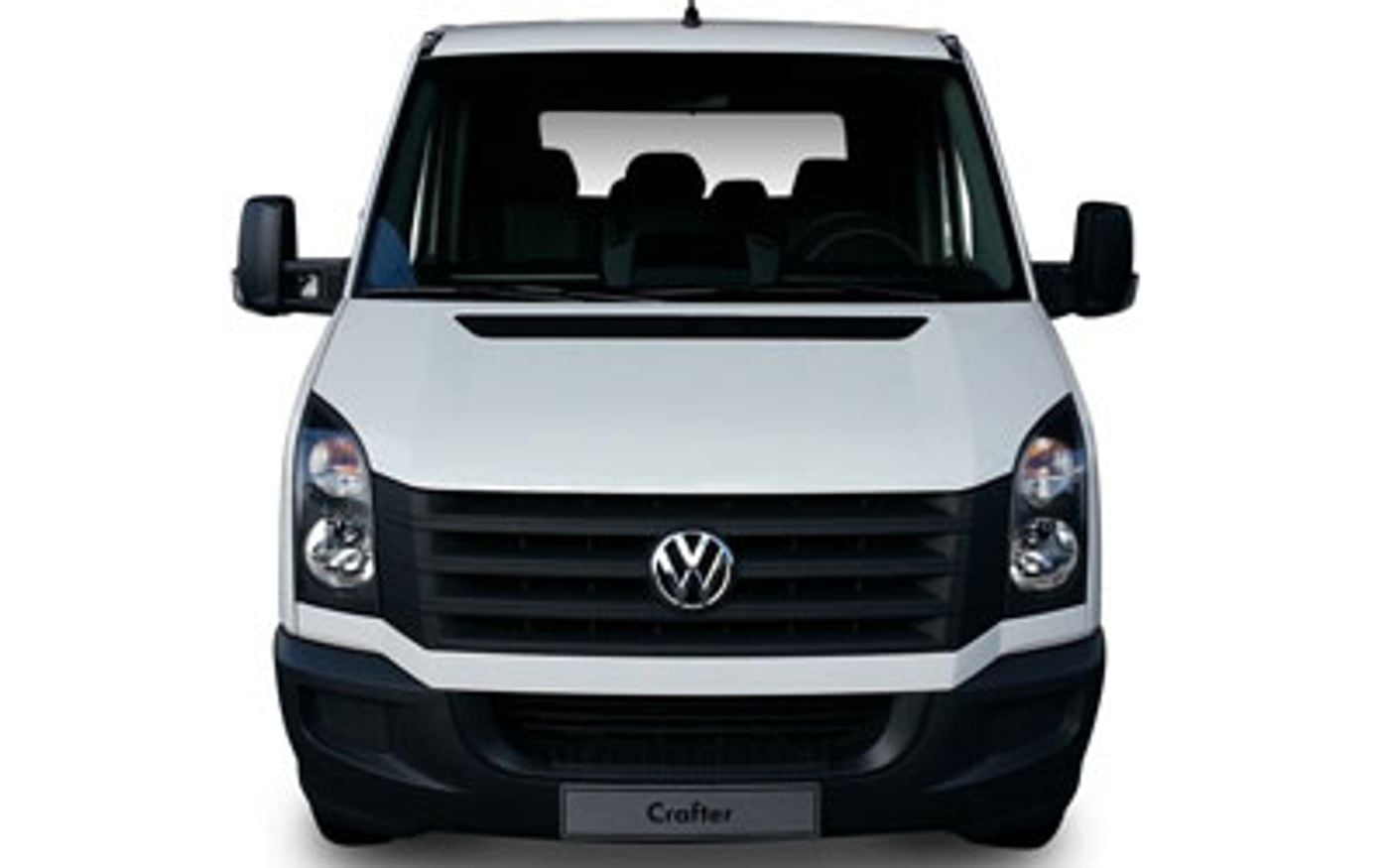

Volkswagen Crafter Base (2016) price & specs
Save $$$ with CarExpert*
From
$40,600â€
Base
Overview
The 2016 Volkswagen Crafter Base is a rear-wheel drive, 2-door Cab Chassis that was released to the Australian market on 2nd September 2015. The Volkswagen Crafter is regarded as a Van Over 3.5t built in Germany with prices starting at $40,600 before on-road costs.
This Volkswagen Crafter is powered by a 2.0L 4-cylinder engine that has 80 kW of power (at 3500 rpm) and 300 Nm of torque (at 1500 rpm) via a Six-speed Manual transmission. It has a 75L fuel tank
The Volkswagen Crafter measures 2345mm (92.3 inches) in height, 5865mm (230.9 inches) in length, 1990mm (78.3 inches) in width with a 3665mm (144.3 inches) wheelbase that brings about a total of 1788kg (3941.9 lbs) of unladen weight. The Crafter Base comes standard with 235/65 R16 front tyres and 235/65 R16 rear tyres. It requires a service every 12 months or 30,000 km, whichever comes first. It has a 36 month, unlimited km warranty.
The 2016 Volkswagen Crafter Base has a 176mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Crafter compare?
Quickly see how the 2016 Volkswagen Crafter Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
35.12 - 58.72 kW/t
35.12 kW/t
75 kW/t
Price
$40,600 - $66,140
$38,990
$66,140
Warranty (Years)
3 years
3 years
Warranty (Distance)
Unlimited
200,000 km
Unlimited
Years on Sale
1 - 8 years
1 year
5 years
Service Interval
12 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,550 - 5,000 kg
3,510 kg
5,000 kg
Braked Towing Capacity
2,000 kg
2,000 kg
3,000 kg
Ground Clearance Unladen
176 mm
166 mm
219 mm
Payload Capacity
1,226 - 2,916 kg
1,226 kg
2,916 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,865 mm
1,990 mm
2,345 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,865 mm |
| Overall Width | 1,990 mm |
| Overall Height | 2,345 mm |
| Wheelbase | 3,665 mm |
| Turning Circle | 13,500 mm |
| Load Capacity | 1,762 mm |
Looking for complete Volkswagen Crafter size & space specs?
Our Volkswagen Crafter Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Volkswagen Crafter Sales rolling 12-months#
Explore Volkswagen Crafter Features & Specs
Auxiliary Power Take Off
Transmission Location: Transmission
Compressor
Compressor: Turbo
Emission Control Level
Standard Met: EU5
Engine
Bore Engine: 81.0
Engine (cc): 1968
Engine Configuration: In-Line
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 95.5
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 19.8
Main Capacity (L): 75
Main Capacity Uk Gallons: 16.5
Main Fuel Type: Diesel
Main Type: Total
Computer
Average Fuel Consumption: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Power
Maximum Power (hp/PS): 109
Maximum Power (kW): 80
Maximum Torque (Nm): 300
Measurement Standard: EEC
Rpm For Maximum Power Low: 3500
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Rear
Limited Slip Differential
Location: Rear
Rear Type: Electronic
Transmission
Description: Manual
Number of Speeds: 6
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Plastic
Alternate Suspension
Type: Heavy Duty
Suspension
Location: Front
Front Spring Type: Leaf
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Diameter: 17
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Diameter: 17
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Local Body Type: Cab Chassis
Platform Code: Ncv3
Roof Type: Standard
Wheelbase Type: Medium
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Plastic
Front Bumper Type: Integrated
Rear Bumper Colour: Painted
Location: Rear
Rear Bumper Material: Plastic
Rear Bumper Type: Integrated
External Dimensions
Kerb to Kerb Turning Circle (mm): 13500
Front Overhang (in): 39.4
Front Overhang (mm): 1000
Front Track (in): 67.3
Front Track (mm): 1710
Ground Clearance Unladen (in): 6.9
Ground Clearance Unladen (mm): 176
Kerb To Kerb Turning Circle (ft): 44.3
Overall Height (in): 92.3
Overall Height (mm): 2345
Overall Length (in): 230.9
Overall Length (mm): 5865
Overall Width (in): 78.3
Overall Width (mm): 1990
Rear Overhang (in): 53.5
Rear Overhang (mm): 1359
Rear Track (in): 67.6
Rear Track (mm): 1716
Wheelbase (in): 144.3
Wheelbase (mm): 3665
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
External Colour: Blue
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 3550
Gross Vehicle Weight (lb): 7826
Payload Allowance (kg): 1762
Payload Allowance (lb): 3885
Published Kerb Weight (kg): 1788
Published Kerb Weight (lb): 3942
Tare Weight (kg): 1733
Audio System
Digital Media Card: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 2
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Passenger Assist Handles
Number of Handles: 2
Power Outlet 12V
Location (12V): Front
Number of Outlets in Front (12V): 2
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Airbags
Number of Airbags: 2
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Swivelling: yes
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Swivelling: yes
Passenger Front Seat Type: Bucket
Front Seat Center Armrest
Center Front Seat Armrest Folding: yes
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 2
Configuration: 2+0
Cup Holders
Location: Front Seats
Air Conditioning
Type: Semi-Auto
Anti-Theft Protection
Remote Operation: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 30000
Distance (miles): 18641
Period (Months): 12
