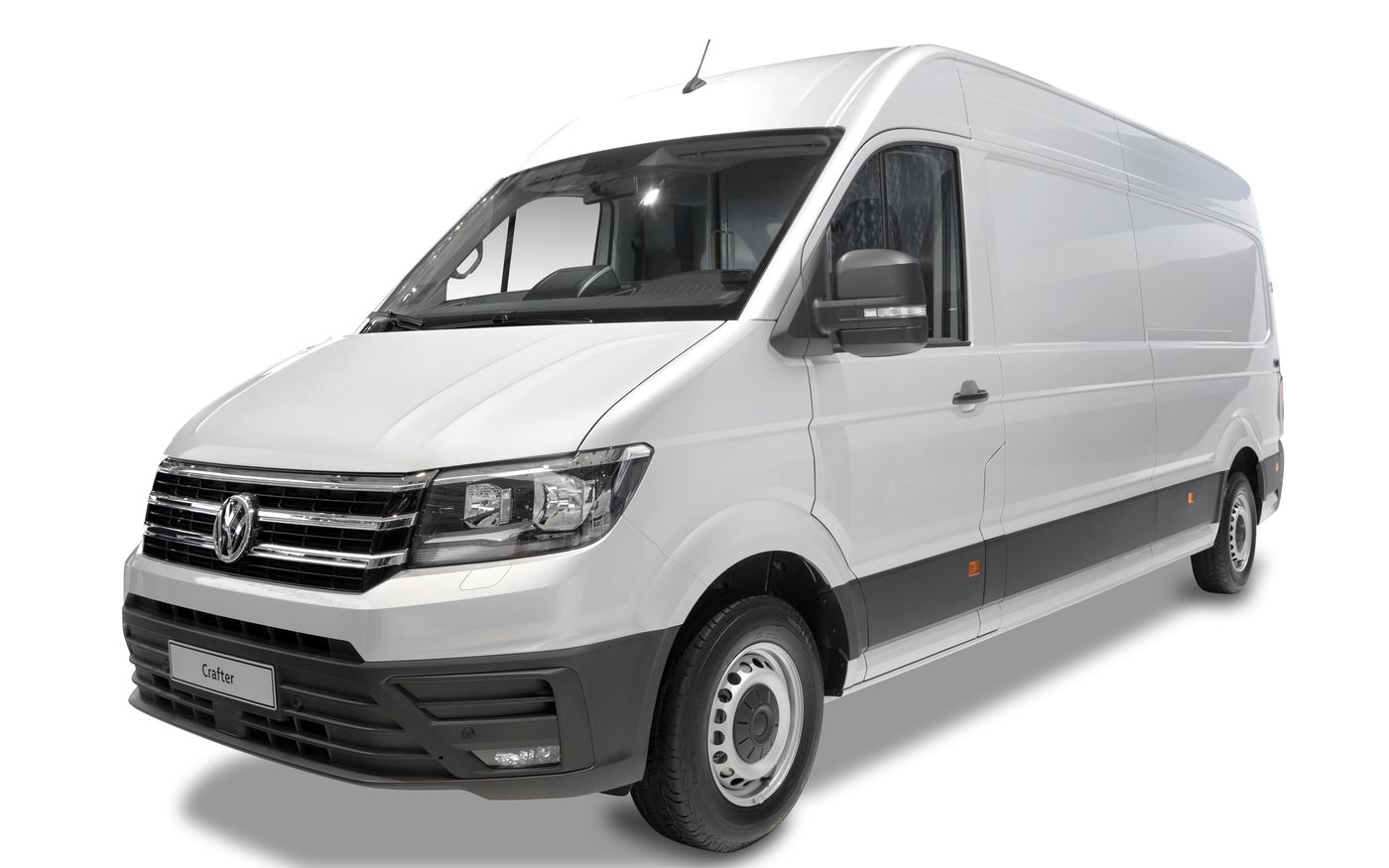

Volkswagen Crafter Base (2022) price & specs
Save $$$ with CarExpert*
From
$64,480â€
Base
Overview
The 2022 Volkswagen Crafter Base is a four-wheel drive, 4-door Panel Van that was released to the Australian market on 4th July 2021 classified as a SY1. The Volkswagen Crafter is regarded as a Van Over 3.5t built in Poland with prices starting at $64,480 before on-road costs.
This Volkswagen Crafter is powered by a 2.0L 4-cylinder engine that has 130 kW of power (at 3600 rpm) and 410 Nm of torque (at 2000 rpm) via an Eight-speed Automatic transmission. It has a 75L fuel tank
The Volkswagen Crafter measures 2590mm (102.0 inches) in height, 5986mm (235.7 inches) in length, 2040mm (80.3 inches) in width with a 3640mm (143.3 inches) wheelbase that brings about a total of 2315kg (5103.7 lbs) of unladen weight. The Crafter Base comes standard with 235/65 R16 front tyres and 235/65 R16 rear tyres. It requires a service every 12 months or 20,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2022 Volkswagen Crafter Base has a 195mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Crafter compare?
Quickly see how the 2022 Volkswagen Crafter Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
39.88 - 68.24 kW/t
38.22 kW/t
68.24 kW/t
Price
$50,890 - $80,730
$47,090
$99,962
Warranty (Years)
5 years
3 years
5 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
1 - 8 years
1 year
5 years
Service Interval
12 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,550 - 5,500 kg
3,500 kg
7,000 kg
Braked Towing Capacity
2,500 - 3,500 kg
1,700 kg
3,500 kg
Ground Clearance Unladen
195 - 210 mm
143 mm
231 mm
Payload Capacity
988 - 3,523 kg
911 kg
4,032 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,986 mm
2,040 mm
inc mirror: 2,427 mm
inc mirror: 2,427 mm
2,590 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,986 mm |
| Overall Width | 2,040 mm |
| Overall Width (Inc Mirror) | 2,427 mm |
| Overall Height | 2,590 mm |
| Wheelbase | 3,640 mm |
| Load Capacity | 1,235 mm |
Looking for complete Volkswagen Crafter size & space specs?
Our Volkswagen Crafter Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Volkswagen Crafter Sales rolling 12-months#
Explore Volkswagen Crafter Features & Specs
Compressor
Compressor: Turbo
Number of Compressors: 2
Electrical System
Voltage: 12
Emission Control Level
Standard Met: EU6
Energy Recuperation
Engine: yes
Engine
Bore Engine: 81.0
Engine (cc): 1968
Engine Configuration: In-Line
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 95.5
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 19.8
Main Capacity (L): 75
Main Capacity Uk Gallons: 16.5
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 6.5
Dashboard Centre 1 Touch Screen: yes
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Rim Mounted Sensor: yes
Power
Maximum Power (hp/PS): 177
Maximum Power (kW): 130
Maximum Torque (Nm): 410
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 2000
Differential Lock
Location: Rear
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Transmission
Description: Automatic
Number of Speeds: 8
Shift Lever Location: Dash
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Plastic
Alternate Suspension
Type: Heavy Duty
Suspension
Location: Front
Front Spring Type: Leaf
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 115
Location: Front
Front Wheels Tire Low Rolling Resistance: yes
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: R
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 115
Rear Wheels Tire Location: Rear
Rear Wheels Tire Low Rolling Resistance: yes
Rear Wheels Tire Profile: 65
Rear Wheels Tire Speed Rating: R
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 6.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: Panel Van
Cab Type: Single Cab
Local Body Type: Panel Van
Platform Code: Lt/T1n
Roof Type: High
Wheelbase Type: Medium
Mud Flaps
Front Mud Flaps Location: Front
Rear Mud Flaps Location: Rear
Bumpers
Front Bumper Colour: Black
Location: Front
Rear Bumper Colour: Black
Location: Rear
Cargo Area Dimensions
Cargo Volume (cu ft): 377.9
Cargo Volume (L): 10700
Height (in): 73.3
Height (mm): 1832
Length (in): 135.8
Length (mm): 3450
Loading Floor Height (in): 26.4
Loading Floor Height (mm): 670
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 54.3
Width Between Wheelhouses (mm): 1380
Width (in): 72.1
Width (mm): 1832
External Dimensions
Ground Clearance Unladen (in): 7.7
Ground Clearance Unladen (mm): 195
Overall Height (in): 102.0
Overall Height (mm): 2590
Overall Length (in): 235.7
Overall Length (mm): 5986
Overall Width (in): 80.3
Overall Width Inc Mirror (in): 95.6
Overall Width Inc Mirror (mm): 2427
Overall Width (mm): 2040
Rear Overhang (in): 53.0
Rear Overhang (mm): 1346
Wall to Wall Turning Circle (ft): 44.6
Wall to Wall Turning Circle (mm): 13600
Wheelbase (in): 143.3
Wheelbase (mm): 3640
Cargo Doors
Driver Internal Handles: yes
Driver Location: Driver
Driver Opening Angle: 0
Driver Operation: Sliding
Passenger Height (in): 67.8
Passenger Height (mm): 1722
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 51.6
Passenger Width (mm): 1311
Rear Height (in): 68.5
Rear Height (mm): 1740
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Rear Width (in): 61.1
Rear Width (mm): 1552
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Headlight Control
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
LED Lights
Location: Day Time Running Lights
Paint
External Colour: red
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Driver Type: Sliding
Location: Passenger
Passenger Type: Fixed
Third Row Windows
Location: Driver
Driver Type: Fixed
Tinted Glass
Location: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Front Axle Weight (kg): 2100
Front Axle Weight (lb): 4630
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 3550
Gross Vehicle Weight (lb): 7826
Payload Allowance (kg): 1235
Payload Allowance (lb): 2722
Payload Inc Driver (kg): 1235
Payload Inc Driver (lb): 2722
Published Kerb Weight (kg): 2315
Published Kerb Weight (lb): 5104
Tare Weight (kg): 2260
Trailer Noseweight (kg): 150
Audio System
Colour Screen: yes
Digital Media Card: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 2
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Bulkhead
Solid Bulkhead Height: Full
Type: Solid
Solid Bulkhead Width: Full
Solid Bulkhead Window: yes
Load Restraint
Sliding Anchorage Points: yes
Type: Luggage Bar
Overall Bulkhead Size
Full Height: yes
Full Width: yes
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink: yes
Mirrorlink Months Subscription Included: Unlimited
Other Months Subscription Included: 0
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Reading Lights
Location: Front
USB Charging Port
Location: Front
Number of Ports in Front: 2
Floor Covering
Load Area: Wood
Vehicle Cab Compartment: Plastic/Rubber
Load Area Side Covering
Type: Board
Airbags
Number of Airbags: 6
Front Airbag
Location: Driver
Location: Passenger
Front Cross Traffic Collision Avoidance
Type: Sensor
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Lumbar Type: 2-Way Electric
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Seat Suspension: Mechanical
Driver Front Seat Type: Captains
Passenger Front Seat Height Adjustment: yes
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Type: Bench
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 3
Configuration: 3+0
Console
Overhead Location: Overhead
Overhead Storage: Open
Overhead Type: Full
Cup Holders
Location: Front Seats
Air Conditioning
Type: Semi-Auto
Ventilation System
Micro Filter: yes
Anti-Theft Protection
Anti-Lift: yes
Interior Monitoring: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 20000
Distance (miles): 12427
Period (Months): 12
