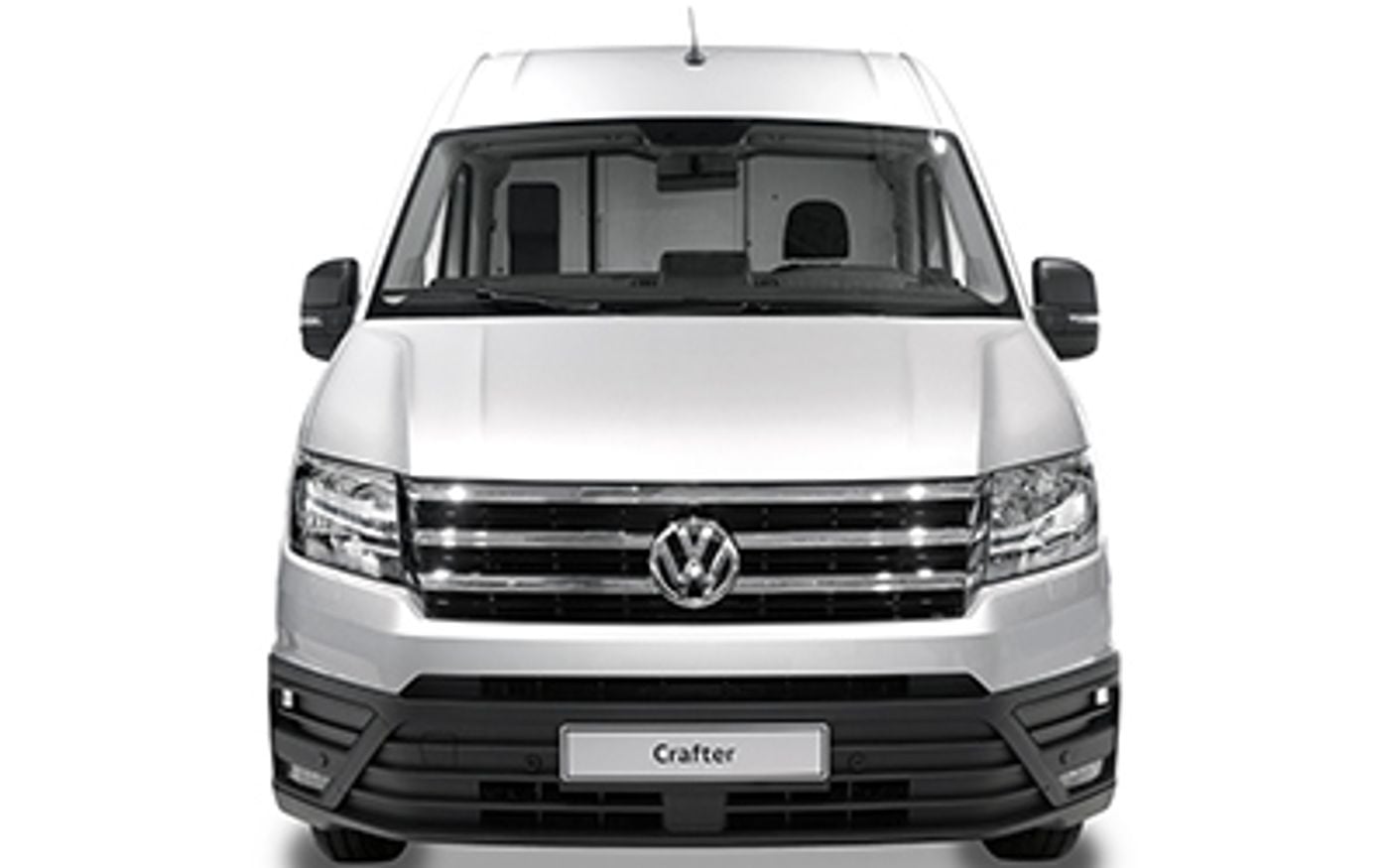

Volkswagen Crafter Base (2025) price & specs
Save $$$ with CarExpert*
From
$168,990â€
Base
Overview
The 2025 Volkswagen Crafter Base is a four-wheel drive, 4-door Campervan that was released to the Australian market on 6th March 2025. with prices starting at $168,990 before on-road costs.
This Volkswagen Crafter is powered by a 2.0L 4-cylinder engine that has 130 kW of power (at 3600 rpm) and 410 Nm of torque (at 1500 rpm) via an Eight-speed Automatic transmission. It has a 75L fuel tank
The Volkswagen Crafter measures 2850mm (112.2 inches) in height, 6836mm (269.1 inches) in length, 2040mm (80.3 inches) in width with a 4490mm (176.8 inches) wheelbase that brings about a total of 3600kg (7936.6 lbs) of unladen weight. The Crafter Base comes standard with 235/60 R17 front tyres and 235/60 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Crafter compare?
Quickly see how the 2025 Volkswagen Crafter Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
44.61 - 74.63 kW/t
38.22 kW/t
74.63 kW/t
Fuel Efficiency
7.6 - 9 L/100km
7.6 L/100km
9 L/100km
Vehicle Range
833 - 987 km
833 km
1,205 km
Price
$68,100 - $93,545
$55,200
$121,593
Warranty (Years)
5 years
3 years
5 years
Warranty (Distance)
Unlimited
200,000 km
Unlimited
Years on Sale
1 - 8 years
1 year
5 years
Service Interval
12 - 24 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,500 - 5,500 kg
3,500 kg
5,500 kg
Braked Towing Capacity
2,500 - 3,500 kg
2,000 kg
3,500 kg
Ground Clearance Unladen
195 - 210 mm
161 mm
214 mm
Payload Capacity
950 - 3,523 kg
950 kg
3,523 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
6,836 mm
2,040 mm
inc mirror: 2,427 mm
inc mirror: 2,427 mm
2,850 mm
| Specification | Measurement |
|---|---|
| Overall Length | 6,836 mm |
| Overall Width | 2,040 mm |
| Overall Width (Inc Mirror) | 2,427 mm |
| Overall Height | 2,850 mm |
| Wheelbase | 4,490 mm |
| Load Capacity | 700 mm |
Looking for complete Volkswagen Crafter size & space specs?
Our Volkswagen Crafter Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Volkswagen Crafter Sales rolling 12-months#
Explore Volkswagen Crafter Features & Specs
Cruise Control
Adaptive Cruise Control: yes
Embedded Infotainment User Interface
UI Number of Months Online Services: Unlimited
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink: yes
Mirrorlink Months Subscription Included: Unlimited
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Remote Services
Driving History Analysis: yes
Find My Car: yes
Location Sharing: yes
Months Subscription Included: 60
Vehicle Diagnostics: yes
Telematics
Advanced Auto Collision Notification: yes
Concierge Months Included: 0
Connection Type: Via Sim In Vehicle
USB Charging Port
Location: Front
Number of Ports in Front: 2
Compressor
Compressor: Turbo
Number of Compressors: 2
Electrical System
Voltage: 12
Emission Control Level
Standard Met: EU6
Engine
Engine (cc): 1968
Engine Configuration: In-Line
Engine (L): 2.0
Number of Cylinders: 4
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel Tanks
Main Capacity Gal: 19.8
Main Capacity (L): 75
Main Capacity Uk Gallons: 16.5
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 8.00
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 10.40
Power
Maximum Power (hp/PS): 177
Maximum Power (kW): 130
Maximum Torque (Nm): 410
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Transmission
Description: Automatic
Number of Simulated Gears: 0
Number of Speeds: 8
Shift Lever Location: Dash
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Electric
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Leaf
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 115
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: R
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 115
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: R
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: 1
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: Campervan
Cab Type: Single Cab
Local Body Type: Campervan
Roof Type: High
Wheelbase Type: Long
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Area Dimensions
Standard Measurement: Manufacturer'S Own
External Dimensions
Front Overhang (in): 39.4
Front Overhang (mm): 1000
Front Track (in): 70.4
Front Track (mm): 1788
Overall Height (in): 112.2
Overall Height (mm): 2850
Overall Length (in): 269.1
Overall Length (mm): 6836
Overall Width (in): 80.3
Overall Width Inc Mirror (in): 95.6
Overall Width Inc Mirror (mm): 2427
Overall Width (mm): 2040
Rear Overhang (in): 53.0
Rear Overhang (mm): 1346
Rear Track (in): 70.4
Rear Track (mm): 1788
Wall to Wall Turning Circle (ft): 52.5
Wall to Wall Turning Circle (mm): 16000
Wheelbase (in): 176.8
Wheelbase (mm): 4490
Cargo Doors
Passenger Height (in): 67.8
Passenger Height (mm): 1722
Location: Passenger
Passenger Operation: Sliding
Passenger Width (in): 51.6
Passenger Width (mm): 1311
Rear Height (in): 68.5
Rear Height (mm): 1740
Location: Rear
Rear Opening Angle: 180
Rear Operation: Double Hinged
Rear Width (in): 61.1
Rear Width (mm): 1552
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Sliding
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
LED Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Paint
External Colour: White
Two Tone: yes
Type: Metallic
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Black
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Unbraked (kg): 700
Gross Trailer Weight Unbraked (lb): 1543
Gross Vehicle Weight (kg): 4300
Gross Vehicle Weight (lb): 9480
Payload Allowance (kg): 700
Payload Allowance (lb): 1543
Published Kerb Weight (kg): 3600
Published Kerb Weight (lb): 7937
Tare Weight (kg): 3545
Audio System
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total 3rd Row USB Connections: 0
Total Front USB Connections: 2
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 4
Airbags
Number of Airbags: 6
Autonomous Drive
Level: 1 - Driver Assistance
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Seat Position: Center
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Overtaking Sensor
Active Without Turn Signal: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front
Front Seat
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Electric
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Electric
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 4
Configuration: 2+2
Below Seat Storage
Location: Passenger
Location: Rear
Cup Holders
Location: Front Seats
Air Conditioning
Type: Semi-Auto
Power Locks
Includes Trunk Hatch: yes
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
